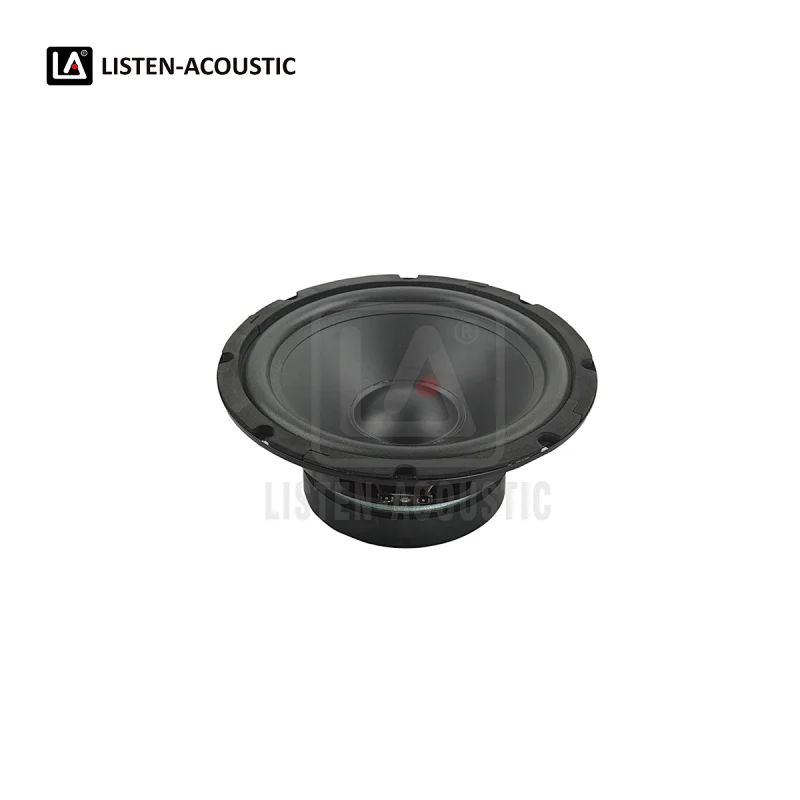

8 Inch Bass / Mid Range Woofer with RMS 100 Watts
8 Inch Bass / Mid Range Woofer with RMS 100 Watts
8 Inch Bass / Mid Range Woofer with RMS 100 Watts
8 Inch Bass / Mid Range Woofer with RMS 100 Watts

8 Inch Bass / Mid Range Woofer with RMS 100 Watts

Model NO.:
8SB38-2
Delivery:
FOB
Minimum order quantity:
500 sets
Supply Ability:
60,000 sets / Month
Country of Origin:
Ningbo, China
Stock Time:
35 Days
Nominal Diameter 8 Inch / (210 x 210 mm), Power Handling 100 watts, Sensitivity 91 dB, Frequency Response 70 Hz - 3.5 kHz, Voice Coil Diameter 1.5 Inch / 38 mm
 Features

1. Nominal Diameter  8"/ 210 mm
2. Power Handling 100 watts
3. Sensitivity 91 dB
4. Frequency Response   70 Hz - 3.5 kHz
5. Voice Coil Diameter 1.5"/ 38 mm
6. Ferrite Magnet  30 Oz
7. Pressed Steel Chassis type
8. Applications as bass / mid range woofer for PA speaker

 Specifications

SPECIFICATIONS
Model No.8SB38-2
Nominal Diameter8"/ 210 mm
RMS Power100 watts
MAX Power200 watts
Sensitivity (1w/1m)91 dB
Frequency Range70 Hz - 3.5 kHz
Voice Coil Diameter1.5"/ 38 mm
Available Impedances8 Ω
Magnet Size30 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPP
Suspension MaterialPolycotton
Surround MaterialFoam
Cone MaterialPP
THIELE SMALL PARAMETERS
Fs65 Hz
Qes0.9
Qms12.43
Qts0.84
Vas15.59 L
Sd0.0219 m2
η00.51%
Mms23.93 g
BI8.37 Txm
Cms0.23 mm/N
Rms0.82 WM
Le1k0.73 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter8.23"/ 209 mm
Bolt Circle Diameter 7.72"/ 196 mm
Baffle Cut-out Diameter7.20"/ 183 mm
Overall Depth3.43"/ 87 mm
Net Weight2.00 kgs / 4.41 lbs
