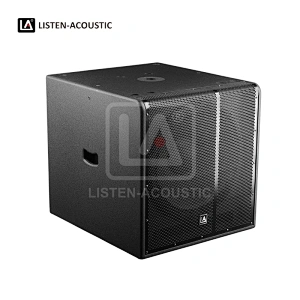

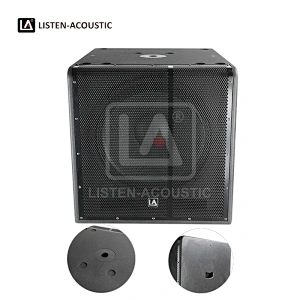

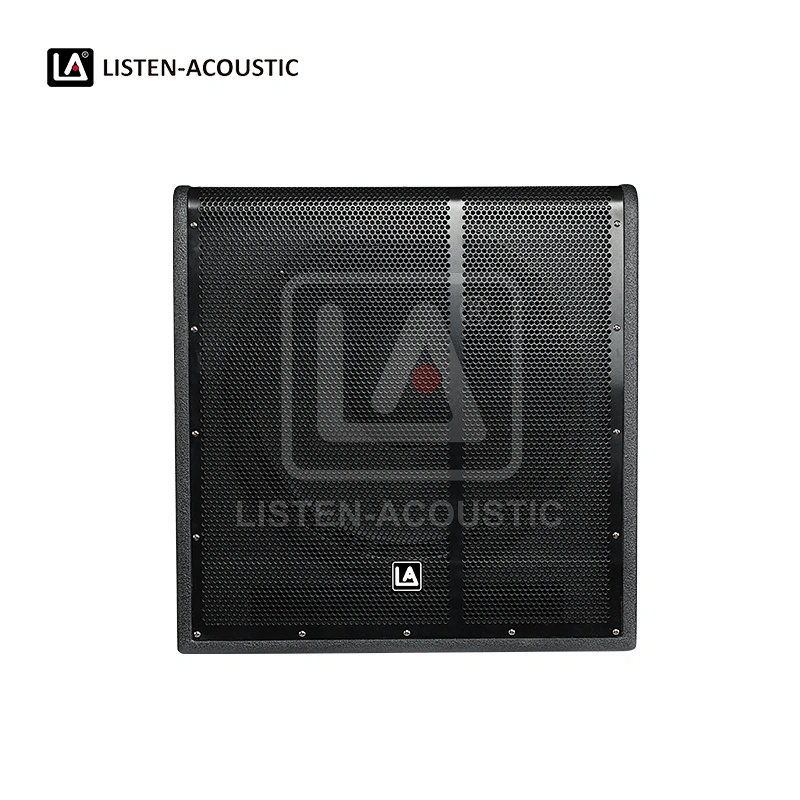

| Model No. | PXL-15S | PXL-15SD2 |
| Type | 15'' bass reflex, passive | 15'' bass reflex, active |
| Frequency Response (-6dB) | 50 Hz - 200 Hz | |
| Max. SPL(1m, free space) | 120 dB | |
| Impedance | 4Ohms | |
| Transducer LF | 15"subwoofer Alu frame, 4"KSV voice coil, 100oz | |
| Enclosure | 15mm plywood with sand painting, Φ35 stand adaptor | |
| Grille | Metal grille with acoustic fabric | |
| Amplifier | / | Class-D amplifier |
| Power Output (RMS) | 700W | |
| DSP Module | / | LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display |
| Protection | / | Short circuit overheating, over-current |

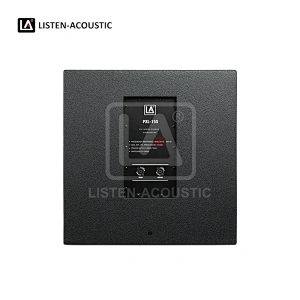

| Controls | / | Power On / Off switch, main level, DSP modes switch, phase switch |
| Indicators | / | Power, limit |
| Audio Input / Output | Speakon | Left / Right XLR line input Left / Right XLR line output 1 * XLR output 1 * XLR output highpass 120Hz |
| Power Supply | 100~130V 50/60HZ 210~250V 50/60HZ | |
