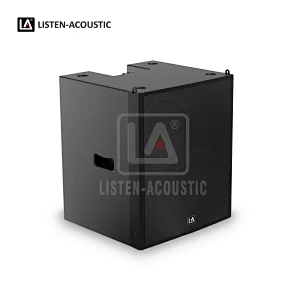

S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer
S2-210D Active Line Array Subwoofer

S2-210D Active Line Array Subwoofer

Model NO.
S2-210D
Dual 10" active bass reflex,flyable
Quantity:

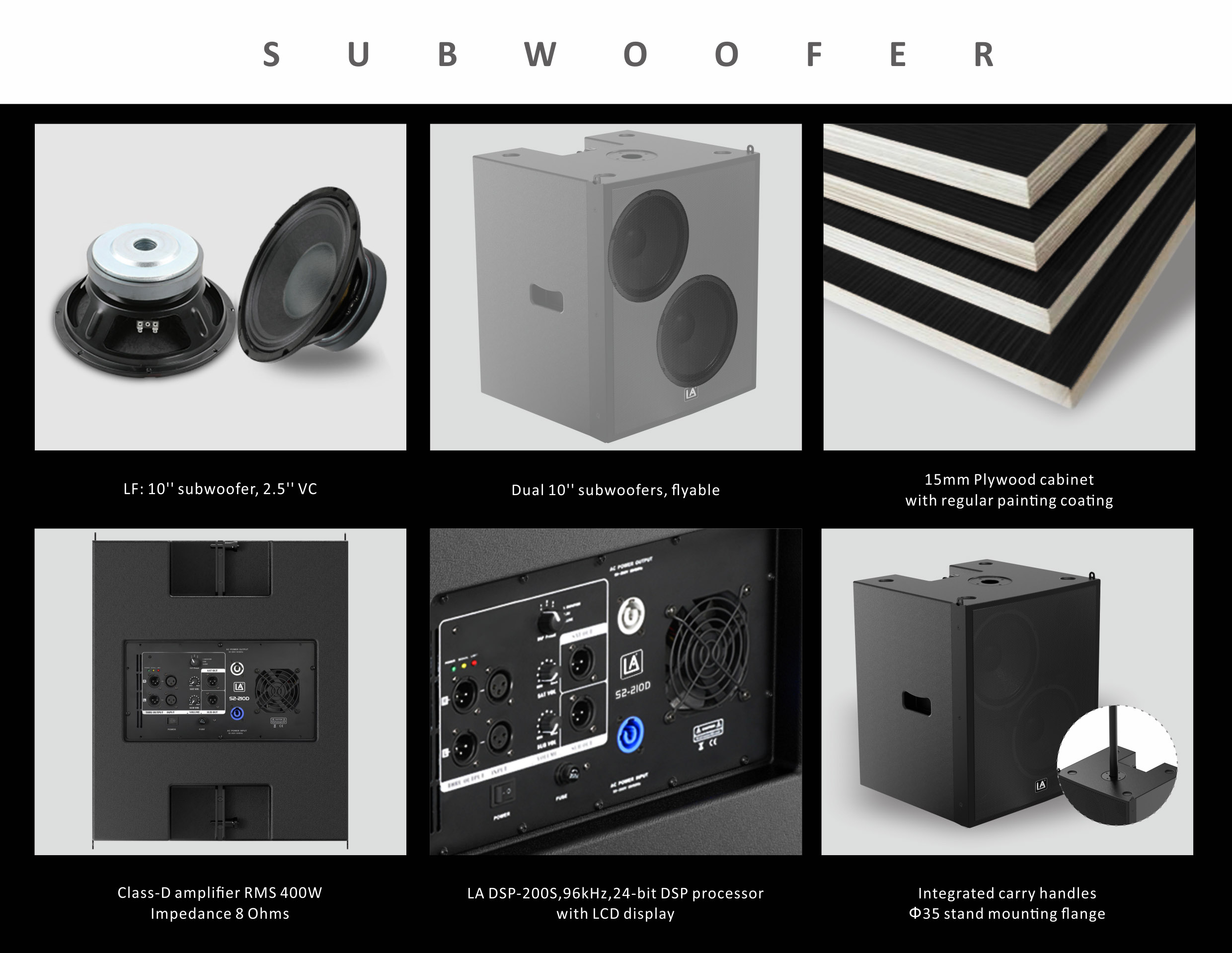

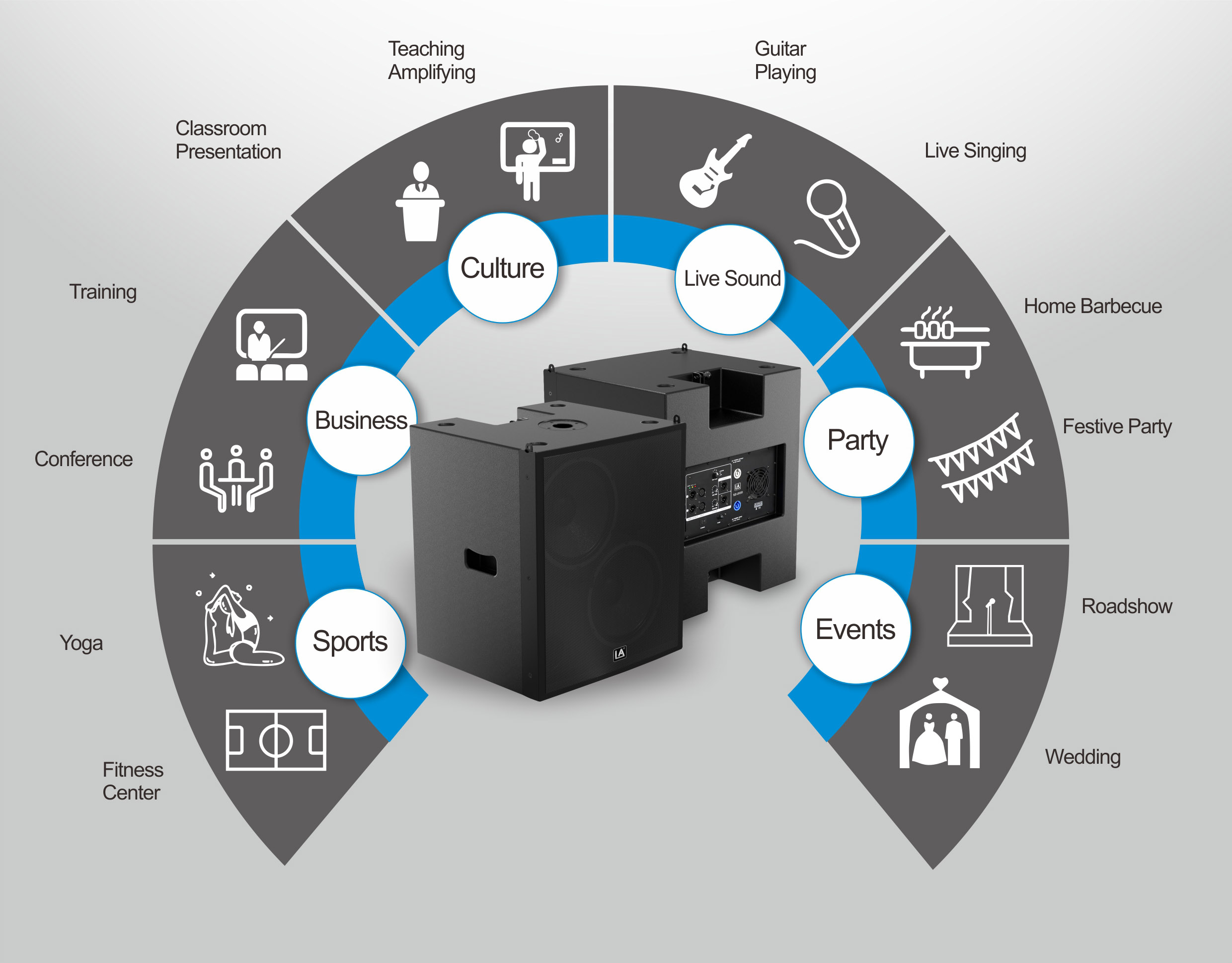

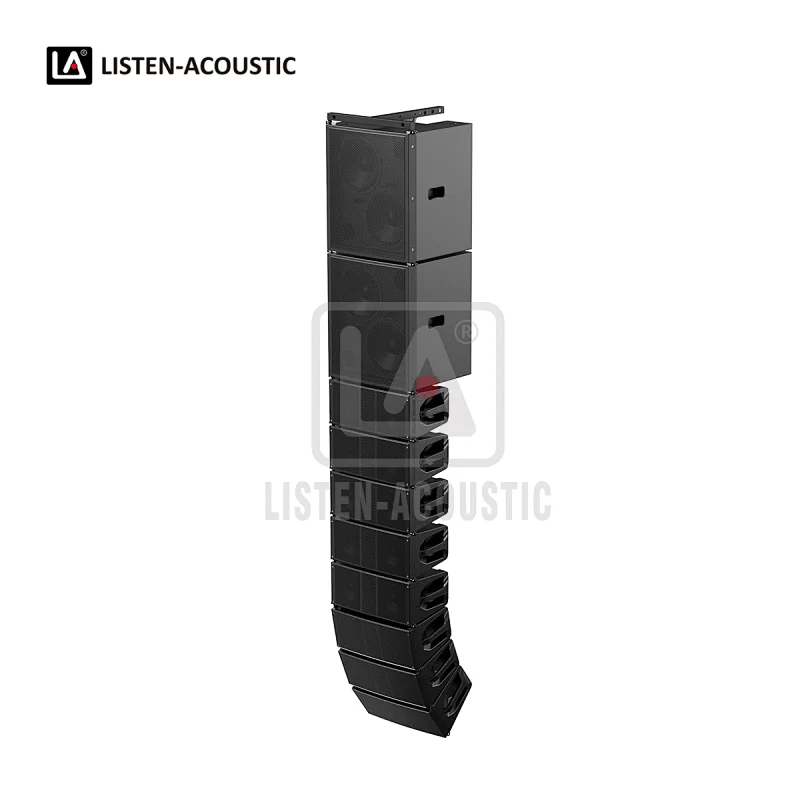

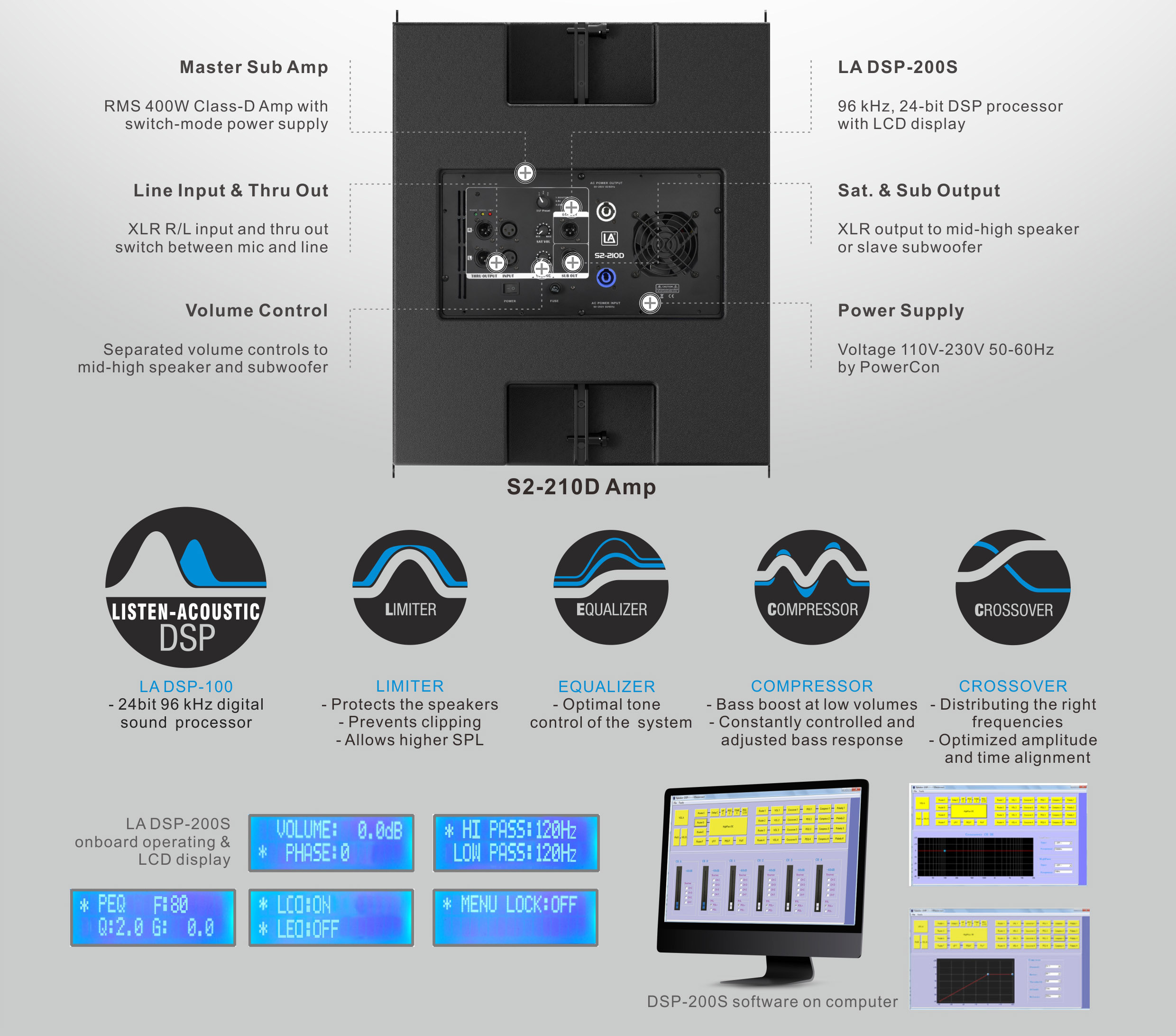

S2-210D Active Line Array Subwoofer √ Flyable Bass Complement √ Stackable and scalable design √ 15mm Plywood cabinet with regular painting coating √ Dual 10S2-210D ACTIVE LINE ARRAY SUBWOOFER The S2-210D is the ideal flyable bass complement for the S2-MD array system.SUBWOOFER LF: 10'' subwoofer, 2.5'' VC Dual 10'' subwoofers, flyable 15mm Plywood cabinet with regular painting coating Class-D amplifier RMS 400W Impedance 8 Ohms LA DSP-200S,96kHz,24-bit DSP processor with LCD display Integrated carry handles Փ35 stand mounting flangeMaster Sub Amp RMS 400W Class-D Amp with switch-mode power supply Line Input & Thru Out XLR R/L input and thru out switch between mic and line Volume Control Separated volume controls to mid-high speaker and subwoofer LA DSP-200S 96 kHz, 24-bit DSP processor with LCD display Sat. & Sub Output XLR output to mid-high speaker or slave subwoofer Power Supply Voltage 110V-230V 50-60Hz by PowerConQuick ConfigurationsS2-MINI For audiences of up to 150 Short-Throw setup Applications: Presentation events, Public speech, Small venues, Cafes, Bars, Stage fillsS2-STAND For audiences of up to 300 Short-to Medium-Throw setup Applications: Stage fills, Mid-sized touring, Clubs, Outdoor stages, Concert venuesFor audiences of up to 1000 Medium-Throw setup Applications: Touring, Live concerts, Small festivals, Multipurpose halls, Event centersFor audiences of up to 2000 Far-Throw setup Applications: Touring, Live concerts, Big festivalsTeaching Amplifying Classroom Presentation Training Conference Yoga Fitness Center Guitar Playing Live Singing Home Barbecue Festive Party Roadshow Wedding Culture Business Sports Live Sound Party Events

Model No.S2-210D
TypeDual 10'' active bass reflex, flyable
Frequency Response (-6dB)45 Hz - 120 Hz
Max. SPL (1m, free space)117 dB
Power Output (RMS)400W
Impedance8 Ohms
Transducer LF2 * 10"subwoofer, 2.5"VC
AmplifierClass-D amplifier
DSP ModuleLA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display and USB for adjustment in computer
ProtectionShort circuit overheating, over-current
ControlsPower On / Off switch, main level, mic/line level
IndicatorsPower, signal, limit
Audio Input / Output1 * Combo XLR/Jack input, 1 * XLR input, 1 * XLR output
Power Input / OutputPowerCon
Power Supply100V~250V 50/60HZ
Enclosure15 mm MDF &Plywood Cabinet with regular painting
GrilleMetal grille
Package Measure450*510*415 mm
Gross Weight19 kgs
