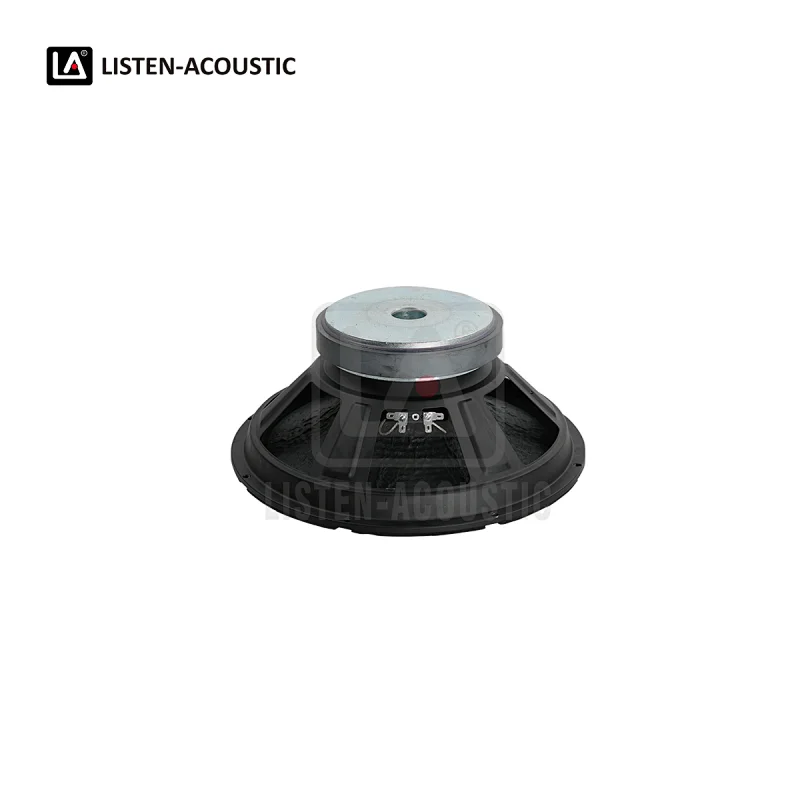

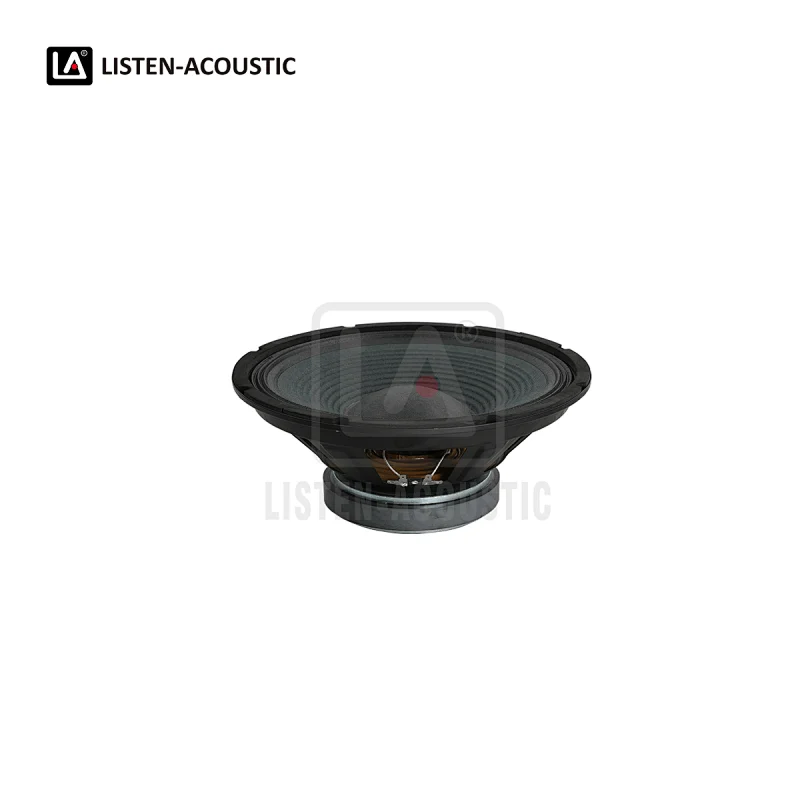

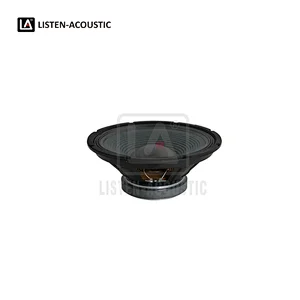

12 Inch Mid / High Range Woofer with RMS 250 Watts

Model NO.
12SA65-1
Delivery
FOB
Minimum order quantity
500 sets
Supply Ability
60,000 sets / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 12 Inch / (310 x 310 mm), Power Handling 250 watts, Sensitivity 95 dB, Frequency Response 50 Hz - 4.5 kHz, Voice Coil Diameter 2.5 Inch / 65 mm
Quantity:
12 inch 250w speakers Mid / High Range Woofer
Features

1. Nominal Diameter 12"/ 310 mm
2. Power Handling 250 watts
3. Sensitivity 95 dB
4. Frequency Response 50 Hz -4.5 kHz
5. Voice Coil Diameter 2.5"/ 65 mm
6. Ferrite Magnet 50 Oz
7. Pressed Steel Chassis type
8. Applications as mid high range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.12SA65-1
Nominal Diameter12"/ 310 mm
RMS Power250 watts
MAX Power500 watts
Sensitivity (1w/1m)95 dB
Frequency Range50 Hz -4.5 kHz
Voice Coil Diameter2.5"/ 65 mm
Available Impedances4 / 8 Ω
Magnet Size50 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs45 Hz
Qes0.59
Qms5.7
Qts0.54
Vas13.89 L
Sd0.0125 m2
η01.60%
Mms63.00 g
BI12.70 Txm
Cms0.25 mm/N
Rms3.52 WN
Le1k0.83 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter12.01"/ 305 mm
Bolt Circle Diameter 11.57"/ 294 mm
Baffle Cut-out Diameter11.14"/ 283 mm
Overall Depth4.92"/ 125 mm
Net Weight2.95 kgs / 6.51 lbs
