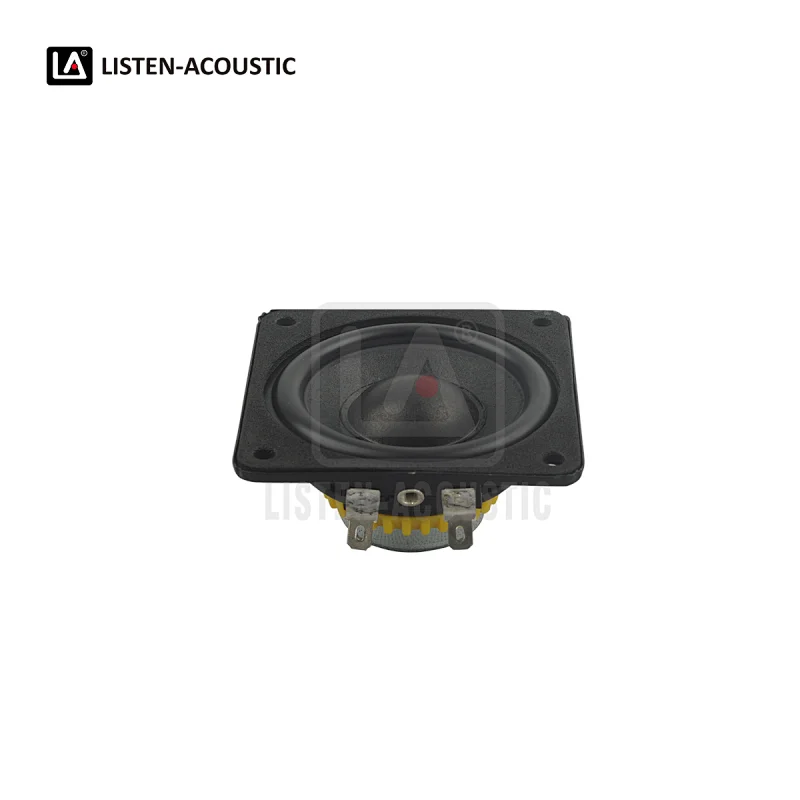

2.75 Inch Bass / Mid Range Woofer with RMS 15 Watts

Model NO.
275SA25N-1
Delivery:
FOB
Minimum order quantity:
500 sets
Supply Ability:
60,000 sets / Month
Country of Origin:
Ningbo, China
Stock Time:
35 Days
Nominal Diameter 2.75 Inch / (70 x 70 mm), Power Handling 15 watts, Sensitivity 90 dB, Frequency Response 170 Hz - 17 kHz, Voice Coil Diameter 1.0 Inch / 25 mm
Quantity:

Listen Acoustic 2.75 inch Mid Range Woofer Speakers
Features

1. Nominal Diameter 2.75"/ (70 x 70 mm)
2. Power Handling 15 watts
3. Sensitivity 90 dB
4. Frequency Response 170 Hz - 17 kHz
5. Voice Coil Diameter 1.0"/ 25 mm
6.Neodymium Magnet 23 mm
7. Pressed Steel Chassis type
8. Applications as bass mid range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.275SA25N-1
Nominal Diameter2.75"/ ( 70 x 70 mm)
RMS Power15 watts
MAX Power30 watts
Sensitivity (1w/1m)90 dB
Frequency Range170 Hz - 17 kHz
Voice Coil Diameter1.0"/ 25 mm
Available Impedances4 / 8 Ω
Magnet Size23 mm
Magnet MaterialNeodymium
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialPU
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs160 Hz
Qes0.42
Qms3.72
Qts0.39
Vas0.28 L
Sd0.0023 m2
η00.44%
Mms1.90 g
BI4.73 Txm
Cms0.36 mm/N
Rms0.62 WM
Le1k0.00 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter3.35"/ 85 mm
Bolt Circle Diameter 2.85"/ 72.5 mm
Baffle Cut-out Diameter2.36"/ 60 mm
Overall Depth1.34"/ 34 mm
Net Weight0.11 kgs / 0.24 lbs

Send Message

*
* clear input
*
* clear input
* clear input
* clear input
* clear input
* clear input

Related Products

acoustic bass,subwoofer,speaker,Bass Mid Range Woofer
2.75 Inch speaker amplifier with RMS 15 Watts
Model NO. 275SA25N-2
acoustic bass,electric bass,subwoofer,speakers,Neodymium Full Range Woofer
3.5 Inch Neodymium Full Range Woofer RMS 20 Watts
Model NO. 35SB25N-1
acoustic bass,neodymium woofer,subwoofer,speakers,Mid and High Range Woofer
3 Inch Mid / High Range Woofer with RMS 20 Watts
Model NO. 3SA20-1
acoustic bass,Mid and High Range Woofer,subwoofer,speakers
4 Inch Mid / High Range Woofer with RMS 20 Watts
Model NO. 4SA25-1
acoustic bass,subwoofer,speakers,Economical Bass and Mid Range Woofer
4 Inch Economical Bass / Mid Range Woofer with RMS 25 Watts
Model NO. 4SB25-2
acoustic bass,subwoofer,speakers,Mid High Range Woofer, Woofers
6.5 Inch Mid and High Range Woofer with RMS 30 Watts
Model NO. 65AA38-1
acoustic bass,subwoofer,speakers,mid range woofer
6.5 Inch Sub / Bass / Mid Range Woofer with RMS 40 Watts
Model NO. 65SA38-2
Mid Range woofer, subwoofer, speakers, acoustic bass, Economical Bass, 8 inch bass mid range woofer with rms 70 watts, Woffers, 8 inch Mid Range Speaker

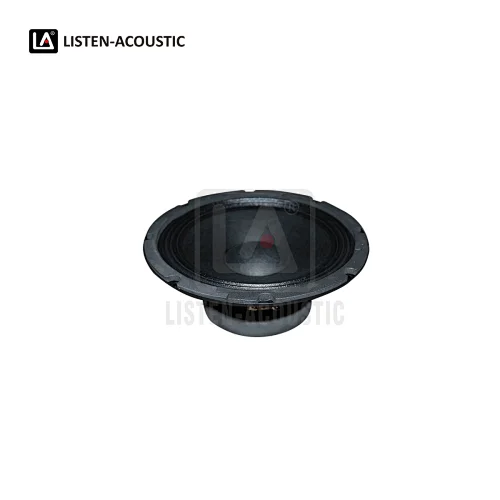

8 Inch Bass / Mid Range Woofer with RMS 70 Watts
