24-Bit Digital Signal Processing with User-Friendly Interface

Model NO.
DSP
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
40 Days
Optional Connect 2 In / 4 Out, 2IN/6OUT , 2IN/8OUT , 3IN/6OUT , 4IN/6OUT , 4IN/8OUT
Quantity:

1U audio processor digital signal processing

Features

1.24Bit Digital Processing,System delay is low2.2mS

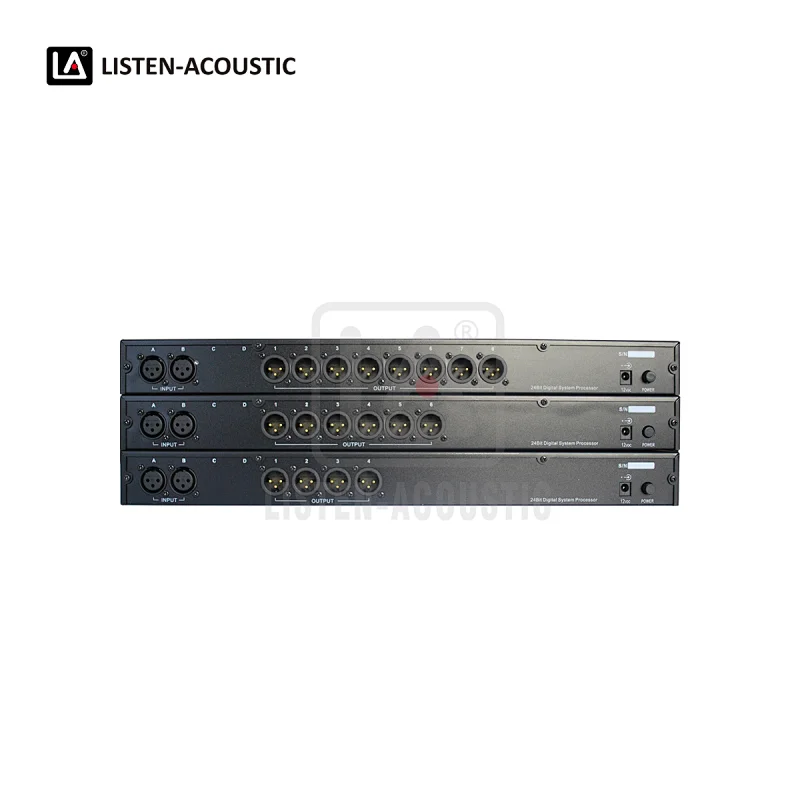

2.Single rack space with XLR audio connections
3.Balanced inputs and output ,USB interface
4.Crossover,peq,delay and limiter functions
5.Linkwitz-Riley,Bessel and Butterworth filters
6.Extremely intuitive user interface
7.12,18,24 and 48dB/octave slopes
8.Outputs assignable to any input

Specifications

Model No.DSP-24DSP-26
Type24-Bit Digital Signal Processing with User-Friendly Interface
Connect2 In / 4 Out2 In / 6 Out
InputsConnectors:Balanced XLR(pin 2 hot)
Impedance:Balanced 40kΩ,unbalanced kΩ
Input Level:>+10dBu , CMRR:>80dB,at 1KHz
OutputConnectors:Balance XLR (pin2 hot)
Impedance:Balance:200,unbalance:100Ω
Max level :>+20dBu,Balance into 2kΩ
PEQEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
CrossoverEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
HPF and LPF Frequency Range :19.7Hz to 21.9KHz
Off Available Filter Types :
12dB/Oct Butterworth/Bessel/Linkwitz-Riley
18dB/Oct Butterworth/Bessel/Linkwitz-Riley
24dB/Oct Butterworth/Bessel/Linkwitz-Riley
48dB/Oct Butterworth/Bessel/Linkwitz-Riley
LimiterAttack Time Range: 0.5ms to 50ms
Threshold Range: -20dBu to +20dBu
Release Time Range: 10ms to 1 Second
DelayInputs: 0mS to 680mS / Outputs: 0mS to 21mS
Syetem PerformanceFrequency Range :20Hz-20KHz +0.25dB/-0.25dB
Dynamic Range:>114dB
SNR:>112dB, THD+N :<0.002%
Crosstalk:> -90Db,20Hz - 20KHz
Audio Sampling Rate:>48KHz
Propagation Delay:2.2mS

Model No.DSP-28DSP-36
Type24-Bit Digital Signal Processing with User-Friendly Interface
Connect2 In / 8 Out3 In / 6 Out
InputsConnectors:Balanced XLR(pin 2 hot)
Impedance:Balanced 40kΩ,unbalanced kΩ
Input Level:>+10dBu , CMRR:>80dB,at 1KHz
OutputConnectors:Balance XLR (pin2 hot)
Impedance:Balance:200,unbalance:100Ω
Max level :>+20dBu,Balance into 2kΩ
PEQEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
CrossoverEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
HPF and LPF Frequency Range :19.7Hz to 21.9KHz
Off Available Filter Types :
12dB/Oct Butterworth/Bessel/Linkwitz-Riley
18dB/Oct Butterworth/Bessel/Linkwitz-Riley
24dB/Oct Butterworth/Bessel/Linkwitz-Riley
48dB/Oct Butterworth/Bessel/Linkwitz-Riley
LimiterAttack Time Range: 0.5ms to 50ms
Threshold Range: -20dBu to +20dBu
Release Time Range: 10ms to 1 Second
DelayInputs: 0mS to 680mS / Outputs: 0mS to 21mS
Syetem PerformanceFrequency Range :20Hz-20KHz +0.25dB/-0.25dB
Dynamic Range:>114dB
SNR:>112dB, THD+N :<0.002%
Crosstalk:> -90Db,20Hz - 20KHz
Audio Sampling Rate:>48KHz
Propagation Delay:2.2mS

Model No.DSP-46DSP-48
Type24-Bit Digital Signal Processing with User-Friendly Interface
Connect4 In / 6 Out4 In / 8 Out
InputsConnectors:Balanced XLR(pin 2 hot)
Impedance:Balanced 40kΩ,unbalanced kΩ
Input Level:>+10dBu , CMRR:>80dB,at 1KHz
OutputConnectors:Balance XLR (pin2 hot)
Impedance:Balance:200,unbalance:100Ω
Max level :>+20dBu,Balance into 2kΩ
PEQEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
CrossoverEQ Filter Types:1st or 2nd Order High or Low Shelf
Parametric / Boost/Cut Range: +15dB/-30dB
Frequency Range:19.7Hz to 21.9KHz
Filter Bandwidth: 4 Oct to 0.016 Oct
HPF and LPF Frequency Range :19.7Hz to 21.9KHz
Off Available Filter Types :
12dB/Oct Butterworth/Bessel/Linkwitz-Riley
18dB/Oct Butterworth/Bessel/Linkwitz-Riley
24dB/Oct Butterworth/Bessel/Linkwitz-Riley
48dB/Oct Butterworth/Bessel/Linkwitz-Riley
LimiterAttack Time Range: 0.5ms to 50ms
Threshold Range: -20dBu to +20dBu
Release Time Range: 10ms to 1 Second
DelayInputs: 0mS to 680mS / Outputs: 0mS to 21mS
Syetem PerformanceFrequency Range :20Hz-20KHz +0.25dB/-0.25dB
Dynamic Range:>114dB
SNR:>112dB, THD+N :<0.002%
Crosstalk:> -90Db,20Hz - 20KHz
Audio Sampling Rate:>48KHz
Propagation Delay:2.2mS
