Class D 1U Rack Amplifier with DSP

Model NO.
DAP-D
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
40 Days
Optional output RMS (8Ω, 1kHz): 2 * 350W, 2 * 850W+Amplifier with DSP
Quantity:

Subwoofer Amp

Features

1. 1U ultra-thin design
2. Class D power amplifier with switch power
3. Each channel has independent Clip Limiter and Low Filter
4. Complete amplifier protection
5. Stereo and Bridge Mono modes of operation
6. Built in 24Bit/96Khz Digital Audio Processor

Specifications

Model NO.DAP3502DDAP9002D
TypeClass D 1U Rack Amplifier with DSPClass D 1U Rack Amplifier with DSP
Output RMS(8Ω, 1kHz)2 * 350W2 * 850W
(4Ω, 1kHz)2 * 550W2 * 1400W
BTL: (8Ω, 1kHz)1100W/
Frequency Response20 Hz - 20 kHz±3dB 20 Hz - 20 kHz±3dB
TND1% (8Ω, 350W)1% (8Ω, 850W)
Input Sensitivity+4dB * (1.23V)+4dB * (1.23V)
Input Impedance10kΩ (Balanced)10kΩ (Balanced)
S/N Ratio≥80dB≥80dB

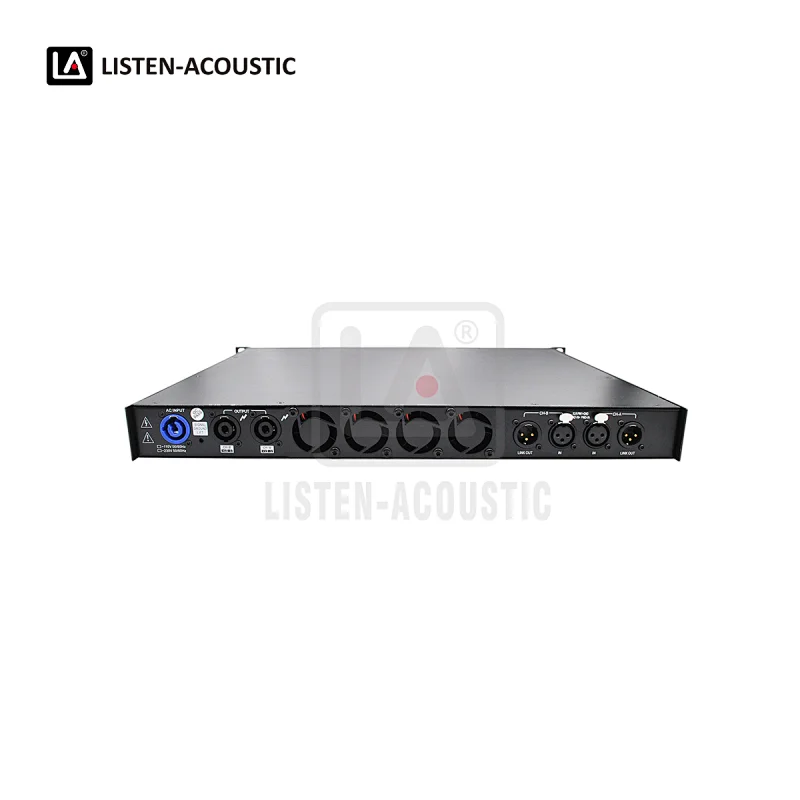

ConnectorInput (CH1-2): XLR input connector
Output (CH1-2): SPEAKON output
Power: AC Power Supply
Input (CH1-2): XLR input connector
Output (CH1-2): SPEAKON output
Power: AC Power Supply
IndicatorsPower Indicator * 1 (Green)
Input Indicator * 2 (Yellow)
Peak Indicator * 2 (Red)
Protect Indicator * 1 (Red)

Power Indicator * 1 (Green)

Input Indicator * 2 (Yellow)

Peak Indicator * 2 (Red)

Feedback Protect Indicator * 1 (Red)

Power Supply

AC 110~120V 50/60Hz or

AC 220~240V 50/60Hz

AC 110~120V、50/60HZ

AC 220~240V 50/60HZ

Power Comsumption at 1/8 Power110W275W
Working Temperature Range0~50℃0~50℃
Working Humidity RangeUnder 90% RH(But it can not be condensation)Under90% RH(But it can not be condensation)
Dimensions483mm * 45mm * 240mm (19'', 1U)483mm * 45mm * 355mm (19'', 1U)
Net Weight3.40kg5.50kg
