1U Class-D Amplifier
1. 1U ultra-thin design

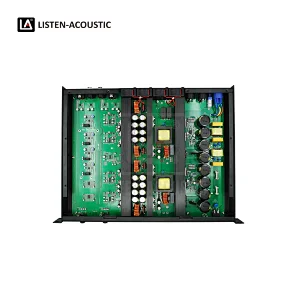

2. Class D power amplifier with switch power
3. Each channel has independent Clip Limiter and Low Filter
4. Complete amplifier protection
5. Stereo and Bridge Mono modes of operation
| Model NO. | DAP3502 | DAP6502 |
| Type | Class D 1U Rack Amplifier | Class D 1U Rack Amplifier |
| Output RMS | (8Ω, 1kHz) | 2 * 350W | 2 * 650W |
| (4Ω, 1kHz) | 2 * 550W | 2 * 1050W |
| BTL: (8Ω, 1kHz) | 1100W | / |
| Frequency Response | 20 Hz - 20 kHz±3dB | 20 Hz - 20 kHz±3dB |
| TND | 1% (8Ω, 350W) | 1% (8Ω, 650W) |
| Input Sensitivity | +4dB * (1.23V) | +4dB * (1.23V) |
| Input Impedance | 10kΩ (Balanced) | 10kΩ (Balanced) |
| S/N Ratio | ≥80dB | ≥80dB |
| Connector | Input (CH1-2): XLR input connector
Output (CH1-2): SPEAKON output
Power: AC Power Supply | Input (CH1-2): XLR input connector
Output (CH1-2): SPEAKON output
Power: AC Power Supply |
| Indicators | Power Indicator * 1 (Green)
Input Indicator * 2(Yellow)
Peak Indicator * 2 (Red)
Protect Indicator * 1 (Red) | Power Indicator * 1(Green) Input Indicator * 2(Yellow) Peak Indicator * 2 (Red) Feedback Protect Indicator* 1(Red) |
| Power Supply | AC 110~120V 50/60Hz or AC 220~240V 50/60Hz | AC 110~120V 50/60Hz or AC 220~240V 50/60Hz |
| Power Comsumption at 1/8 Power | 110W | 210W |
| Working Temperature Range | 0~50℃ | 0~50℃ |
| Working Humidity Range | Under 90% RH（But it can not be condensation) | Under90% RH（But it can not be condensation) |
| Dimensions | 483mm * 45mm * 240mm (19'', 1U) | 483mm * 45mm * 355mm (19'', 1U) |
| Net Weight | 3.40kg | 5.50kg |
| Model NO. | DAP9002 | DAP3504 |
| Type | Class D 1U Rack Amplifier | Class D 1U Rack Amplifier |
| Output RMS | (8Ω, 1kHz) | 2 * 850W | 4 * 350W |
| (4Ω, 1kHz) | 2 * 1400W | 4 * 550W |
| BTL: (8Ω, 1kHz) | / | 2 * 1100W |
| Frequency Response | 20 Hz - 20 kHz±3dB | 20 Hz - 20 kHz±3dB |
| TND | 1% (8Ω, 850W) | 1% (8Ω,350W) |
| Input Sensitivity | +4dB * (1.23V) | +4dB * (1.23V) |
| Input Impedance | 10kΩ (Balanced) | 10kΩ (Balanced) |
| S/N Ratio | ≥80dB | ≥80dB |
| Connector | Input (CH1-2): XLR input connector
Output (CH1-2): SPEAKON output
Power: AC Power Supply | Input (CH1-2): XLR input connector
Output (CH1-2): Phoenix plug
Power: AC Power Supply |
| Indicators | Power Indicator * 1 (Green) Input Indicator * 2 (Yellow) Peak Indicator * 2 (Red) Feedback Protect Indicator * 1 (Red) | Power Indicator * 1 (Green) Input Indicator * 4 (Yellow) Peak Indicator * 4 (Red) Feedback Protect Indicator * 1 (Red) |
| Power Supply | AC 110~120V、50/60HZ AC 220~240V 50/60HZ | AC 110~120V 50/60HZ AC 220~240V 50/60HZ |
| Power Comsumption at 1/8 Power | 275W | 230W |
| Working Temperature Range | 0~50℃ | 0~50℃ |
| Working Humidity Range | Under90% RH（But it can not be condensation) | Under90% RH（But it can not be condensation） |
| Dimensions | 483mm * 45mm * 355mm (19'', 1U) | 483mm * 45mm * 355mm (19'', 1U) |
| Net Weight | 5.50kg | 5.50kg |
| Model NO. | DAP2506 | DAP1508 |
| Type | Class D 1U Rack Amplifier | Class D 1U Rack Amplifier |
| Output RMS | (8Ω, 1kHz) | 6 * 250W | 8 * 150W |
| (4Ω, 1kHz) | 6 * 450W | 8 * 250W |
| BTL: (8Ω, 1kHz) | 3 * 800W | 4 * 500W |
| Frequency Response | 20 Hz - 20 kHz±3dB | 20 Hz - 20 kHz±3dB |
| TND | 1% (8Ω,150W) | 1% (8Ω,150W) |
| Input Sensitivity | +4dB * (1.23V) | +4dB * (1.23V) |
| Input Impedance | 10kΩ (Balanced) | 10kΩ (Balanced) |
| S/N Ratio | ≥80dB | ≥80dB |
| Connector | Input (CH1-6): Phoenix plug Output (CH1-6): Phoenix plug | Input (CH1-6): Phoenix plug Output (CH1-6): Phoenix plug |
| Indicators | Power Indicator * 1 (Green) Input Indicator * 6 (Yellow) Peak Indicator * 6 (Red) Feedback Protect Indicator * 1 (Red) | Power Indicator ×1 (Green) Input Indicator ×8 (Yellow) Peak Indicator ×8 (Red) Feedback Protect Indicator ×1 (Red) |
| Power Supply | AC 110~120V 50/60HZ AC 220~240V 50/60HZ | AC 110~120V 50/60HZ AC 220~240V 50/60HZ |
| Power Comsumption at 1/8 Power | 250W | 200W |
| Working Temperature Range | 0~50℃ | 0~50℃ |
| Working Humidity Range | Under90% RH(But it can not be condensation) | Under90% RH(But it can not be condensation) |
| Dimensions | 483mm * 45mm * 355mm (19'', 1U) | 483mm * 45mm * 355mm (19'', 1U) |
| Net Weight | 5.50kg | 5.50kg |
