Class-D Mono Subwoofer Amp RMS 1200W with DSP Preset Modes1200SM-DSP1

Specifications

Model No.	400SM-DSP1	800SM-DSP1	1200SM-DSP1
Amplifier	Class-D Mono Subwoofer Amp with DSP Preset Modes
DSP Module	LA DSP-100, 96 kHz, 24-bit DSP process or with preset modes: Speech, DJ, Live
Protection	Short circuit overheating, over-current
Power Output (RMS)	400W@8Ω	500W@8Ω & 800W@4Ω	700W@8Ω & 1200W@4Ω
Controls	Power On / Off switch, Sub volume, Phase switch
Indicators	Power, limit
Audio Input / Output	Right & Left XLR input & link out, Right & Left High Pass XLR
Power Supply	100 ~ 130V or 210 ~ 250V 50/60 Hz

Product Description

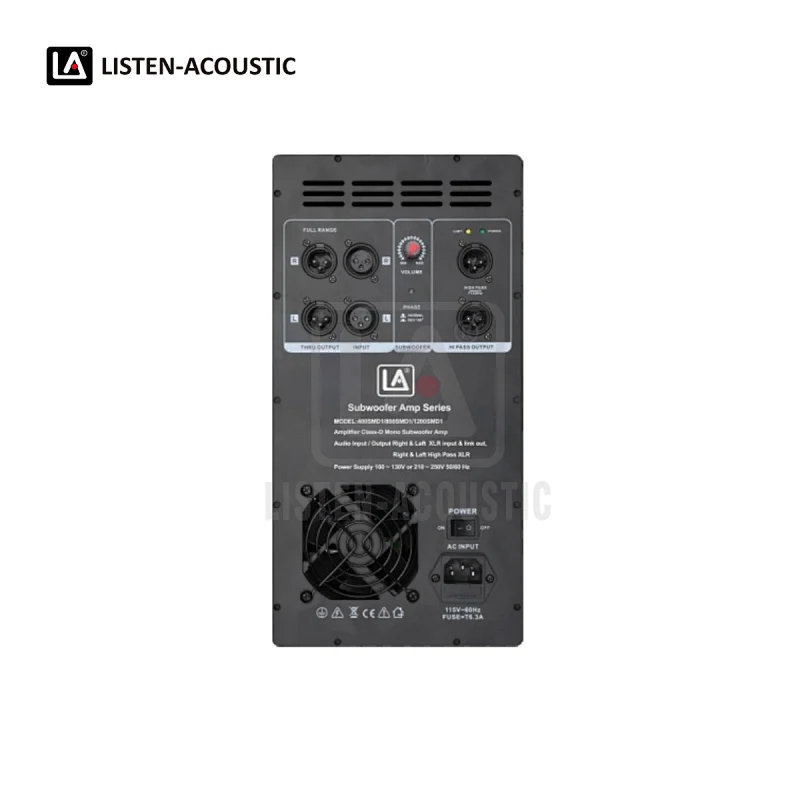

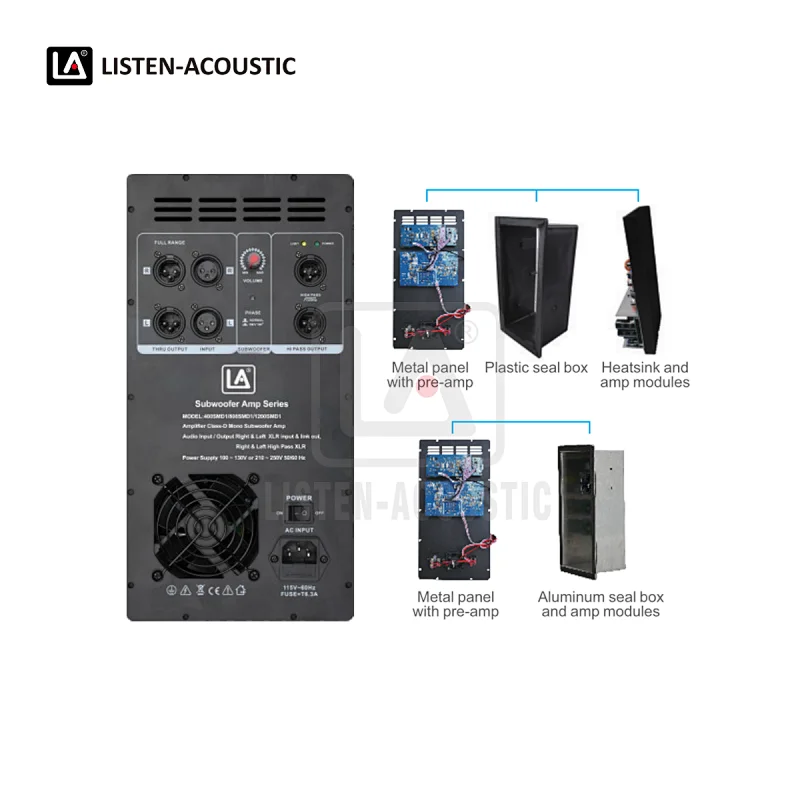

1200SM-DSP1 Class-D Mono Subwoofer Amp RMS 1200W with DSP Preset Modes

We can amplify everything. The versatility, quality and reliability of LA power technologies and audio solutions means, that they have found their way into all imaginable applications requiring audio. The audio solutions LA offers based on technologies and competences within class D amplifiers, switch mode power supplies, digital signal Processing DSP and system design.

From the bass guitarist's amplifier to the sound reinforcement speakers used in clubs and small venues to the massive line array speakers used at large live concerts, to the studio monitors in the recording studio, LA technologies are used, with the ability to tailor the amplifier, the crossover filter and advanced DSP to each individual driver enables more compact designs with better sound quality. Combining great sounding class D amplifiers with switch mode power supplies results in compact and efficient solutions.
