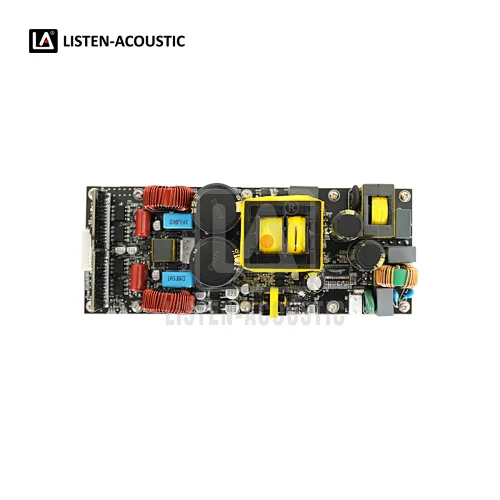

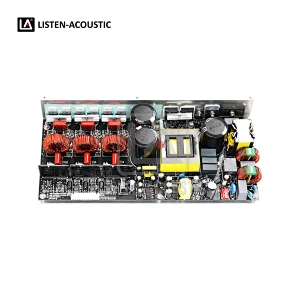

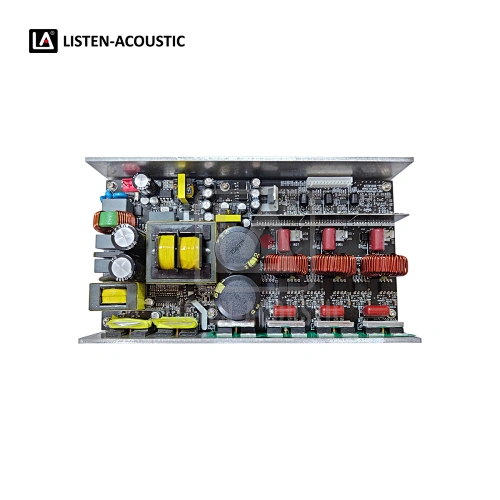

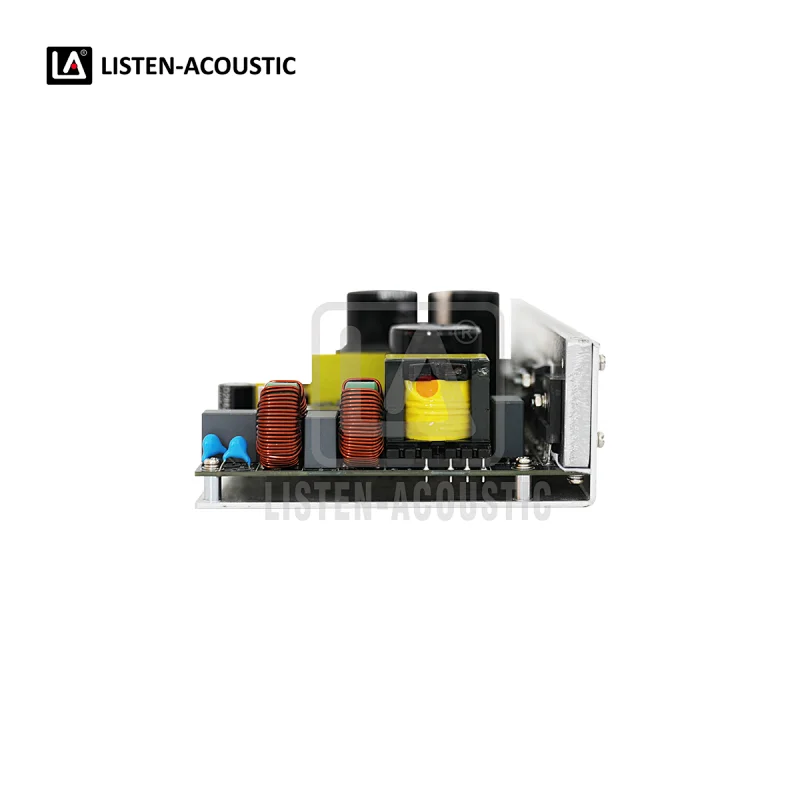

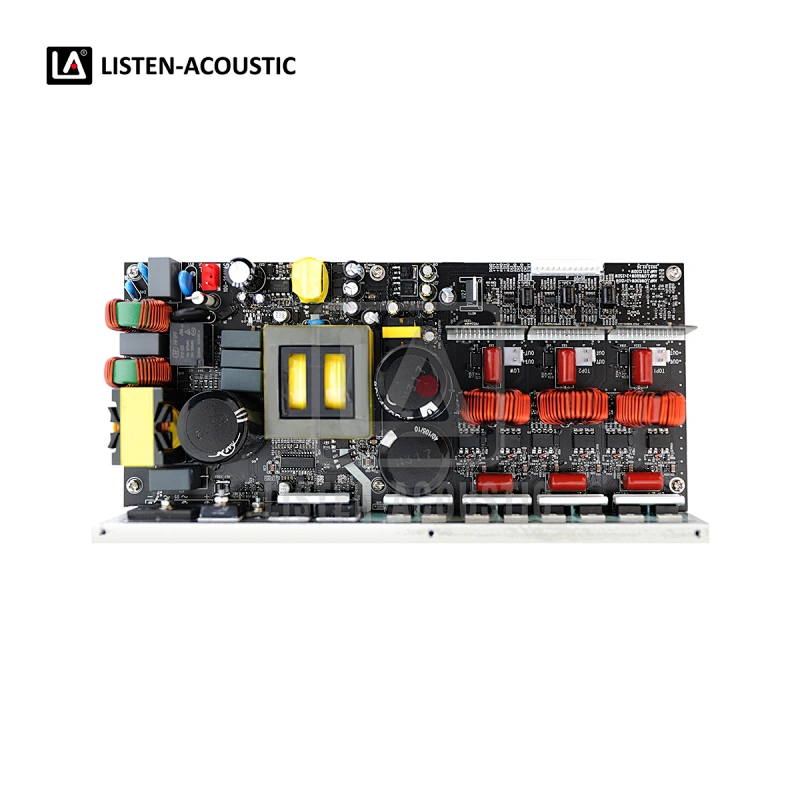

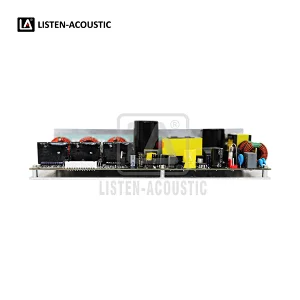

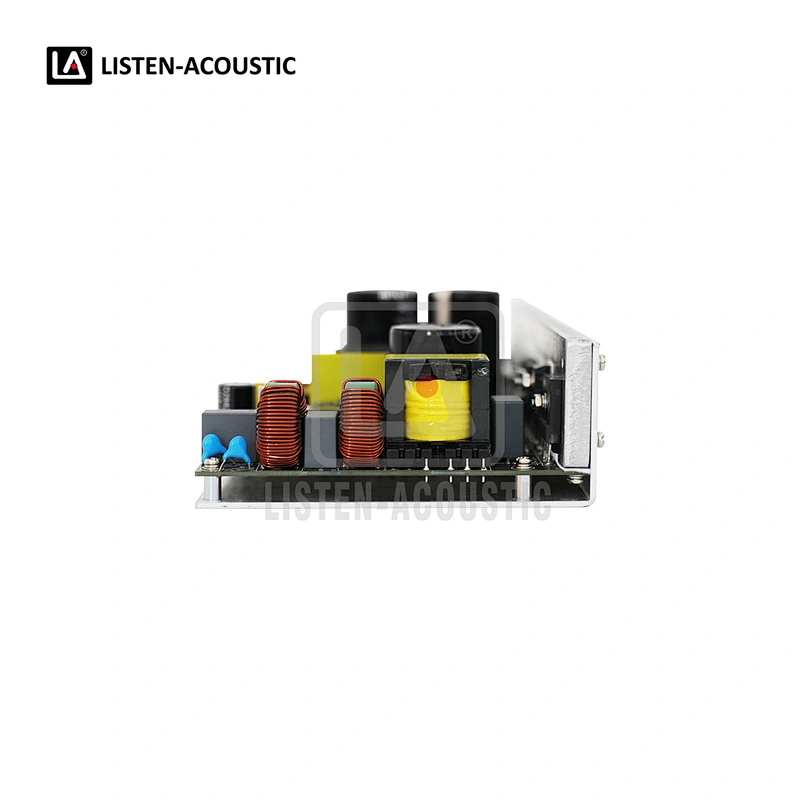

Class-D With PFC Technology S-HD Series

Model NO.
S-HD212/S-HD312
Delivery:
FOB
Minimum order quantity:
100 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
40 Days

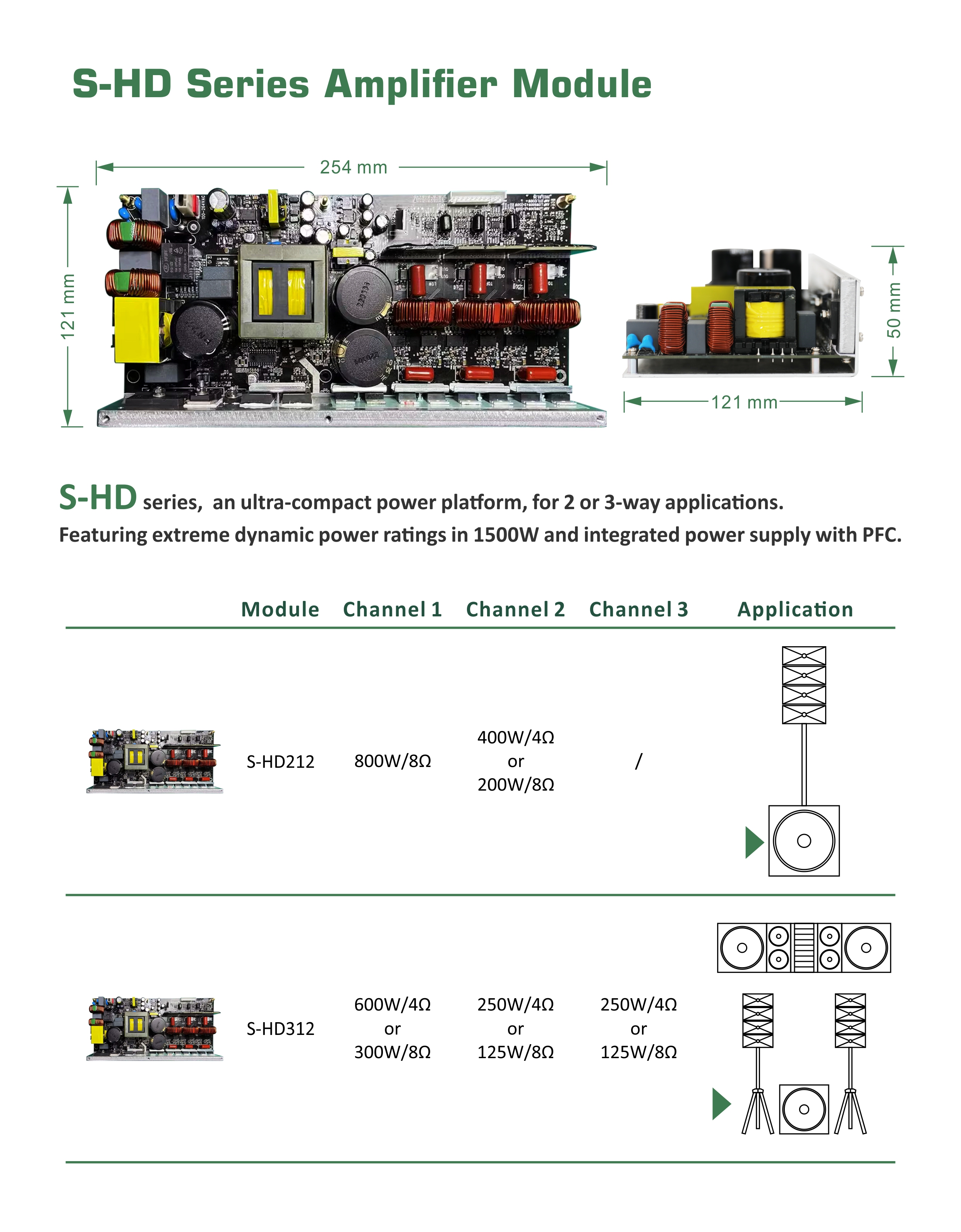

S-HD series, an ultra-compact power platform, for 2 or 3-way applications.
Featuring extreme dynamic power ratings in 1500W and integrated power supply with PFC.
Quantity:

S-HD Series Class-D Amplifier Module, Full Voltage Amplifier Module, PFC Amplifier Module, S-HD Series Class D Amplifire with PFC technology

S-HD Series Class-D Amplifier Module, Full Voltage Amplifier Module, PFC Amplifier Module, S-HD Series Class D Amplifire with PFC technology

S-HD Series Class-D Amplifier Module, Full Voltage Amplifier Module, PFC Amplifier Module, S-HD Series Class D Amplifire with PFC technology

Class-D With PFC Technology HD Series

Features

1. Comprehensive intelligent high speed protection for electronic circuit.
2. PFC(Power Factor Correction technology) 90V ~ 265V for all Global Voltage.
3. DSP technology (24bit/96khz) Fresh and sweet sounding characteristics and powerful.
4.Auxiliary power is available for DSP or pro-amp, with an Auto Standby/Wake-up feature with selectable time settings.

Specifications

Specifications
Output CircuitryLA Class-D full band with PWM modulator with ultra low distortion
Output Voltage70 Vp / 140 Vpp (unloaded)
Amplifier Gain26 dB
Signal To Noise-Ratio> 119 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load)
THD+N (typical)< 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power)
Frequency Response20 Hz - 20 kHz (+0/-0.25 dB, 8 Ω load, 3 dB below rated power)
Damping Factor> 350, channel 1 / > 225, channel 2 (8 Ω load, 1 kHz and below)
Protection CircuitsShort circuit protection, DC protection, under voltage protection, temperature protection, overload protection
Readouts & Control optionsProtect/Disable (mute), Temperature, Clip, Voltage, Auto Standby/Wake-up (3 timings)
Power SupplyLA universal mains switch mode power supply with Power Factor Correction (PFC) and integral standby converter
Operation VoltageUniversal Mains, 90-265V
Standby Consumption< 0.25 W (Green Energy Star & ErP 1275/2008/EC compliant)
Dimensions254 x 121 x 50 mm
