| Model No. | E1-M | E1-10D |
| Type | Active full range column speaker | 10'' active bass reflex |
| Frequency Response (-6dB) | 200 Hz - 21 kHz | 47 Hz - 200 Hz |
| Max. SPL (1m, free space) | 117 dB | 117 dB |
| Power Output (RMS) | 50W | 400W |
| Impedance | 4 Ohms | |
| Transducer MF | 4 * 2.75", neodymium magnet, 1"voice coil | / |
| Transducer LF | / | 10"subwoofer, 2.5"voice coil |
| Amplifier | Class-D amplifier | |
| DSP Module | / | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, Live |
| Protection | Short circuit overheating, over-current | |
| Controls | / | Power On / Off switch, satellite level, subwoofer level, Line/Mic switch, Bluetooth On / Off switch, TWS switch, reset switch, DSP modes switch |
| Indicators | Power, signal, limit, bluetooth, reset | |

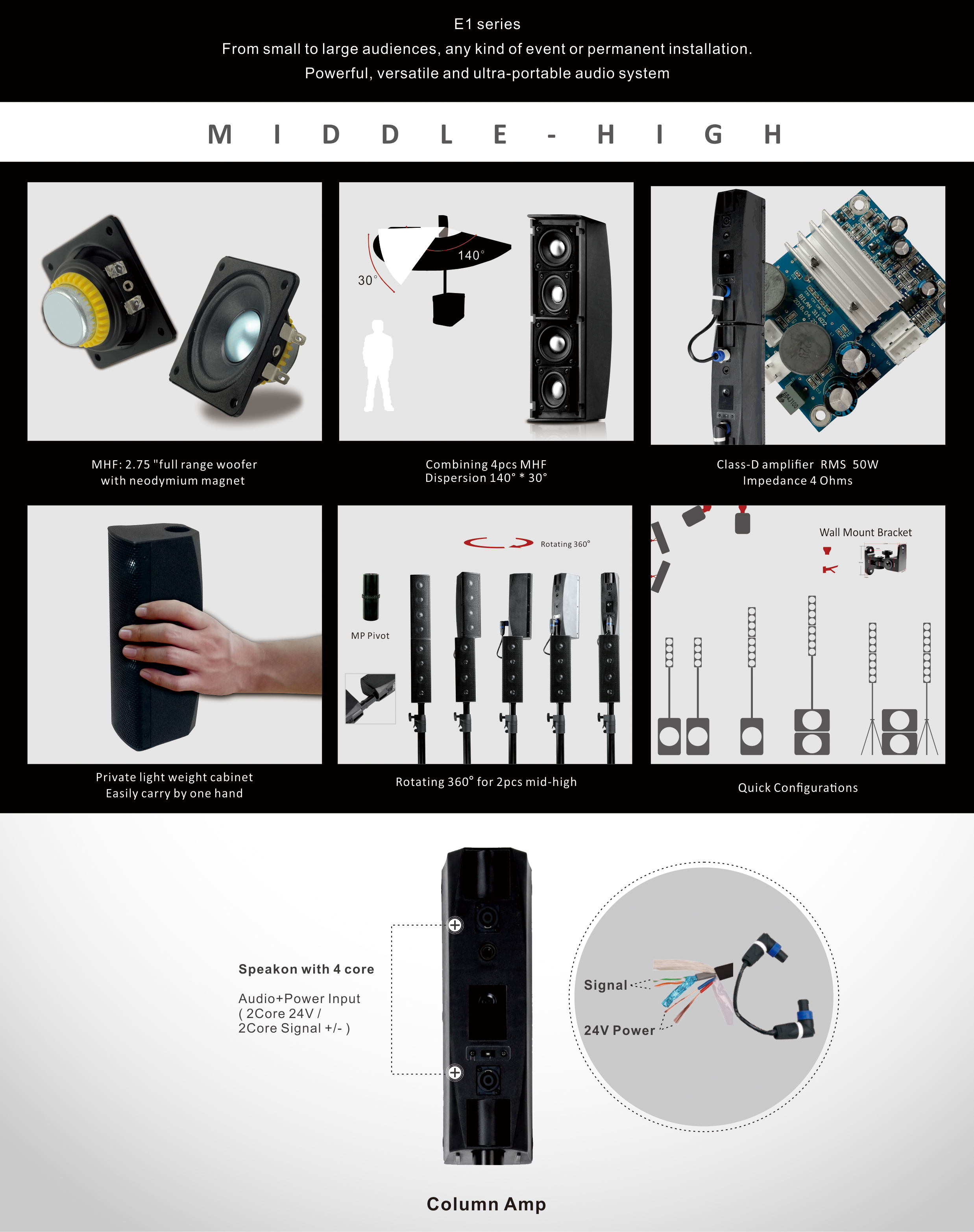

| Audio / Power Input / Output | Speakon with 4 core ( 2Core 24V / 2Core Signal +/- ) | / |
| Audio / Input / Output | / | Left / Right female and male XLR input, 1 * XLR output, 1* Satellite Speakon output |
| Power Input / Output | / | Speaker |
| Enclosure | PP Plastic | 15mm MDF with regular raindrop painting |
| Grille | 1.0mm thickness metal grille without acoustic fabric | Metal grille without acoustic fabric |
Product Description

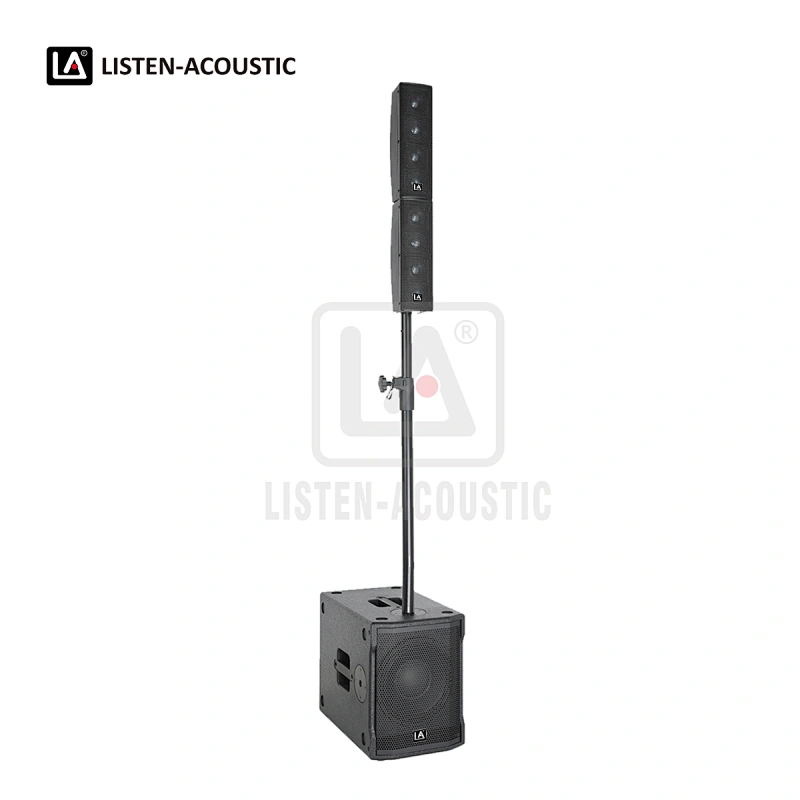

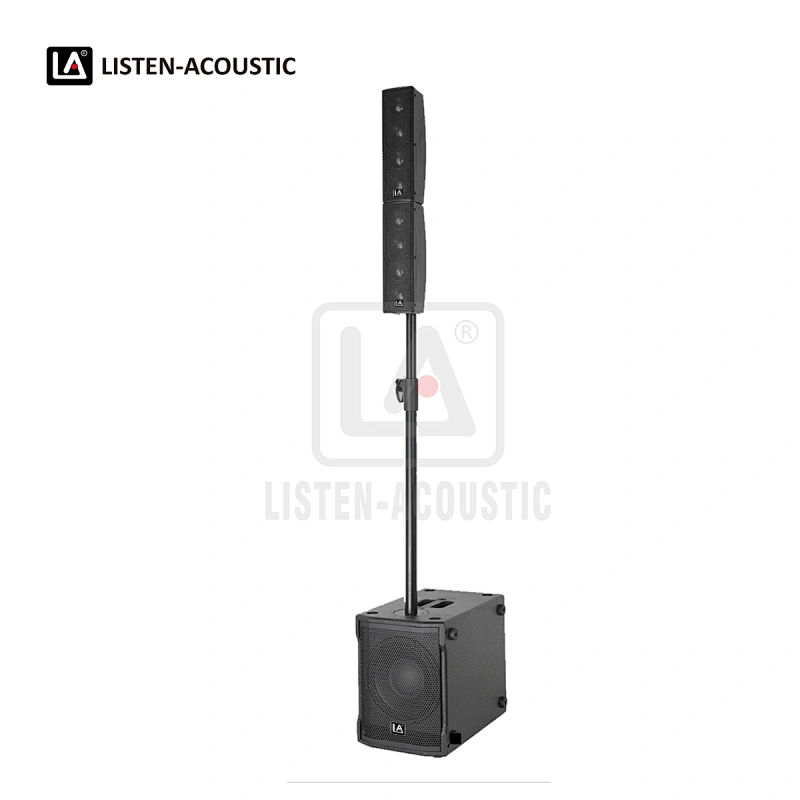

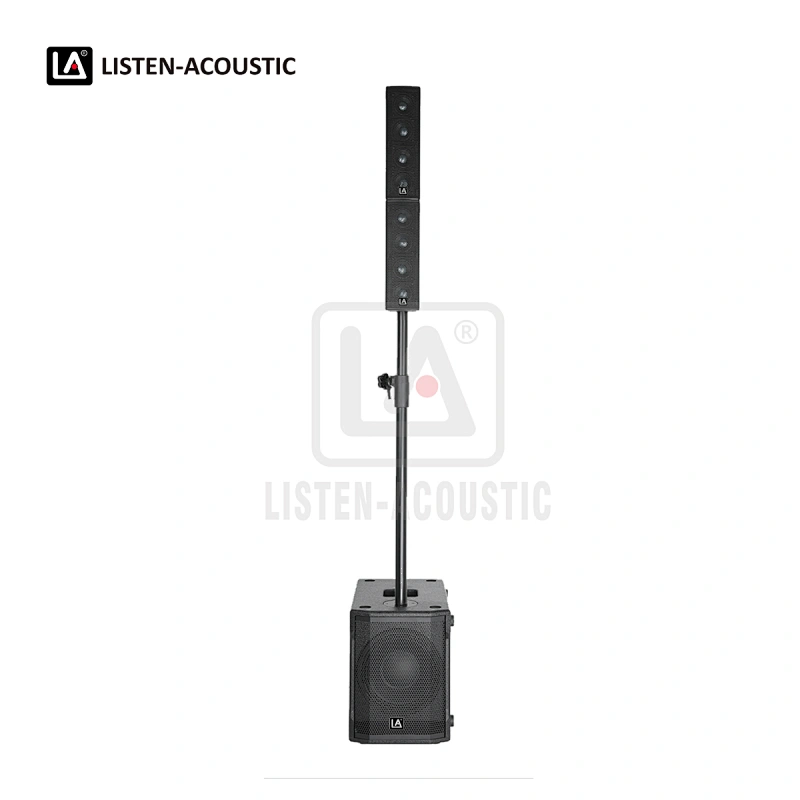

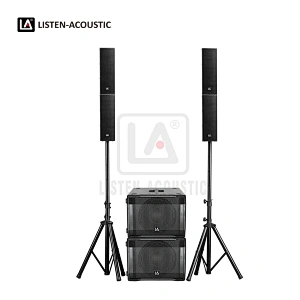

E1-Twice Portable Sound Equipment Modular Column Array Speaker
Ultra-Portable Modular Column Array E1 Series

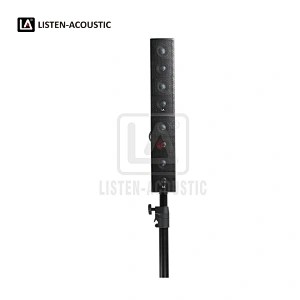

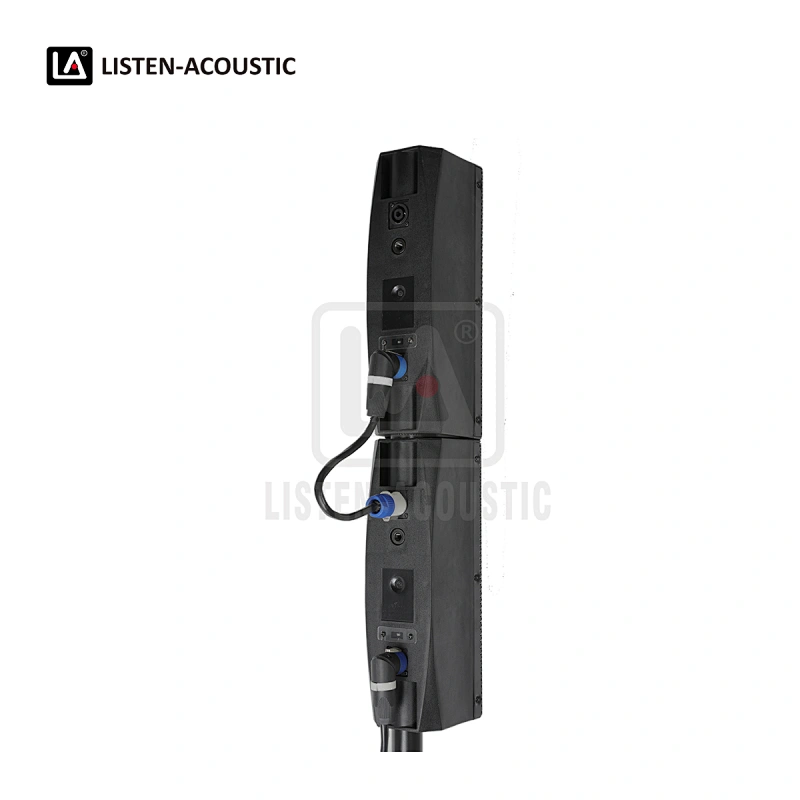

Listen-Acoustic introduces its new Modular Column Array sound systems E1 series. This series, with finely worked design, is spread over 2 column types by wired and wireless connecting. The first category E1-M satellite can be composed by different number of modules. Each module fits to another one and you can decide the preferred angle up to 360° rotating. The audio and power pass by speakon.

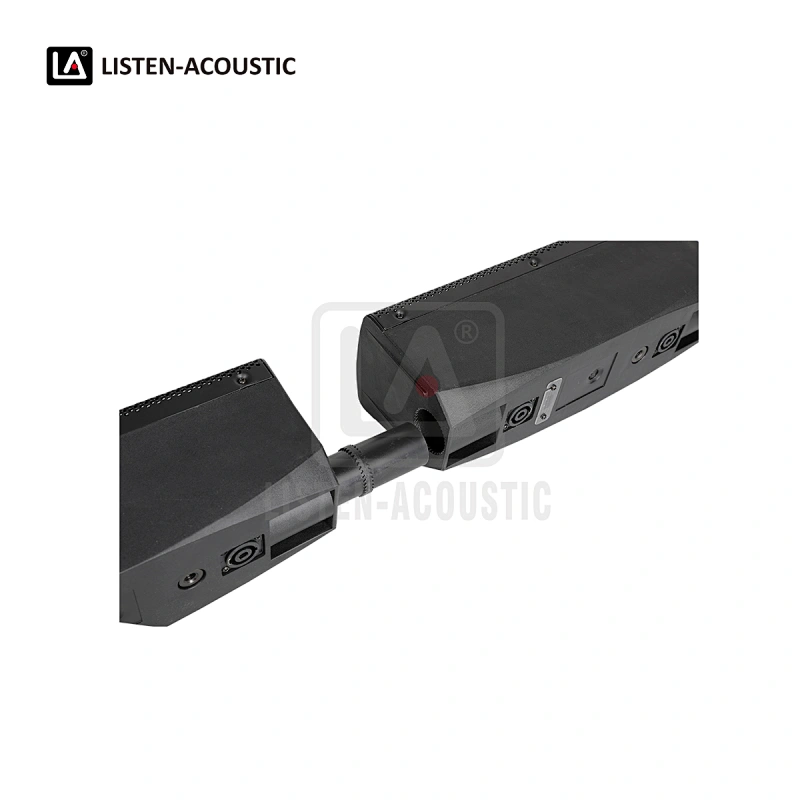

Another connected by quick-insert. E1-MT has two for install in middle, while E1-MT has only one to be put on top. Both has the same other features.It is easy to install and to take away thanks to their stacking system.

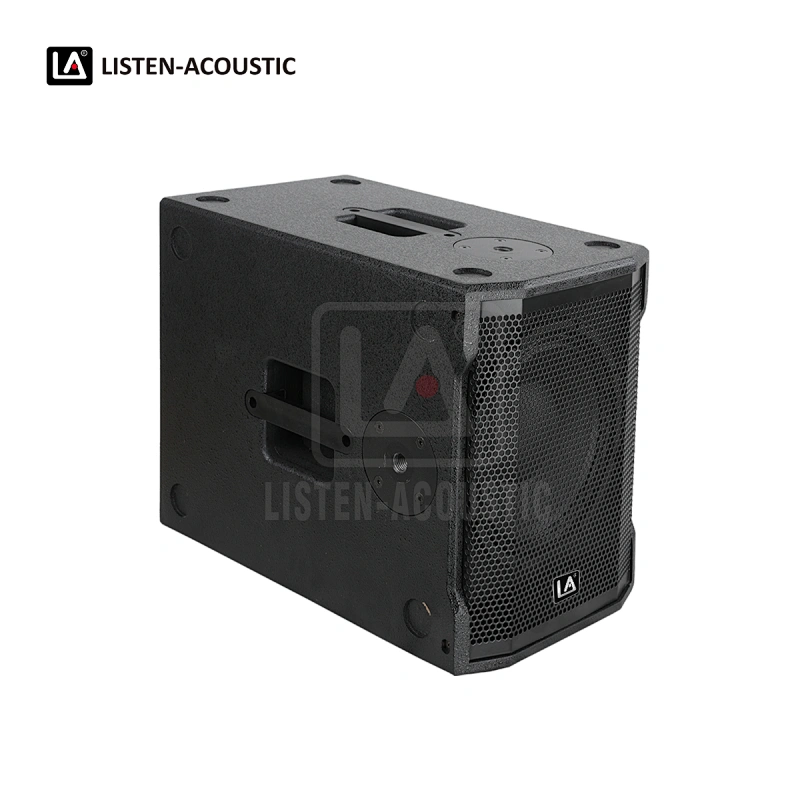

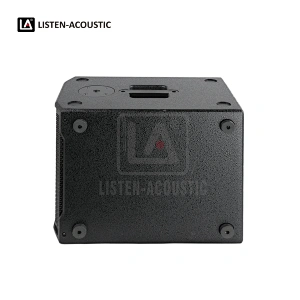

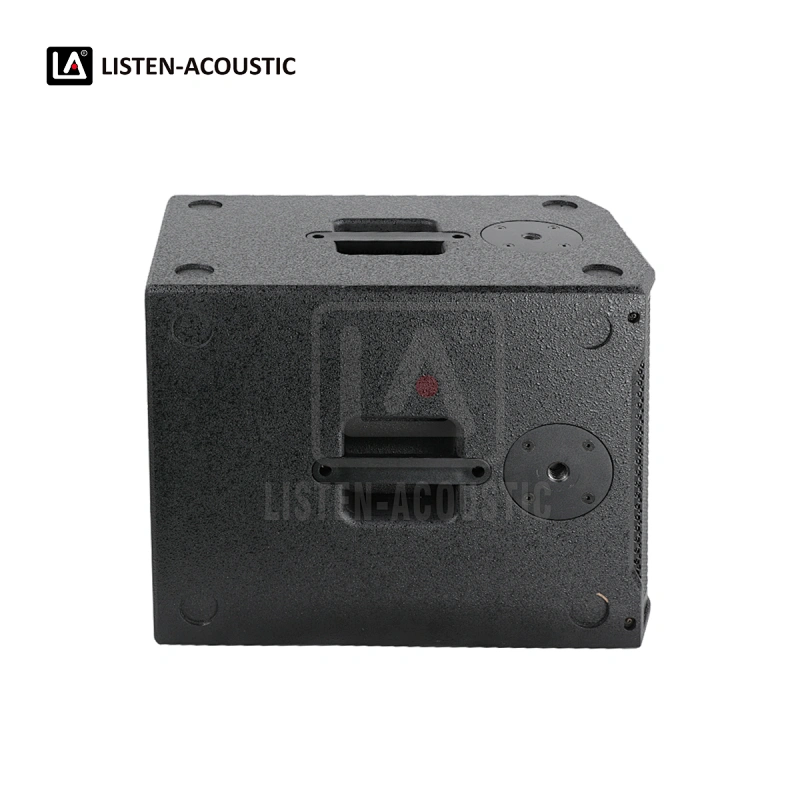

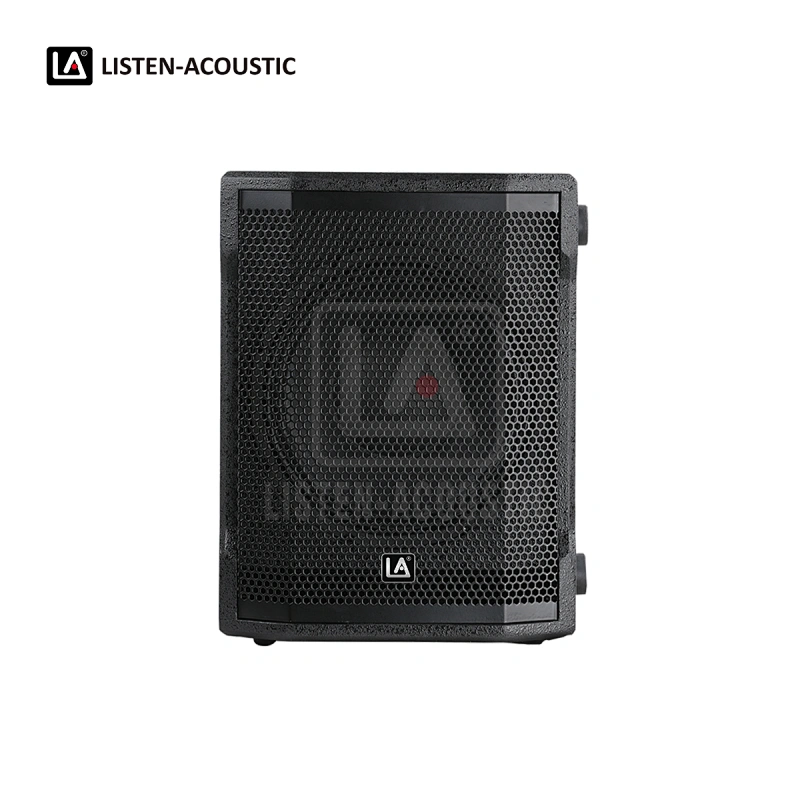

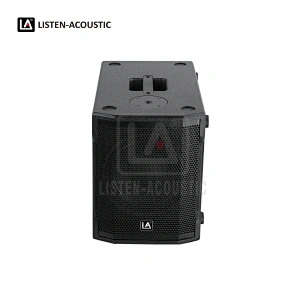

Moreover,the whole amplification process happens within 10'' powered subwoofer E1-10D and E3-10D (without one speakon to satellite), to make things easier, while connectors, theamplification and DSP module are precise and user-friendly. Also you could add E1-10DM which is another active version without DSP for more bass.
E1-Twice Portable Sound Equipment Modular Column Array Speaker
Ultra-Portable Modular Column Array E1 Series
Listen-Acoustic introduces its new Modular Column Array sound systems E1 series. This series, with finely worked design, is spread over 2 column types by wired and wireless connecting. The first category E1-M satellite can be composed by different number of modules. Each module fits to another one and you can decide the preferred angle up to 360° rotating. The audio and power pass by speakon.
Another connected by quick-insert. E1-MT has two for install in middle, while E1-MT has only one to be put on top. Both has the same other features.It is easy to install and to take away thanks to their stacking system.
Moreover,the whole amplification process happens within 10'' powered subwoofer E1-10D and E3-10D (without one speakon to satellite), to make things easier, while connectors, theamplification and DSP module are precise and user-friendly. Also you could add E1-10DM which is another active version without DSP for more bass.
