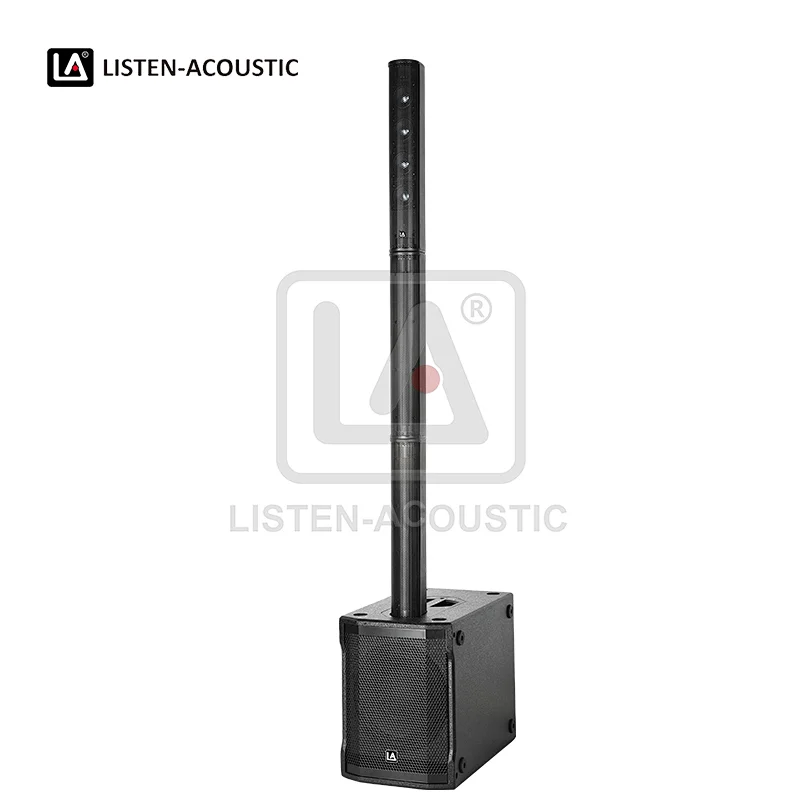

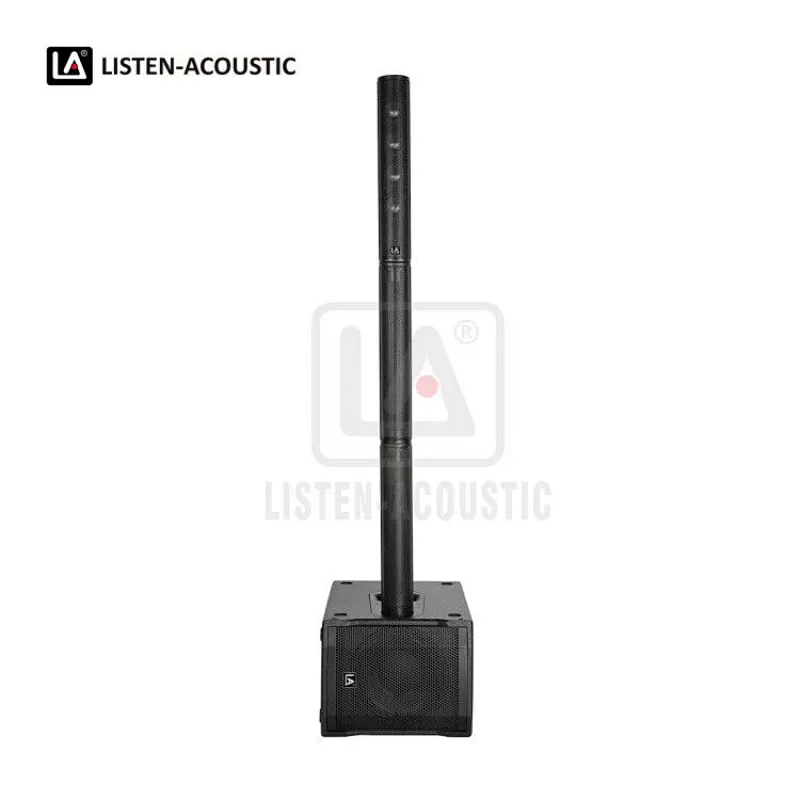

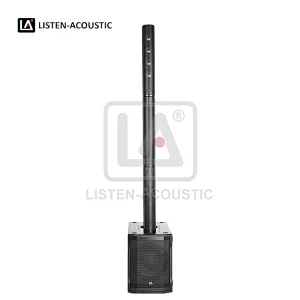

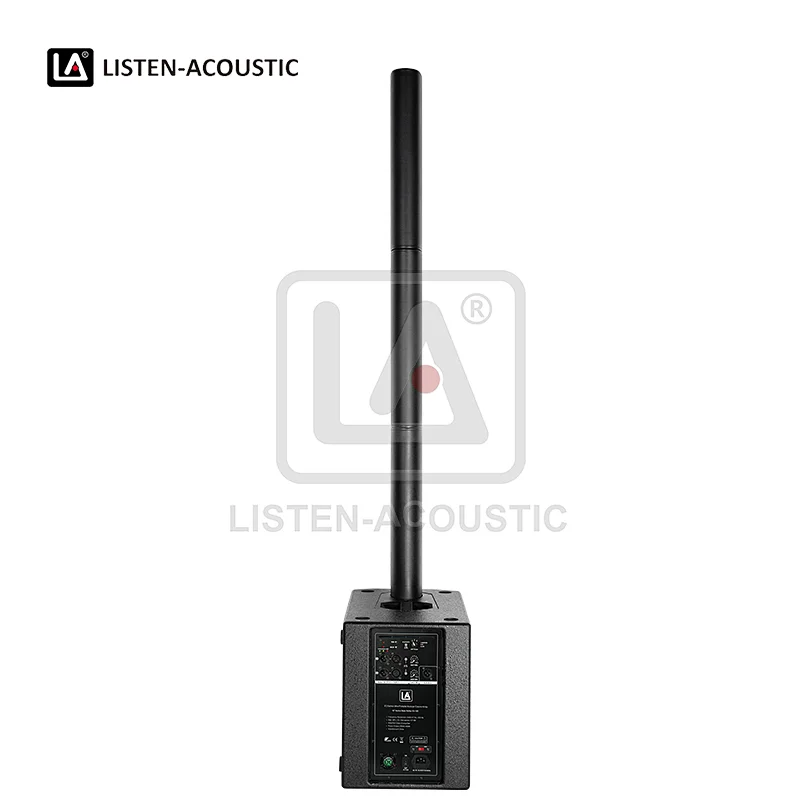

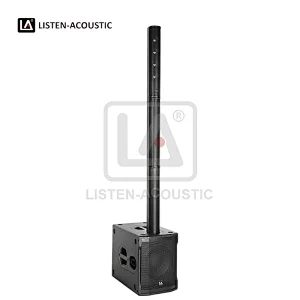

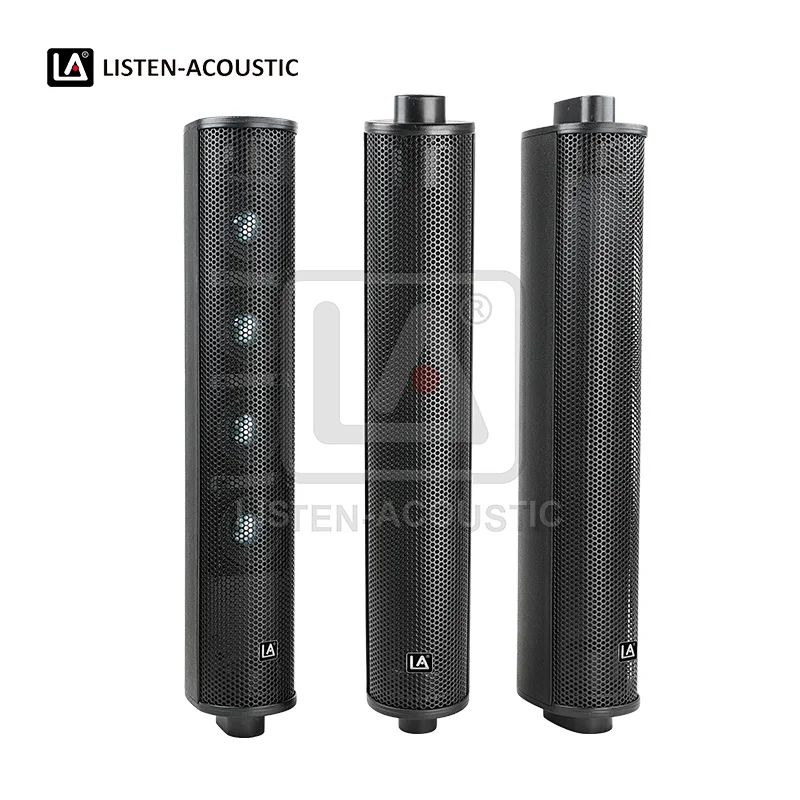

| Model No. | E3-MT |
| Type | Active full range column speaker |
| Frequency Response (-6dB) | 200 Hz - 21 kHz |
| Max. SPL (1m, free space) | 109 dB |
| Power Output (RMS) | 50W |
| Impedance | 4 Ohms |
| Transducer MF | 4 * 2.75", neodymium magnet, 1"voice coil |
| Amplifier | Class-D amplifier |
| Audio / Poer Input / Output | Bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core Signal +/- ) |
| Enclosure | PP Plastic |
| Grille | 1.0mm thickness metal grille without acoustic fabric |
| Dispersion (H * V) | 120° * 20° |

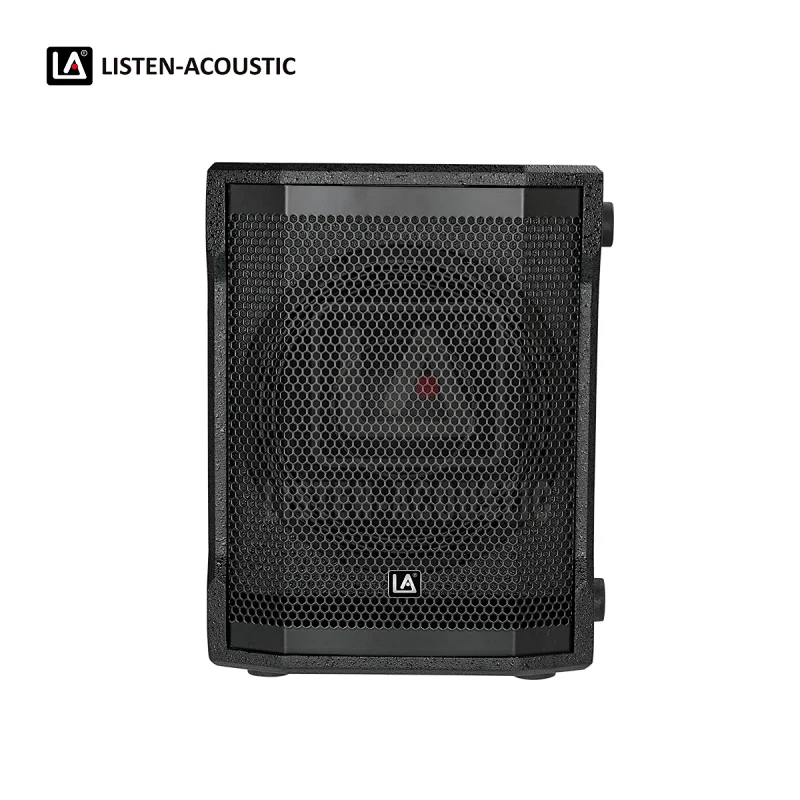

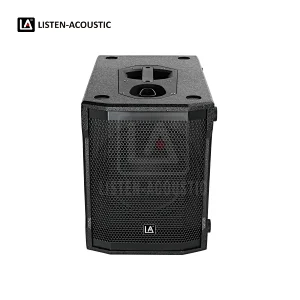

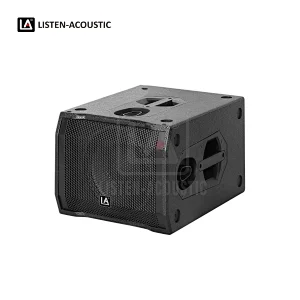

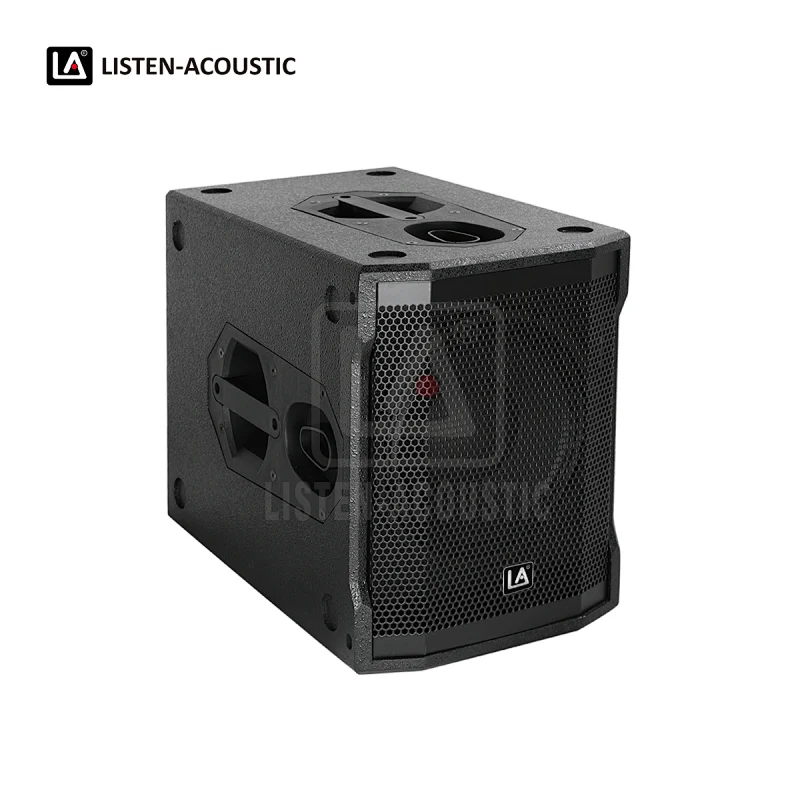

| Model No. | E3-10D |
| Type | 10'' active bass reflex |
| Frequency Response (-6dB) | 47 Hz - 200 Hz |
| Max. SPL (1m, free space) | 117 dB |
| Power Output (RMS) | 400W |
| Impedance | 4 Ohms |
| Transducer LF | 10"subwoofer, 2.5"voice coil |
| Amplifier | Class-D amplifier |
| DSP Module | LA DSP-100, 96 kHz,24-bit DSP processor with preset modes:Speech, DJ, Live |
| Protection | Short circuit overheating, over-current |
| Controls | Power On / Off switch, satellite level, subwoofer level, Line/Mic switch, Bluetooth On / Off switch, TWS switch, |
| Indicators | Power, signal, limit, bluetooth, reset |
| Audio Input / Output | Left / Right female and male XLR input , 1 * XLR output , 1* 4-pins-quick-insert |
| Power Input / Output | 4-pins-quick-insert |
| Power Supply | 110~250V 50/60HZ |
| Enclosure | 15mm MDF with regular raindrop painting |
| Grille | 1.0mm thickness metal grille without acoustic fabric |
| Match Use | To E3-M and E3-MT satellites |
