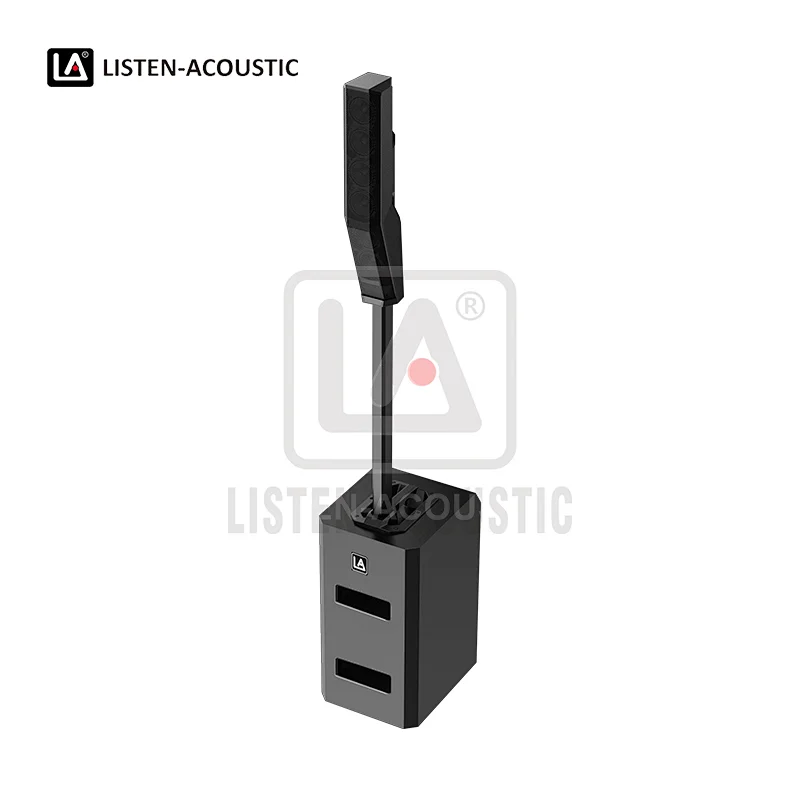

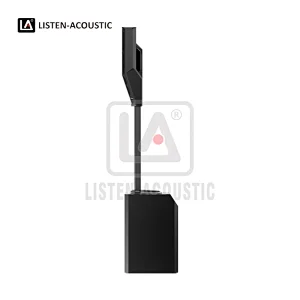

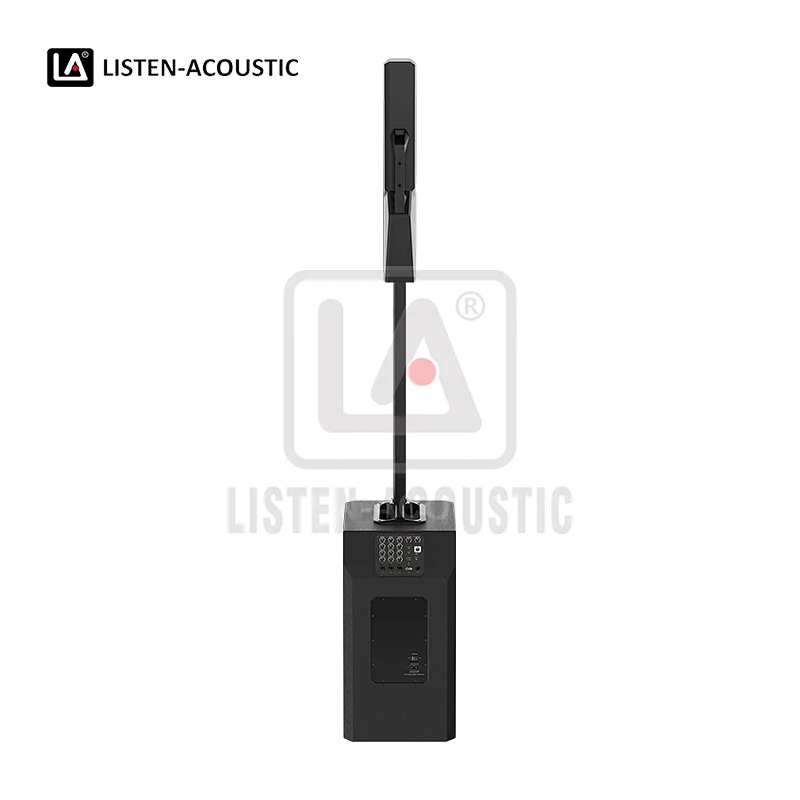

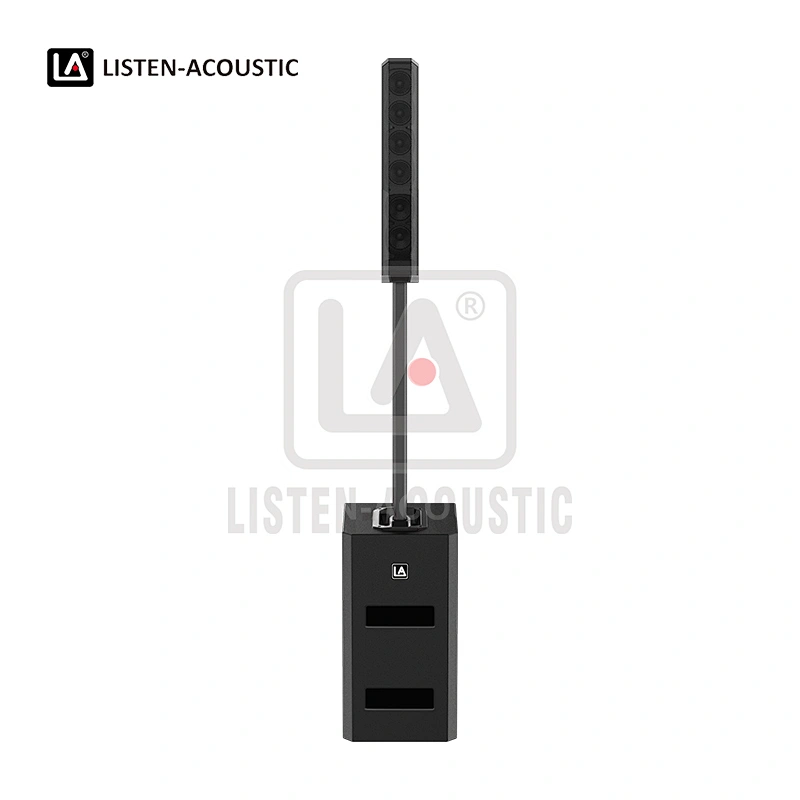

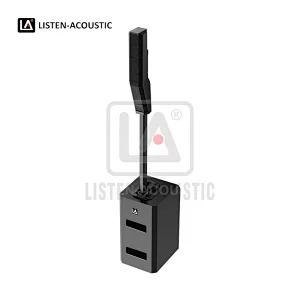

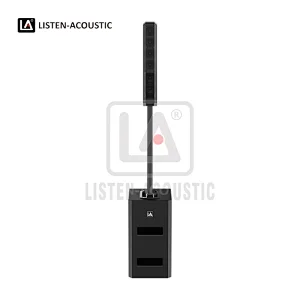

EQ-600 column speaker system
| Model No. | EQ-400 | EQ-600 | EQ-800 |
| Type | 1pc column + 1pc 8' subwoofer | 1pc column + 1pc 10'' subwoofer | 1pc column + 1pc 12'' subwoofer |
| Frequency Response (-6dB) | 55 Hz - 20 kHz | 55 Hz - 20 kHz | 45 Hz - 20 kHz |
| Max. SPL (1m, free space) | 115 | 118 dB | 125 dB |
| Power Output (RMS) | 120W +80W | 200W +120W | 400W +200W |
| Impedance | 4 Ohms | 4 Ohms | 4 Ohms |

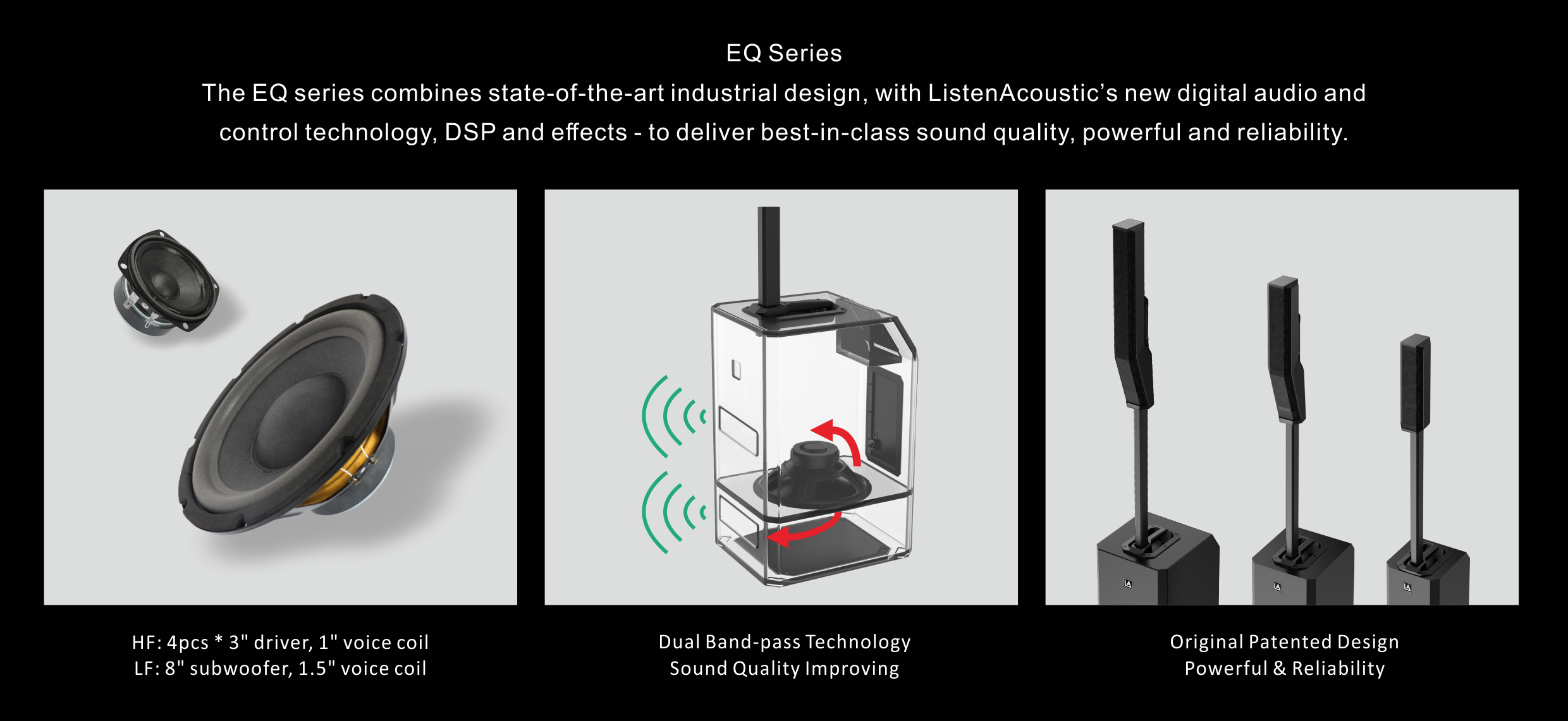

| Transducer HF | 4pcs * 3"driver, 1"voice coil | 6pcs * 3"driver, 1"voice coil | 8pcs * 3"driver, 1"voice coil |
| Transducer LF | 8"subwoofer, 1.5"voice coil | 10"subwoofer, 2"voice coil | 12"subwoofer, 2.5"voice coil |
| Amplifier | Class-D 1.1 amplifier | Class-D amplifier | Class-D amplifier |
| DSP Module | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live |
| Protection | Short circuit overheating, over-current | Short circuit overheating, over-current | Short circuit overheating, over-current |

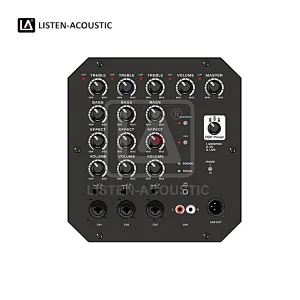

| Controls | Power On / Off switch, main level, DSP modes switch | Power On / Off switch, main level, DSP modes switch | Power On / Off switch, main level, DSP modes switch |
| Indicators | Power, signal, limit | Power, signal | Power, signal |
| Audio Input / Output | 2 * Combo XLR/Jack input, 1 * XLR output | 3 * Combo XLR/Jack input, 1 * L/R Jack input, 1 * Aux input, 1 * XLR output | 3 * Combo XLR/Jack input, 1 * L/R Jack input, 1 * Aux input, 1 * XLR output |
| Power Supply | 100~250V 50/60HZ | 100~250V 50/60HZ | 100~130V 50/60HZ or 210~250V 50/60HZ |
| Enclosure | ABS/PP Plastic | ABS/PP Plastic | ABS/PP Plastic |
| Dispersion (H * V) | 120° * 16° | 120° * 16° | 120° * 16° |
