PC-12D1 Powered ABS Molded Speakerr with Class-D BI Amplifier

Model NO.
PC-12D1
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
12" woofer, 2.5" voice coil + 1.75" Ti. tweeter + Class-D BI amplifier 350W(LF)+50W(HF) + DPS-100 24bit 96 kHz DSP with 3 preset modes: Monitor, DJ, Live
Quantity:

PC-12D1 Powered ABS Molded Speakerr with Class-D BI Amplifier
pa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speakerpa speaker, portable pa system, portable sound system, ABS Molded PA Speakers, Full Range Speaker

Model No.PC-12D1
Type12'' 2-way full range speaker, active
Frequency Response (-6dB)55 Hz - 20 kHz
Max. SPL (1m, free space)125 dB
Impedance4 Ohms
Transducer LF12"woofer, 2.5"voice coil
Transducer HF1.75"Ti. Tweeter
EnclosureH-PP with painting, 35mm stand pole
1 top + 2 side handles
GrilleMetal grille with acoustic fabric
AmplifierClass-D BI amplifier
Power Output (RMS)350W (LF)+50W(HF)
DSP ModuleLA DSP-100, 96 kHz, 24-bit DSP process with preset modes: Monitor, DJ, Live
ProtectionShort circuit overheating, over-current

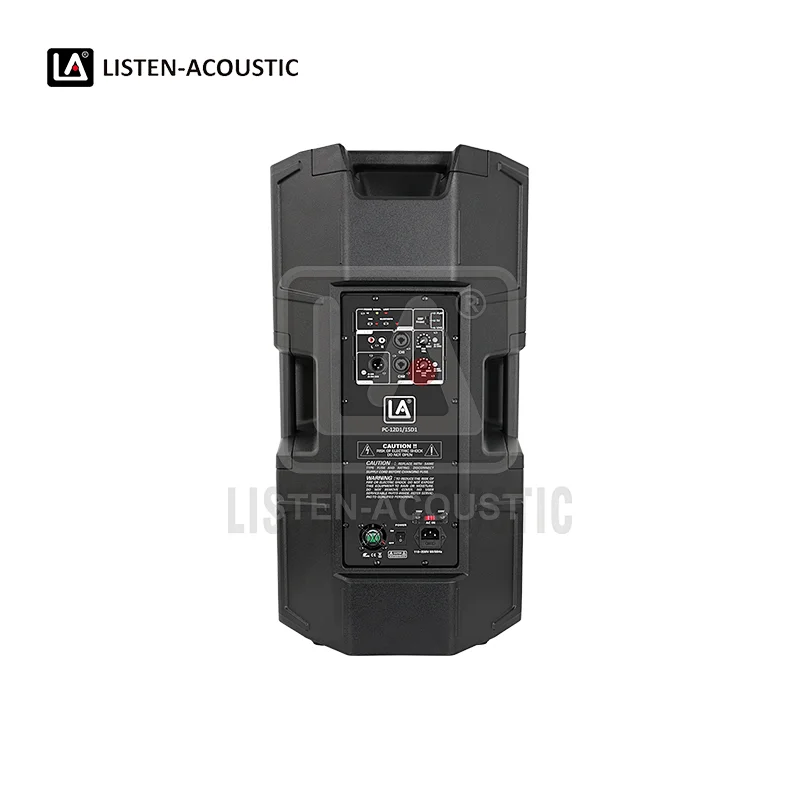

ControlsPower On / Off switch, DSP modes switch,
line level, mic/line switch
IndicatorsPower, signal, limit, DSP modes
Audio Input / Output2 * Combo XLR/Jack input, 1 * RCA line input,
1 * XLR output
Optional FuncitonBluetooth
Power Supply100~130V 50/60HZ or 210~250V 50/60HZ
