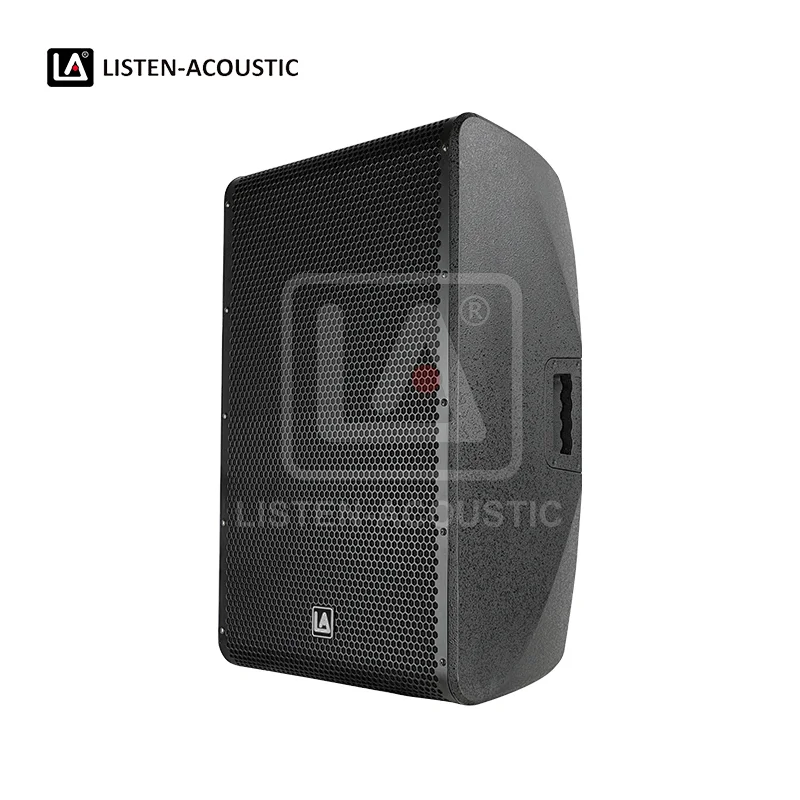

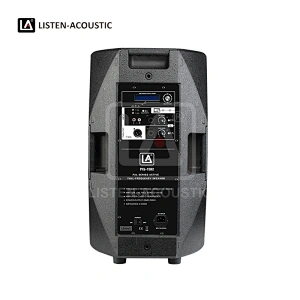

PXL-15D2 15 Inch Active 2-Way Full Range Speaker With DSP

Model NO.
PXL-15D2
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
15" woofer, 2.5" voice coil, 75oz + 34mm high quality Ti. tweeter + Class-D BI amplifier 450W (LF)+50W(HF) with 96 kHz, 24-bit DSP processor with LCD display
Quantity:

15 inch full range speaker active speaker with dsp

Full Range Speaker,active speaker with dsp,8 inch full range speaker,blue tooth speaker,speakers

Model No. PXL-15PXL-15D2
Type15'' 2-way full range speaker, passive15'' 2-way full range speaker, active
Frequency Response (-6dB)50 Hz - 20 kHz
Max. SPL(1m, free space)129 dB
Impedance4Ohms
Transducer LF15"woofer, 2.5"voice coil, 80oz
Transducer HF1.75'' compression driver
EnclosureH-PP with painting,
35mm stand pole,
1 top + 2 side handles
GrilleMetal grille with acoustic fabric
Amplifier/Class-D BI amplifier
Power Output (RMS)450W (LF)+50W(HF)
DSP Module/LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display
Protection/Short circuit overheating, over-current
Controls/Power On / Off switch,
main level,
DSP modes switch,
two line levels, mic/line switch
Indicators/Power, limit
Audio Input / OutputSpeakon1 * Combo XLR/Jack input
1 * XLR input
1 * XLR output
Optional Funciton/Bluetooth
Power Supply100~130V 50/60HZ
210~250V 50/60HZ

Send Message

*
* clear input
*
* clear input
* clear input
* clear input
* clear input
* clear input

Related Products

speaker, bluetooth speakers with subwoofer, PXL Series-12D2 Powered Speakers
PXL-12D2 12 Inch 2-Way Active Full Range Speaker With DSP
Model NO. PXL-12D2
PXL Series 15SD2 Powered Subwoofer, 15 inch subwoofer, subwoofer, Active Bass Reflex With DSP Control

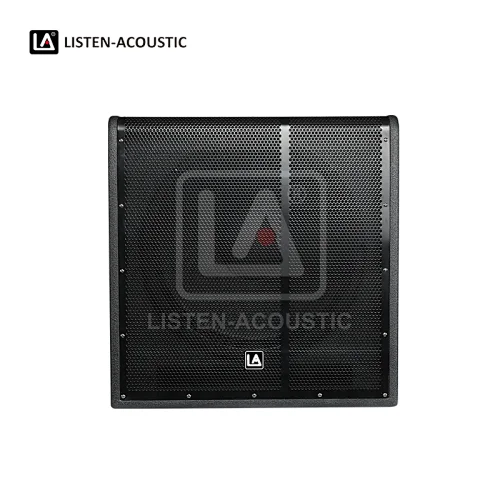

PXL-15SD2 15 Inch Active Bass Reflex With DSP Control
