PY-08D1 PA Speaker with Class-D BI Amplifier

Model NO.
PY-08D1
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
8" woofer, 1" voice coil, 27oz + 1" Ti. tweeter + Class-D BI amplifier 70W(LF)+50W(HF) + DPS-100 24bit 96 kHz DSP with 3 preset modes: Monitor, DJ, Live
Quantity:

PY-08D1 pa speakers portable pa system
pa speaker, portable pa system, portable sound system, ABS Molded PA Speakerspa speaker, portable pa system, portable sound system, ABS Molded PA Speakerspa speaker, portable pa system, portable sound system, ABS Molded PA Speakerspa speaker, portable pa system, portable sound system, ABS Molded PA Speakerspa speaker, portable pa system, portable sound system, ABS Molded PA Speakers

Model No.PY-08D1
Type8'' 2-way full range speaker, active
Frequency Response (-6dB)65 Hz - 18 kHz
Max. SPL (1m, free space)107 dB
Impedance4Ohms

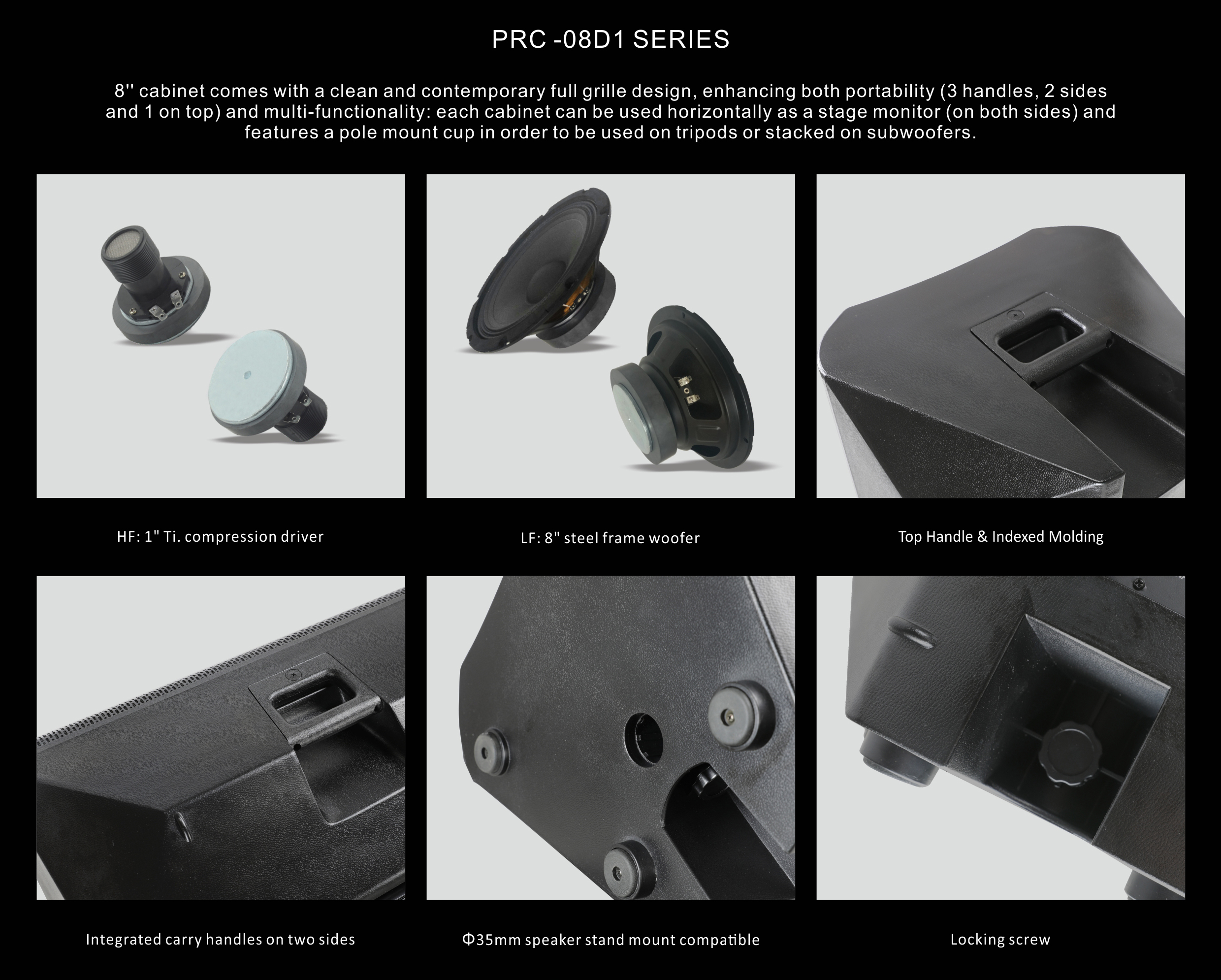

Transducer LF8"woofer, 1"voice coil, 27oz
Transducer HF1"Ti. tweeter
EnclosureABS cabinet, 35mm stand pole, 3 handles, top and 2 sides
GrilleMetal grille with acoustic fabric
AmplifierClass-D BI amplifier
Power Output (RMS)70W(LF)+50W(HF)
DSP ModuleLA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live
ProtectionShort circuit overheating, over-current

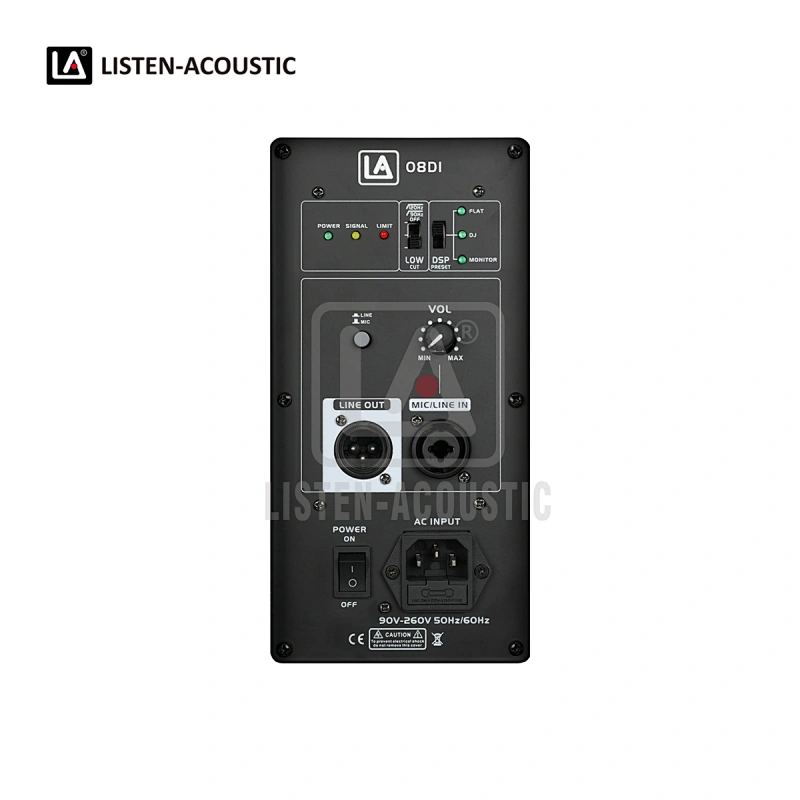

ControlsPower On / Off switch, DSP modes switch, low cut switch, line level, mic/line switch
IndicatorsPower, signal, limit, DSP modes, BT
Audio Input / Output1 * Combo XLR/Jack input
1 * XLR output
Power Supply90V~260V 50/60Hz
Package Measure31*28.5*45.5 cm
Gross Weight6/7 kgs
