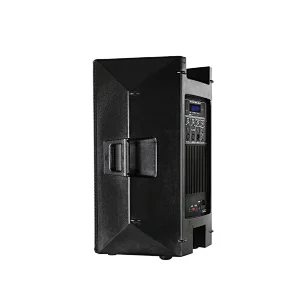

PY-12A portable speaker PA Systems
| Model No. | PY-12A |
| Type | 12'' 2-way full range speaker, active |
| Frequency Response (-6dB) | 55 Hz - 20 kHz |
| Max. SPL (1m, free space) | 125 dB |
| Impedance | 4Ohms |
| Transducer LF | 12"woofer, 2"voice coil, 40oz |
| Transducer HF | 1"Ti. tweeter |
| Enclosure | ABS cabinet, 35mm stand pole, 3 handles, top and 2 sides |
| Grille | Metal grille with acoustic fabric |
| Amplifier | Class-AB mono amplifier |
| Power Output (RMS) | 150W |
| DSP Module | / |
| Protection | / |

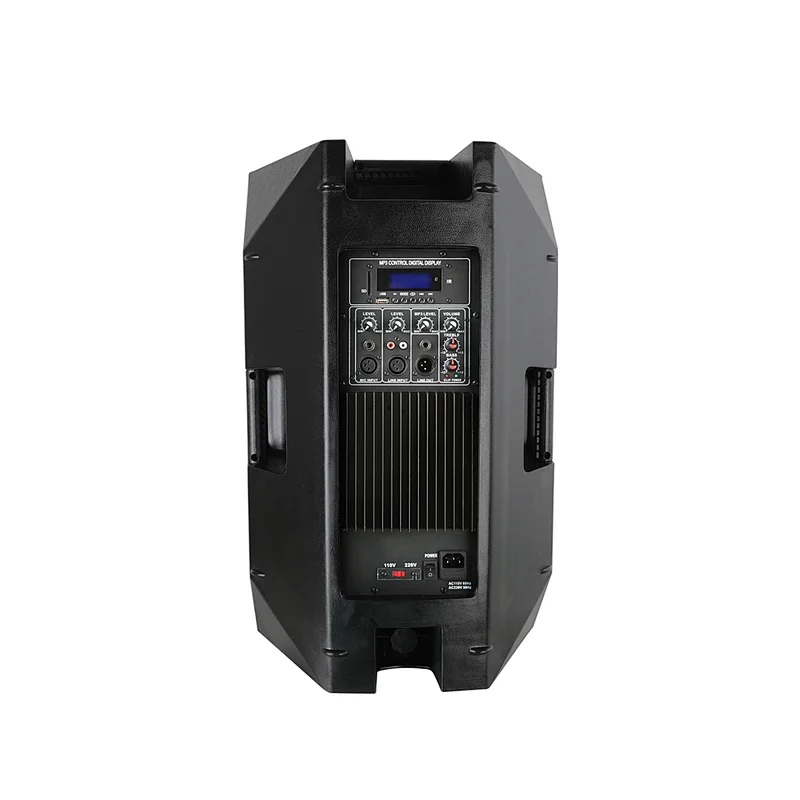

| Controls | Power On / Off switch, MP3 player, mic level, line level, MP3 level, bass, treble，master level, voltage switch |
| Indicators | Power, clip, signal, limit, MP3 player, BT |
| Audio Input / Output | 1 * TRS 6.3mm mic input, 1 * XLR mic input, 1 * RCA line input, 1 * XLR line input, 1 * TRS 6.3mm line output, 1*XLR line output, MP3 player with USB+SD+FM+Bluetooth input |
| Power Supply | AC input 110/220V 60/50Hz |
| Package Measure | 42*37.5*64 cm |
| Gross Weight | 16/17 kgs |
