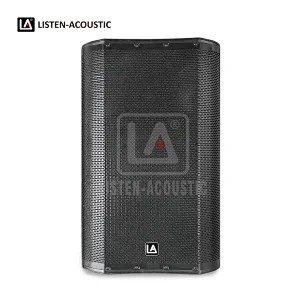

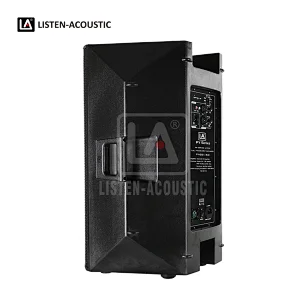

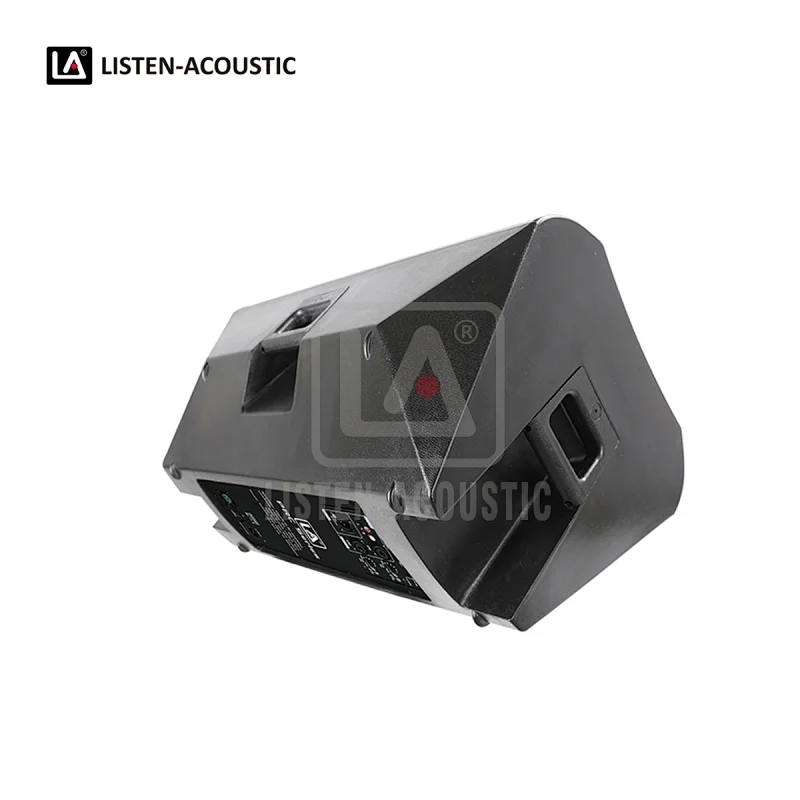

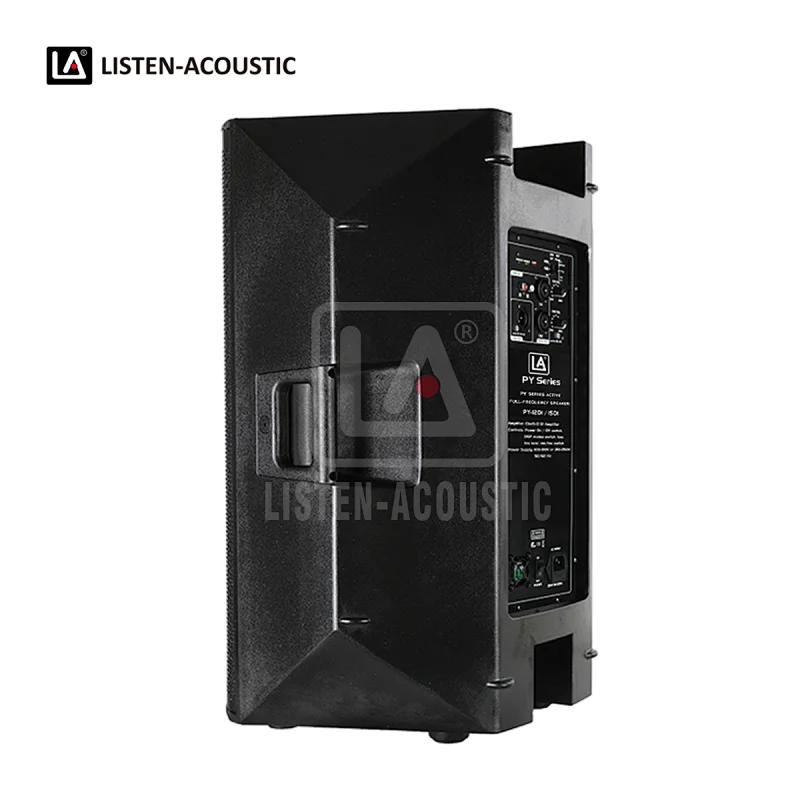

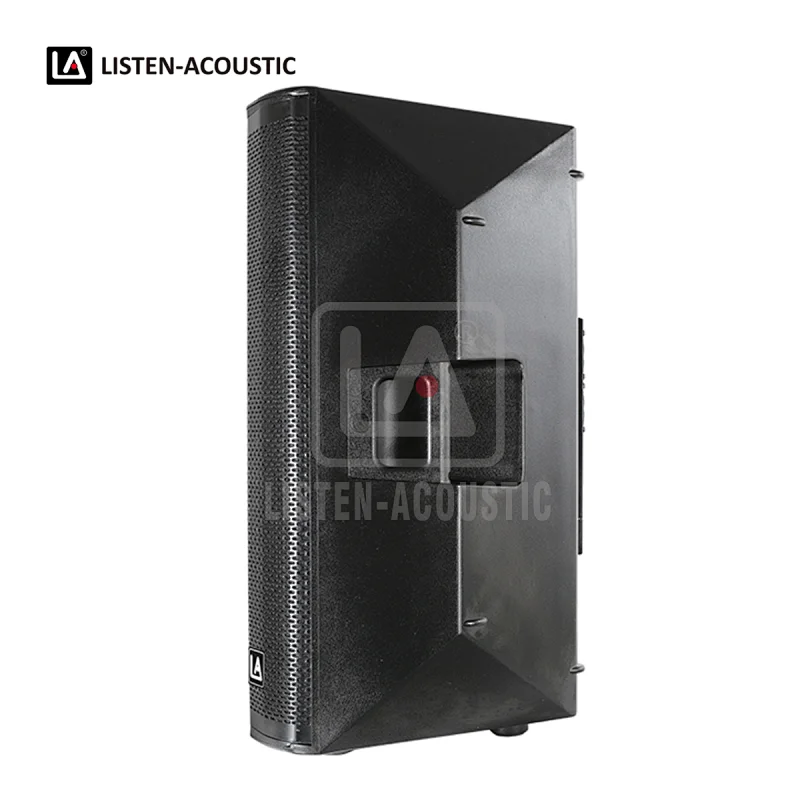

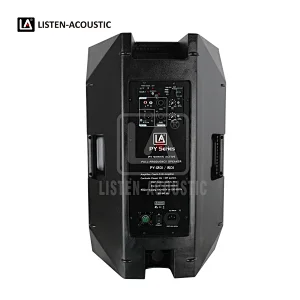

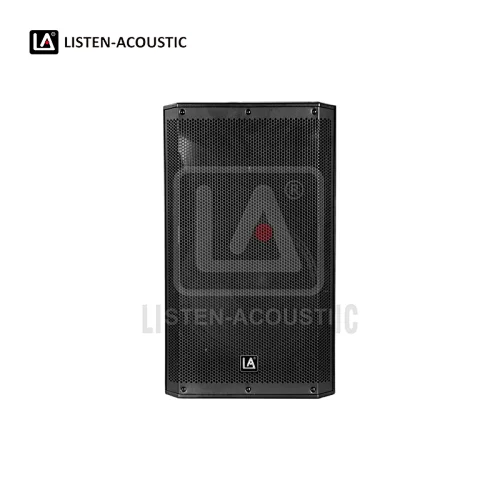

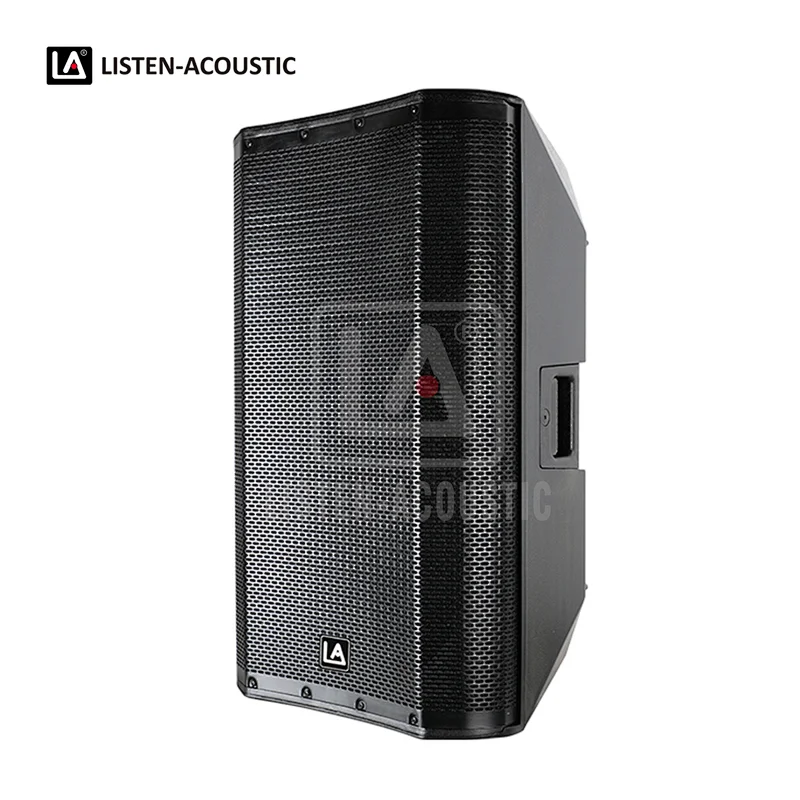

PY-15D1 portable sound system church speakers pa speaker
| Model No. | PY-15D1 |
| Type | 15'' 2-way full range speaker, active |
| Frequency Response (-6dB) | 50 Hz - 20 kHz |
| Max. SPL (1m, free space) | 129 dB |
| Impedance | 4Ohms |
| Transducer LF | 15"woofer, 2.5"voice coil, 50oz |
| Transducer HF | 1.35"Ti. tweeter |

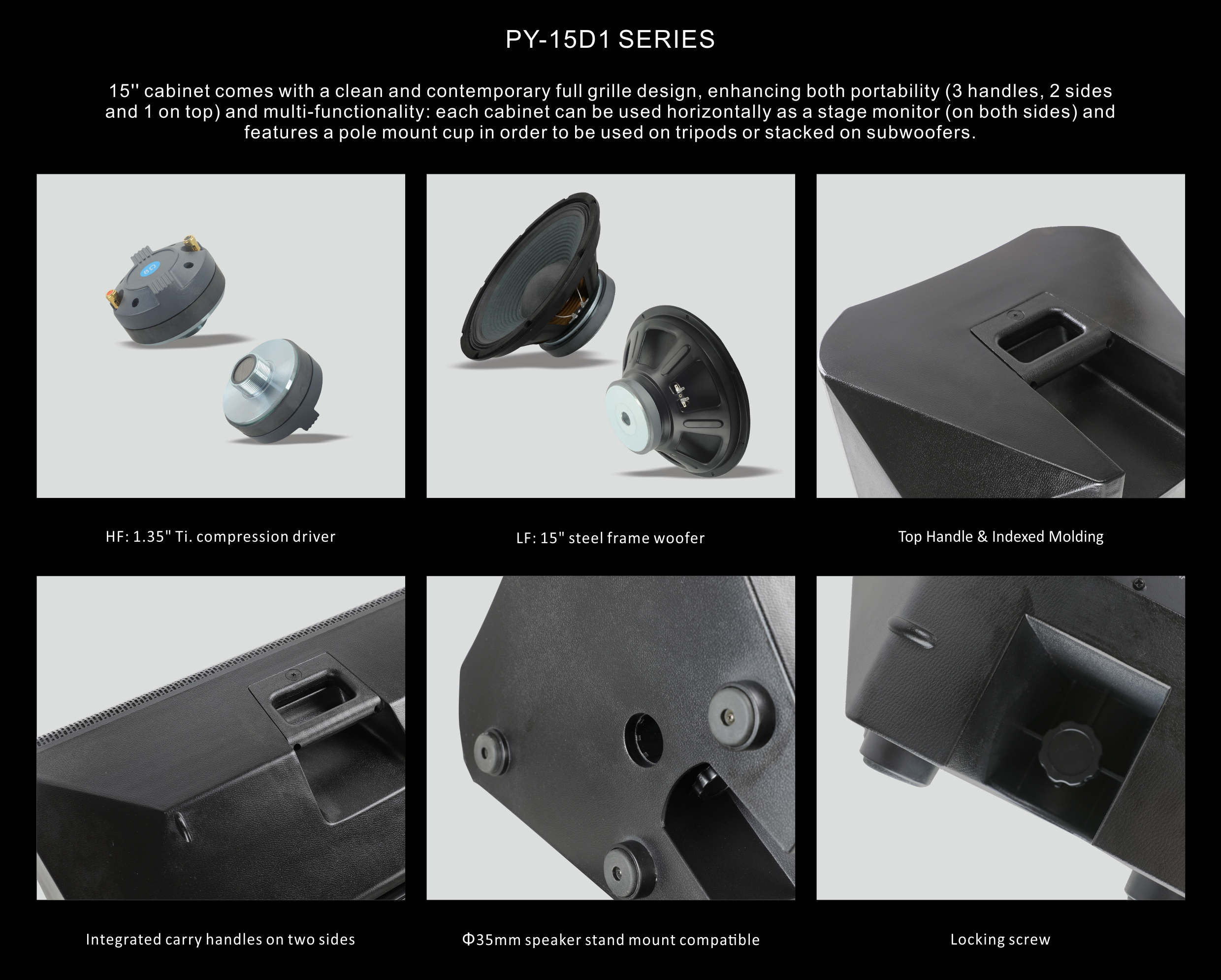

| Enclosure | ABS cabinet, 35mm stand pole, 3 handles, top and 2 sides |
| Grille | Metal grille with acoustic fabric |

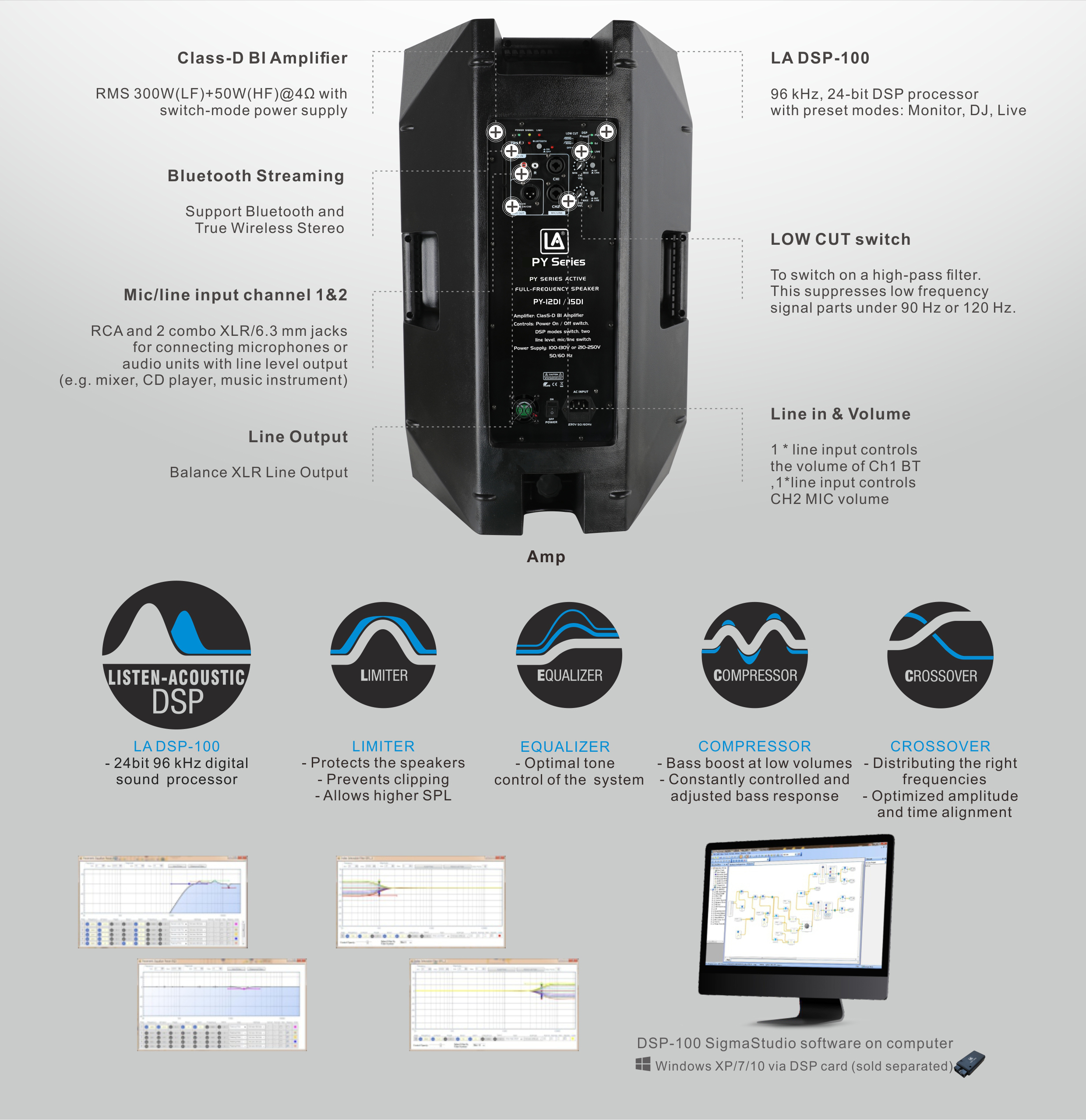

| Amplifier | Class-D BI amplifier |
| Power Output (RMS) | 300W (LF)+50W(HF) |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live |
| Protection | Short circuit overheating, over-current |
| Controls | Power On / Off switch, DSP modes switch, low cut switch, line level, mic/line switch |
| Indicators | Power, signal, limit, DSP modes, BT |
| Audio Input / Output | 2 * Combo XLR/Jack input 1 * RCA line input 1 * XLR output" |
| Power Supply | 100~130V 50/60Hz or 210~250V 50/60Hz |
| Package Measure | 50*44*74 cm |
| Gross Weight | 22/23 kgs |
