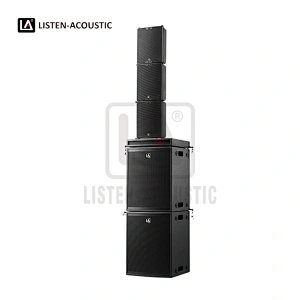

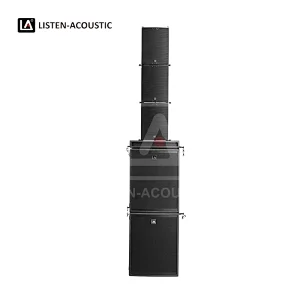

Liseten Acoustic S1 Series line array speakers dj system compact line array systems
| Model No. | S1-MD | S1-210D | S1-210DM |

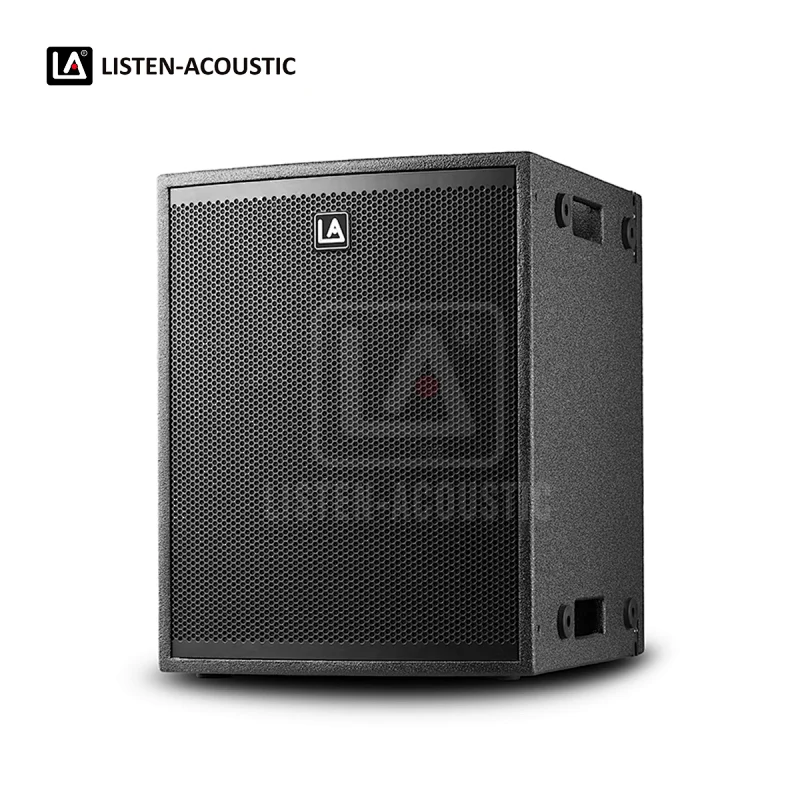

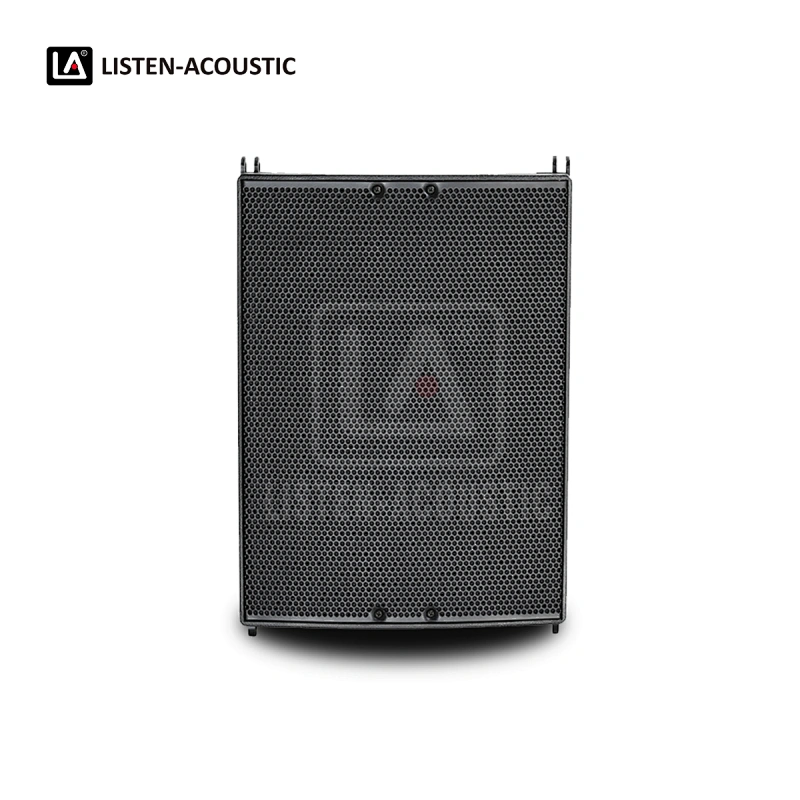

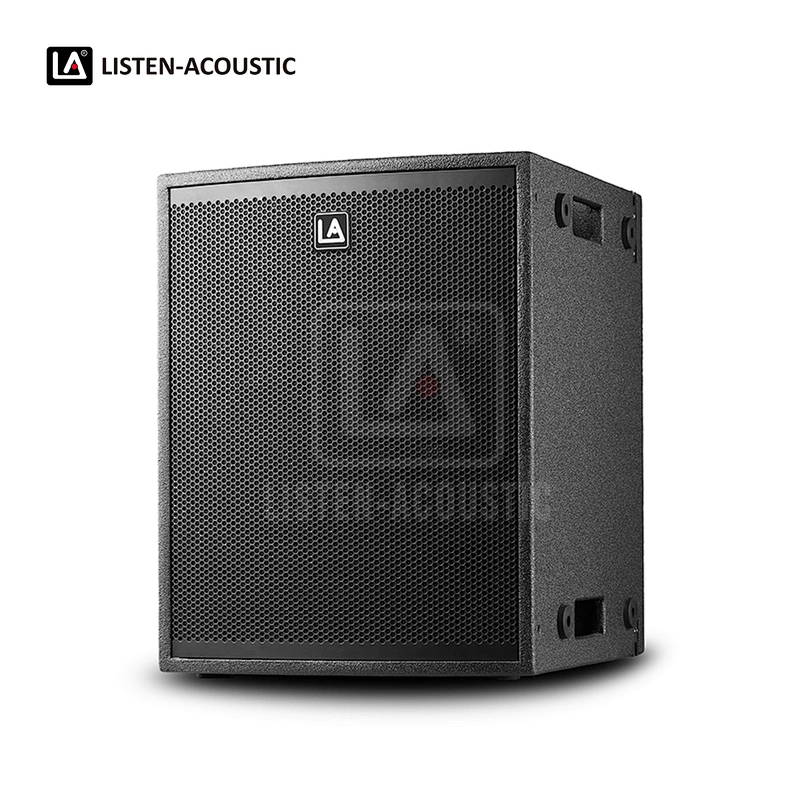

| Type | 2-way active mid-high line array speakers | Dual 10'' active bass reflex, Master Sub | Dual 10'' active bass reflex, Slave Sub |
| Frequency Response (-6dB) | 120 Hz - 20 kHz | 45 Hz - 120 Hz | |
| Max. SPL (1m, free space) | 125 dB | 117 dB | |
| Power Output (RMS) | 200W | 500W | |
| Impedance | 4Ohms | 8 Ohms | |
| Transducer HF | 6 * 1"dome tweeter | / | |
| Transducer MF | 8 * 2.75", neodymium magnet, 1"voice coil | / | |

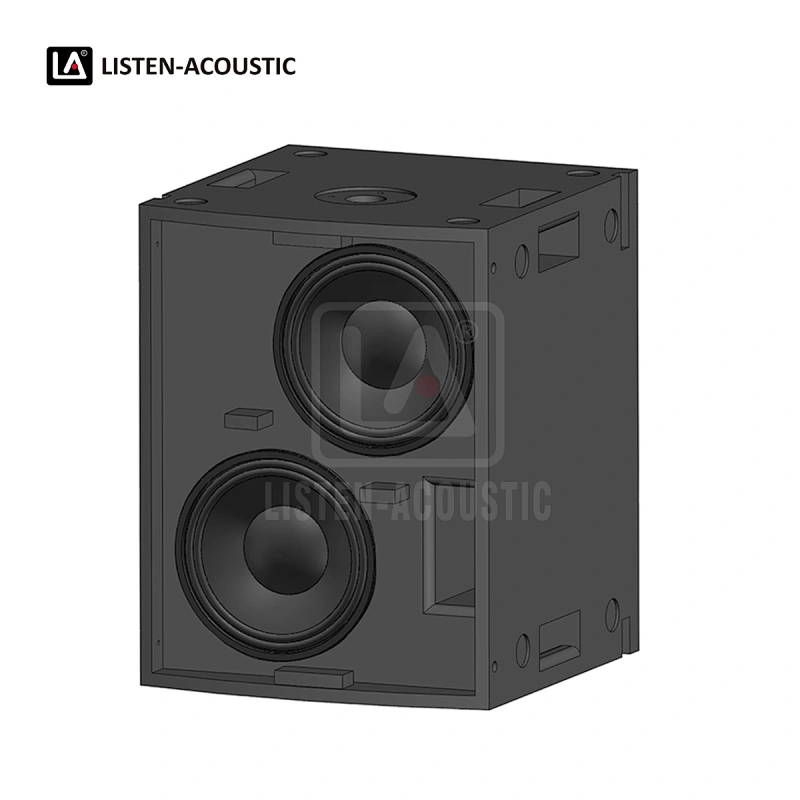

| Transducer LF | / | 2 * 10"subwoofer, 2.5"voice coil | |
| Dispersion (H * V) | 120° * 16° | / | / |
| Amplifier | Class-D amplifier | ||
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, Live | LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display and USB for adjustment in computer | No DSP |
| Protection | Short circuit overheating,over-current | ||

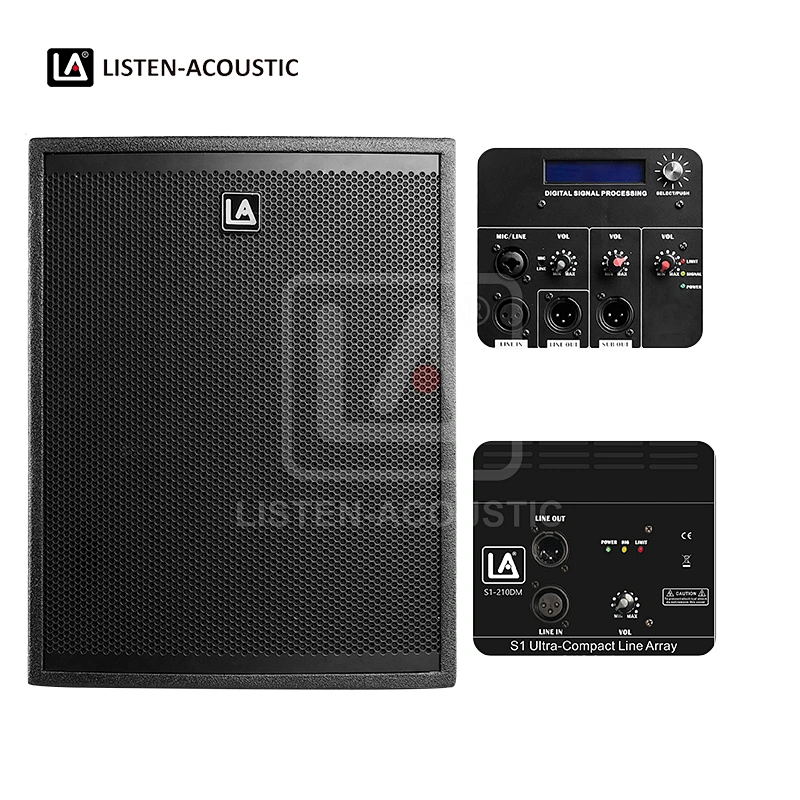

| Controls | Power On / Off switch, main level, DSP modes switch | Power On / Off switch, main level, mic/line level | Power On / Off switch, main level |
| Indicators | Power, signal, limit | ||
| Audio Input / Output | 1 * XLR input 1 * Combo XLR/Jack output | 1 * Combo XLR/Jack input 1 * XLR input 1 * XLR output | 1 * XLR input 1 * XLR output |
| Power Input / Output | Powercon | ||
| Power Supply | 100~250V 50/60Hz | 110~250V 50/60HZ | |
| Enclosure | ABS/PP Plastic | 15mm plywood with polyurea painting | |
| Grille | 1.0mm thickness metal grille with acoustic fabric | 1.2mm thickness metal grille with acoustic fabric | |
