PXL Series




Model No. PXL-12D2 PXL-15D2 PXL15S-D2 PXL18S-D2
Type 12'' 2-way full range speaker, active 15'' 2-way full range speaker, active 15'' bass reflex, active

18'' bass reflex, active

Frequency
Response (-6dB)
55 Hz - 20 kHz 50 Hz - 20 kHz 50 Hz - 200 Hz 45 Hz - 200 Hz
Max. SPL
(1m, free space)
125 dB 129 dB 120 dB 125 dB
Impedance 4Ohms 4Ohms 4 Ohms 4 Ohms
Transducer LF 12" woofer,
2.5" voice coil, 60oz
15" woofer,
2.5" voice coil, 80oz

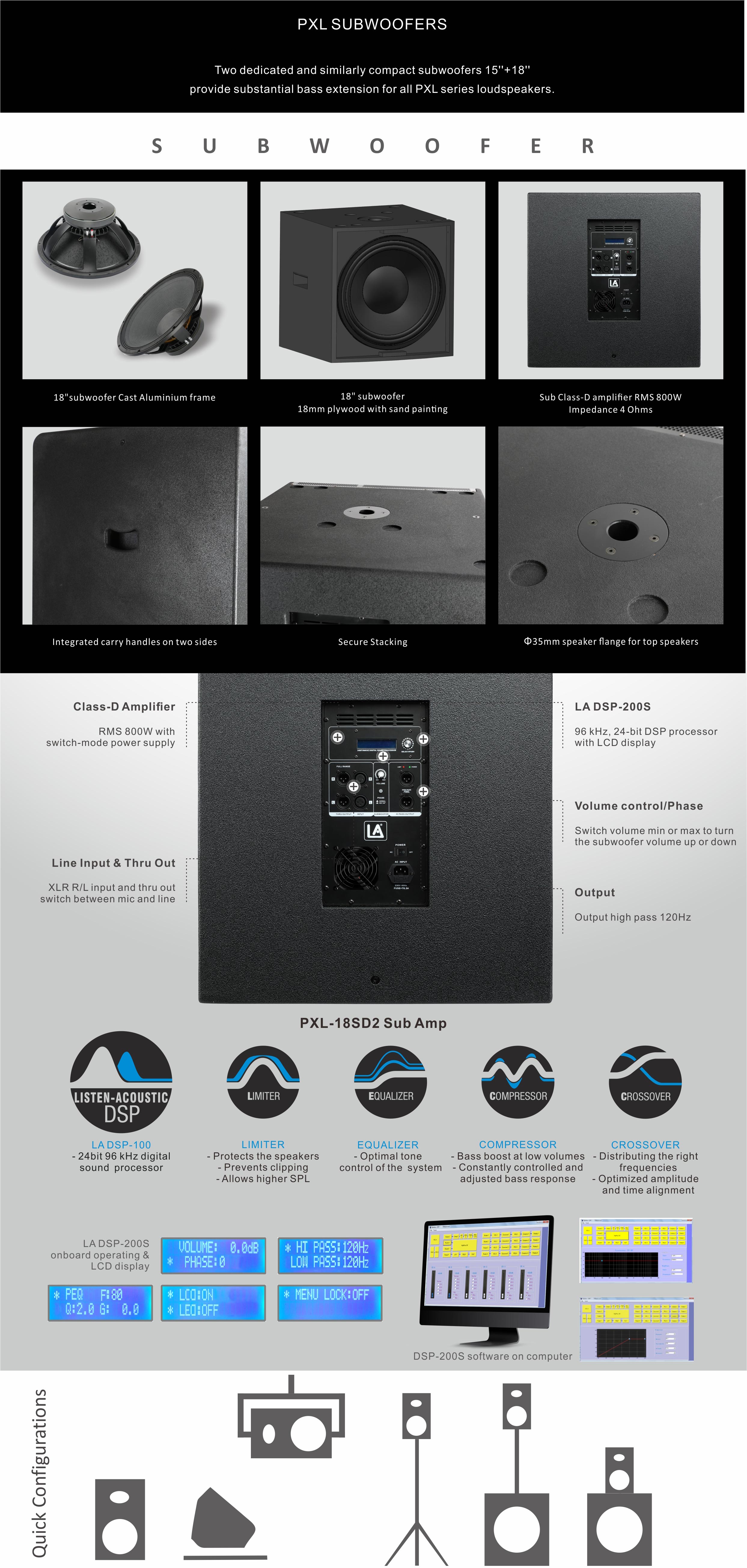

15" subwoofer Alu
frame, 4" KSV

voicecoil, 100oz

18" subwoofer Alu
frame, 4"KSV

voicecoil, 125oz

Transducer HF 1.75''Ti compression driver /
Enclosure H-PP with painting,
35mm stand pole,
1 top + 2 side handles
15mm plywood with
sand painting, Φ35
stand adaptor
18mm plywood with
sand painting, Φ35
stand adaptor
Grille Metal grille with acoustic fabric
Amplifier Class-D BI amplifier Class-D amplifier
Power Output (RMS) 350W (LF)+50W(HF) 450W (LF)+50W(HF) 700W 800W
DSP Module LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display
Protection Short circuit overheating, over-current
Controls Power On / Off switch,
main level,
DSP modes switch,
two line levels, mic/line switch
Power On / Off switch,
main level,
DSP modes switch,
phase switch
Indicators Power, limit
Audio Input / Output 1 * Combo XLR/Jack input
1 * XLR input
1 * XLR output
Left / Right XLR line input
Left / Right XLR line output
1 * XLR output
1 * XLR output highpass 120Hz
Optional Funciton Bluetooth /
Power Supply 100~130V 50/60HZ
210~250V 50/60HZ
100~130V 50/60HZ
210~250V 50/60HZ
