| Model No. | SM-1100 |

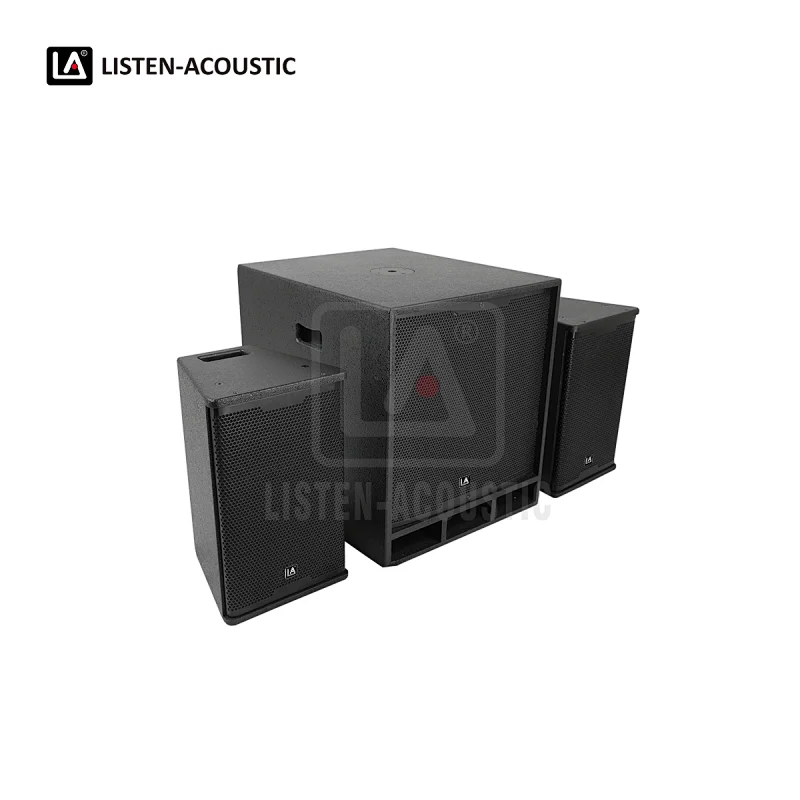

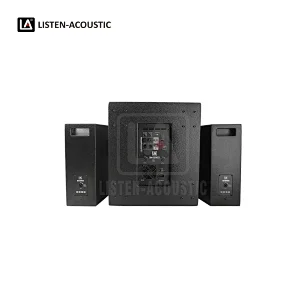

| System | Compact 2.1 PA System |
| Frequency Response (-6dB) | 50 Hz - 20 kHz |
| Max. SPL (1m, free space) | 119 dB |
| Impedance | 4Ohms |

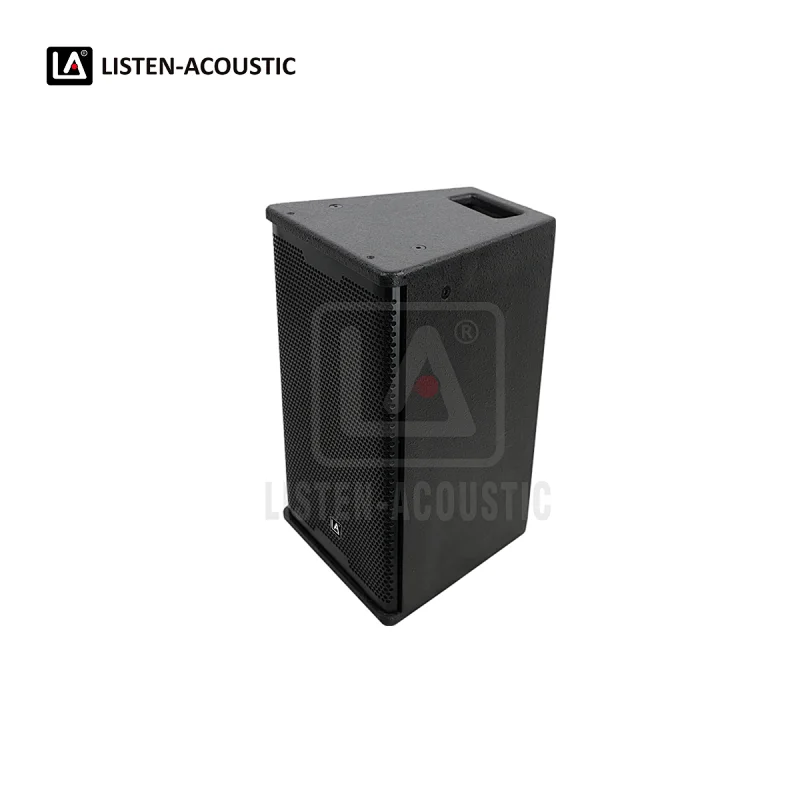

| Satellites | 2 * 10'' full range speaker |
| Transducer MF | 1 * 10"steel frame woofer |
| Transducer HF | 1 * 1.34"Ti. tweeter |

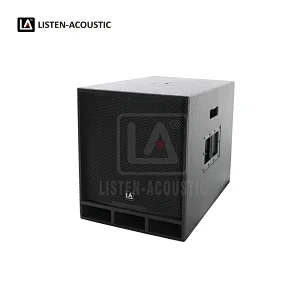

| Subwoofer | 18"bass reflex |
| Transducer LF | 1 * 18"subwoofer, 3'' VC |
| Enclosure | MDF with regular painting |
| Grille | Metal grille without acoustic fabric |
| Amplifier | Class-D amplifier |
| Amplifier RMS Output Power | 600W(Sub)+150W(Sat)*2 |

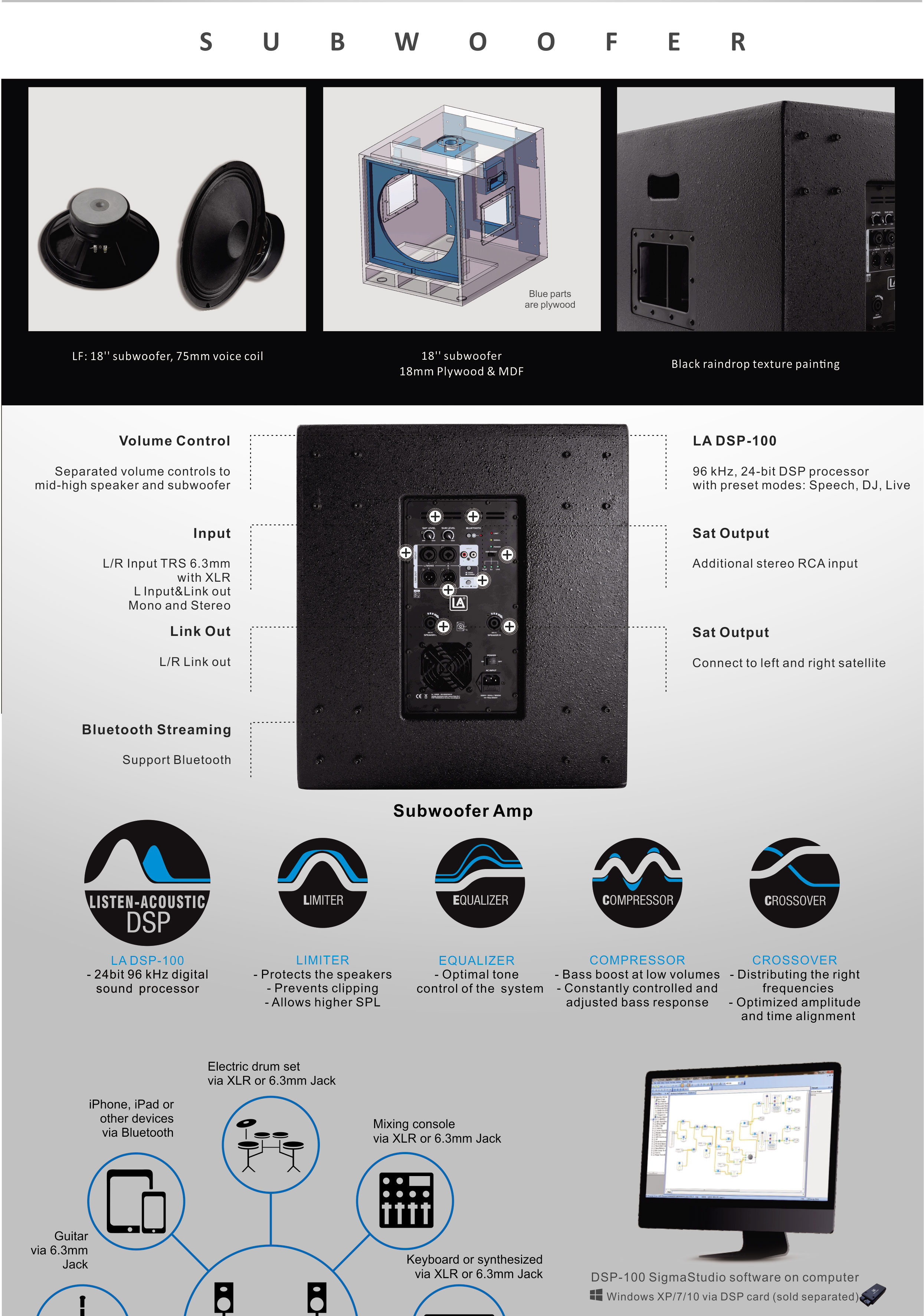

| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Speech, DJ, Live |
| Protection | Short circuit overheating, over-current |
| Controls | Power On / Off switch, satellite level, subwoofer level, Bluetooth On / Off switch, DSP modes switch, Mono /Stereo switch, sensitivity 0dB / +5dB switch |
| Indicators | Power, signal, limit, bluetooth, DSP monitor / DJ / Live indicators |

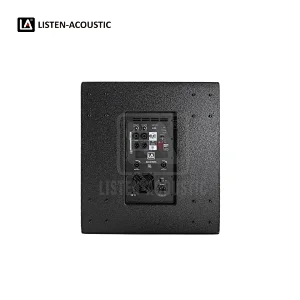

| Audio Input / Output | Left / Right Combo XLR/Jack input, 1 * Balanced RCA input, 2 * XLR output, Left / Right Speakon output |
| Power Input / Output | AC input |
| Power Supply | 100~130V 50/60HZ or 210~250V 50/60HZ |
