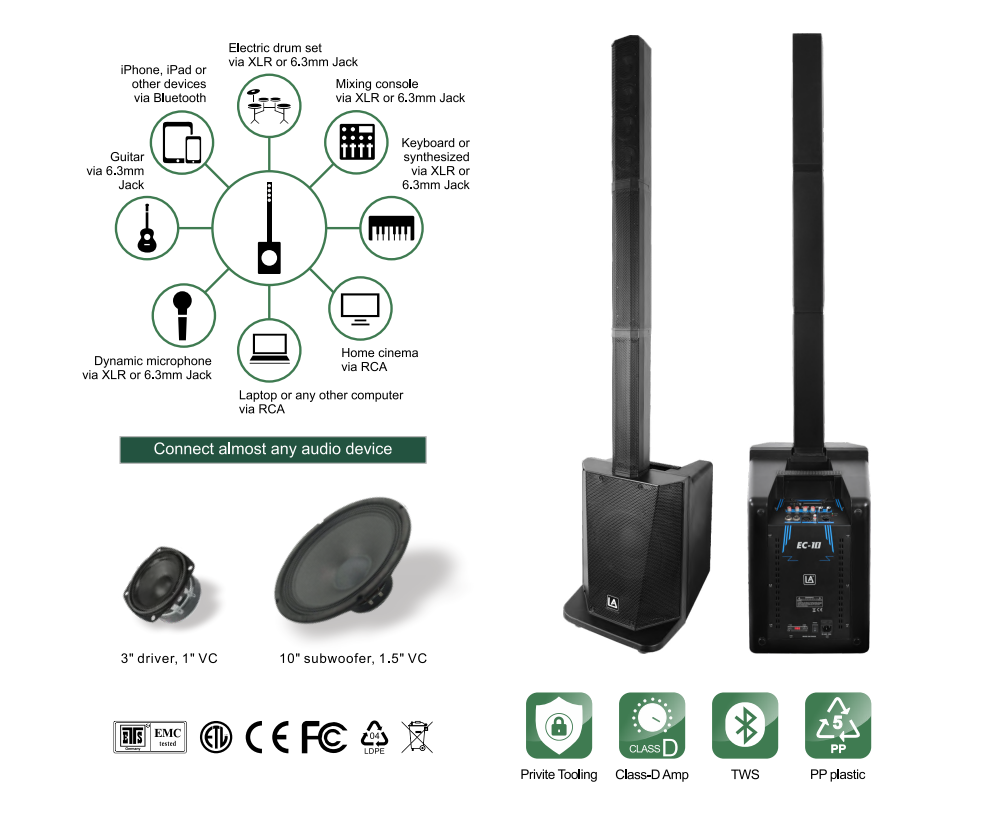

Listen Acoustic EC-10 Series, One New Portable Column System
Model No.：EC-10
Type: 1pc column + 1pc 10'' subwoofer+2pcs Colum housing
Frequency Response (-6dB): 45 Hz - 20 kHz
Max. SPL (1m, free space): 125 dB
Power Output (RMS): 270W (180W SUB + 90W SAT)
Impedance: 4 Ohms
Transducer HF: 4pcs * 3"driver, 1"voice coil
Transducer LF: 10"subwoofer, 1.5"voice coil
Amplifier: Class-D Bi amplifier
Function: MP3 player / Bluetooth 5.0 / BT TWS
Protection: Short circuit overheating, over-current
Controls: Power On / Off switch, mic level, MP3 level, Treble level, Bass level
Indicators: Power, signal
Enclosure: ABS/PP Plastic
Type: 1pc column + 1pc 10'' subwoofer+2pcs Colum housing
Frequency Response (-6dB): 45 Hz - 20 kHz
Max. SPL (1m, free space): 125 dB
Power Output (RMS): 270W (180W SUB + 90W SAT)
Impedance: 4 Ohms
Transducer HF: 4pcs * 3"driver, 1"voice coil
Transducer LF: 10"subwoofer, 1.5"voice coil
Amplifier: Class-D Bi amplifier
Function: MP3 player / Bluetooth 5.0 / BT TWS
Protection: Short circuit overheating, over-current
Controls: Power On / Off switch, mic level, MP3 level, Treble level, Bass level
Indicators: Power, signal
Enclosure: ABS/PP Plastic
Audio Input / Output:
2 * Jack input, 1 * L/R RCA input,
1 * XLR input, 1 * XLR output
2 * Jack input, 1 * L/R RCA input,
1 * XLR input, 1 * XLR output
Power Input / Output: AC input
Power Supply: 115-230V 60/50Hz
Power Supply: 115-230V 60/50Hz
