| Model No. | PXL-12D2 | PXL-15D2 | PXL15S-D2 | PXL18S-D2 |
| Type | 12'' 2-way full range speaker, active | 15'' 2-way full range speaker, active | 15'' bass reflex, active |
18'' bass reflex, active |
| Frequency Response (-6dB) |
55 Hz - 20 kHz | 50 Hz - 20 kHz | 50 Hz - 200 Hz | 45 Hz - 200 Hz |
| Max. SPL (1m, free space) |
125 dB | 129 dB | 120 dB | 125 dB |
| Impedance | 4Ohms | 4Ohms | 4 Ohms | 4 Ohms |
| Transducer LF | 12" woofer, 2.5" voice coil, 60oz |
15" woofer, 2.5" voice coil, 80oz |

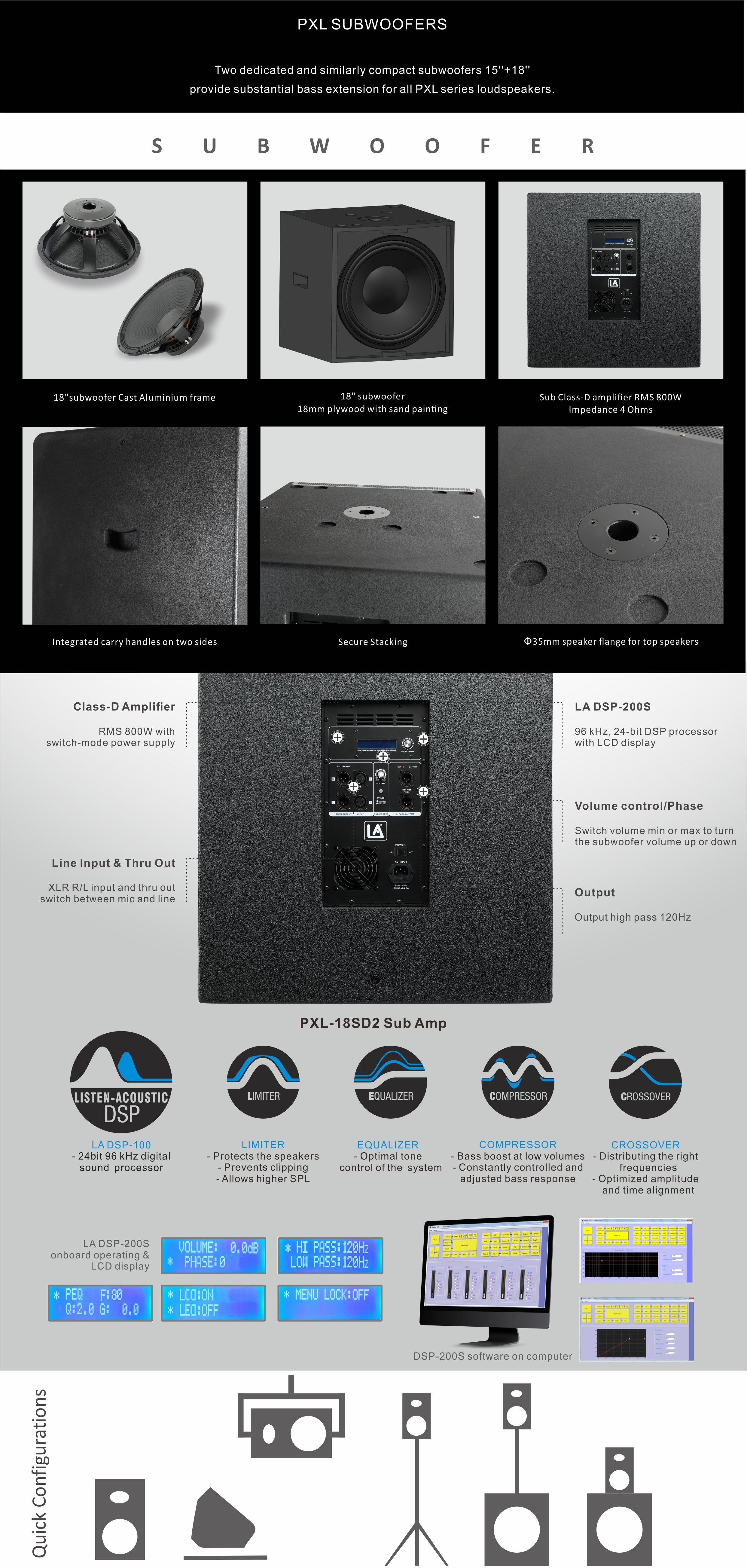

15" subwoofer Alu voicecoil, 100oz |
18" subwoofer Alu voicecoil, 125oz |

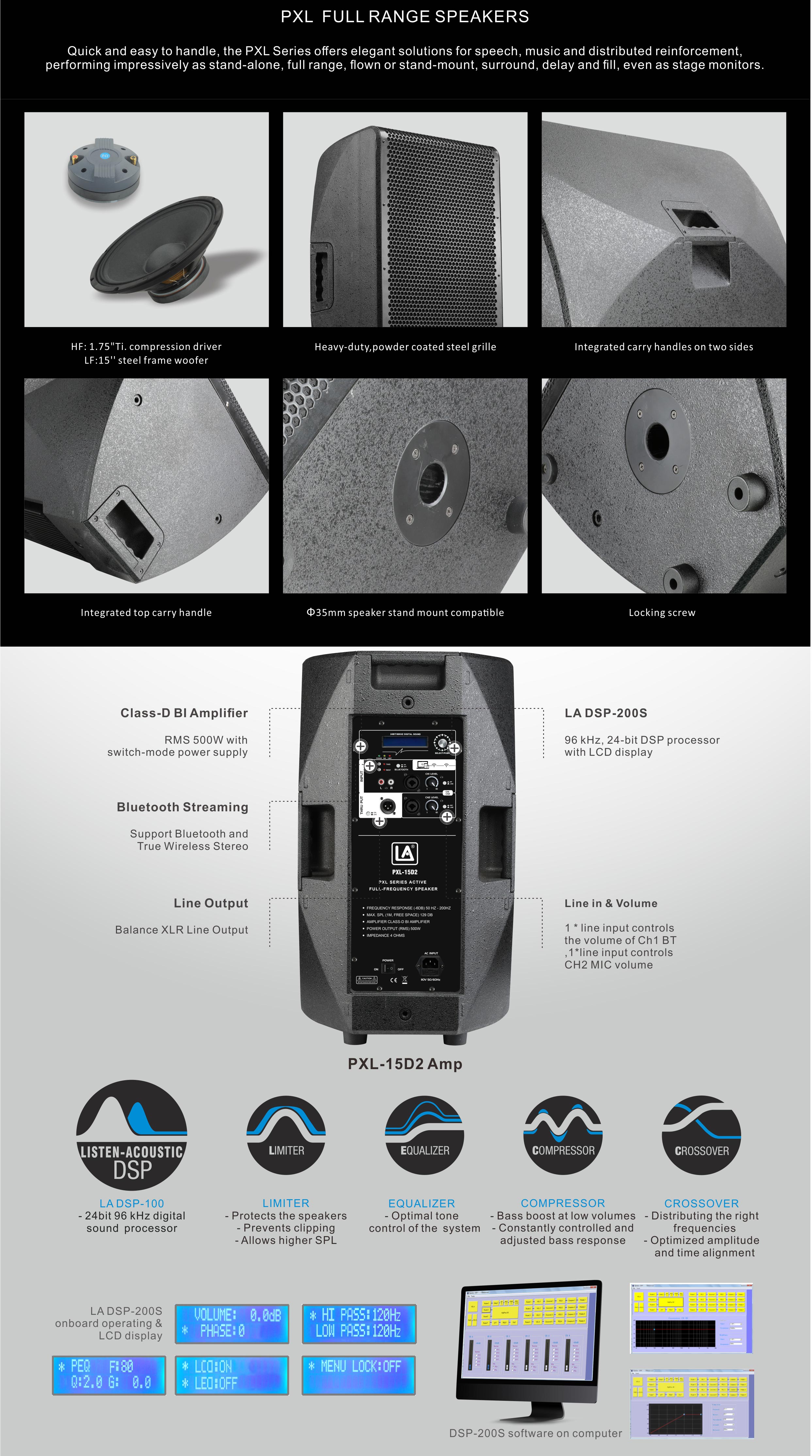

| Transducer HF | 1.75''Ti compression driver | / | ||
| Enclosure | H-PP with painting, 35mm stand pole, 1 top + 2 side handles |
15mm plywood with sand painting, Φ35 stand adaptor |
18mm plywood with sand painting, Φ35 stand adaptor |
|
| Grille | Metal grille with acoustic fabric | |||
| Amplifier | Class-D BI amplifier | Class-D amplifier | ||
| Power Output (RMS) | 350W (LF)+50W(HF) | 450W (LF)+50W(HF) | 700W | 800W |
| DSP Module | LA DSP-200S, 96 kHz, 24-bit DSP processor with LCD display | |||
| Protection | Short circuit overheating, over-current | |||
| Controls | Power On / Off switch, main level, DSP modes switch, two line levels, mic/line switch |
Power On / Off switch, main level, DSP modes switch, phase switch |
||
| Indicators | Power, limit | |||
| Audio Input / Output | 1 * Combo XLR/Jack input 1 * XLR input 1 * XLR output |
Left / Right XLR line input Left / Right XLR line output 1 * XLR output 1 * XLR output highpass 120Hz |
||
| Optional Funciton | Bluetooth | / | ||
| Power Supply | 100~130V 50/60HZ 210~250V 50/60HZ |
100~130V 50/60HZ 210~250V 50/60HZ |
||
