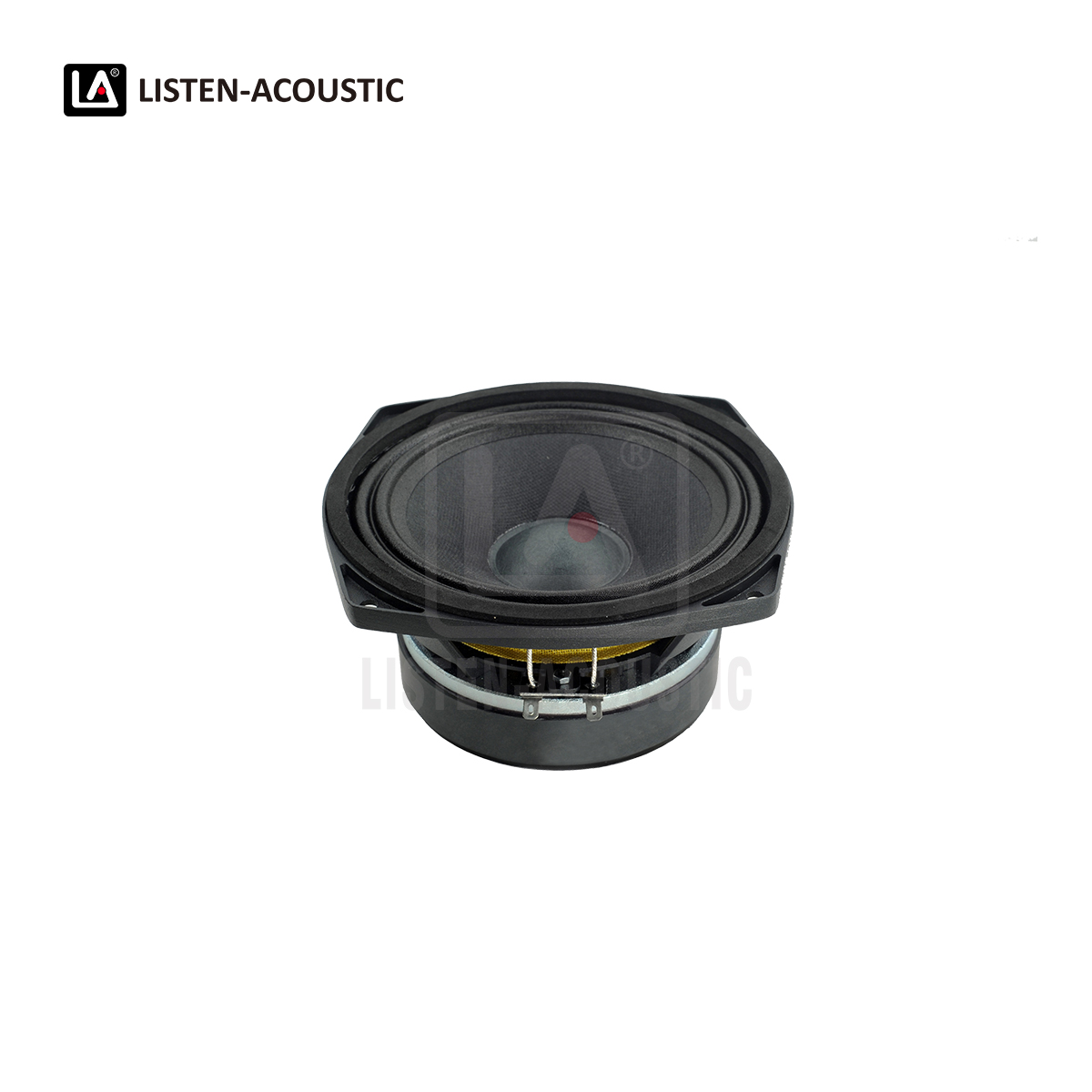

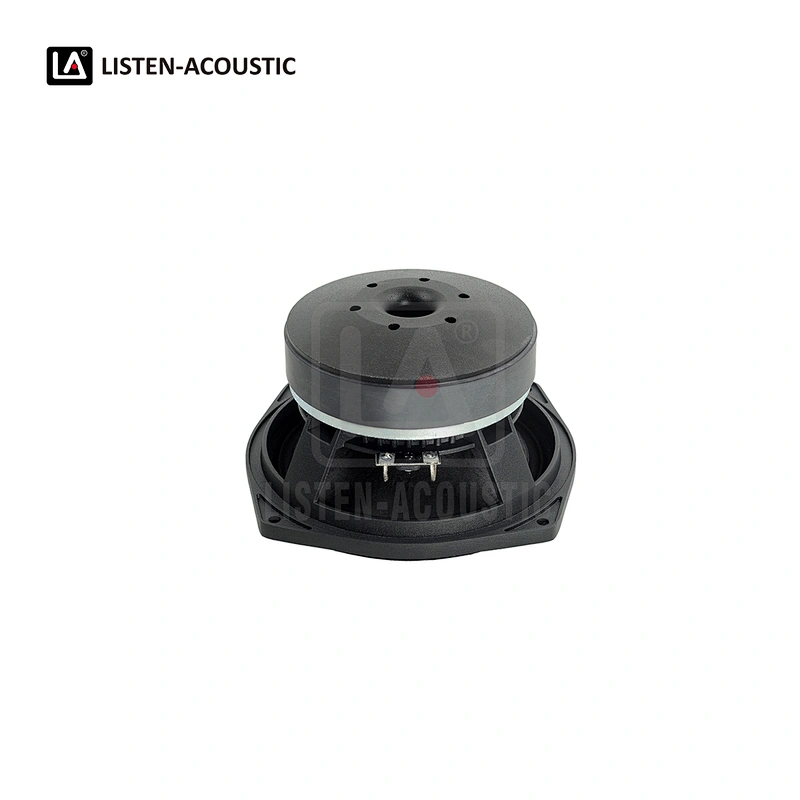

6.5 Inch Mid and High Range Woofer with RMS 30 Watts

Model NO.
65AA38-1
Delivery
FOB
Minimum order quantity
500 sets
Supply Ability
60,000 sets / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 6.5 Inch / (167 x 167 mm), Power Handling 30 watts, Sensitivity 93 dB, Frequency Response 120 Hz - 5 kHz, Voice Coil Diameter 1.5 Inch / 38 mm
Quantity:
Listen Acoustic 6.5 inch Mid / High Range woofer speakers
Features

1. Nominal Diameter 6.5"/ 167 mm
2. Power Handling 30 watts
3. Sensitivity 93 dB

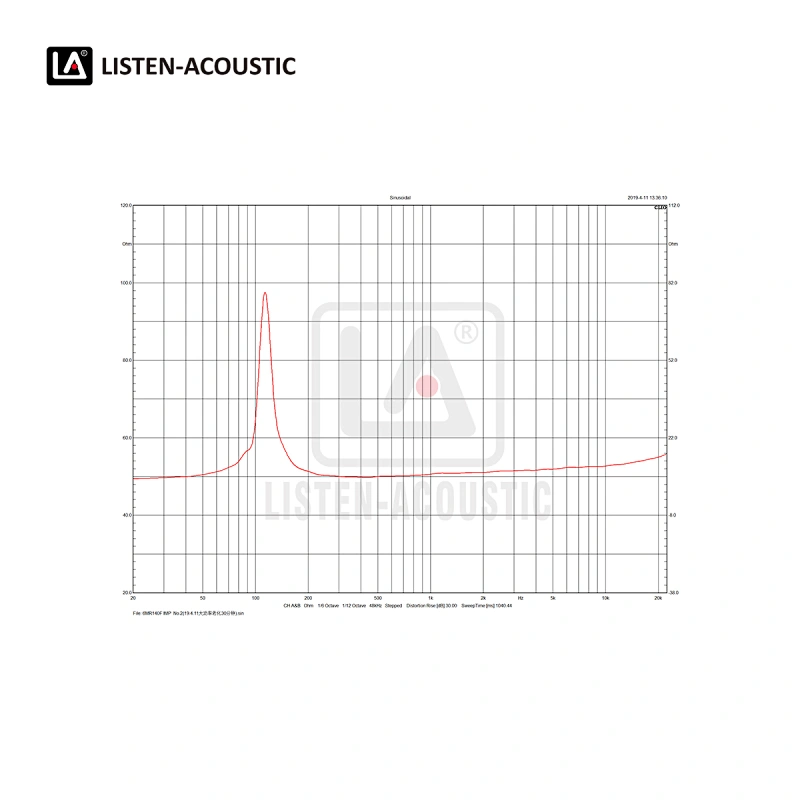

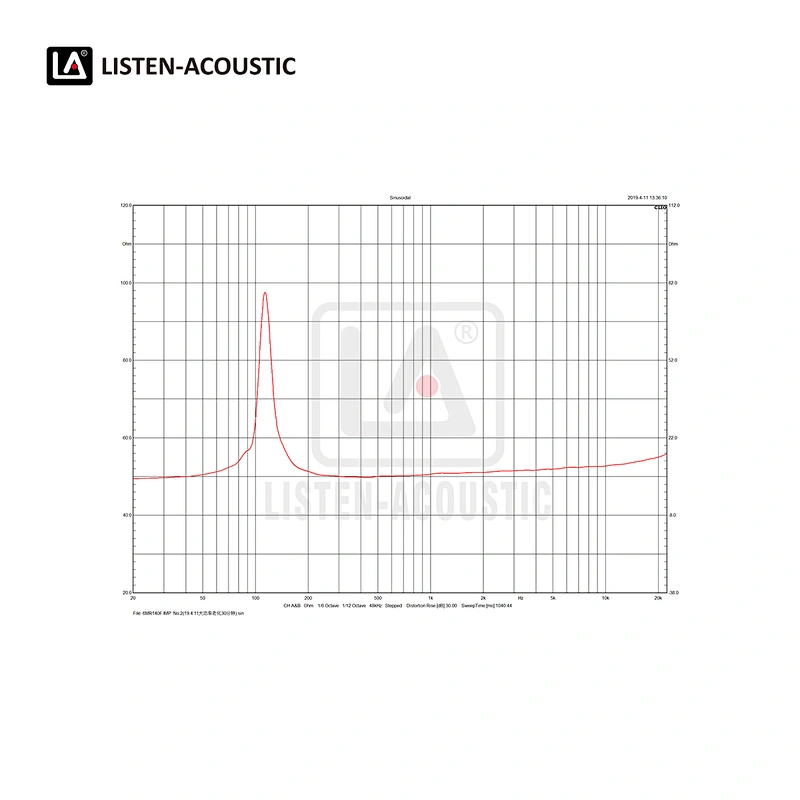

4. Frequency Response 120 Hz - 5 kHz
5. Voice Coil Diameter 1.5"/ 38 mm
6. Ferrite Magnet 34 Oz
7. Cast Aluminium Chassis type
8. Applications as mid / high range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.65AA38-1
Nominal Diameter6.5"/ 167 mm
RMS Power30 watts
MAX Power60 watts
Sensitivity (1w/1m)93 dB
Frequency Range120 Hz - 5 kHz
Voice Coil Diameter1.5"/ 38 mm
Available Impedances4 / 8 Ω
Magnet Size34 Oz
Magnet MaterialFerrite
Chassis typeCast Aluminium
Voice Coil MaterialCopper clad aluminium
Former MaterialGlass fiber
Dust Dome MaterialPaper
Suspension MaterialN
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs110 Hz
Qes0.62
Qms8.77
Qts0.58
Vas4.77 L
Sd0.0133 m2
η01.07%
Mms10.15 g
BI7.77 Txm
Cms0.197 mm/N
Rms0.827 WM
Le1k0.18 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter7.32"/ 186 mm
Bolt Circle Diameter 6.57"/ 167 mm
Baffle Cut-out Diameter5.83"/ 148 mm
Overall Depth3.46"/ 88 mm
Net Weight2.45 kgs / 5.41 lbs
