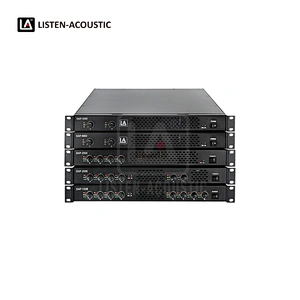

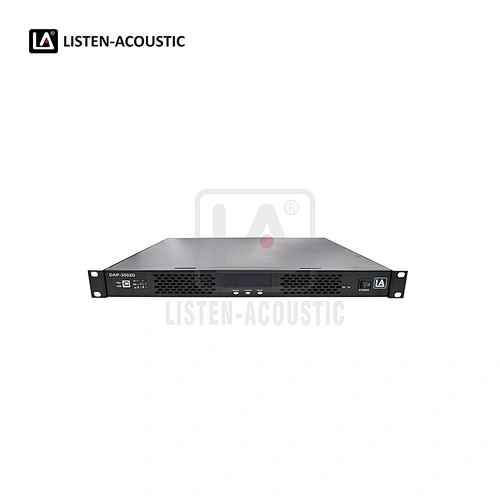

Class D 1U Rack Amplifier

Model NO.: DAP
Delivery: FOB
Minimum order quantity: 100 pieces
Supply Ability: 60,000 pieces / Month
Country of Origin: Ningbo, China
Stock Time: 40 Days

Optional output RMS (8Ω, 1kHz): 2 * 350W, 2 * 650W, 2 * 850W, 4 * 350W, 6 * 250W, 8 * 150W

Quantity:

Product Description

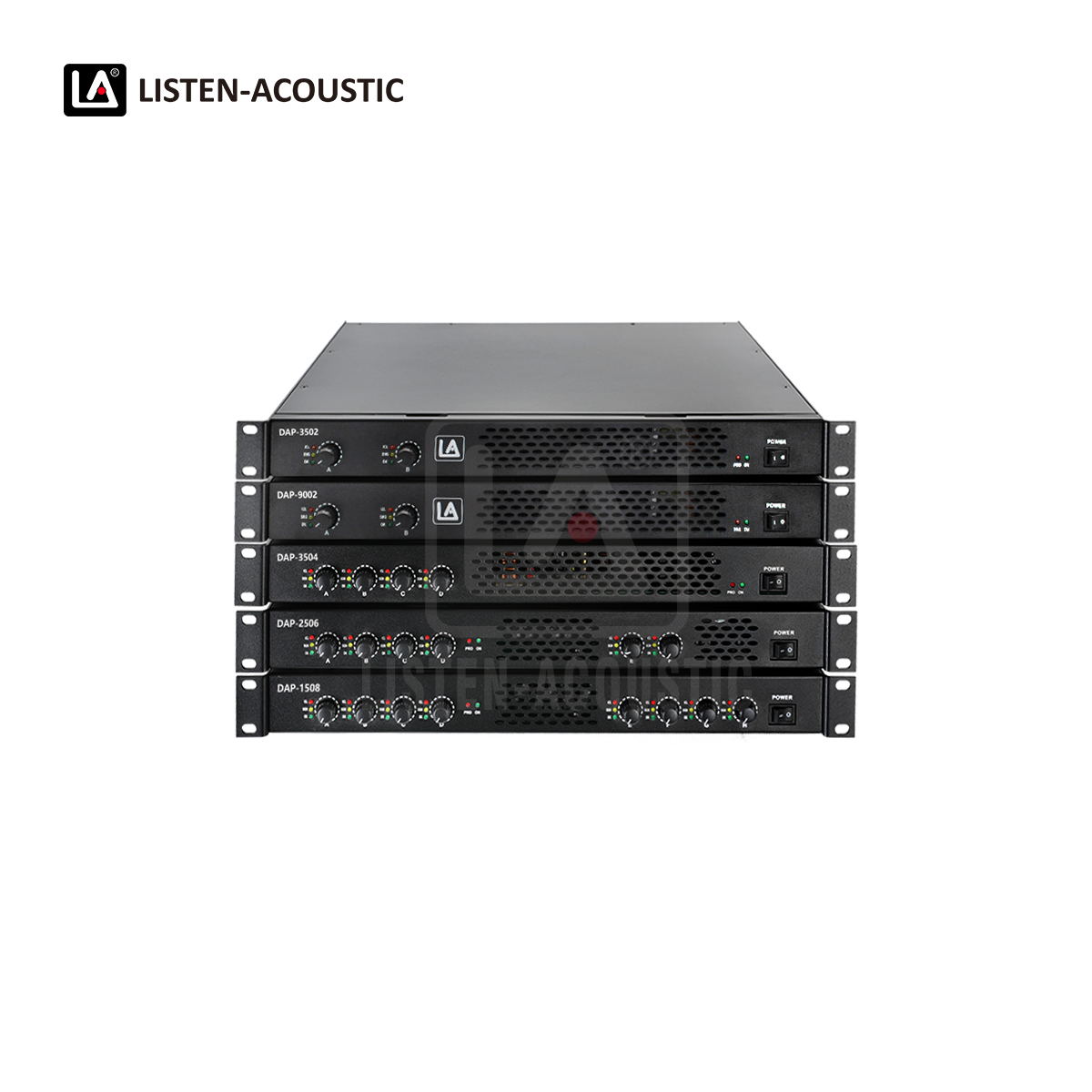

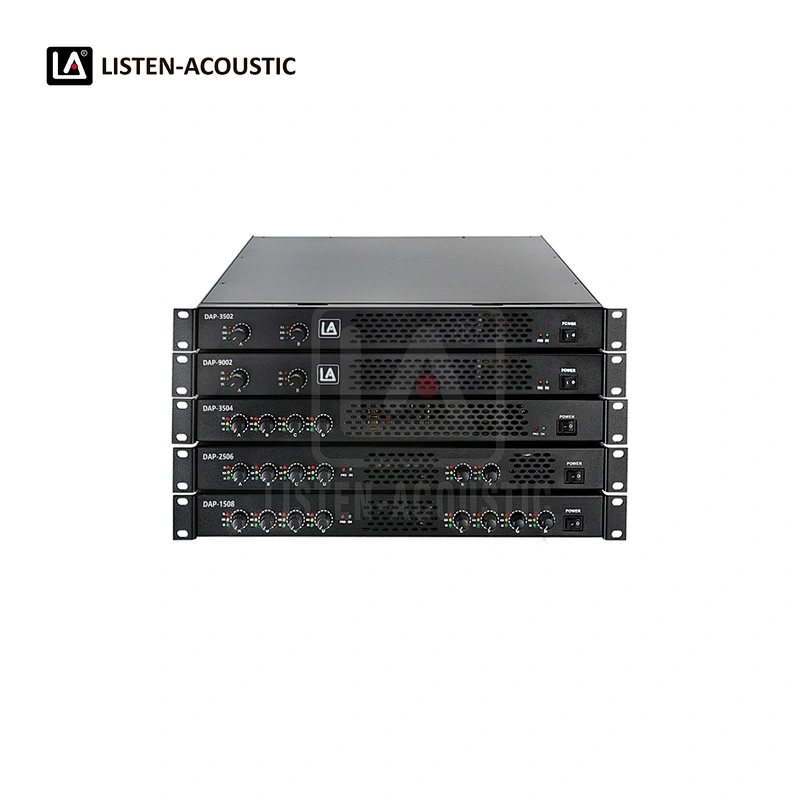

1U Class-D Amplifier

Features

1. 1U ultra-thin design

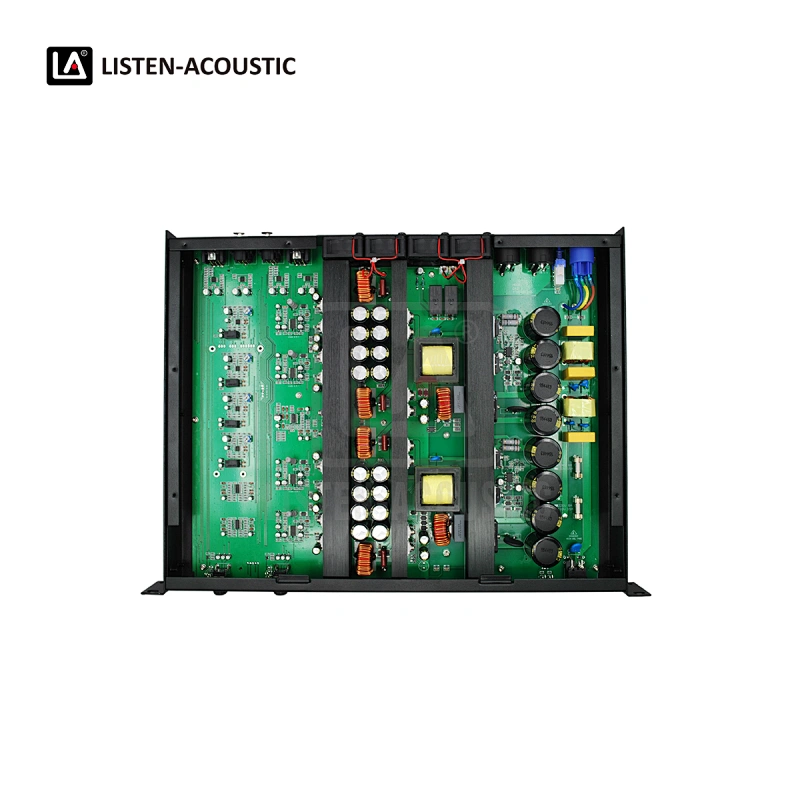

2. Class D power amplifier with switch power
3. Each channel has independent Clip Limiter and Low Filter
4. Complete amplifier protection
5. Stereo and Bridge Mono modes of operation

Specifications

Model NO.		DAP3502	DAP6502
Type		Class D 1U Rack Amplifier	Class D 1U Rack Amplifier
Output RMS	(8Ω, 1kHz)	2 * 350W	2 * 650W
	(4Ω, 1kHz)	2 * 550W	2 * 1050W
	BTL: (8Ω, 1kHz)	1100W	/
Frequency Response		20 Hz - 20 kHz±3dB	20 Hz - 20 kHz±3dB
TND		1% (8Ω, 350W)	1% (8Ω, 650W)
Input Sensitivity		+4dB * (1.23V)	+4dB * (1.23V)
Input Impedance		10kΩ (Balanced)	10kΩ (Balanced)
S/N Ratio		≥80dB	≥80dB

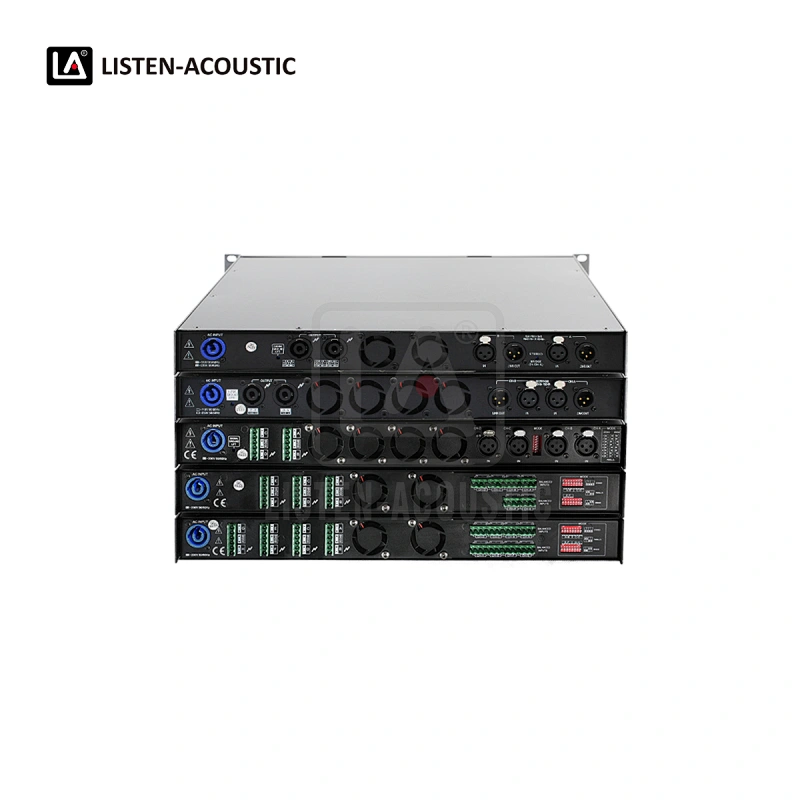

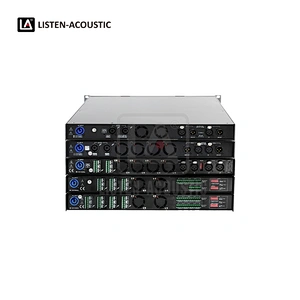

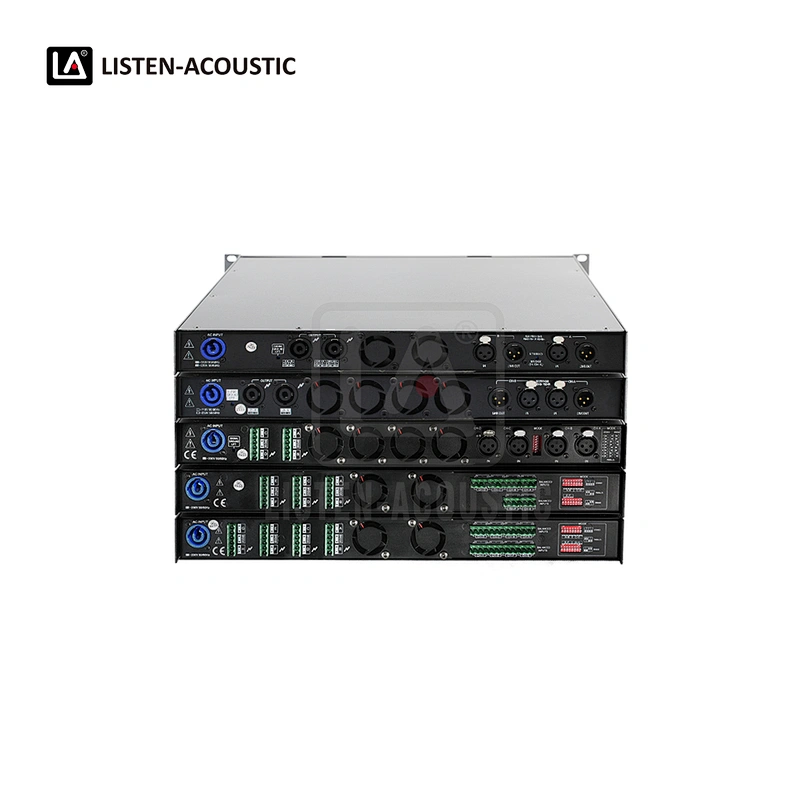

Connector		Input (CH1-2): XLR input connector Output (CH1-2): SPEAKON output Power: AC Power Supply	Input (CH1-2): XLR input connector Output (CH1-2): SPEAKON output Power: AC Power Supply
Indicators		Power Indicator * 1 (Green) Input Indicator * 2(Yellow) Peak Indicator * 2 (Red) Protect Indicator * 1 (Red)	Power Indicator * 1(Green) Input Indicator * 2(Yellow) Peak Indicator * 2 (Red) Feedback Protect Indicator* 1(Red)
Power Supply		AC 110~120V 50/60Hz or AC 220~240V 50/60Hz	AC 110~120V 50/60Hz or AC 220~240V 50/60Hz
Power Comsumption at 1/8 Power		110W	210W
Working Temperature Range		0~50℃	0~50℃
Working Humidity Range		Under 90% RH（But it can not be condensation)	Under90% RH（But it can not be condensation)
Dimensions		483mm * 45mm * 240mm (19'', 1U)	483mm * 45mm * 355mm (19'', 1U)
Net Weight		3.40kg	5.50kg

Model NO.		DAP9002	DAP3504
Type		Class D 1U Rack Amplifier	Class D 1U Rack Amplifier
Output RMS	(8Ω, 1kHz)	2 * 850W	4 * 350W
	(4Ω, 1kHz)	2 * 1400W	4 * 550W
	BTL: (8Ω, 1kHz)	/	2 * 1100W
Frequency Response		20 Hz - 20 kHz±3dB	20 Hz - 20 kHz±3dB
TND		1% (8Ω, 850W)	1% (8Ω,350W)
Input Sensitivity		+4dB * (1.23V)	+4dB * (1.23V)
Input Impedance		10kΩ (Balanced)	10kΩ (Balanced)
S/N Ratio		≥80dB	≥80dB
Connector		Input (CH1-2): XLR input connector Output (CH1-2): SPEAKON output Power: AC Power Supply	Input (CH1-2): XLR input connector Output (CH1-2): Phoenix plug Power: AC Power Supply
Indicators		Power Indicator * 1 (Green) Input Indicator * 2 (Yellow) Peak Indicator * 2 (Red) Feedback Protect Indicator * 1 (Red)	Power Indicator * 1 (Green) Input Indicator * 4 (Yellow) Peak Indicator * 4 (Red) Feedback Protect Indicator * 1 (Red)
Power Supply		AC 110~120V、50/60HZ AC 220~240V 50/60HZ	AC 110~120V 50/60HZ AC 220~240V 50/60HZ
Power Comsumption at 1/8 Power		275W	230W
Working Temperature Range		0~50℃	0~50℃
Working Humidity Range		Under90% RH（But it can not be condensation)	Under90% RH（But it can not be condensation）
Dimensions		483mm * 45mm * 355mm (19'', 1U)	483mm * 45mm * 355mm (19'', 1U)
Net Weight		5.50kg	5.50kg

Model NO.		DAP2506	DAP1508
Type		Class D 1U Rack Amplifier	Class D 1U Rack Amplifier
Output RMS	(8Ω, 1kHz)	6 * 250W	8 * 150W
	(4Ω, 1kHz)	6 * 450W	8 * 250W
	BTL: (8Ω, 1kHz)	3 * 800W	4 * 500W
Frequency Response		20 Hz - 20 kHz±3dB	20 Hz - 20 kHz±3dB
TND		1% (8Ω,150W)	1% (8Ω,150W)
Input Sensitivity		+4dB * (1.23V)	+4dB * (1.23V)
Input Impedance		10kΩ (Balanced)	10kΩ (Balanced)
S/N Ratio		≥80dB	≥80dB
Connector		Input (CH1-6): Phoenix plug Output (CH1-6): Phoenix plug	Input (CH1-6): Phoenix plug Output (CH1-6): Phoenix plug
Indicators		Power Indicator * 1 (Green) Input Indicator * 6 (Yellow) Peak Indicator * 6 (Red) Feedback Protect Indicator * 1 (Red)	Power Indicator ×1 (Green) Input Indicator ×8 (Yellow) Peak Indicator ×8 (Red) Feedback Protect Indicator ×1 (Red)
Power Supply		AC 110~120V 50/60HZ AC 220~240V 50/60HZ	AC 110~120V 50/60HZ AC 220~240V 50/60HZ
Power Comsumption at 1/8 Power		250W	200W
Working Temperature Range		0~50℃	0~50℃
Working Humidity Range		Under90% RH(But it can not be condensation)	Under90% RH(But it can not be condensation)
Dimensions		483mm * 45mm * 355mm (19'', 1U)	483mm * 45mm * 355mm (19'', 1U)
Net Weight		5.50kg	5.50kg
