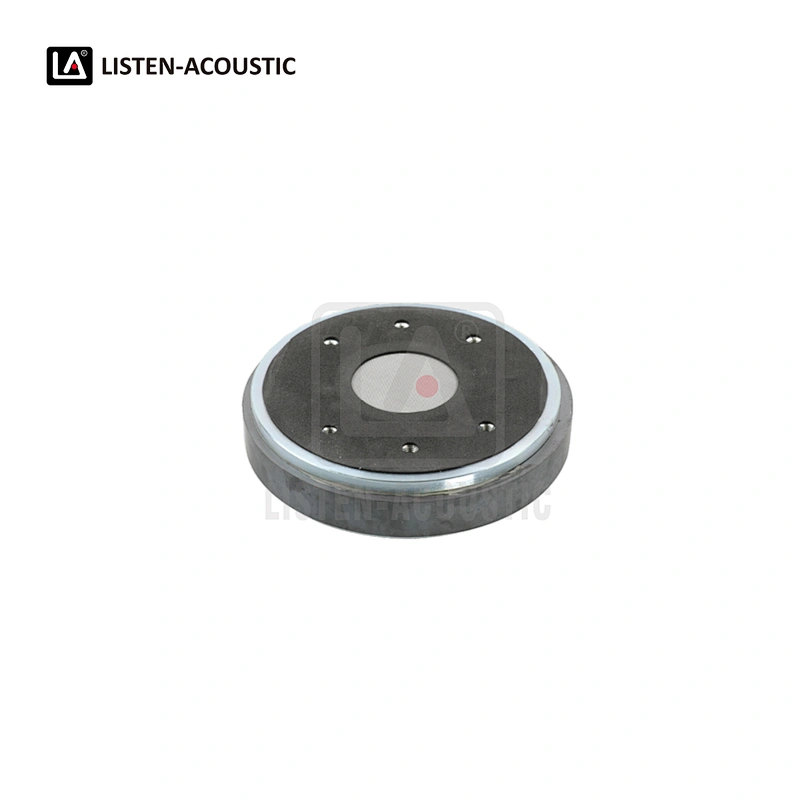

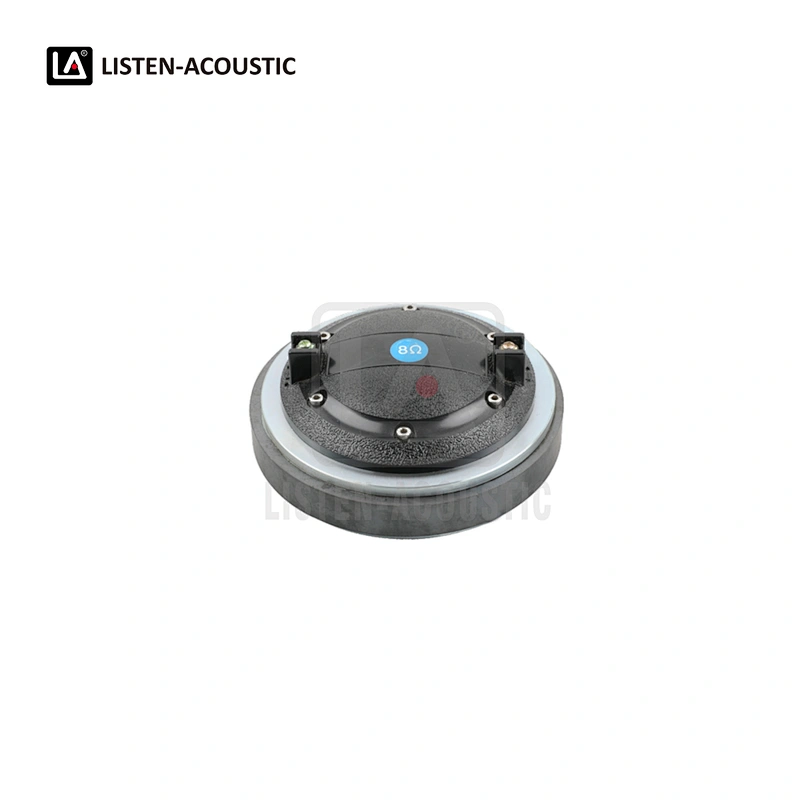

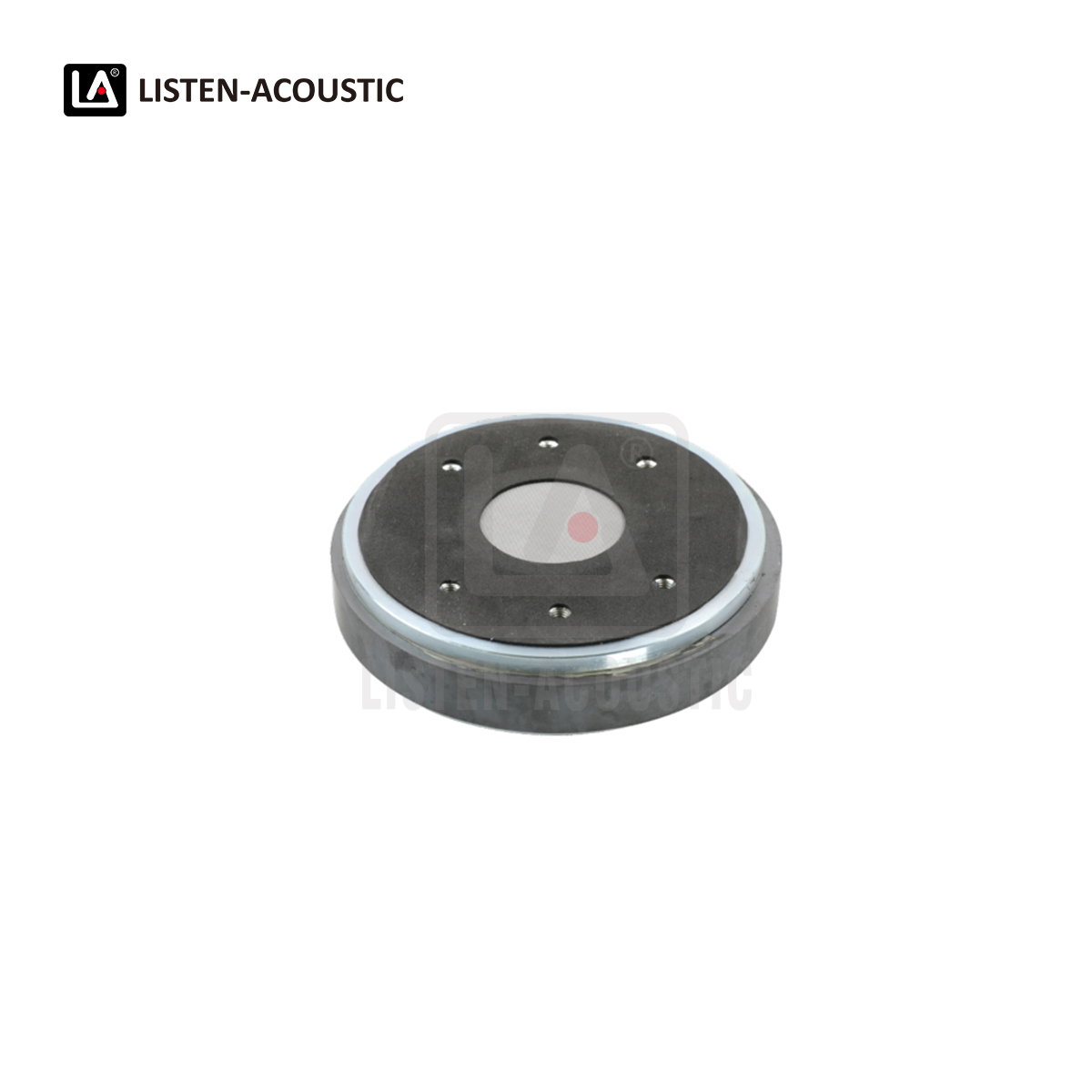

2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722
2.85 Inch Titanium or Phenolic Dome Tweeter T-722

2.85 Inch Titanium or Phenolic Dome Tweeter T-722

Model NO.
T-722
Delivery:
FOB
Minimum order quantity:
500 sets
Supply Ability:
60,000 sets / Month
Country of Origin:
Ningbo, China
Stock Time:
35 Days
Nominal Diameter 2.85 Inch / 72.5mm, Max Power 100 watts, Sensitivity 100 dB, Frequency Response 500 Hz - 20 kHz, Titanium Diaphragm Material
Quantity:
 Specifications

SPECIFICATIONS
Model No.T-722
Voice Coil Diameter2.85"/ 72.5 mm
Power Handling Capacity100 W
Max Power200 W
Nominal Impedance8 Ω (AC)
Sensitivity100 dB

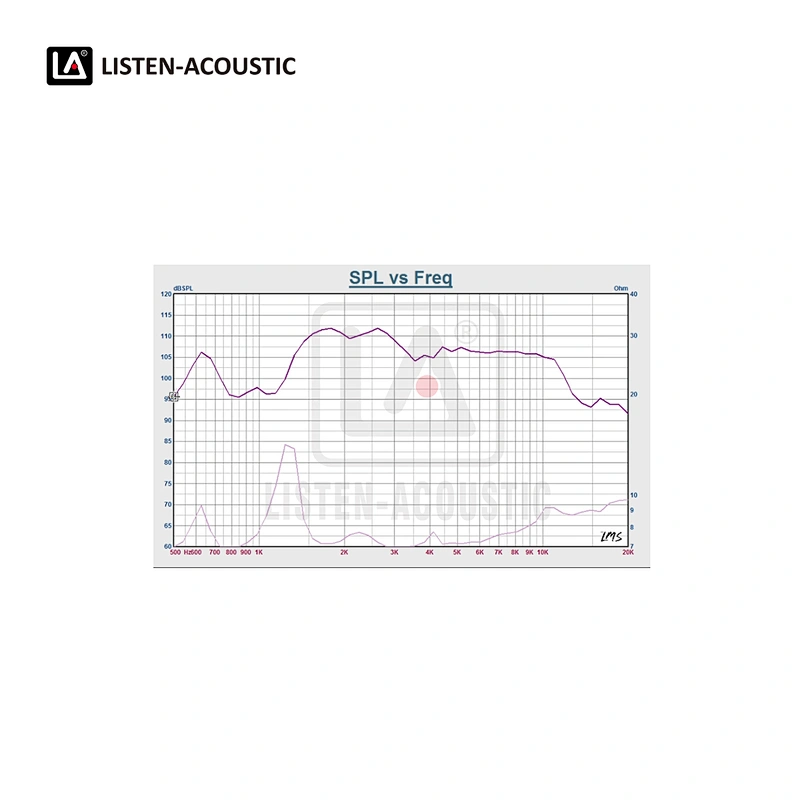

Frequency Range500 Hz - 20 kHz
Throat Diameter2"/ 50.8 mm
FittingFlange
Magnet MaterialFerrite
Voice Coil Winding MaterialRound Copper Wire
Voice Coil Former MaterialKapton
Diaphragm MaterialTitanium
Net Weight3.33 kgs / 7.35 lbs
Shipping Weight14.4 kgs / 31.77 lbs
Shipping Box360*175*160 mm
14.17*6.89*6.30 in
