PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier
PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier

PQ-15D 2 ways Full Range Active Speaker with Class-D Amplifier

Model NO.
PQ-15D
Delivery
FOB
Minimum order quantity
200 pieces
Supply Ability
60000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
45 Days
15" woofer, 3" voice coil + 1.75" Ti. tweeter + Class-D BI amplifier 550W(LF)+50W(HF) + DSP-100 24bit 96 kHz DSP with preset modes
Quantity:

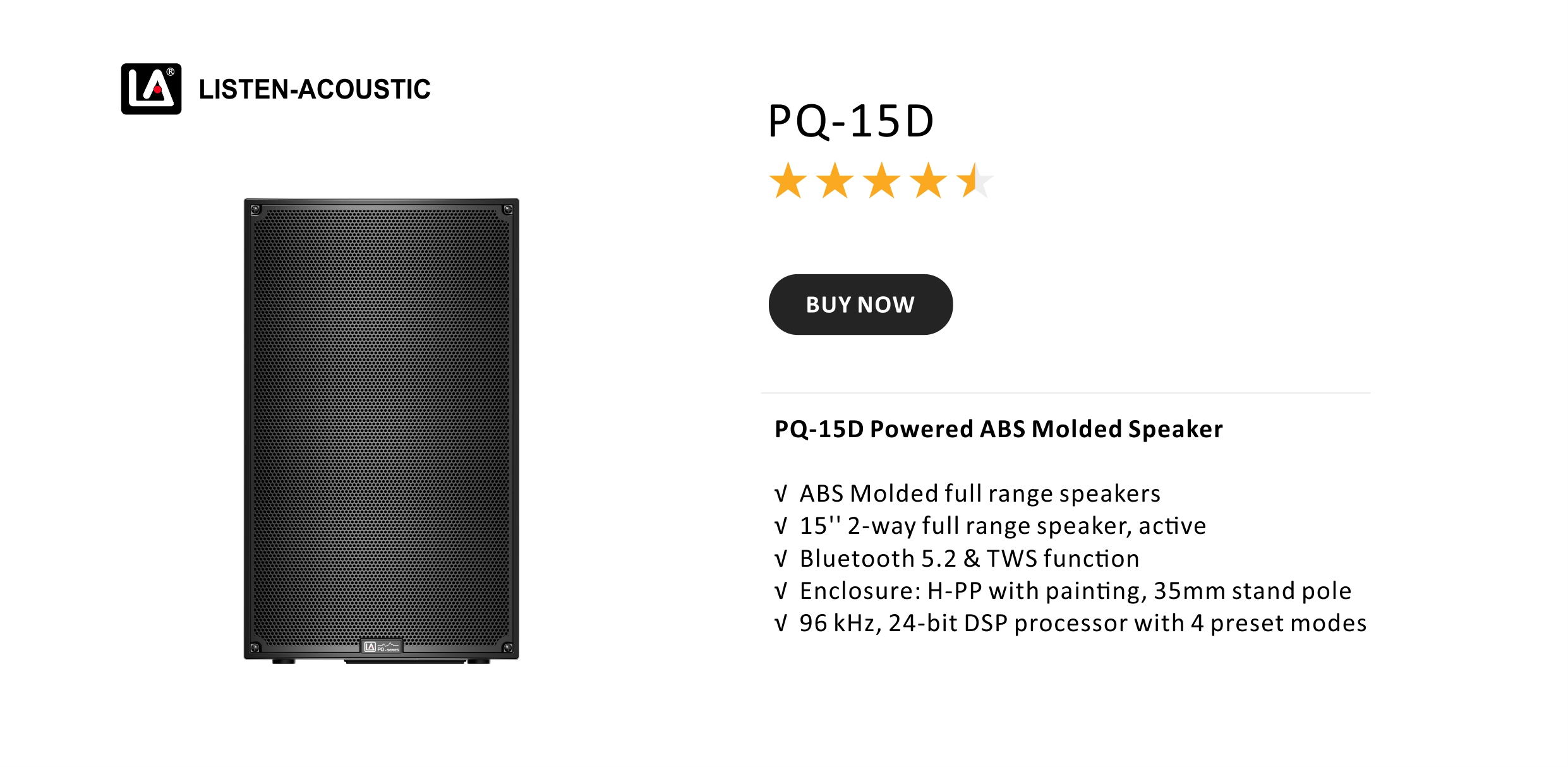

Model No. PQ-15D
Type15‘’ 2-way full range speaker box
Frequency Response (-6dB)45 Hz-20 kHz
Max. SPL(1m, free space)127 dB

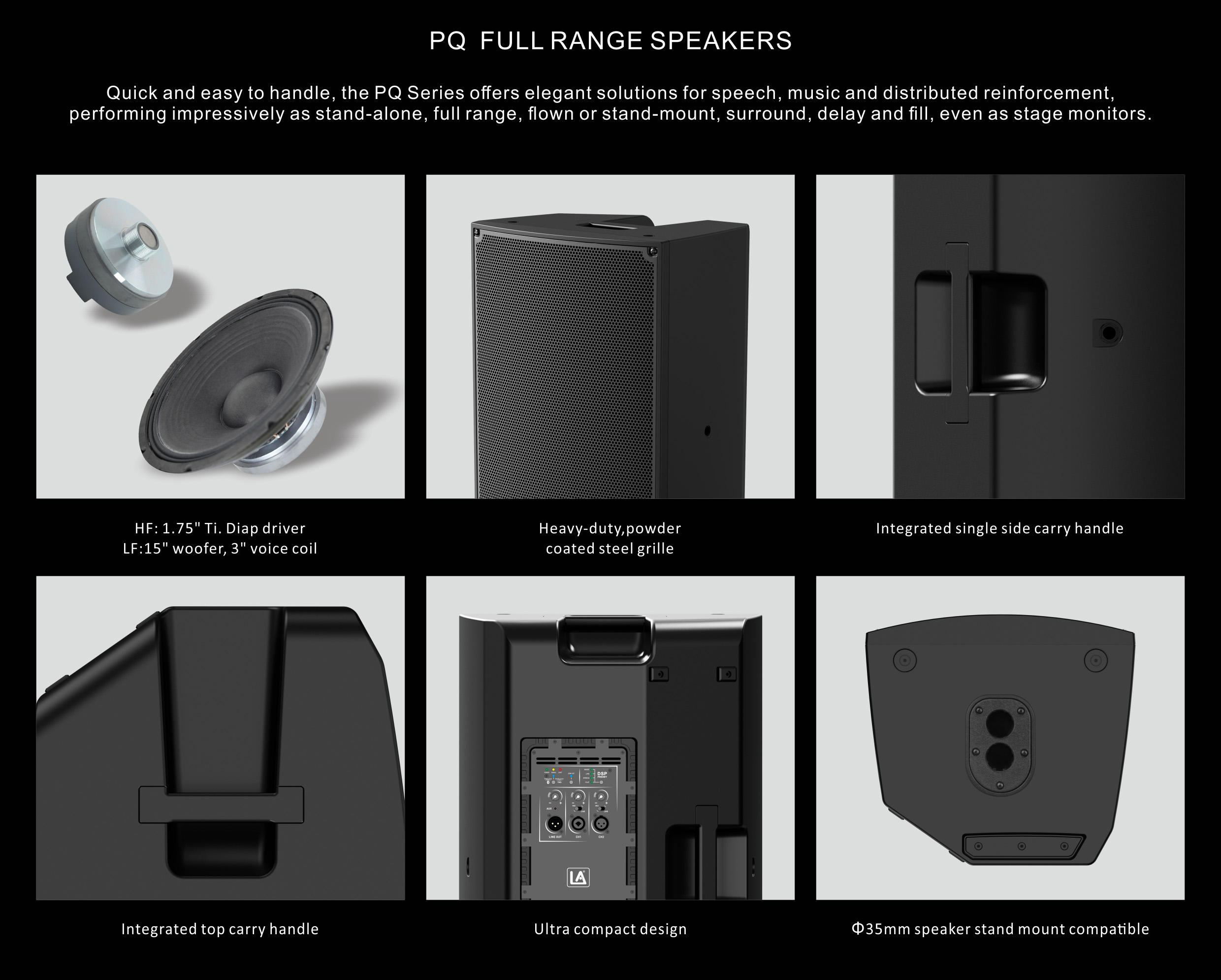

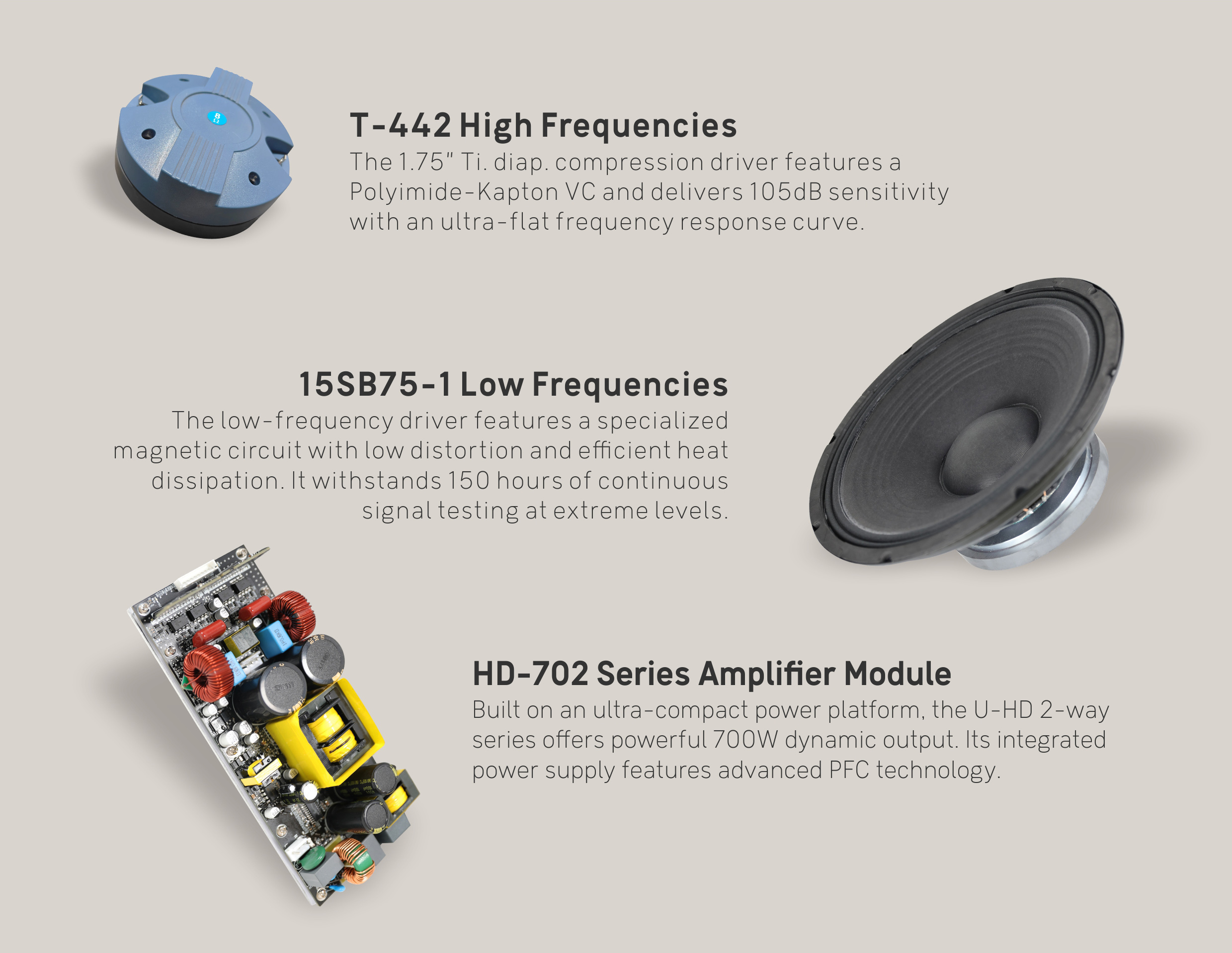

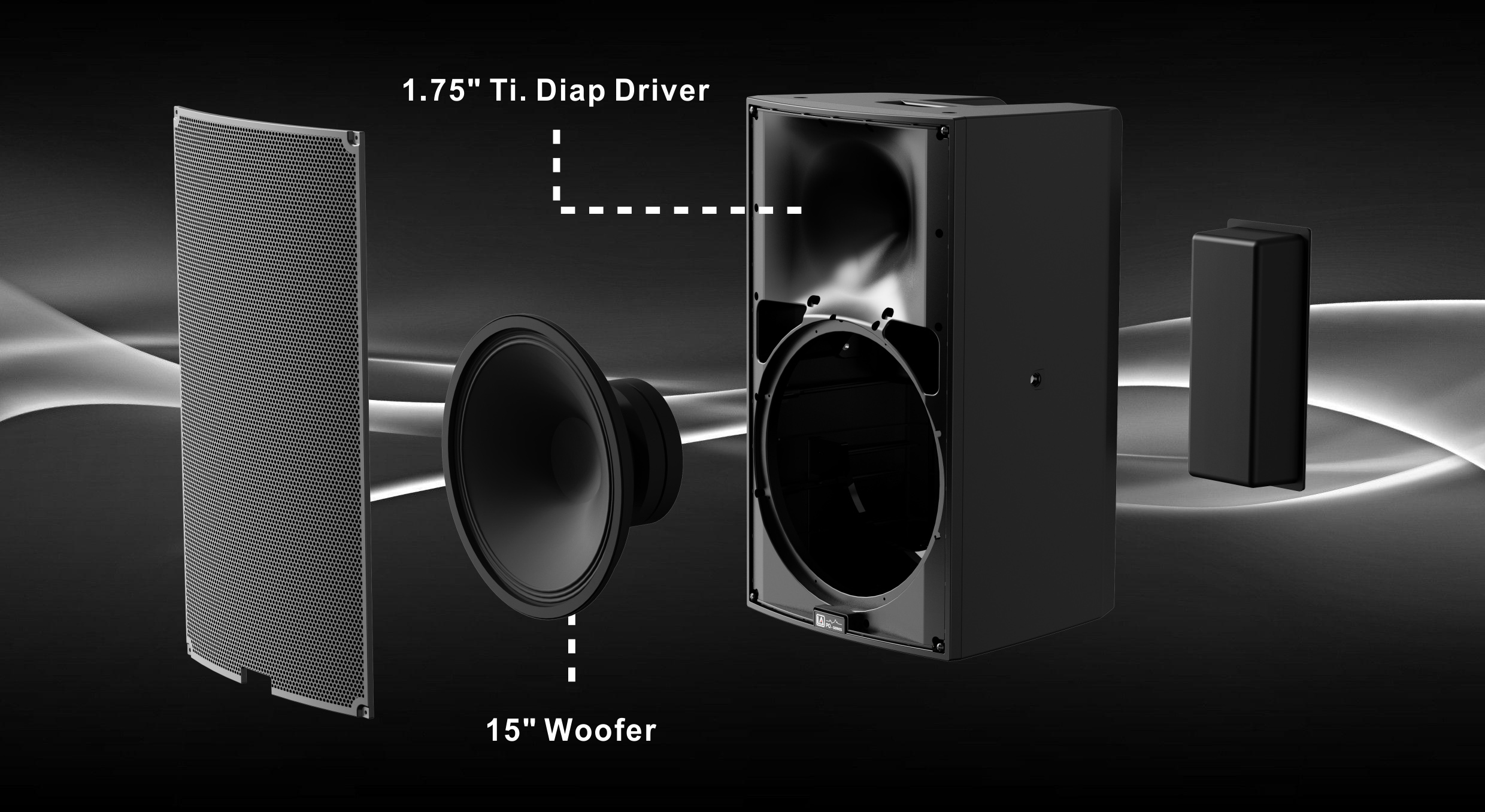

Transducer HF44mm Ti. Diap driver
Transducer LF15"woofer, 3"voice coil

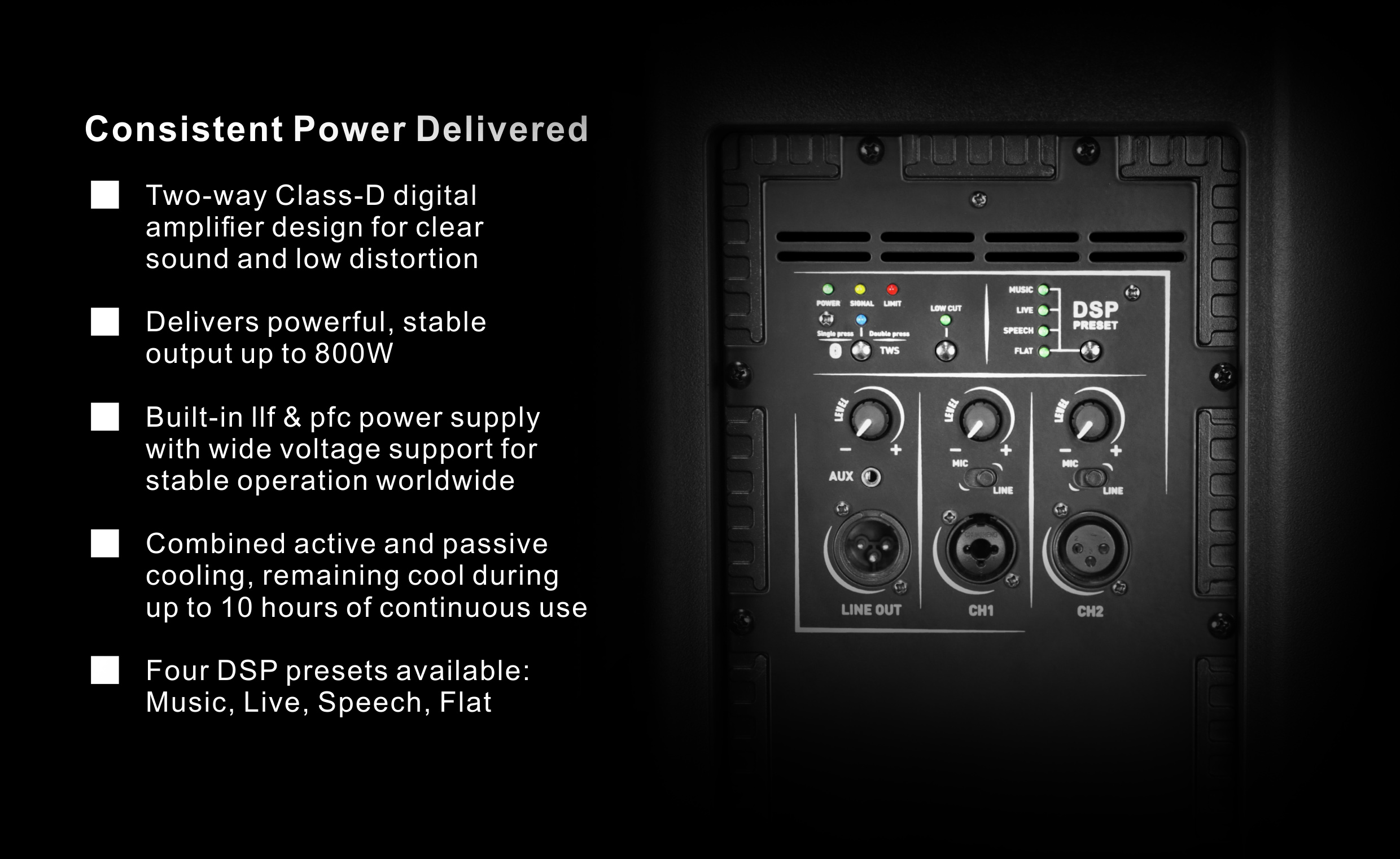

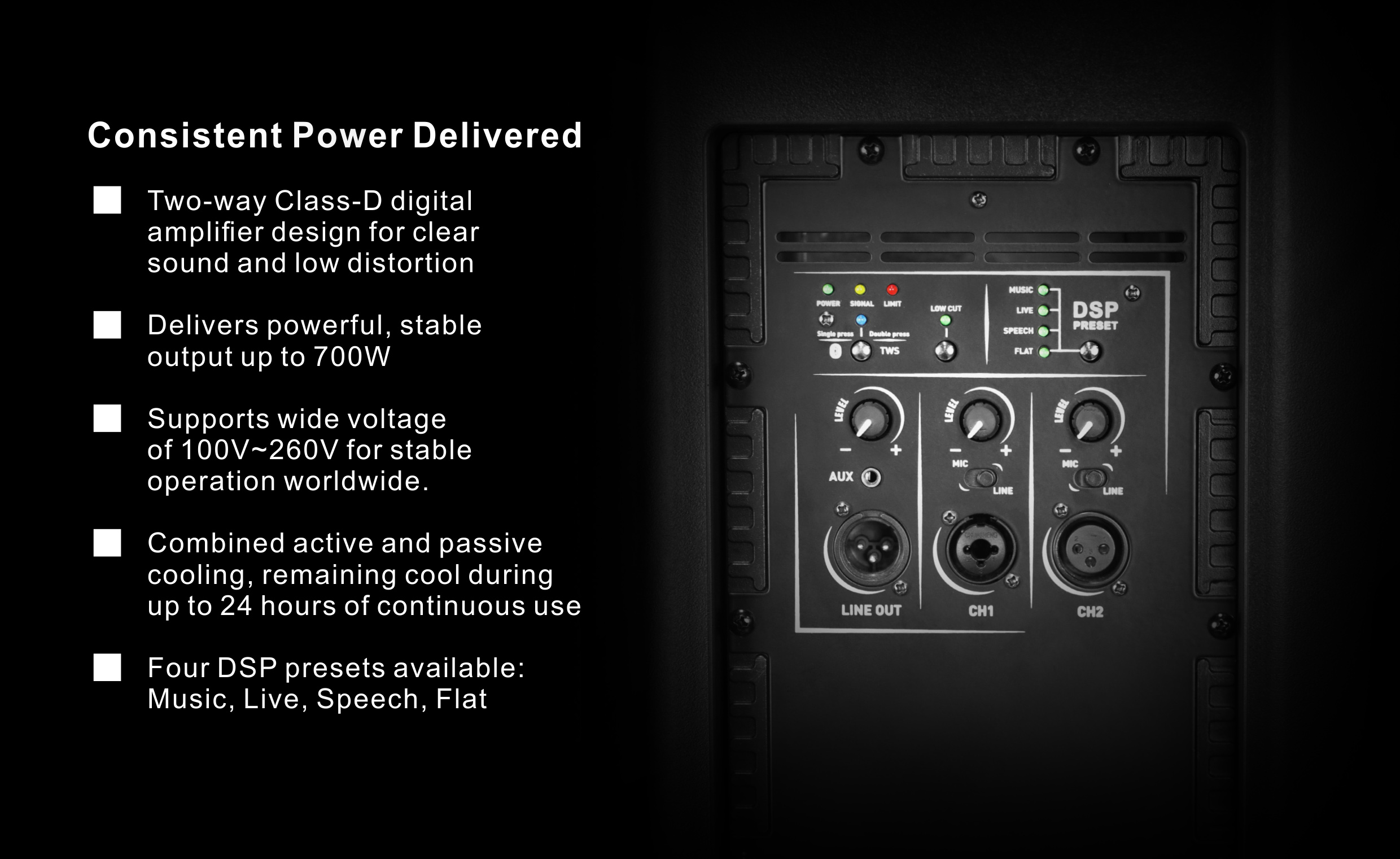

AmplifierClass-D BI amplifier(HD702)
Power Output (RMS)550W(LF)+50W(HF)
DSP ModuleLA DSP-100,96kHz, 24-bit DSP
process with preset modes
ProtectionShort circuit overheating,
over-current, soft boot;LCC;
PFC;Separate supply

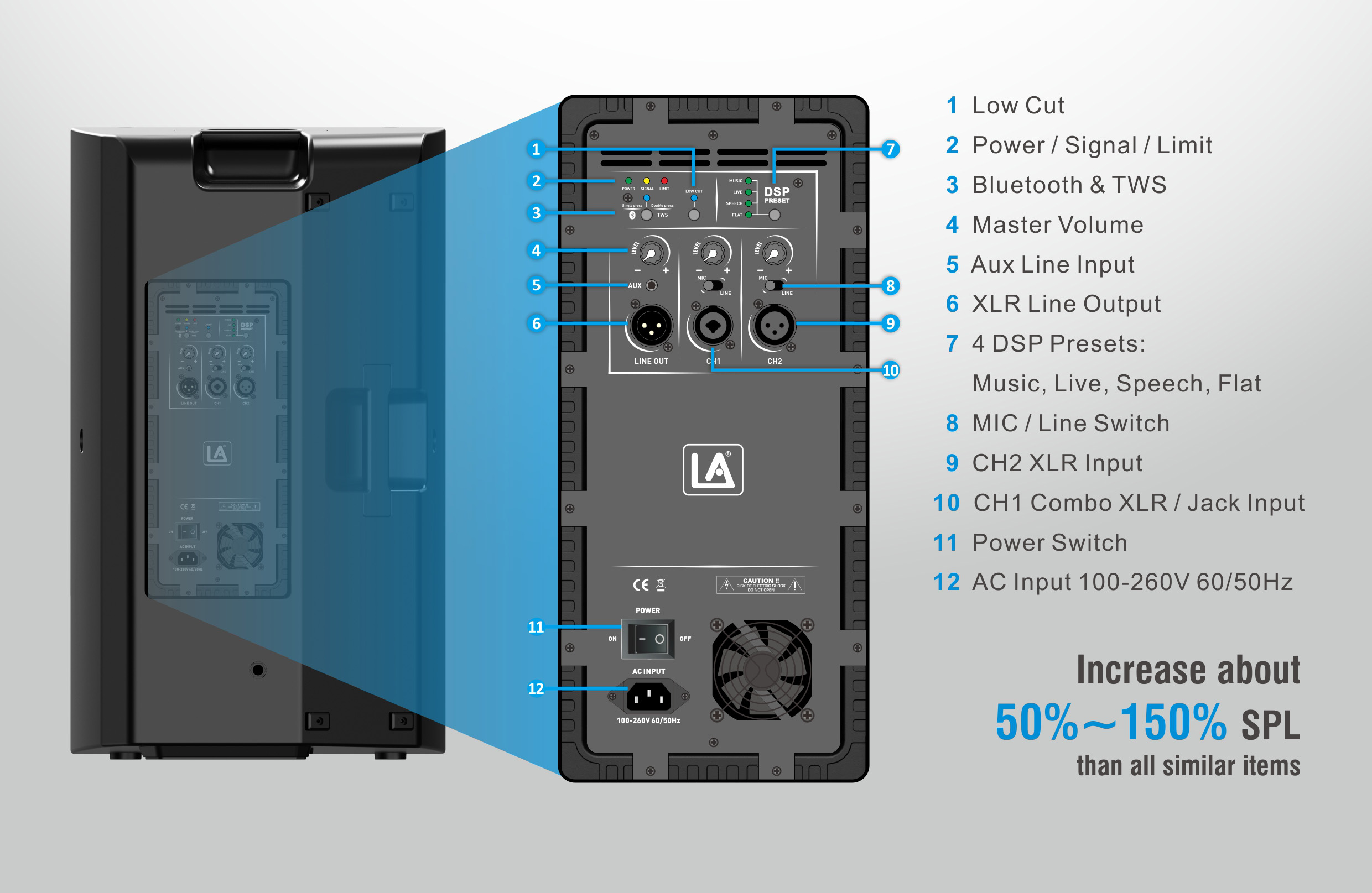

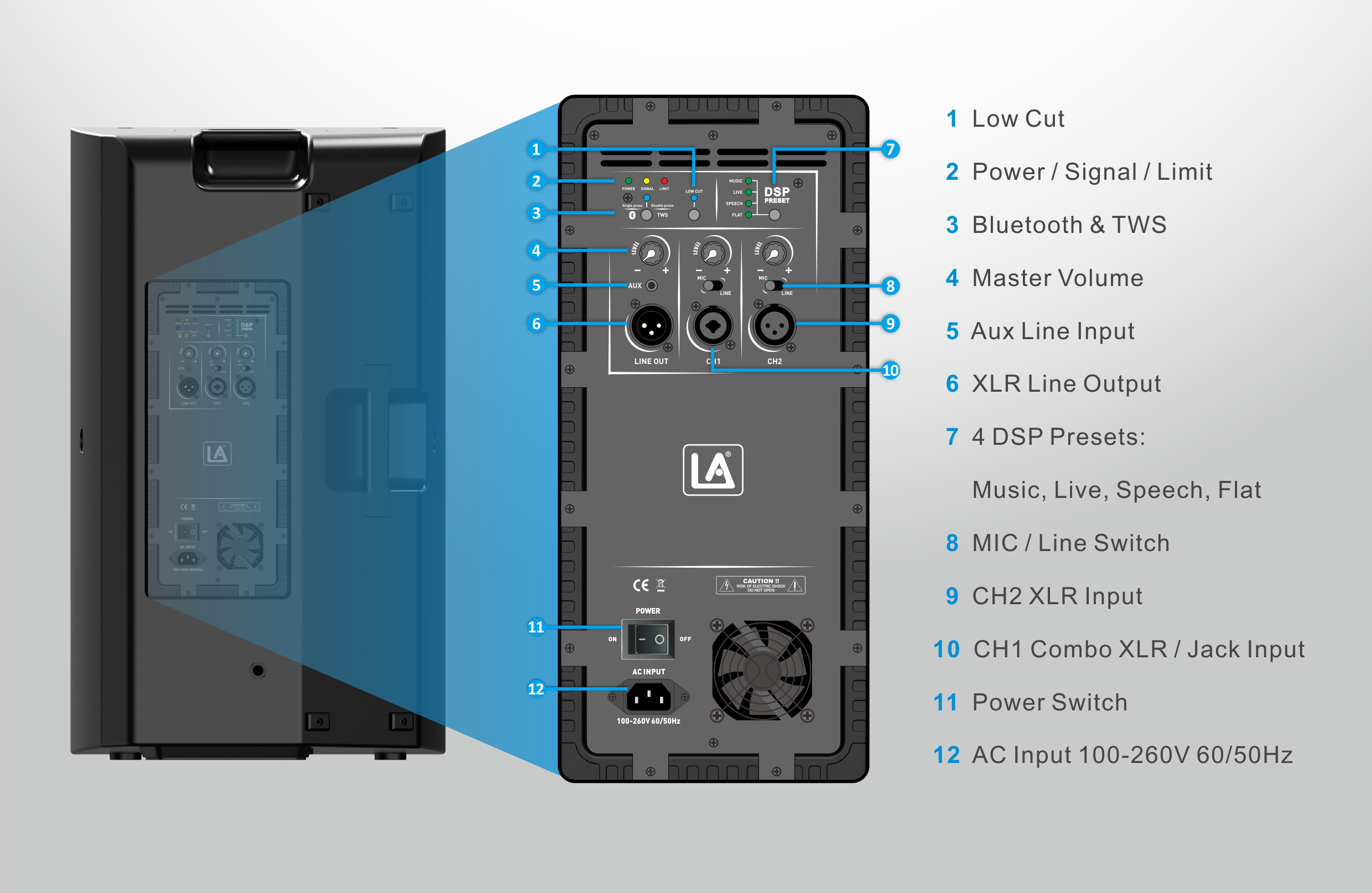

ControlsPower switch, DSP modes switch, line level, mic/line switch
IndicatorsSignal,limit, DSP modes
Audio Input / Output1 * Combo input,1 * XLR input,1 * Aux line input,1 * XLR output
Optional FuncitonBluetooth 5.2 + TWS
Power Supply100-260V 60/50Hz

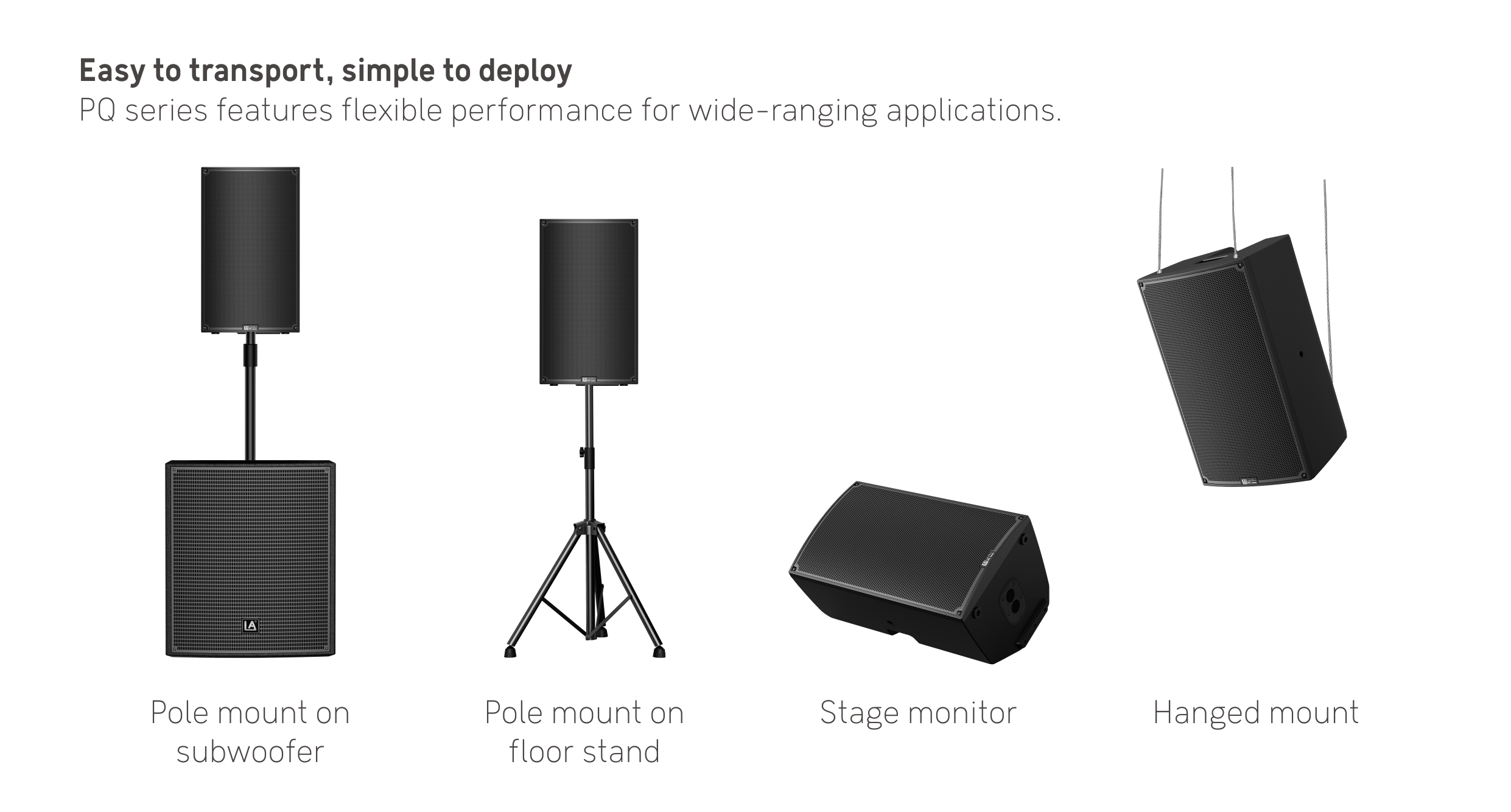

EnclosureH-PP with painting,35mm stand pole top + side handles
GrilleMetal grille with acoustic fabric
