| Model No. | PCH-15 | PCH-15PRO |
| Type | Dual 15'' 3-way full range speaker,active | Dual 15'' 3-way full range speaker,active |
| Frequency Response (-6dB) | 45 Hz - 20 kHz | 45 Hz -20 kHz |
| Max. SPL(1m, free space) | 130 dB | 132 dB |
| Transducer HF | 1.75"Ti. tweeter | 1.4"Ti. Neo tweeter |
| Transducer MF | 10"woofer, Mid speaker | 10"woofer, Mid speaker |
| Transducer LF | 15"woofer, 2"VC | 15"woofer, 3"VC Neo magnet |

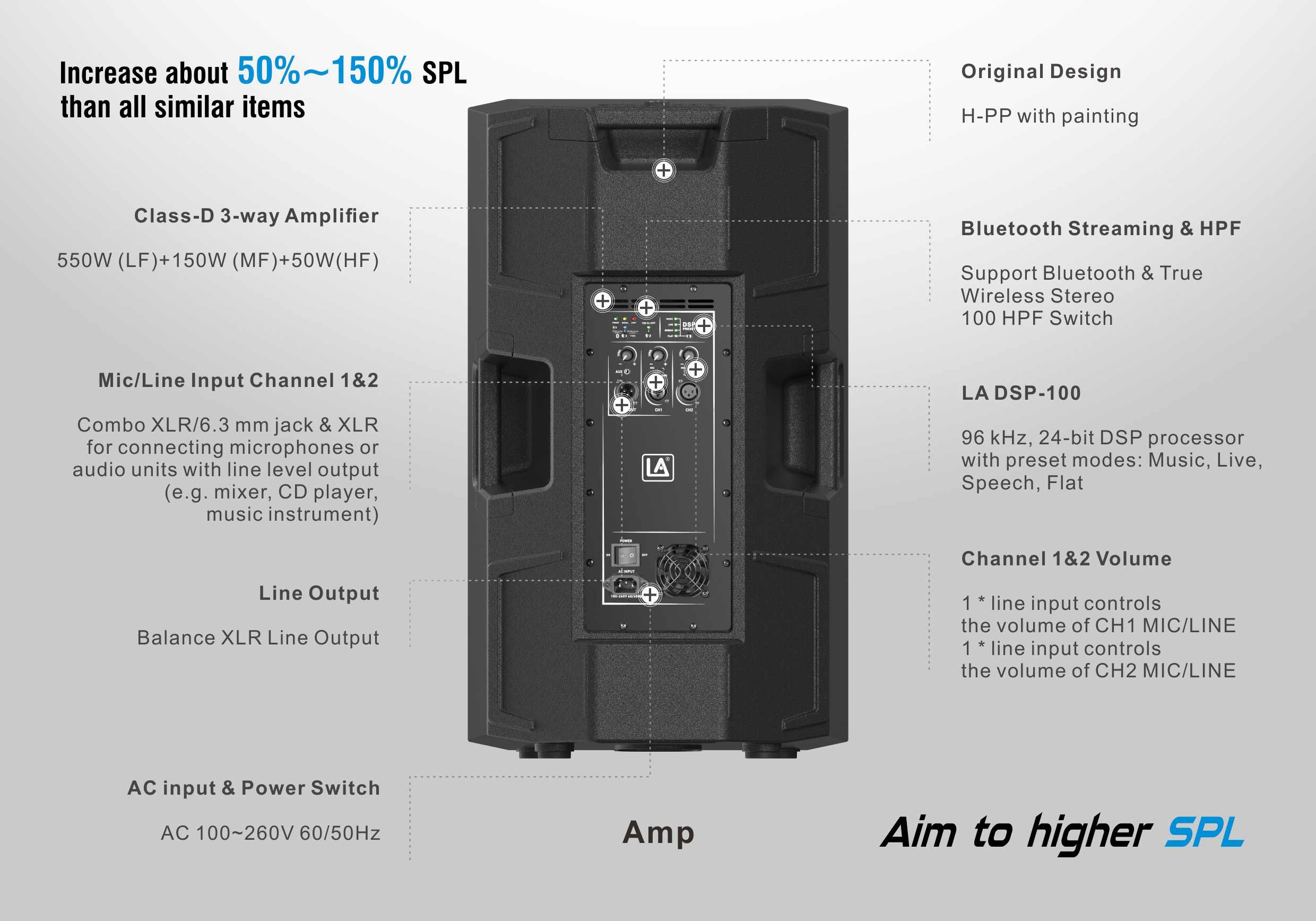

| Amplifier | Class-D 3ways amplifier(HD803) | Class-D 3-way amplifier(HD803) |
| Power Output (RMS) | 400W(LF)+150W(MF)+50W(HF) | 550W(LF)+150W(MF)+50W(HF) |
| DSP Module | LA DSP-100,96 kHz,24-bit DSP process with preset modes:Music,Live,Speech.Flat | |
| Protection | Short circuit overheating,over-current, soft boot ;LCC;PFC;Separate supply | |
| Controls | Power On /Off switch, DSP modes switch, line level, mic/line switch | |
| Indicators | Power,signal,limit, DSP modes | Power, signal,limit, DSP modes |
| Audio Input / Output | 2*Combo XLR/Jack input.1*Aux line input,1*XLR output | 2*Combo XLR/Jack input,1*Aux line input,1*XLR output |
| Optional Funciton | Bluetooth 5.2 + TWS | Bluetooth 5.2 + TWS |
| Power Supply | 100-260V 60/50Hz | 100-260V 60/50Hz |
| Enclosure | H-PP with painting,35mm stand pole top + side handles | |
| Grille | Metal grille with acoustic fabric | |
