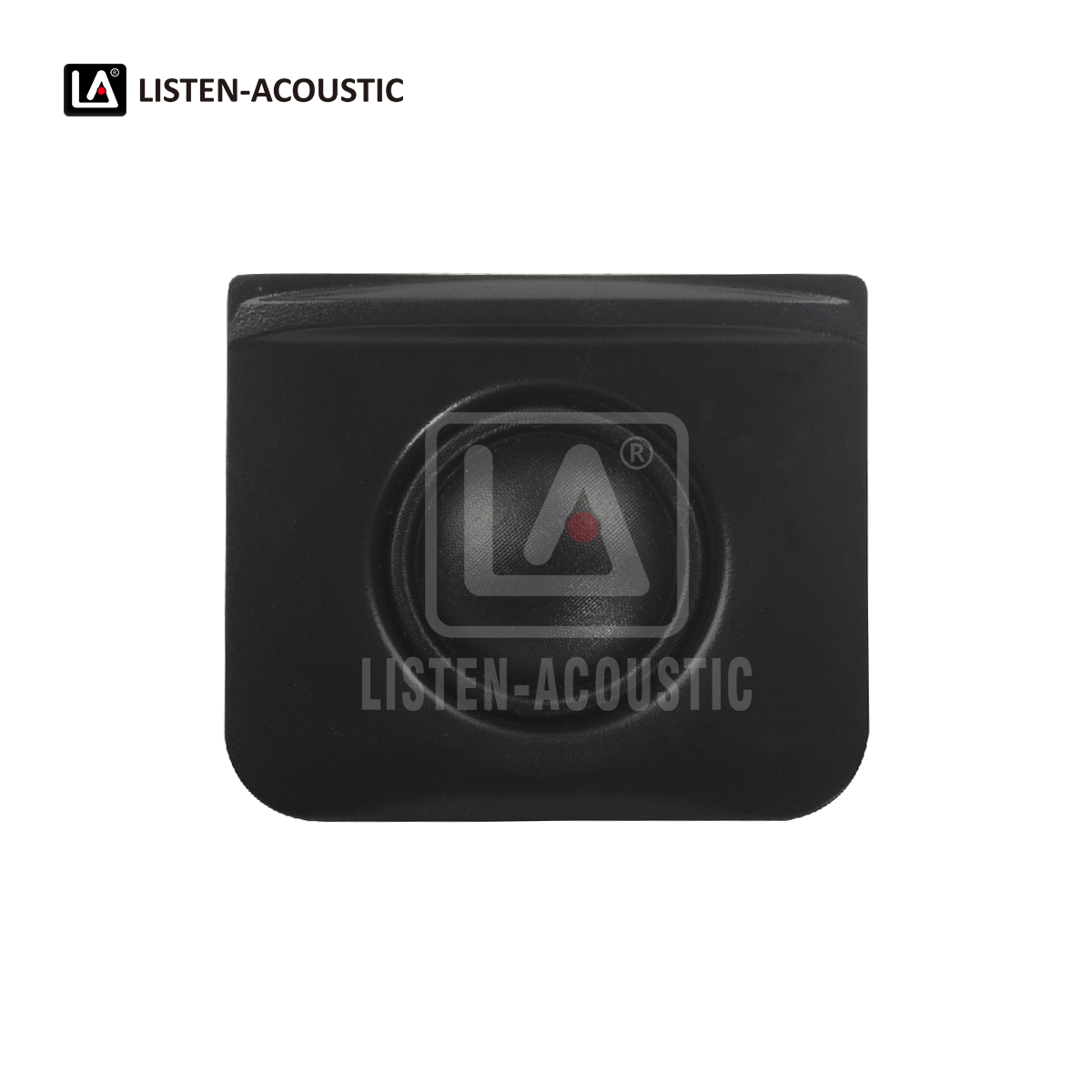

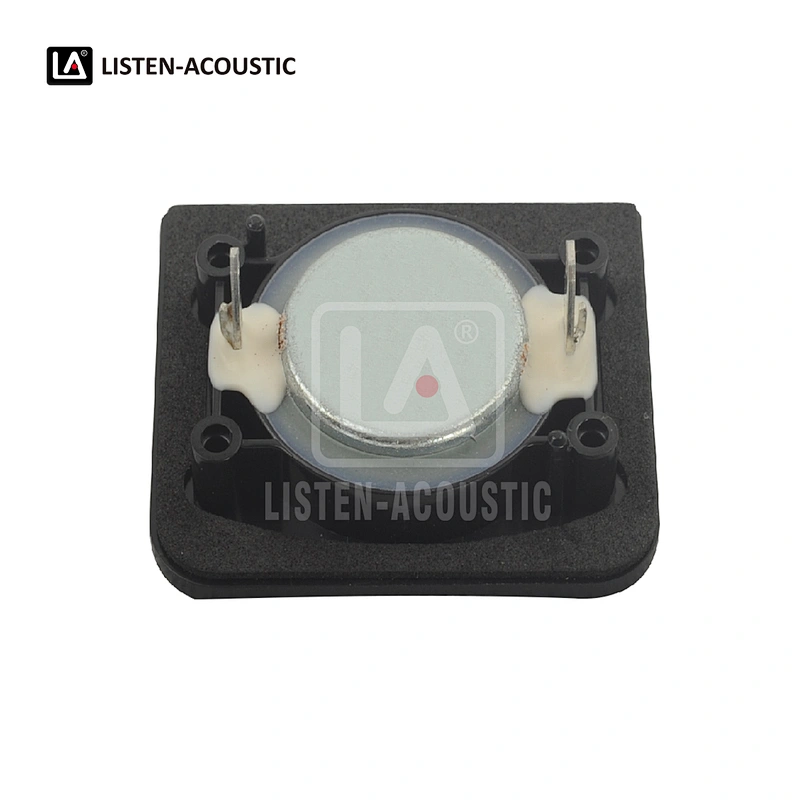

1 Inch Silk Dome Tweeter TG02

Model NO.
TG02
Delivery:
FOB
Minimum order quantity:
500 sets
Supply Ability:
60,000 sets / Month
Country of Origin:
Ningbo, China
Stock Time:
35 Days
Nominal Diameter 0.8 Inch / 20.3 mm, Max Power 10 watts, Sensitivity 91 dB, Frequency Response 1.5 kHz - 20 kHz, Silk Diaphragm Material
Quantity:
LA~silk dome tweeter
Specifications

SPECIFICATIONS
Model No.TG02
Voice Coil Diameter0.8"/ 20.3 mm
Power Handling Capacity5 W
Max Power10 W
Nominal Impedance8 Ω (AC)
Sensitivity91 dB

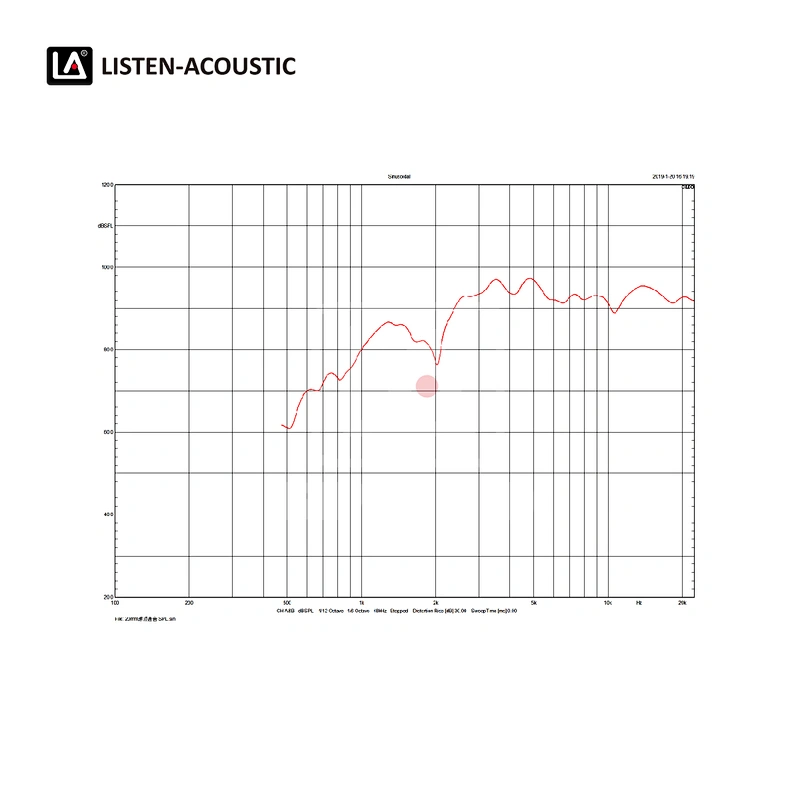

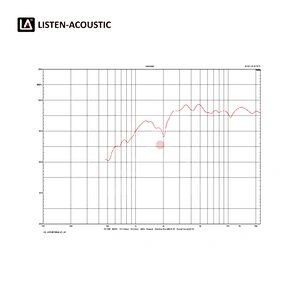

Frequency Range1.5 kHz - 20 kHz
Magnet MaterialNeodymium
Voice Coil Winding MaterialCopper
Voice Coil Former MaterialKapton
Diaphragm MaterialSilk
Net Weight0.05 kgs / 0.1 lbs
