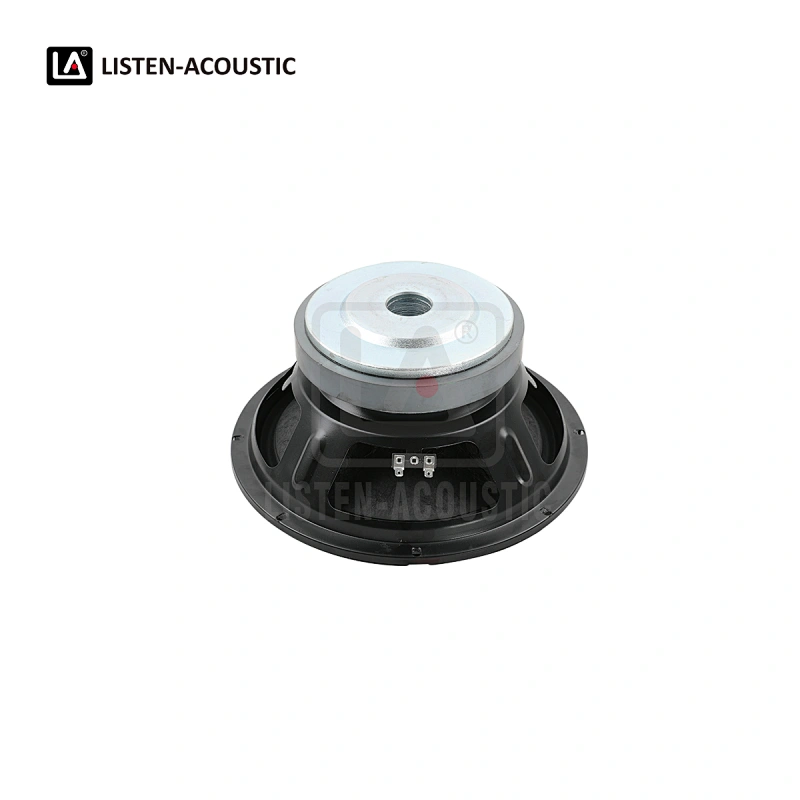

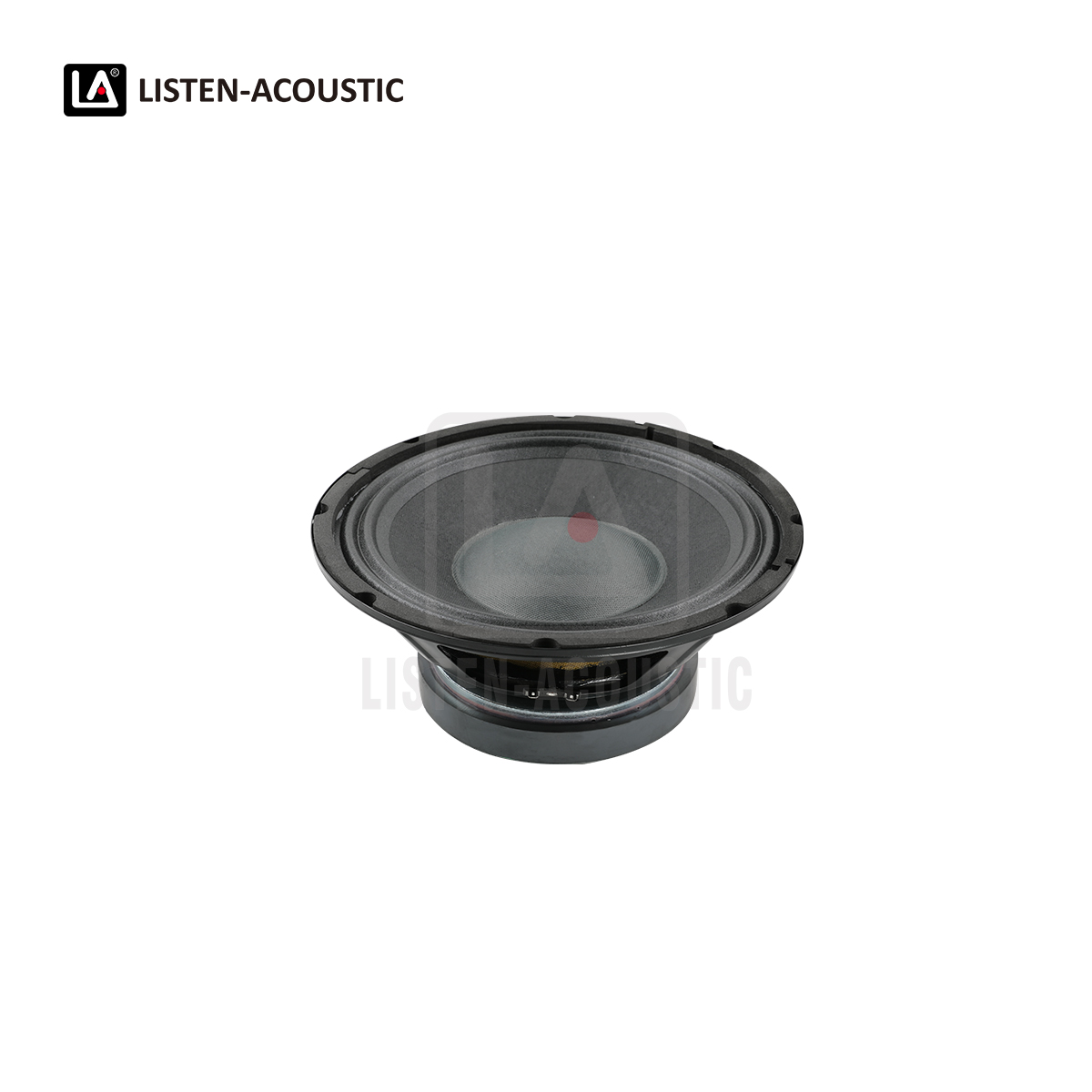

10 Inch Full Range Woofer with RMS 200 Watts

Model NO.
10SB65-1S
Delivery
FOB
Minimum order quantity
500 sets
Supply Ability
60,000 sets / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 10 Inch / (260 x 260 mm), Power Handling 200 watts, Sensitivity 93 dB, Frequency Response 45 Hz - 3 kHz, Voice Coil Diameter 2.5 Inch / 65 mm
Quantity:
Listen Acoustic 10 inch Full Range Woofer  speakers

Features

1. Nominal Diameter 10"/ 260 mm
2. Power Handling 200 watts
3. Sensitivity 93 dB
4. Frequency Response 45 Hz - 3 kHz
5. Voice Coil Diameter 2.5"/ 65 mm
6. Ferrite Magnet 50 Oz
7. Pressed Steel Chassis type
8. Applications as full range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.10SB65-1S
Nominal Diameter10"/ 260 mm
RMS Power200 watts
MAX Power400 watts
Sensitivity (1w/1m)93 dB
Frequency Range45 Hz - 3 kHz
Voice Coil Diameter2.5"/ 65 mm
Available Impedances4 / 8 Ω
Magnet Size50 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialNC
Surround MaterialRubber
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs40 Hz
Qes0.27
Qms10.83
Qts0.26
Vas38.74 L
Sd0.0373 m2
η01.03%
Mms72.22 g
BI15.36 Txm
Cms0.20 mm/N
Rms1.76 WM
Le1k2.42 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter10.04"/ 255 mm
Bolt Circle Diameter 9.57"/ 243 mm
Baffle Cut-out Diameter9.09"/ 231 mm
Overall Depth4.84"/ 123 mm
Net Weight4.00 kgs / 8.83 lbs
