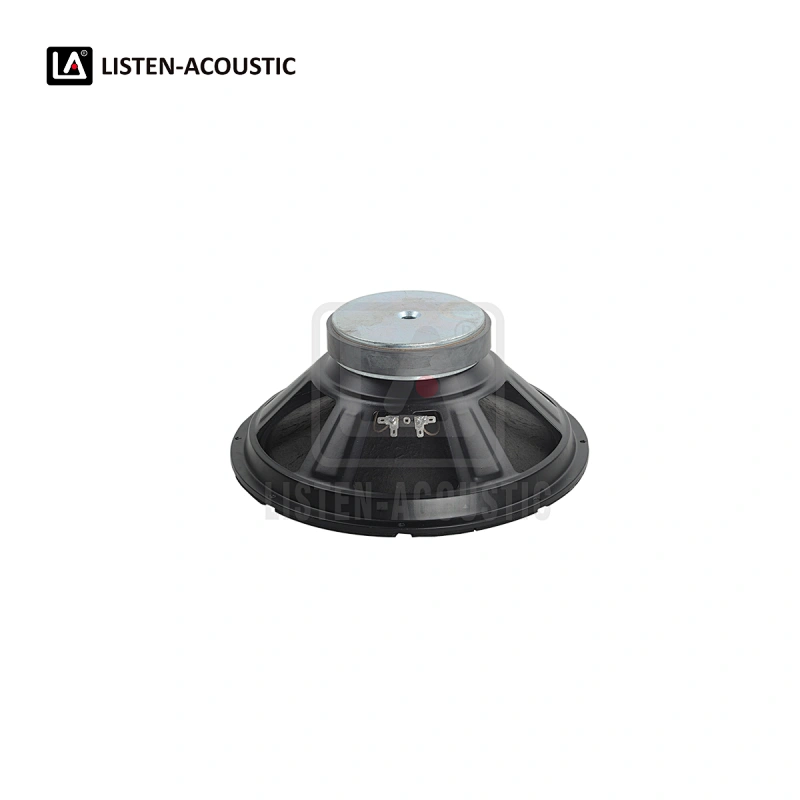

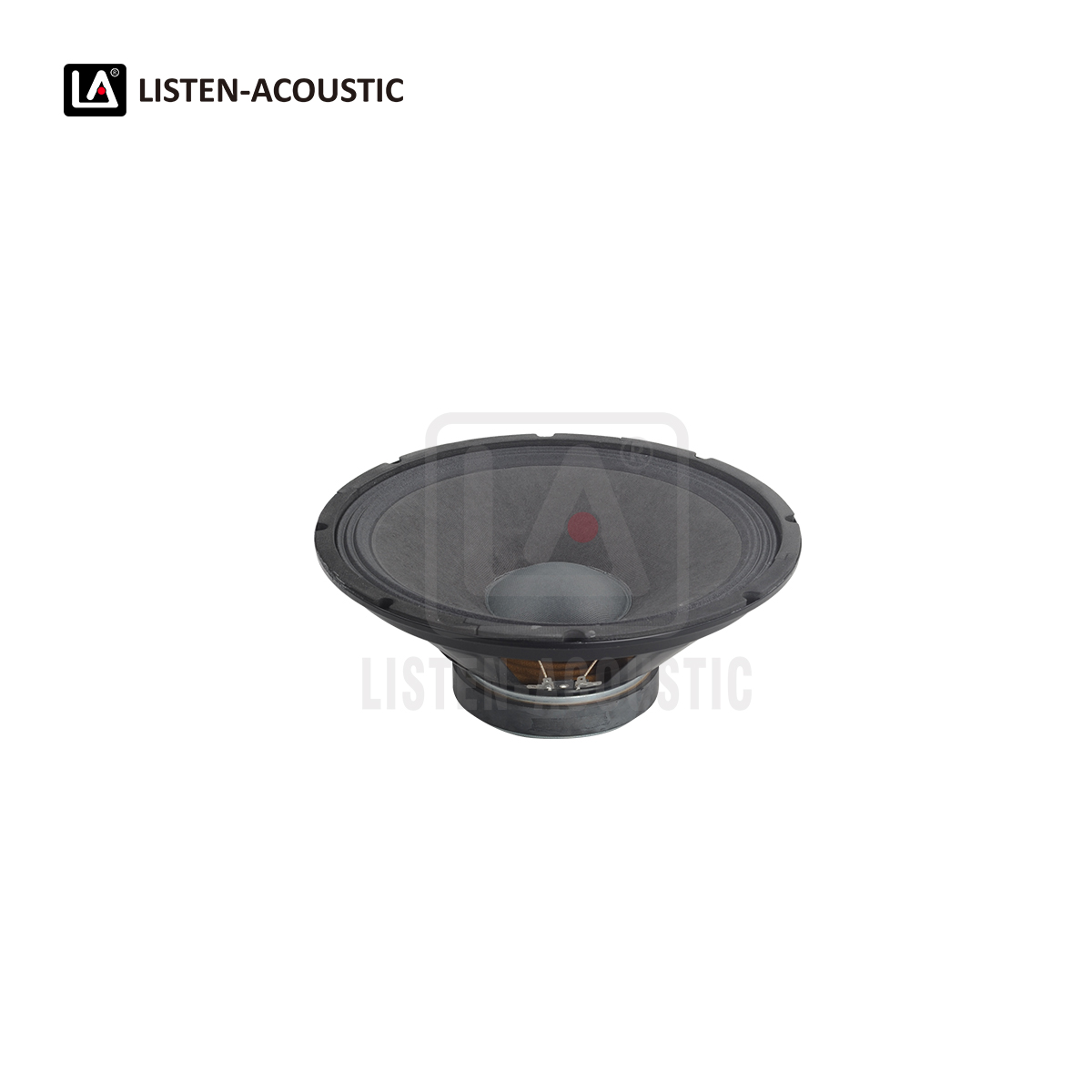

12 Inch Bass / Mid Range Woofer with RMS 200 Watts

Model NO.
12SA50-1
Delivery
FOB
Minimum order quantity
500 sets
Supply Ability
60,000 sets / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 12 Inch / (310 x 310 mm), Power Handling 200 watts, Sensitivity 94 dB, Frequency Response 60 Hz - 4.5 kHz, Voice Coil Diameter 2 Inch / 50 mm
Quantity:
12 inch Mid Range Speaker Bass Drivers
Features

1. Nominal Diameter 12"/ 310 mm
2. Power Handling 200 watts
3. Sensitivity 94 dB

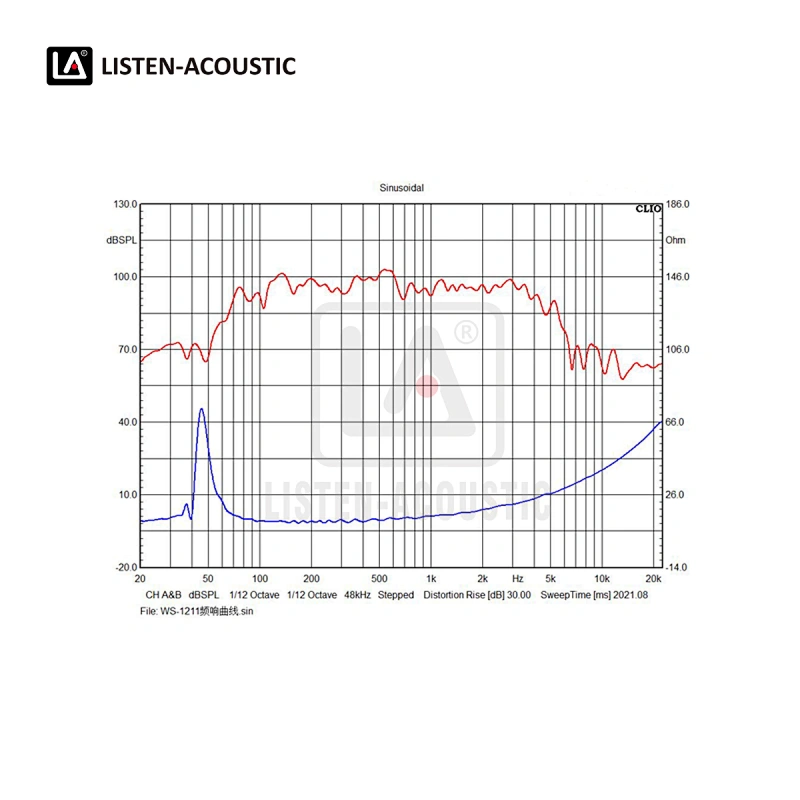

4. Frequency Response 60 Hz - 4.5 kHz
5. Voice Coil Diameter 2.0"/ 50 mm
6. Ferrite Magnet 40 Oz
7. Pressed Steel Chassis type
8. Applications as bass mid range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.12SA50-1
Nominal Diameter12"/ 310 mm
RMS Power200 watts
MAX Power400 watts
Sensitivity (1w/1m)94 dB
Frequency Range60 Hz - 4.5 kHz
Voice Coil Diameter2.0"/ 50 mm
Available Impedances4 / 8 Ω
Magnet Size40 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs55 Hz
Qes0.54
Qms5.82
Qts0.49
Vas94.77 L
Sd0.0531 m2
η01.60%
Mms50.65 g
BI12.94 Txm
Cms0.24 mm/N
Rms2.50 WM
Le1k0.94 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter12.01"/ 305 mm
Bolt Circle Diameter 11.57"/ 294 mm
Baffle Cut-out Diameter11.14"/ 283 mm
Overall Depth4.92"/ 125 mm
Net Weight2.95 kgs / 6.51 lbs
