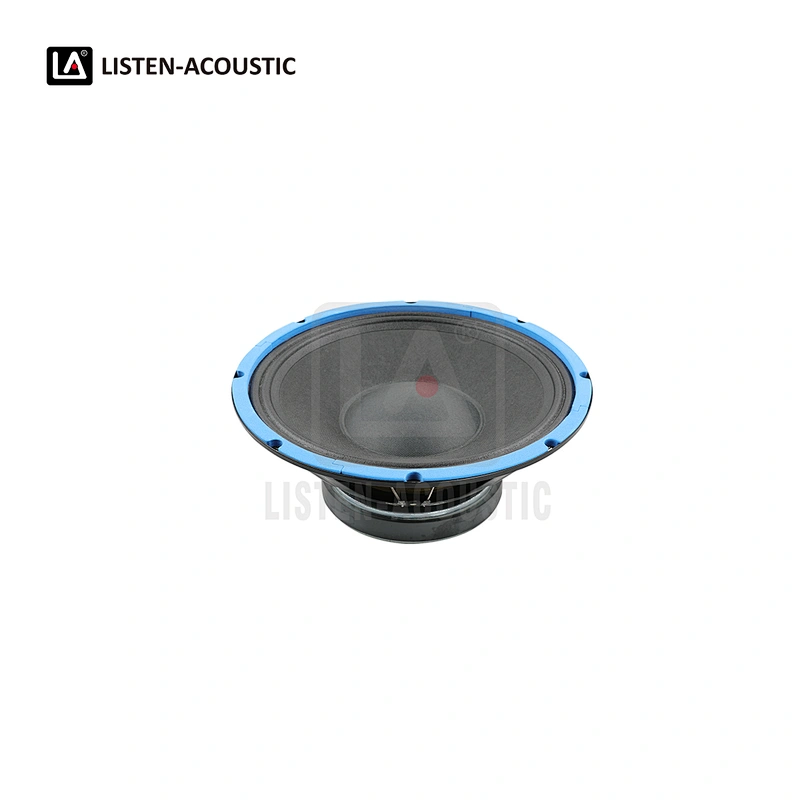

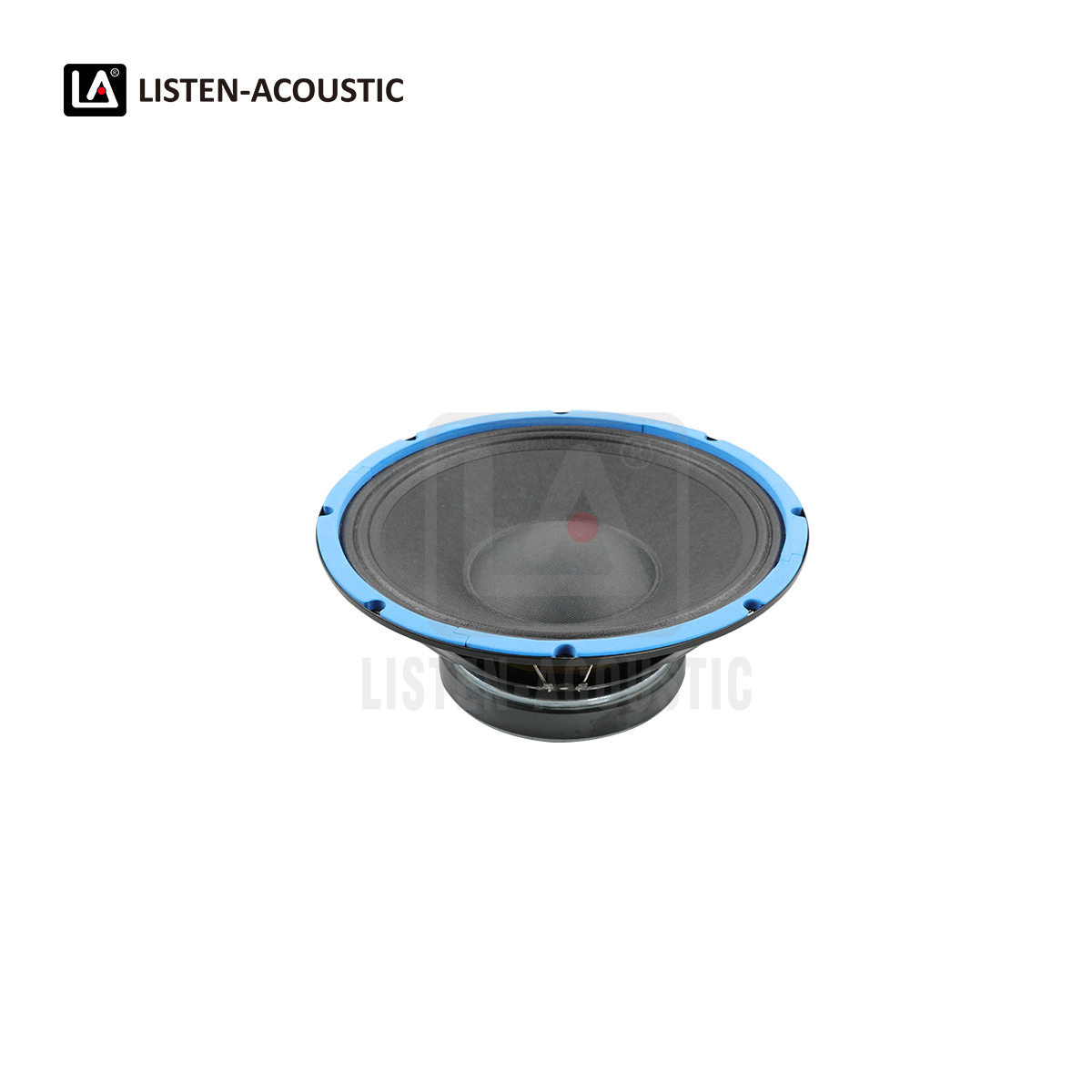

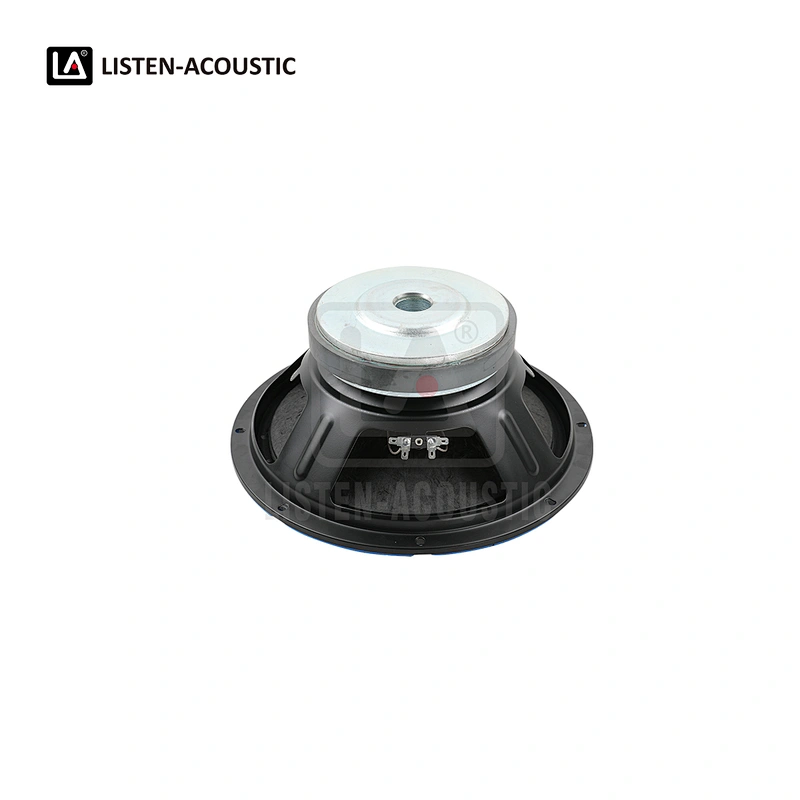

12 Inch RMS 300 Watts Sub Bass Woofer for PA at Middle End

Model NO.
12SA65-2S
Delivery
FOB
Minimum order quantity
300 pieces
Supply Ability
60,000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 12 Inch / 310 mm, Power Handling 300 watts, Sensitivity 94 dB, Frequency Response 40 Hz - 2.5 kHz, Voice Coil Diameter 2.5 Inch / 65 mm
Quantity:
Listen Acoustic electric bass 12 inch Mid bass Drivers
Features

1. Nominal Diameter 12 Inch / 310 mm
2. Power Handling 300 watts
3. Sensitivity 94 dB
4. Frequency Response 40 Hz - 2.5 kHz
5. Voice Coil Diameter 2.5 Inch / 65 mm
6. Ferrite 60 OZ Magnet
7. Pressed Steel Chassis type
8. Applications as sub bass for PA at Middle End

Specifications

SPECIFICATIONS
Model No.12SA65-2S
Nominal Diameter12"/ 310 mm
RMS Power300 watts
MAX Power600 watts
Sensitivity (1w/1m)94 dB
Frequency Range40 Hz -2.5 kHz
Voice Coil Diameter2.5"/ 65 mm
Available Impedances4 / 8 Ω
Magnet Size60 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs40 Hz
Qes0.35
Qms9.93
Qts0.33
Vas65.61 L
Sd0.0523 m2
η01.15%
Mms92.95 g
BI15.55 Txm
Cms0.17 mm/N
Rms2.34 WM
Le1k2.28 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter12.20"/ 310 mm
Bolt Circle Diameter 11.61"/ 295 mm
Baffle Cut-out Diameter11.02"/ 280 mm
Overall Depth5.12"/ 130 mm
Net Weight4.95 kgs / 10.92 lbs

Send Message

*
* clear input
*
* clear input
* clear input
* clear input
* clear input
* clear input

Related Products

acoustic bass,electric bass,bass,subwoofer,speakers

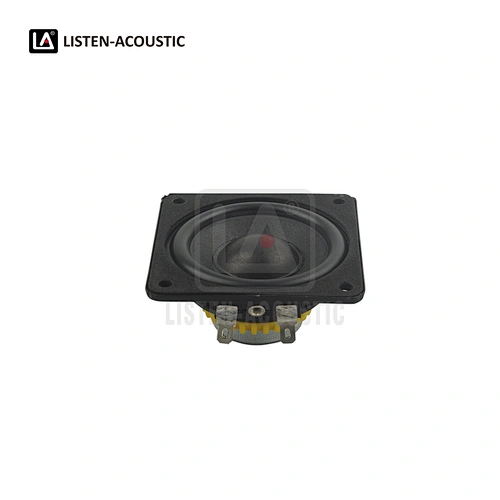

2.75 Inch Bass / Mid Range Woofer with RMS 15 Watts
Model NO. 275SA25N-1
acoustic bass,subwoofer,speaker,Bass Mid Range Woofer

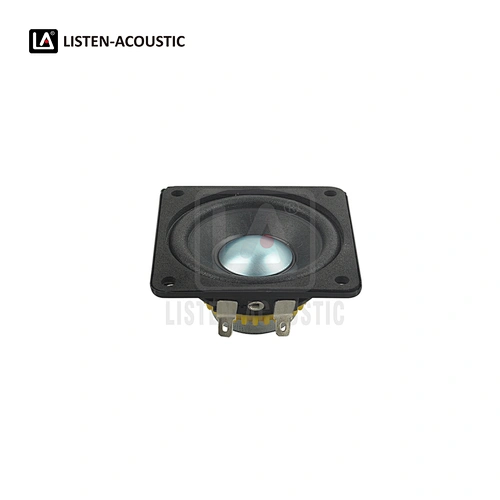

2.75 Inch speaker amplifier with RMS 15 Watts
Model NO. 275SA25N-2
acoustic bass,electric bass,subwoofer,speakers,Neodymium Full Range Woofer
3.5 Inch Neodymium Full Range Woofer RMS 20 Watts
Model NO. 35SB25N-1
acoustic bass,neodymium woofer,subwoofer,speakers,Mid and High Range Woofer

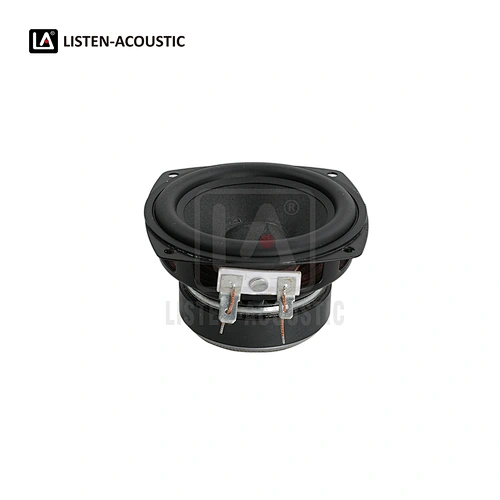

3 Inch Mid / High Range Woofer with RMS 20 Watts
Model NO. 3SA20-1
acoustic bass,Mid and High Range Woofer,subwoofer,speakers
4 Inch Mid / High Range Woofer with RMS 20 Watts
Model NO. 4SA25-1
acoustic bass,subwoofer,speakers,Economical Bass and Mid Range Woofer
4 Inch Economical Bass / Mid Range Woofer with RMS 25 Watts
Model NO. 4SB25-2
acoustic bass,subwoofer,speakers,Mid High Range Woofer, Woofers

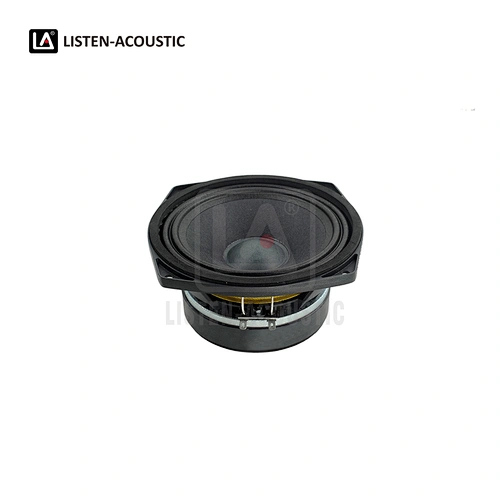

6.5 Inch Mid and High Range Woofer with RMS 30 Watts
