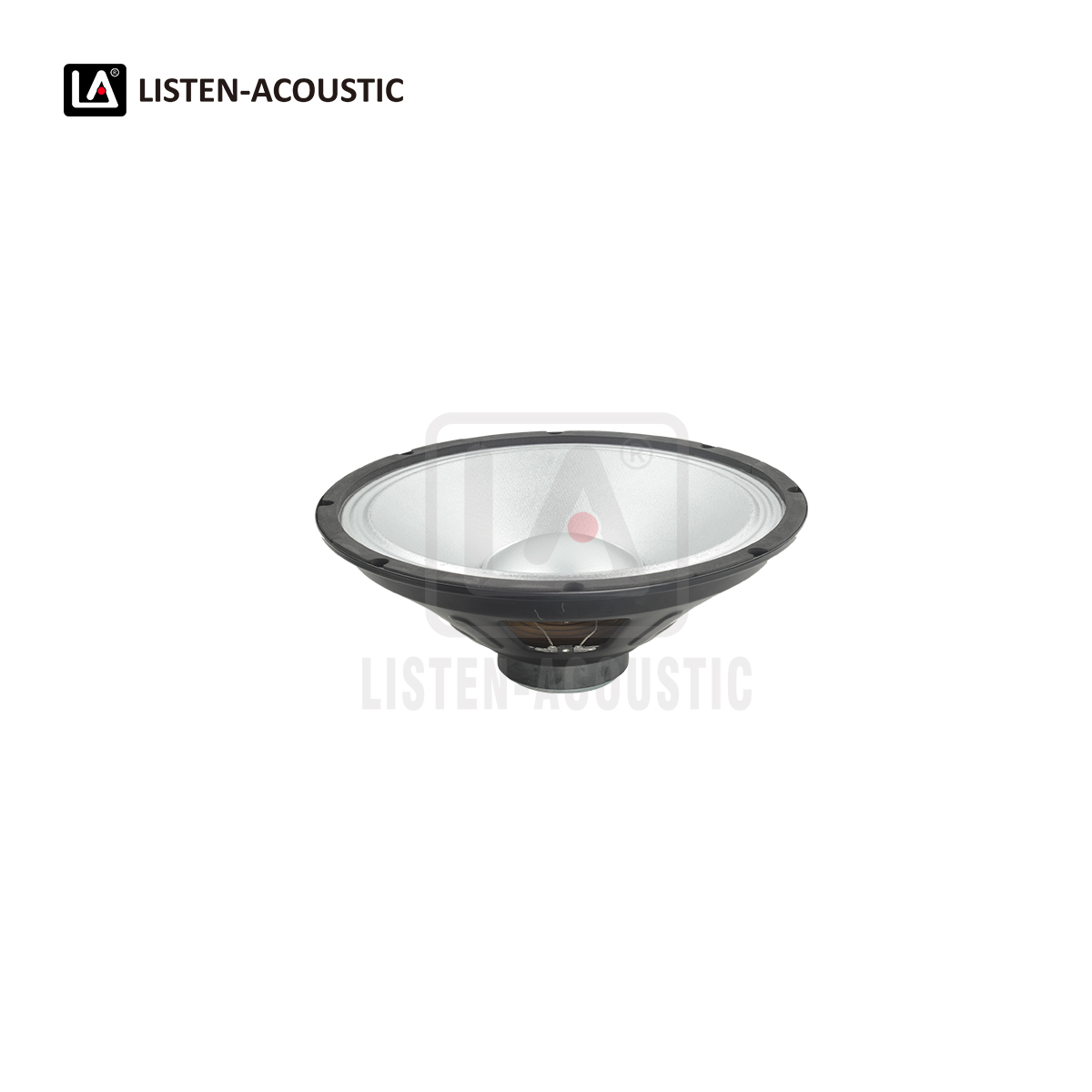

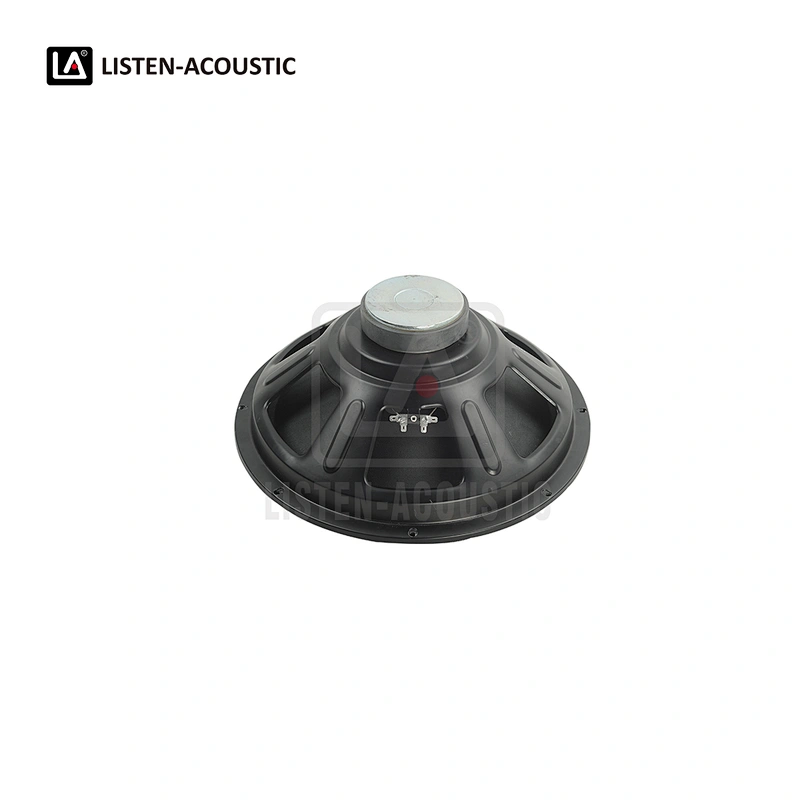

15 Inch Bass / Mid Range Woofer with RMS 120 Watts

Model NO.
15SA38-1
Delivery
FOB
Minimum order quantity
500 pieces
Supply Ability
60,000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 15" / 390 mm, Power Handling 120 watts, Sensitivity 92 dB, Frequency Response 65 Hz - 8 kHz, Voice Coil Diameter 1.5" / 38 mm
Quantity:
Listen Acoustic 15 inch electric bass Mid bass Drivers
Features

1. Nominal Diameter 15 inch / 390 mm
2. Power Handling 120 watts
3. Sensitivity 92 dB

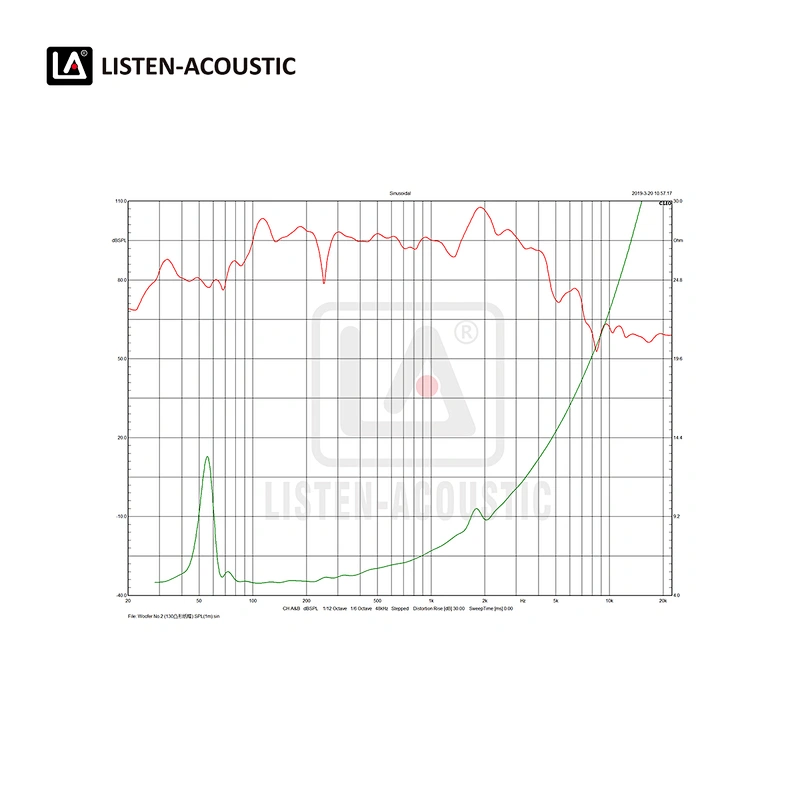

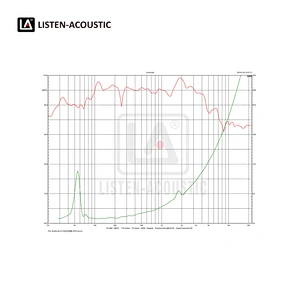

4. Frequency Response 65 Hz - 8 kHz
5. Voice Coil Diameter 1.5 inch / 38 mm
6. Ferrite Magnet 24 Oz
7. Pressed Steel Chassis type
8. Applications as bass / mid range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.15SA38-1
Nominal Diameter15"/ 390 mm
RMS Power120 watts
MAX Power240 watts
Sensitivity (1w/1m)92 dB
Frequency Range65 Hz - 8 kHz
Voice Coil Diameter1.5"/ 38 mm
Available Impedances4 / 8 Ω
Magnet Size24 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialPaper
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs56 Hz
Qes2.13
Qms7.89
Qts1.68
Vas121.84 L
Sd0.0830 m2
η00.95%
Mms64.41 g
BI5.44 Txm
Cms0.13 mm/N
Rms2.86 WM
Le1k0.56 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter15.20"/ 386 mm
Bolt Circle Diameter 13.19"/ 335 mm
Baffle Cut-out Diameter11.18"/ 284 mm
Overall Depth5.79"/ 147 mm
Net Weight2.30 kgs / 5.08 lbs
