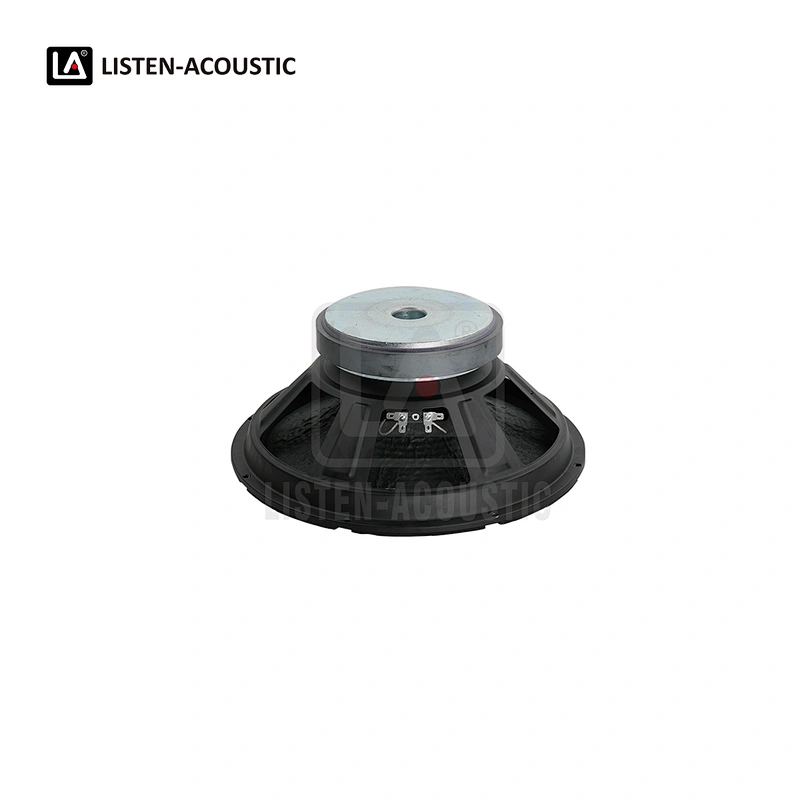

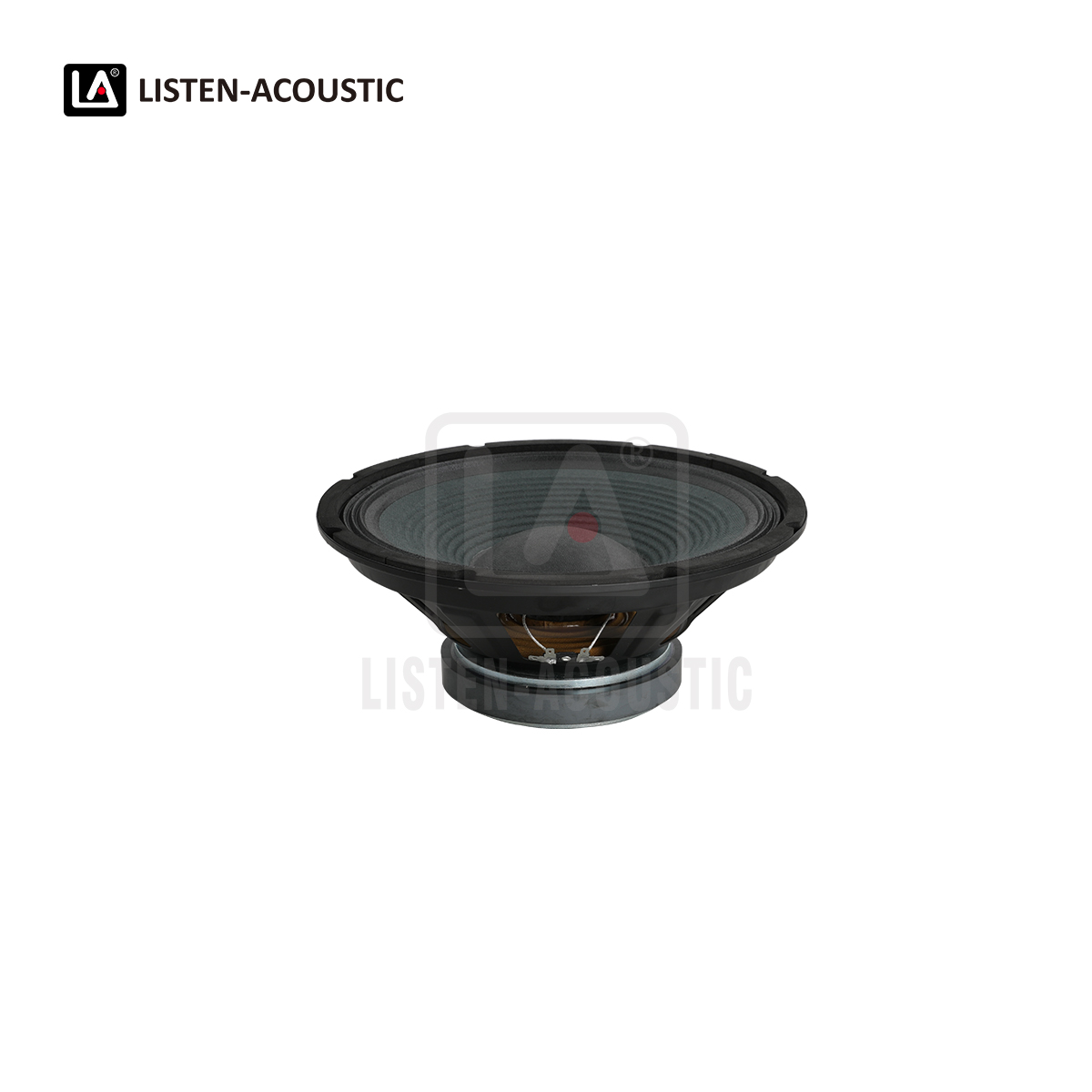

15 Inch Bass / Mid Range Woofer with RMS 250 Watts

Model NO.
15SA65-1
Delivery
FOB
Minimum order quantity
500 pieces
Supply Ability
60,000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 15" / 390 mm, Power Handling 250 watts, Sensitivity 94 dB, Frequency Response 45 Hz -4 kHz, Voice Coil Diameter 2.5" / 65 mm
Quantity:
Listen Acoustic electric bass 15 inch woofer Mid Range Speaker
Features

1. Nominal Diameter 15 inch / 390 mm
2. Power Handling 250 watts
3. Sensitivity 94 dB
4. Frequency Response 45 Hz -4 kHz
5. Voice Coil Diameter 2.5"/ 65 mm
6. Ferrite Magnet 50 Oz
7. Pressed Steel Chassis type
8. Applications as bass / mid range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.15SA65-1
Nominal Diameter15"/ 390 mm
RMS Power250 watts
MAX Power500 watts
Sensitivity (1w/1m)94 dB
Frequency Range45 Hz - 4 kHz
Voice Coil Diameter2.5"/ 65 mm
Available Impedances4 / 8 Ω
Magnet Size50 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs40 Hz
Qes0.65
Qms15.33
Qts0.62
Vas254.79 L
Sd0.0845 m2
η01.38%
Mms89.65 g
BI10.19 Txm
Cms0.26 mm/N
Rms1.22 WM
Le1k0.76 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter15.16"/ 385 mm
Bolt Circle Diameter 14.49"/ 368 mm
Baffle Cut-out Diameter13.82"/ 351 mm
Overall Depth5.83"/ 148 mm
Net Weight4.20 kgs / 9.27 lbs
