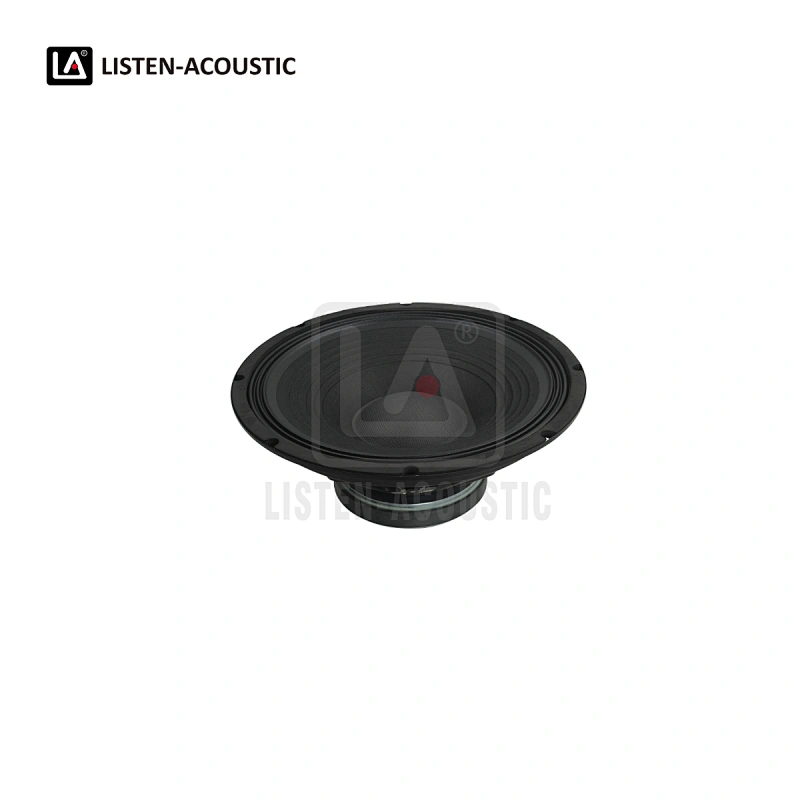

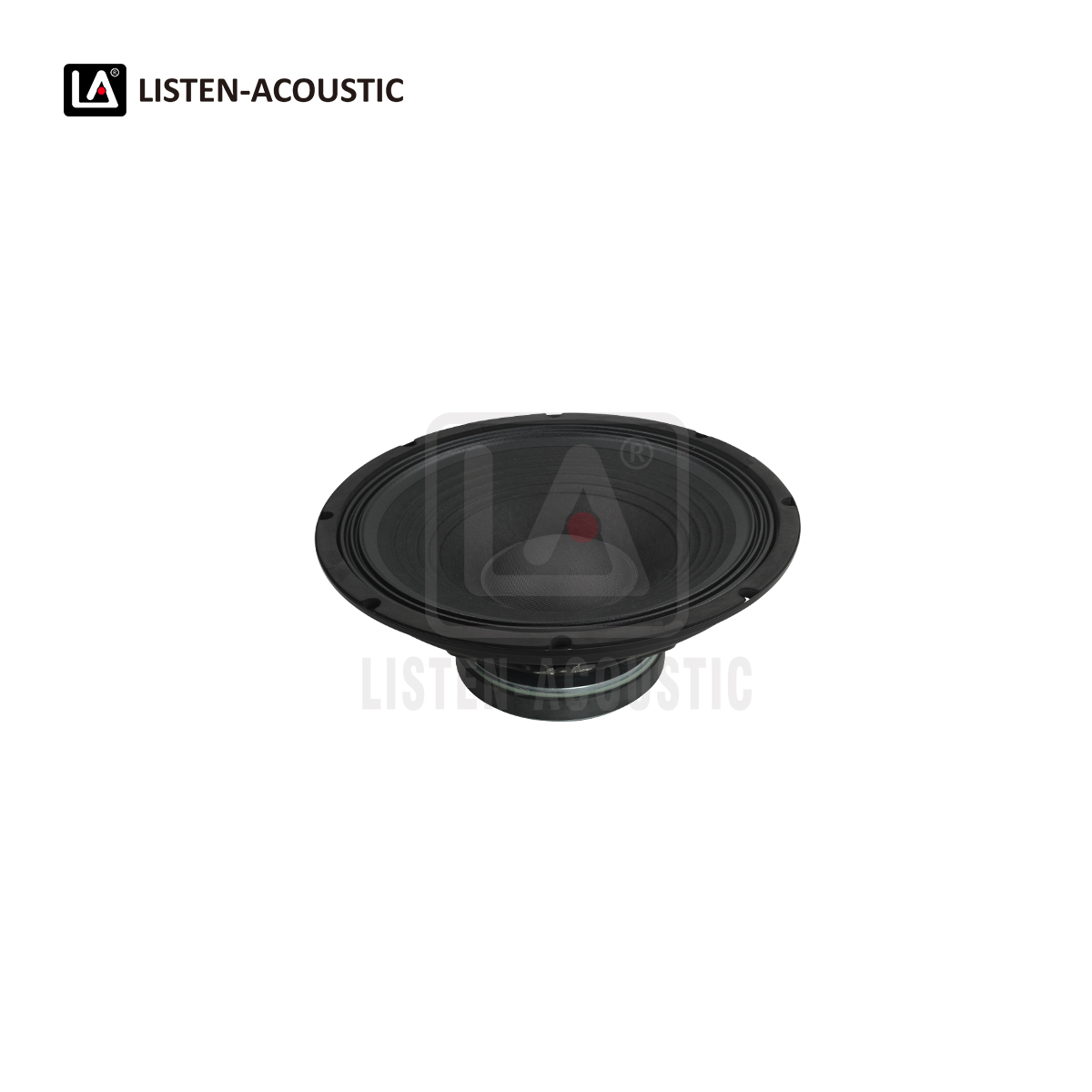

15 Inch Sub Bass Range Woofer with RMS 400 Watts

Model NO.
15SA75-2S
Delivery
FOB
Minimum order quantity
500 pieces
Supply Ability
60,000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 15" / 390 mm, Power Handling 400 watts, Sensitivity 95 dB, Frequency Response 40 Hz -2 kHz, Voice Coil Diameter 3" / 75 mm
Quantity:
Listen Acoustic 15 inch Subwoofer electric bass
Features

1. Nominal Diameter 15 inch / 390 mm
2. Power Handling 400 watts
3. Sensitivity 95 dB
4. Frequency Response 40 Hz -2 kHz
5. Voice Coil Diameter 3"/ 75 mm
6. Ferrite Magnet 65 Oz
7. Pressed Steel Chassis type
8. Applications as Sub Bass range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.15SA75-2S
Nominal Diameter15"/ 390 mm
RMS Power400 watts
MAX Power800 watts
Sensitivity (1w/1m)95 dB
Frequency Range40 Hz - 2 kHz
Voice Coil Diameter3.0"/ 75 mm
Available Impedances4 / 8 Ω
Magnet Size65 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialBlack Aluminium
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs35 Hz
Qes0.36
Qms7.24
Qts0.34
Vas134.01 L
Sd0.0845 m2
η01.59%
Mms150.13 g
BI17.51 Txm
Cms0.13 mm/N
Rms4.62 WM
Le1k2.55 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter15.16"/ 385 mm
Bolt Circle Diameter 14.49"/ 368 mm
Baffle Cut-out Diameter13.82"/ 351 mm
Overall Depth5.83"/ 148 mm
Net Weight4.20 kgs / 9.27 lbs
