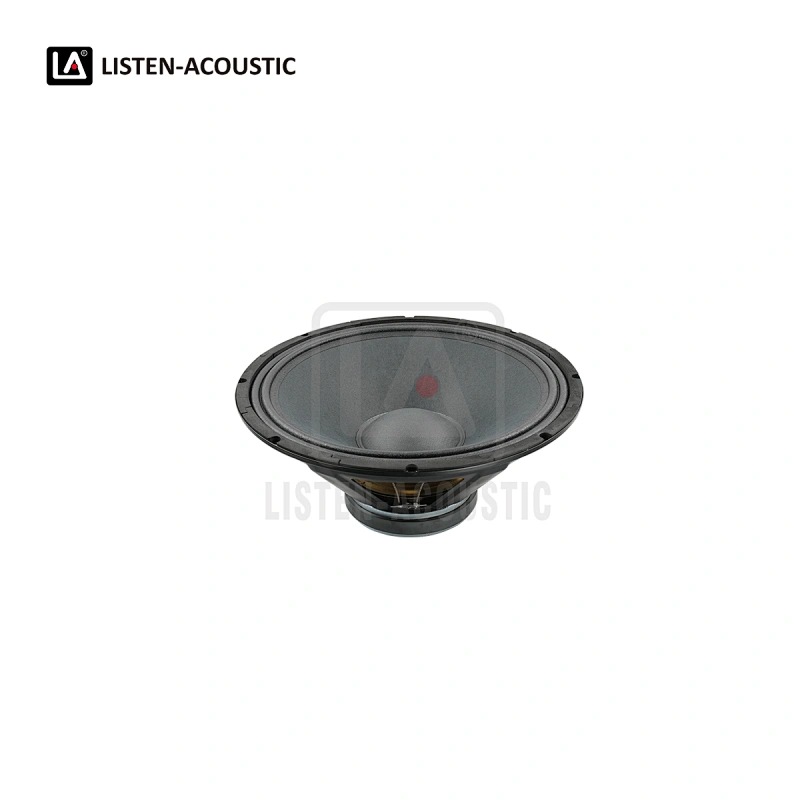

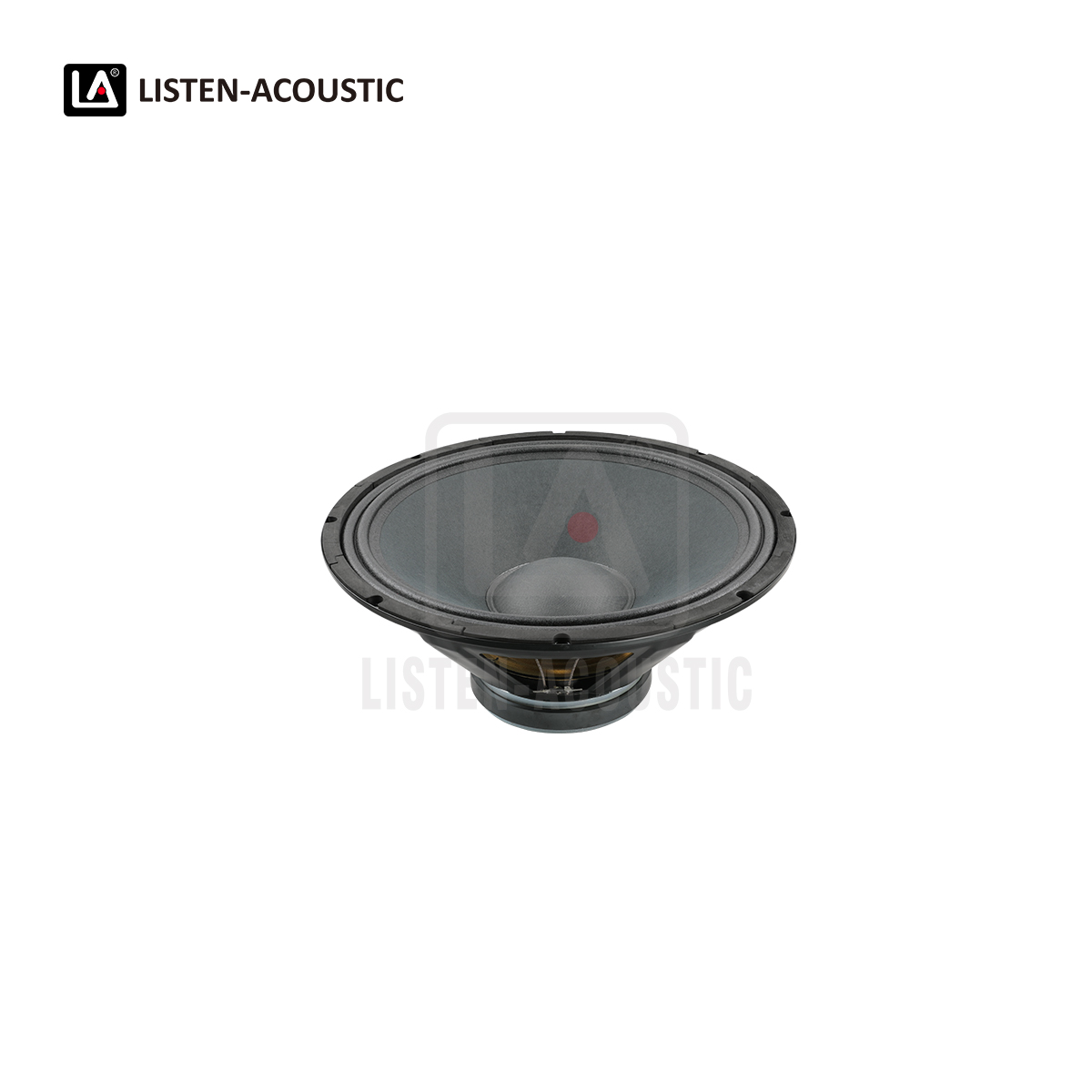

18 Inch Sub Bass Range Woofer with RMS 450 Watts

Model NO.
18SA75-1S
Delivery
FOB
Minimum order quantity
500 pieces
Supply Ability
60,000 pieces / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 18" / 460 mm, Power Handling 350 watts, Sensitivity 96 dB, Frequency Response 40 Hz -2 kHz, Voice Coil Diameter 3" / 75 mm
Quantity:
Listen Acoustic 18 inch Subwoofer electric bass
Features

1. Nominal Diameter 18 inch / 460 mm
2. Power Handling 450 watts
3. Sensitivity 96 dB
4. Frequency Response 40 Hz -2 kHz
5. Voice Coil Diameter 3"/ 75 mm
6. Ferrite Magnet 78 Oz
7. Pressed Steel Chassis type
8. Applications as Sub Bass range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.18SA75-1S
Nominal Diameter18"/ 460 mm
RMS Power450 watts
MAX Power900 watts
Sensitivity (1w/1m)96 dB
Frequency Range40 Hz - 2 kHz
Voice Coil Diameter3.0"/ 75 mm
Available Impedances4 / 8 Ω
Magnet Size78 Oz
Magnet MaterialFerrite
Chassis typePressed Steel
Voice Coil MaterialCopper
Former MaterialBlack Aluminium
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs40 Hz
Qes0.51
Qms6.97
Qts0.48
Vas209.41 L
Sd0.1207 m2
η01.79%
Mms193.07 g
BI23.46 Txm
Cms0.10 mm/N
Rms6.21 WM
Le1k3.77 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter17.95"/ 456 mm
Bolt Circle Diameter 17.24"/ 438 mm
Baffle Cut-out Diameter16.54"/ 420 mm
Overall Depth7.99"/ 203 mm
Net Weight8.10 kgs / 17.87 lbs
