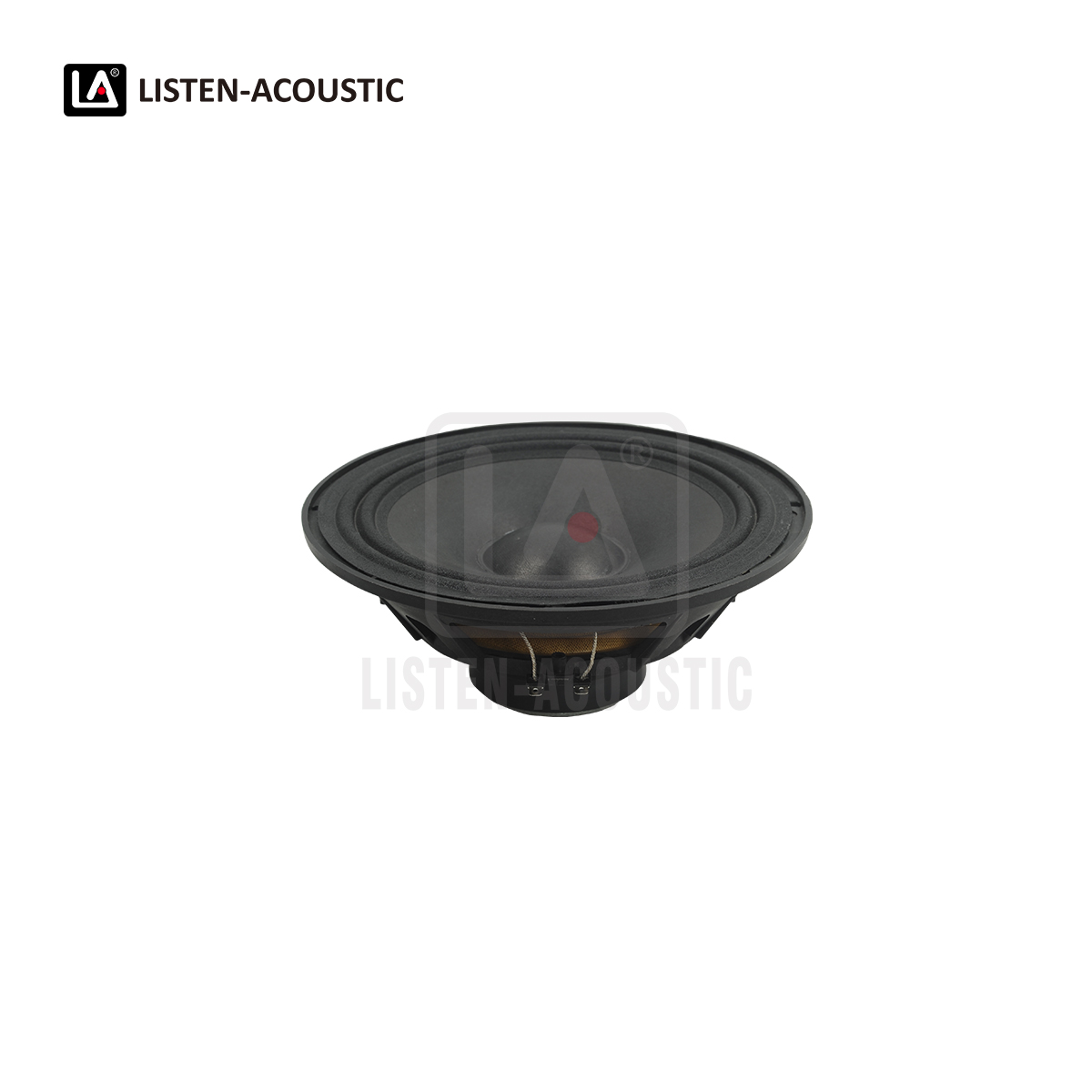

8 Inch Bass / Mid Range Woofer with RMS 30 Watts

Model NO.
8PA25-1
Delivery
FOB
Minimum order quantity
500 sets
Supply Ability
60,000 sets / Month
Country of Origin
Ningbo, China
Stock Time
35 Days
Nominal Diameter 8 Inch / (210 x 210 mm), Power Handling 30 watts, Sensitivity 86 dB, Frequency Response 95 Hz - 5 kHz, Voice Coil Diameter 1 Inch / 25 mm
Quantity:
Listen Acoustic 8 inch Bass / Mid Range Woofer economical bass
Features

1. Nominal Diameter 8"/ 210 mm
2. Power Handling 30 watts
3. Sensitivity 86 dB
4. Frequency Response 95 Hz - 5 kHz
5. Voice Coil Diameter 1.0"/ 25 mm
6. Ferrite Magnet 10 Oz
7. Plastic Chassis type
8. Applications as bass / mid range woofer for PA speaker

Specifications

SPECIFICATIONS
Model No.8PA25-1
Nominal Diameter8"/ 210 mm
RMS Power30 watts
MAX Power60 watts
Sensitivity (1w/1m)86 dB
Frequency Range95 Hz - 5 kHz
Voice Coil Diameter1.0"/ 25 mm
Available Impedances2.8 Ω
Magnet Size10 Oz
Magnet MaterialFerrite
Chassis typePlastic
Voice Coil MaterialCopper
Former MaterialKapton
Dust Dome MaterialPaper
Suspension MaterialPolycotton
Surround MaterialFabric
Cone MaterialPaper
THIELE SMALL PARAMETERS
Fs90 Hz
Qes1.24
Qms7.284
Qts1.06
Vas14.17 L
Sd0.0222 m2
η00.82%
Mms15.07 g
BI4.07 Txm
Cms0.21 mm/N
Rms1.17 WM
Le1k0.33 mH
MOUNTING & DIMENSIONS & WEIGHT
Overall Diameter8.35"/ 212 mm
Bolt Circle Diameter 8.056"/ 204.5 mm
Baffle Cut-out Diameter6.89"/ 175 mm
Overall Depth3.27"/ 83 mm
Net Weight0.8 kgs / 1.77 lbs
