Model NO.
S2-MD
Dual 6.5" active line array module
Quantity:

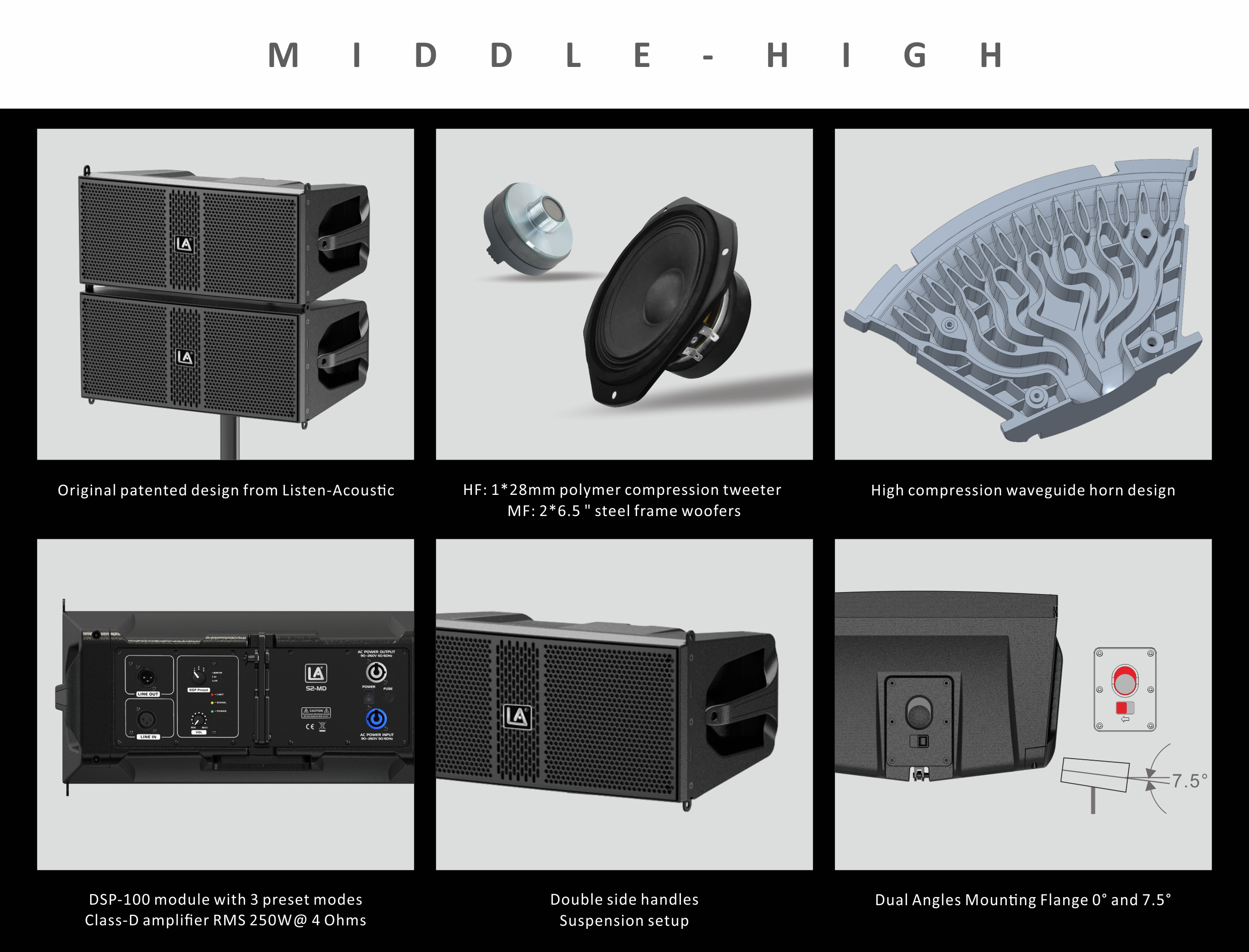

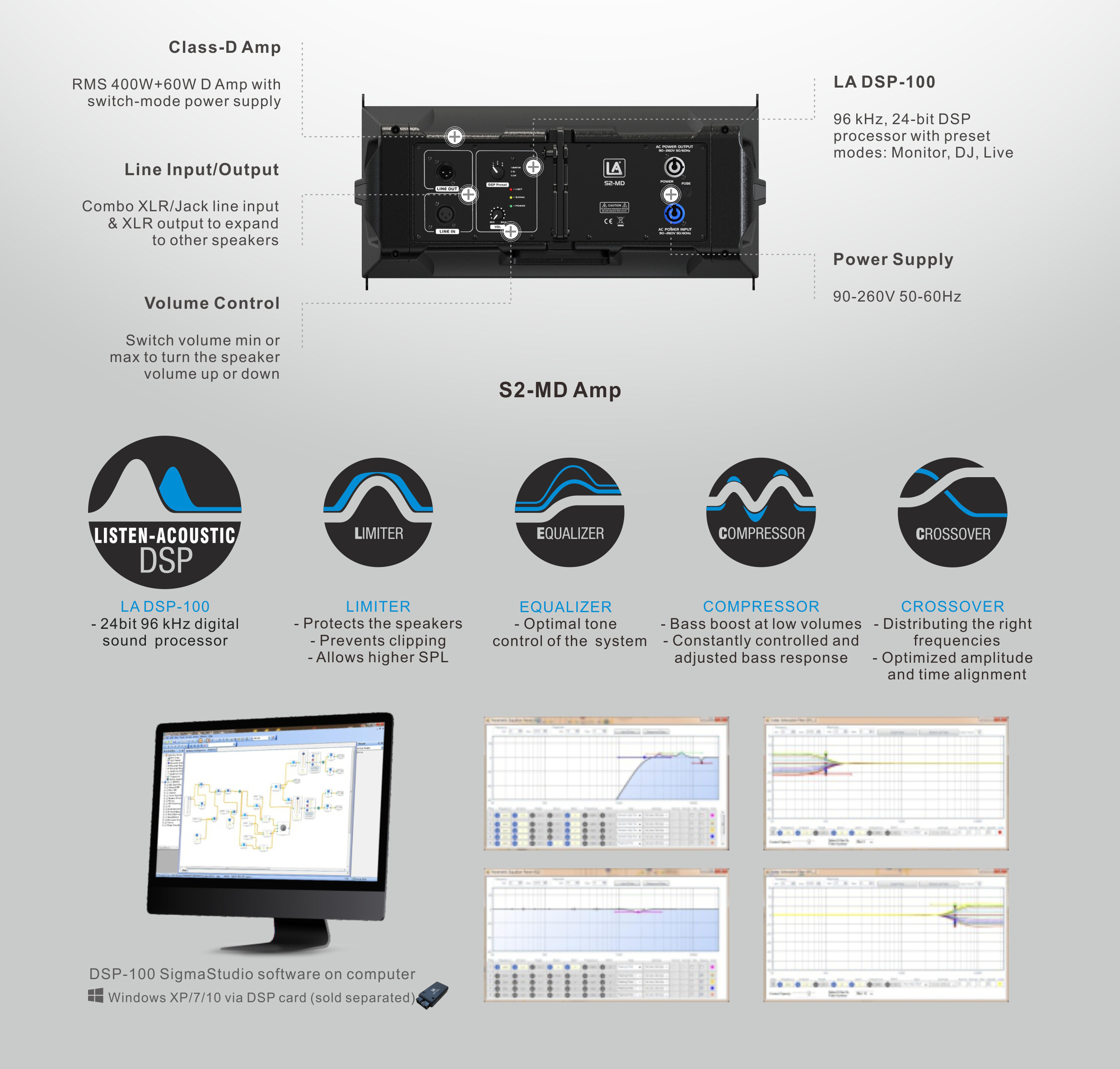

S2-MD Active Line Array Module √ Original patented design from Listen-Acoustic √ High compression waveguide horn design √ Dual 6.5S2-MD ACTIVE LINE ARRAY MODULE The S2-MD is the ideal choice when line array performance is needed and a fast and easy set-up a must. A RMS 200 Watts 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of- the-art Listen-Acoustic's transducers – two powerful 6.5” woofers for a solid bass reproduction plus a high powered compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.MIDDLE-HIGH Original patented design from Listen-Acoustic HF: 1*28mm polymer compression tweeter MF: 2*6.5Class-D Amp RMS 200W D Amp with switch-mode power supply Line Input/Output Combo XLR/Jack line input & XLR output to expand to other speakers Volume Control Switch volume min or max to turn the speaker volume up or down LA DSP-100 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live Power Supply 100-240V 50-60Hz S2-MD AmpQuick ConfigurationsS2-MINI For audiences of up to 150 Short-Throw setup Applications: Presentation events, Public speech, Small venues, Cafes, Bars, Stage fillsS2-STAND For audiences of up to 300 Short-to Medium-Throw setup Applications: Stage fills, Mid-sized touring, Clubs, Outdoor stages, Concert venuesFor audiences of up to 1000 Medium-Throw setup Applications: Touring, Live concerts, Small festivals, Multipurpose halls, Event centersFor audiences of up to 2000 Far-Throw setup Applications: Touring, Live concerts, Big festivalsTeaching Amplifying Classroom Presentation Training Conference Yoga Fitness Center Guitar Playing Live Singing Home Barbecue Festive Party Roadshow Wedding Culture Business Sports Live Sound Party Events

Model No.S2-MD
TypeDual 6.5"active line array module
Frequency Response (-6dB)65 Hz - 20 kHz
Max. SPL (1m, free space)131 dB
Power Output (RMS)200W
Impedance4Ohms
Transducer HF1 * 28mm polymer compression tweeter
Transducer MF2 * 6.5"steel frame woofer, 1"voice coil
AmplifierClass-D Amplifier
DSP ModuleDSP-100 module with 3 preset modes
ProtectionShort circuit overheating, over-current
Audio Input / OutputCombo XLR / TRS 6.3mm input, XLR output
Power Input / OutputPowerCon
Power Supply100V~250V 50/60Hz
EnclosureABS/PP plastic
GrilleMetal grille
