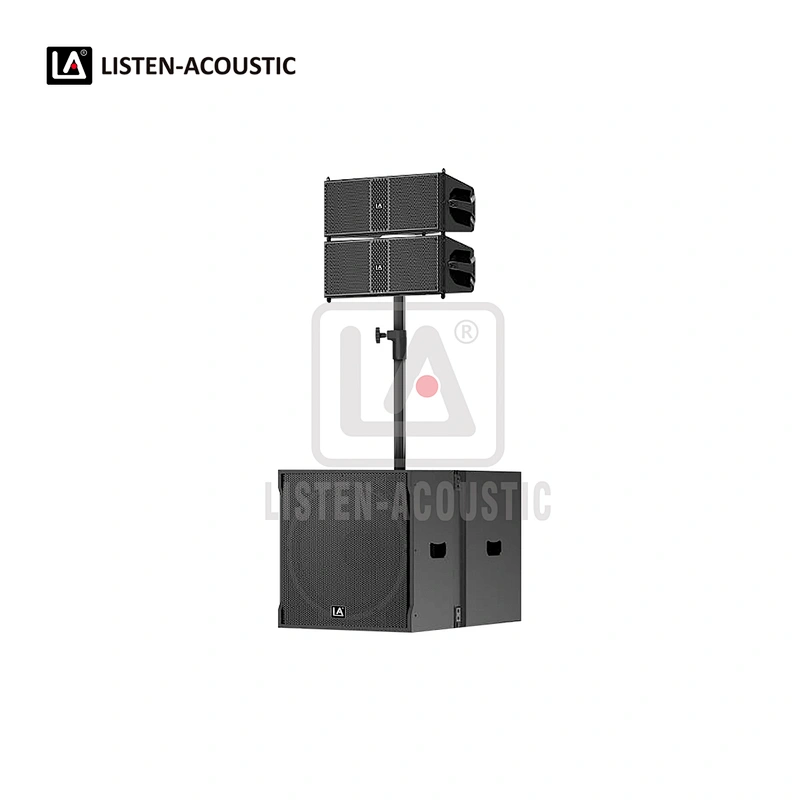

S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System
S2-Mini Active Line Array System

S2-Mini Active Line Array System

Model NO.
S2-Mini

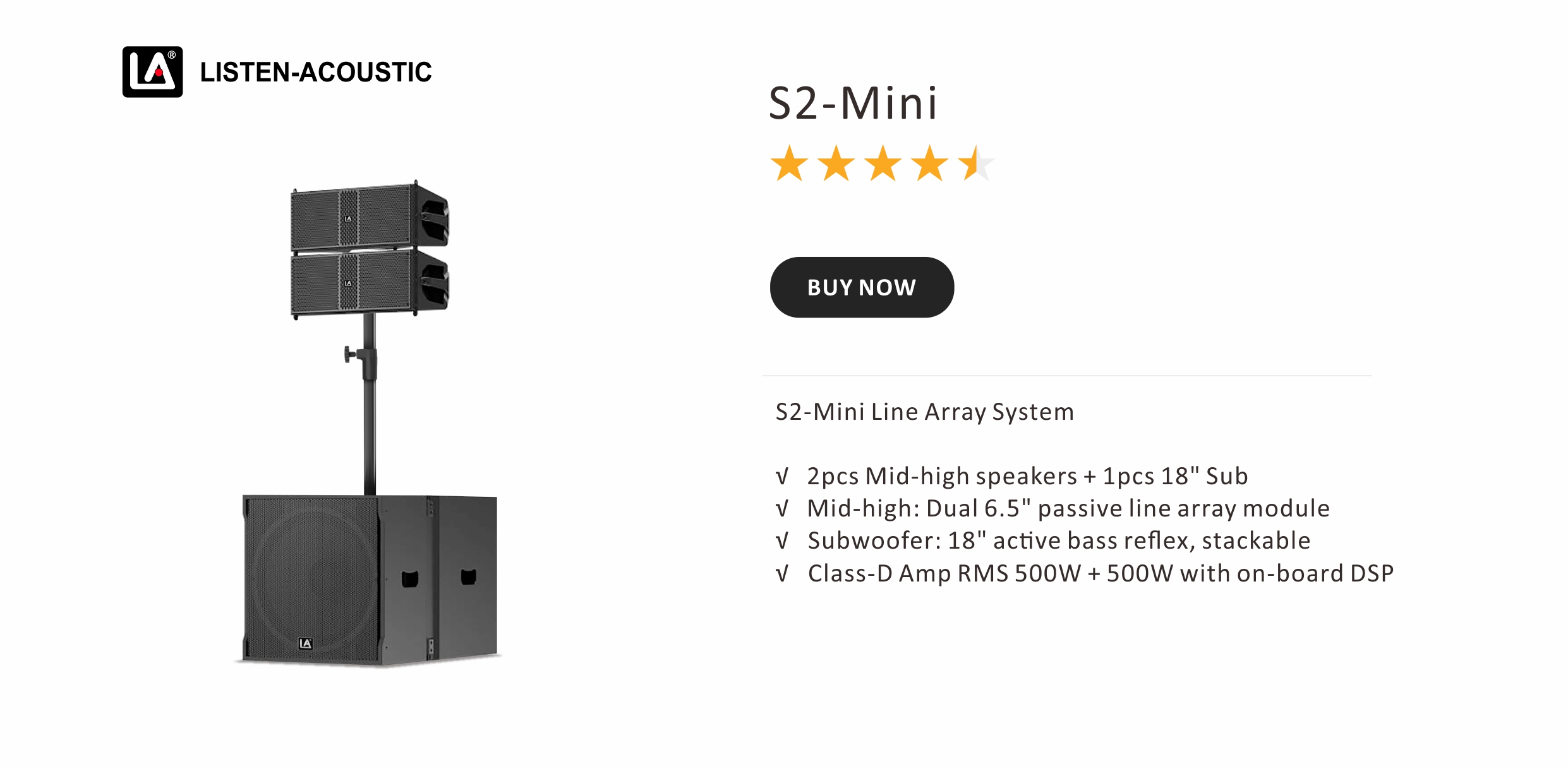

2pcs Mid-high speakers+1pcs 18" Sub
Quantity:

Active Line Array Loudspeaker

active line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeakeractive line array system,Line array speakers,line array active system,active line array china,active line array loudspeaker

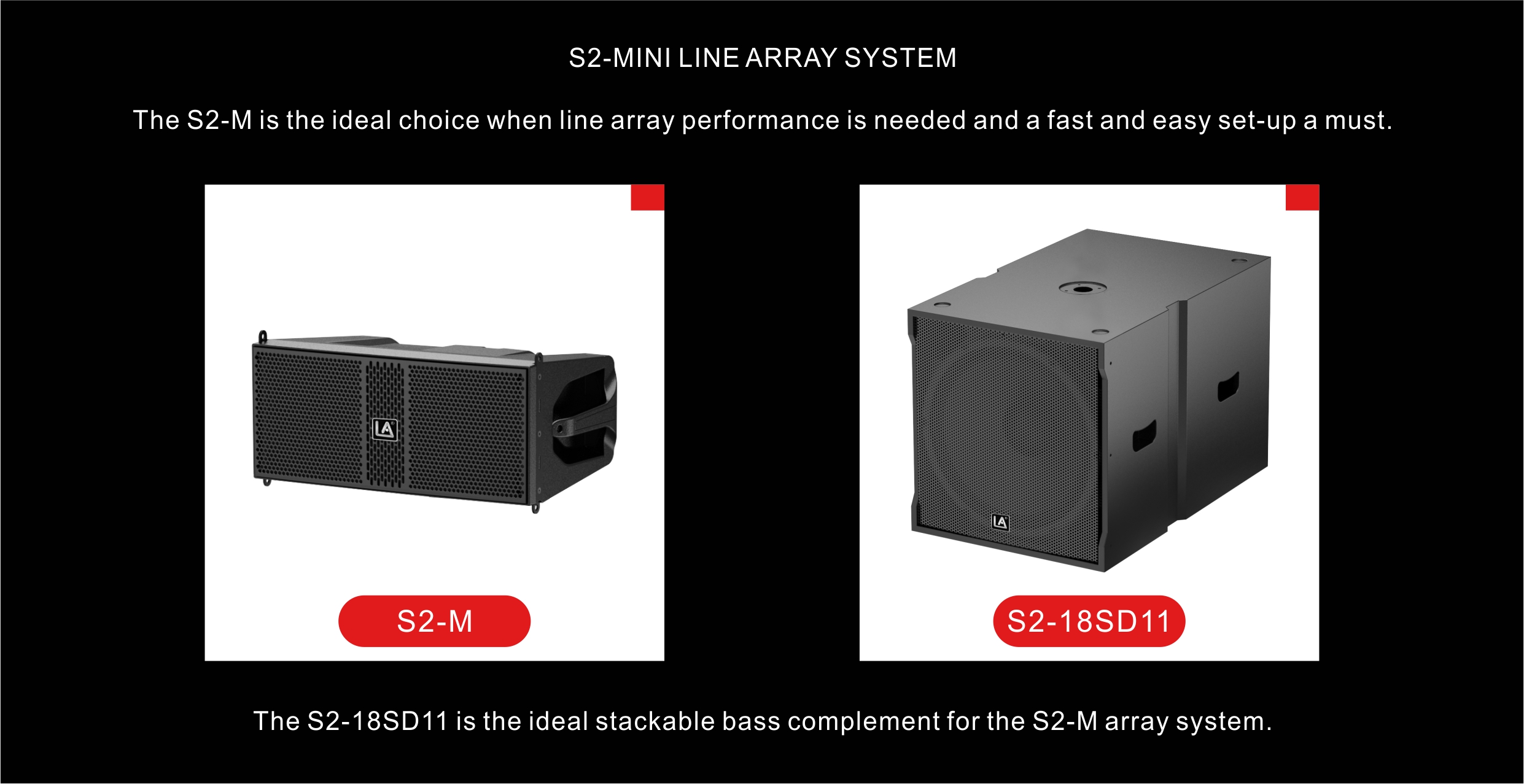

Model No.S2-MS2-18SD11

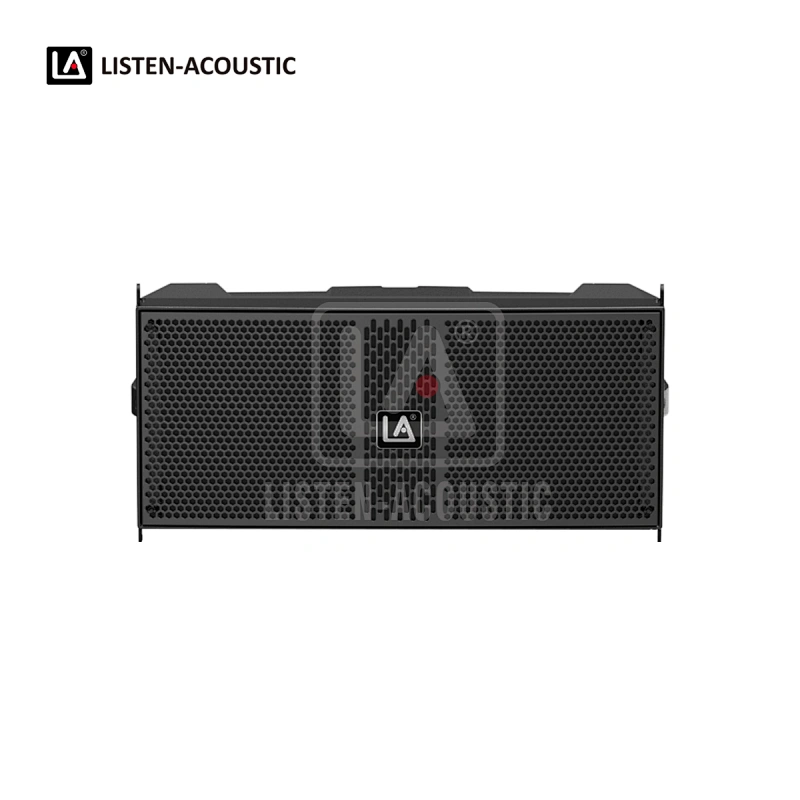

TypeDual 6.5"passived line array module18'' active bass reflex, stackable
Frequency Response (-6dB)80 Hz - 20 kHz35 Hz - 200 Hz / 200 - 20 kHz
Max. SPL (1m, free space)131 dB123 dB
Power Output (RMS)300W500W + 500W
Impedance4 Ohms4 Ohms

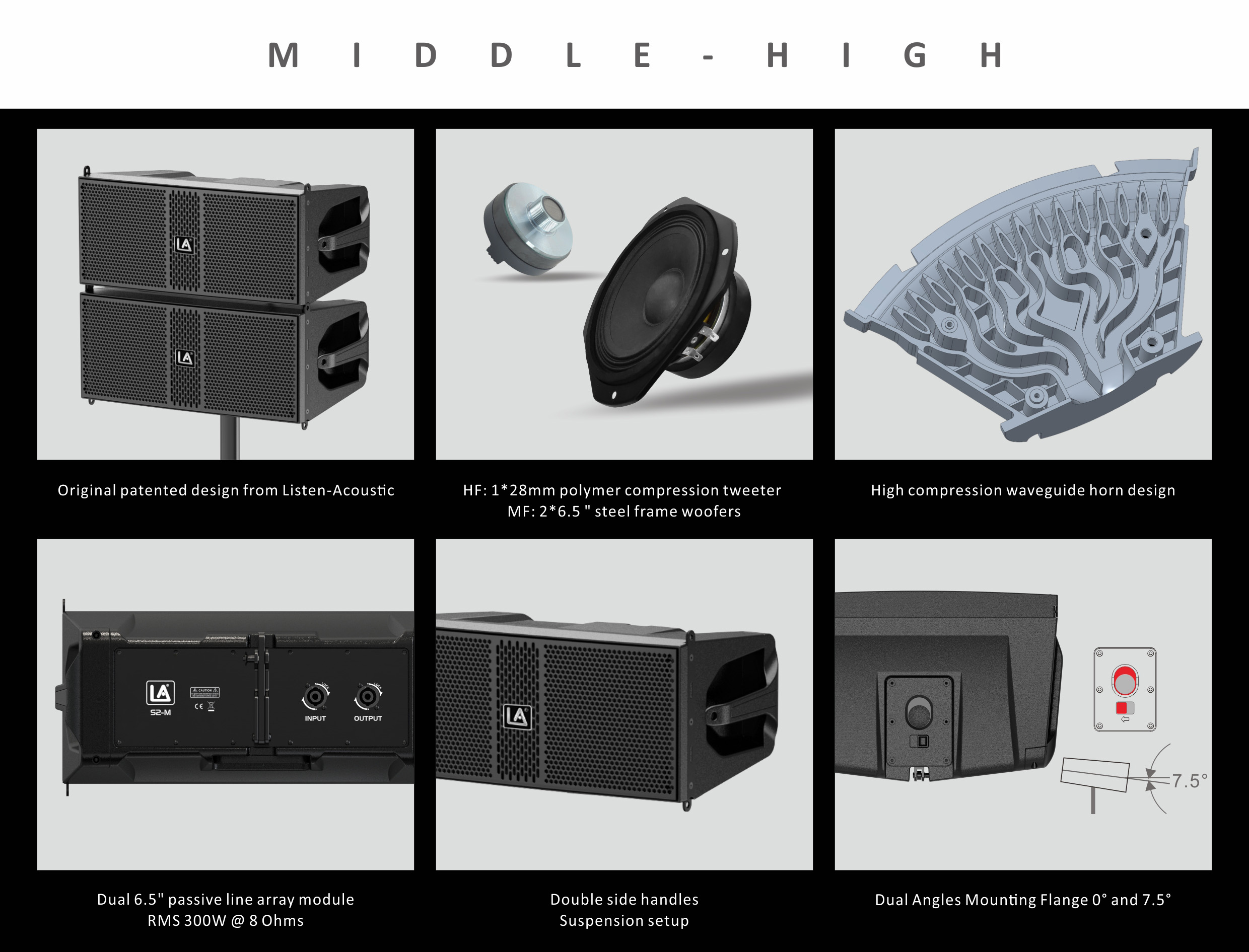

Transducer HF1 * 38mm polymer compression tweeter/
Transducer MF2 * 6.5"steel frame woofer, 1"voice coil/

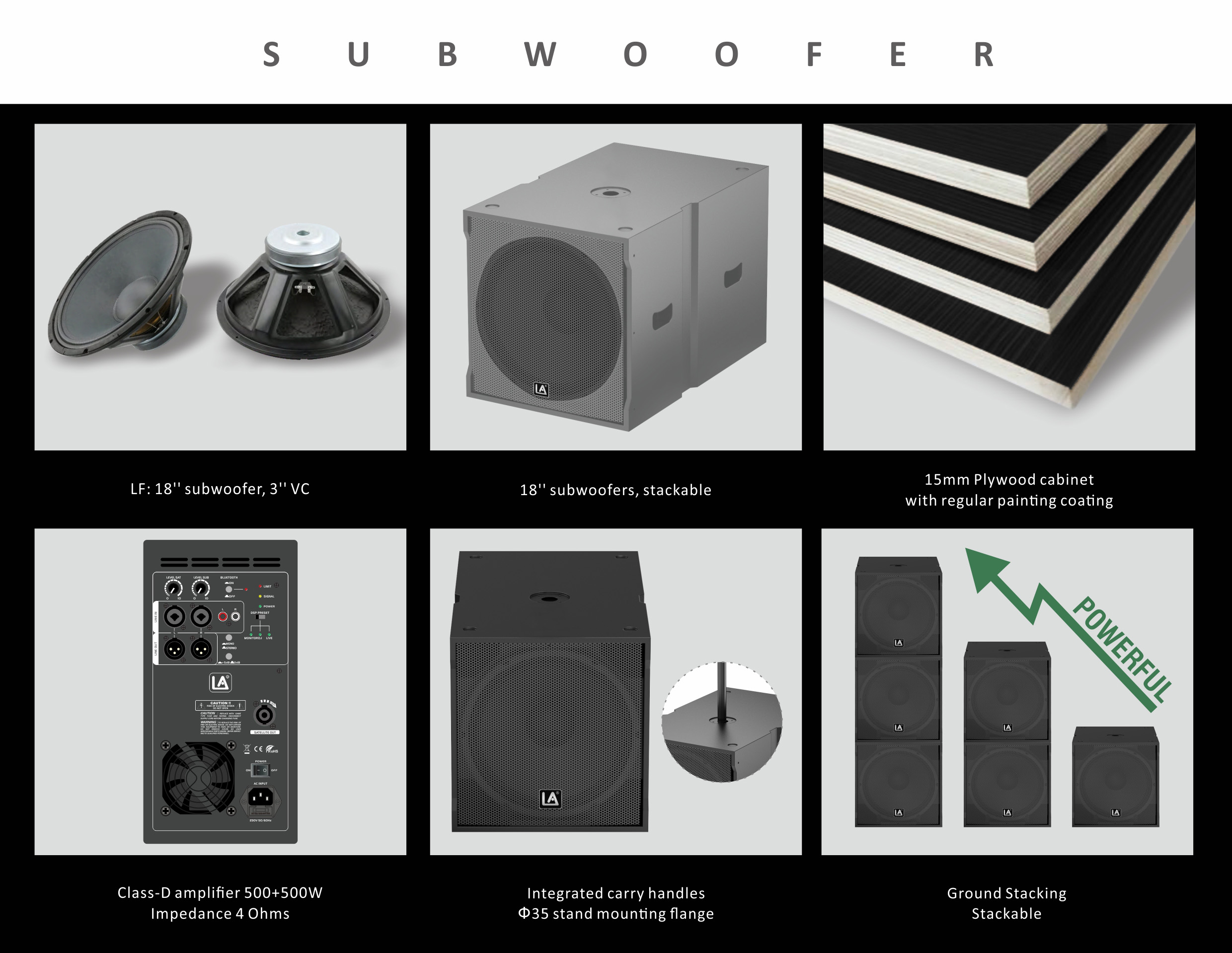

Transducer LF/1 * 18"subwoofer,  3'' VC

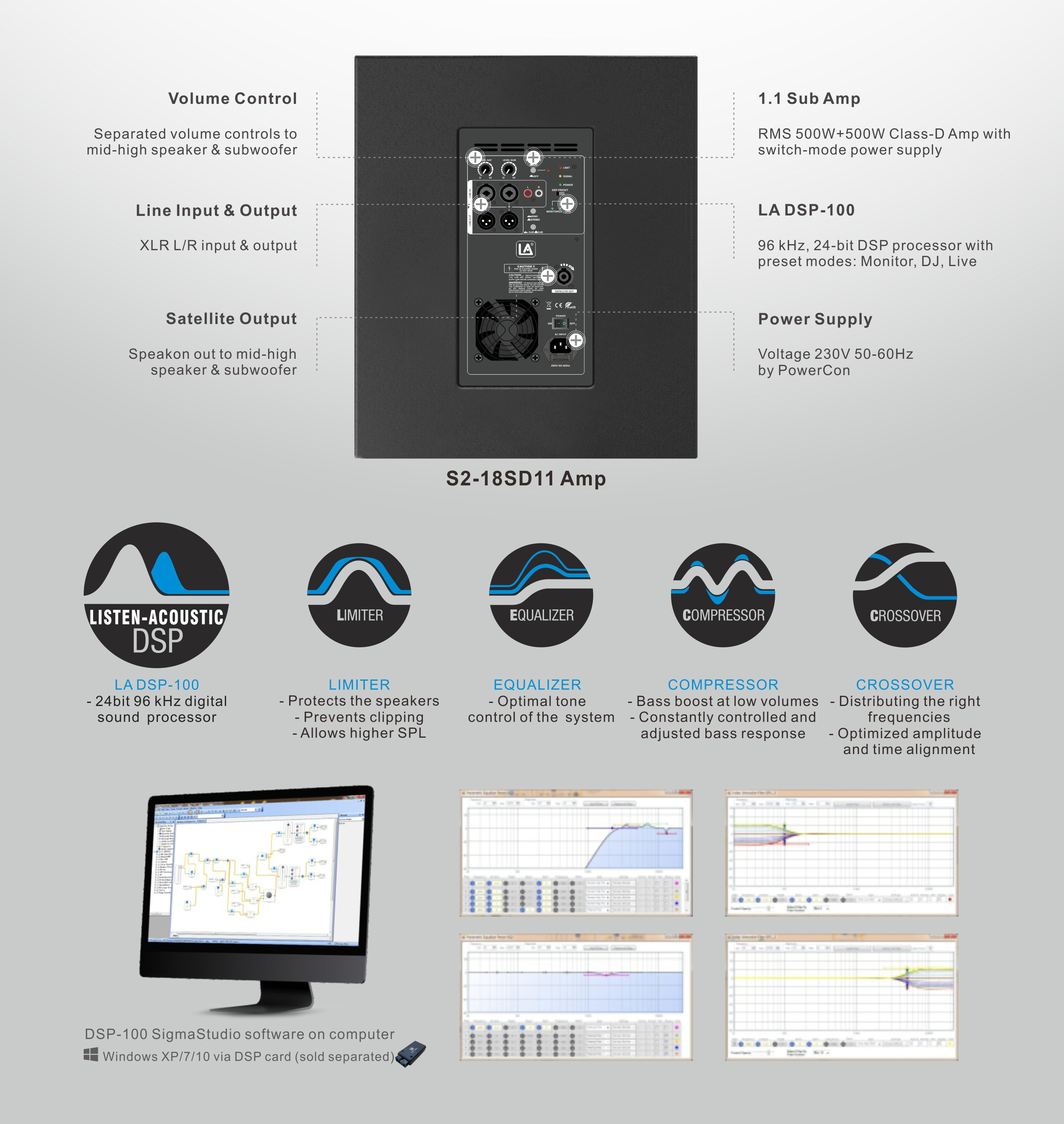

Amplifierpassived1.1 Class-D Amplifier
DSP Module/LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live
Protection/Short circuit overheating, over-current

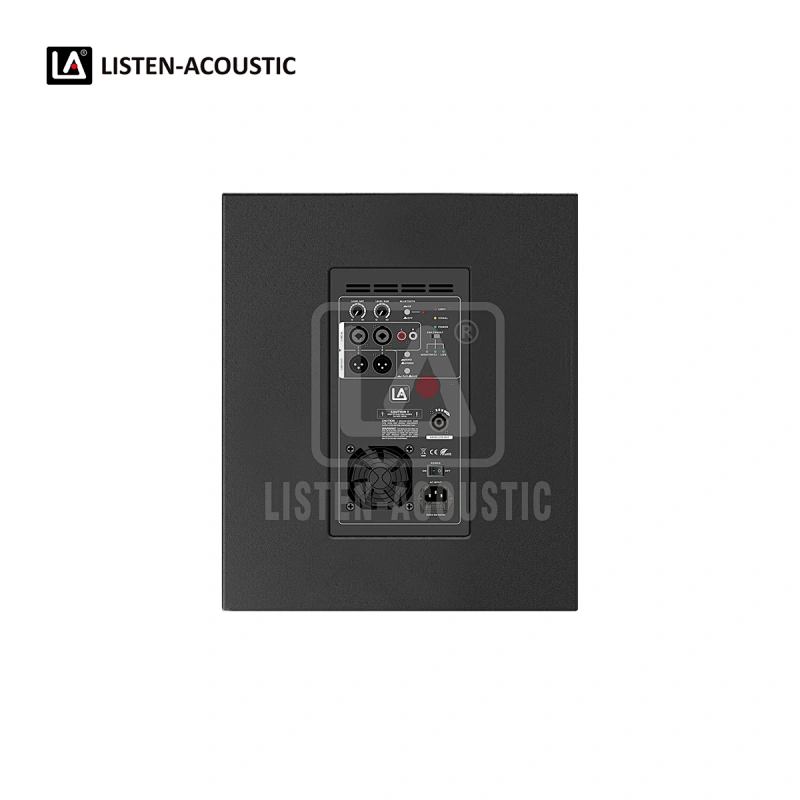

Controls/Power switch, satellite level, subwoofer level, bluetooth switch, DSP modes switch, Mono / Stereo switch, sensitivity 0dB / +5dB switch
Indicators/Power, signal, limit

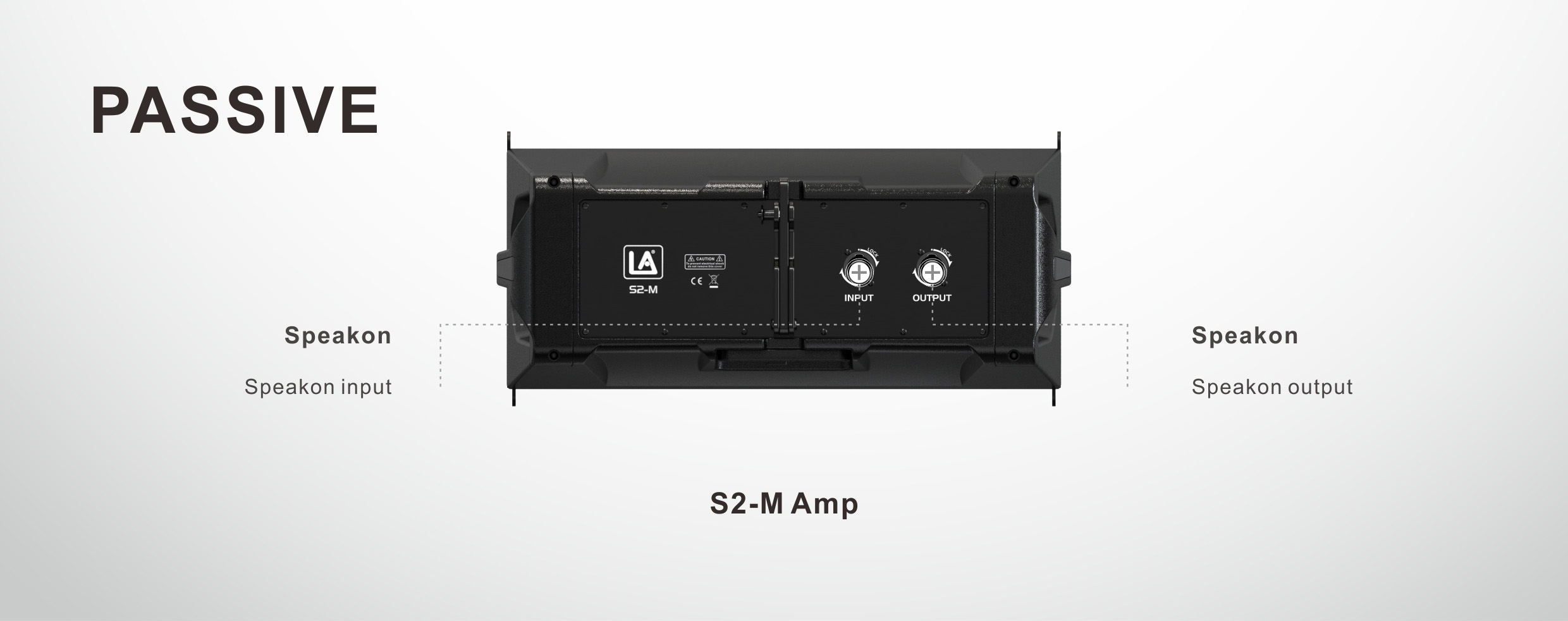

Audio Input / OutputSpeakon in / Speakon out2 * Combo XLR input, Left / Right Jack input
Power Input / Output/2 * XLR output, 1 * Speakon output
Power Supply/230V 50/60Hz
EnclosureABS/PP plastic15 mm MDF &Plywood Cabinet with regular painting
GrilleMetal grilleMetal grille
Package Measure460*290*225 mm450*510*415 mm
Gross Weight10.3kgs19 kgs
