| Model No. | E3-M | E3-MT |
| Type | Active full range column speaker | |
| Frequency Response (-6dB) | 200 Hz - 21 kHz | |
| Max. SPL (1m, free space) | 109 dB | |
| Power Output (RMS) | 50W | |
| Impedance | 4 Ohms | |
| Transducer MF | 4 * 2.75", neodymium magnet, 1"voice coil | |
| Amplifier | Class-D amplifier | |
| Audio / Poer Input / Output | Top and bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core Signal +/- ) | |
| Enclosure | PP Plastic | |
| Grille | 1.0mm thickness metal grille without acoustic fabric | |
| Dispersion (H * V) | 120° * 20° | |

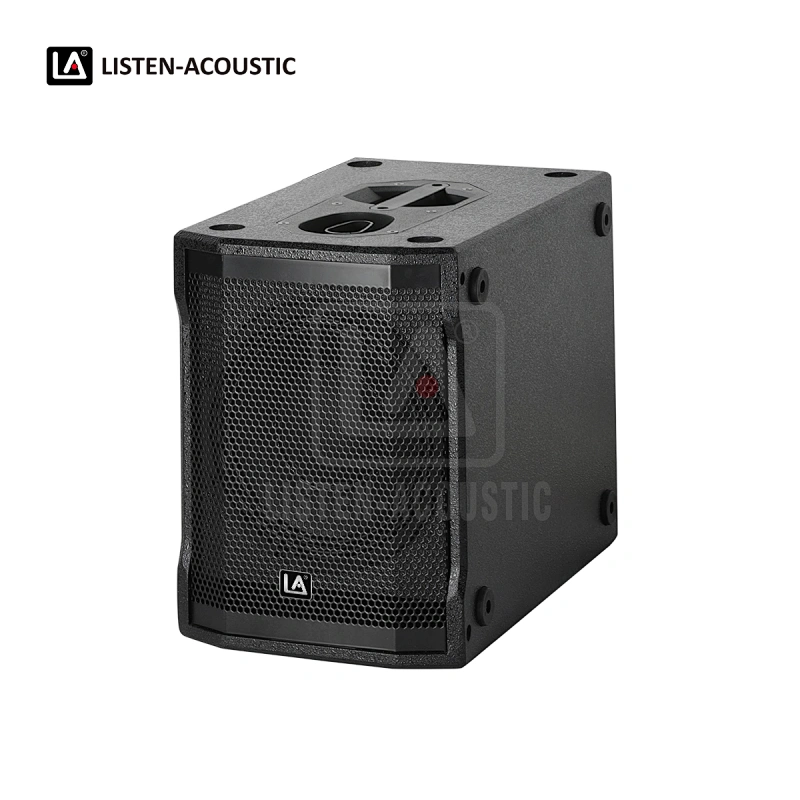

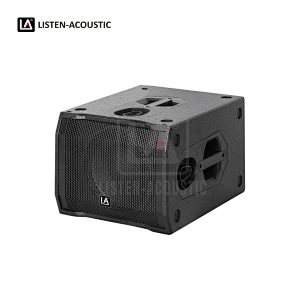

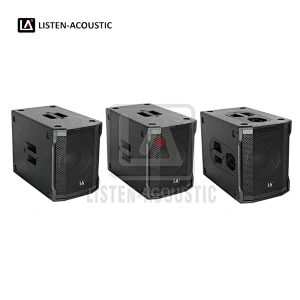

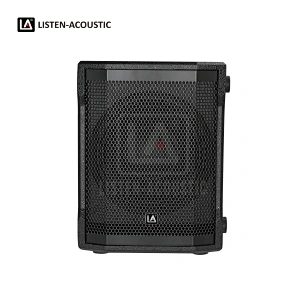

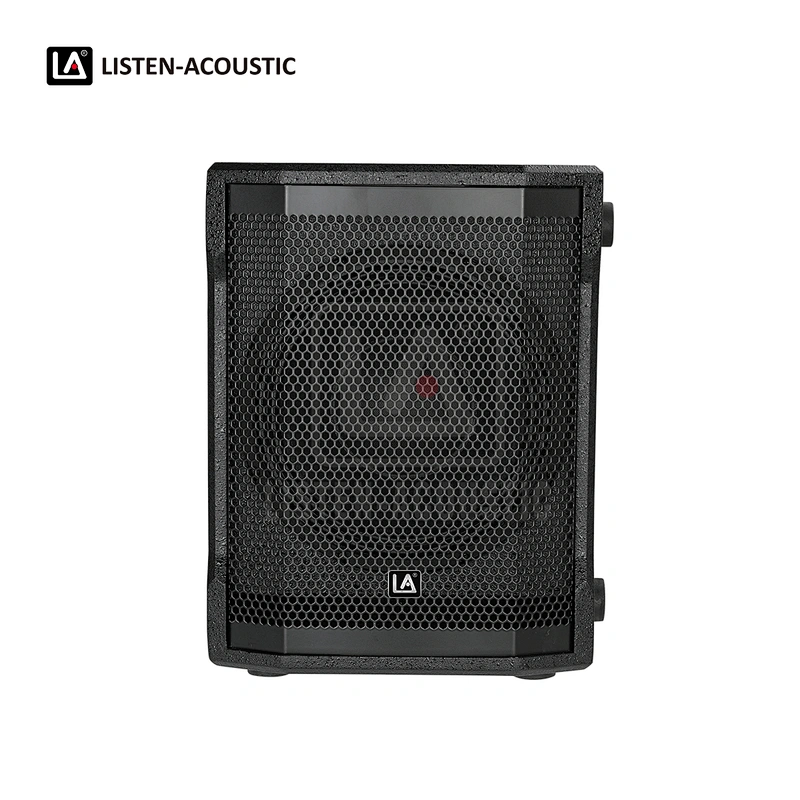

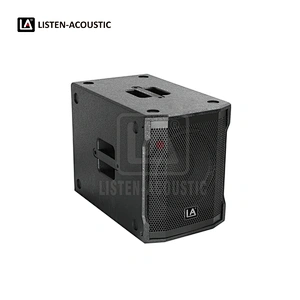

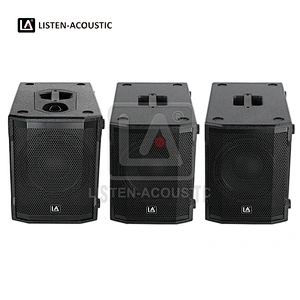

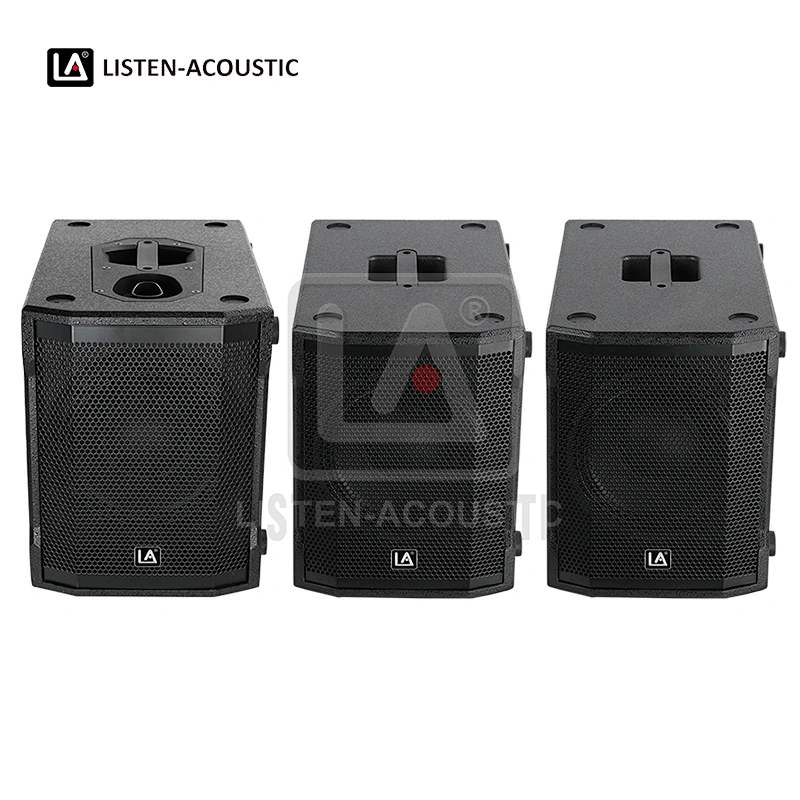

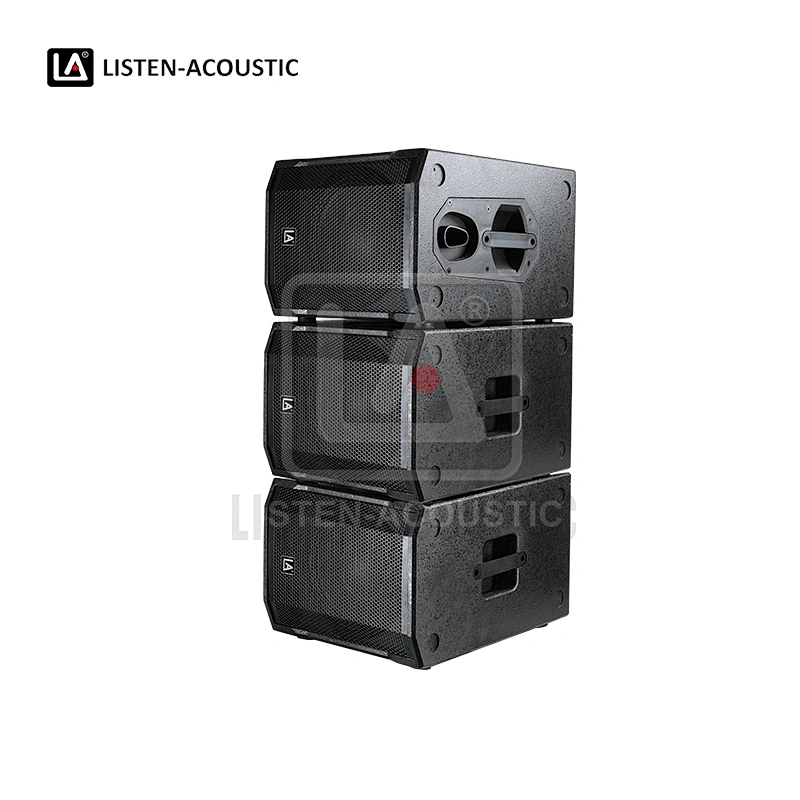

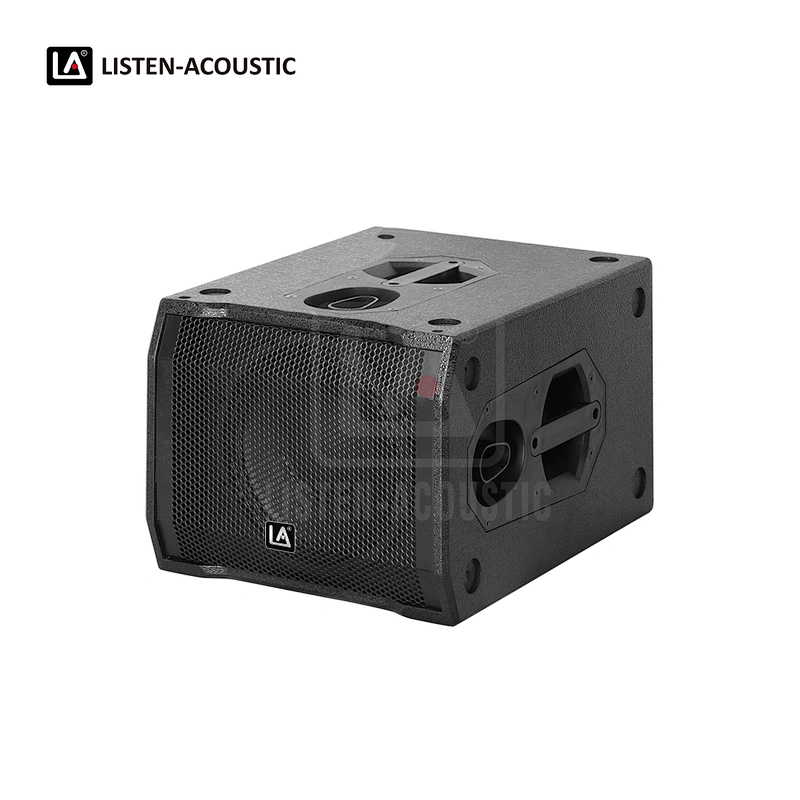

| Model No. | E3-10D | E1-10DM |
| Type | 10'' active bass reflex | 10'' active bass reflex, slave subwoofer |
| Frequency Response (-6dB) | 47 Hz - 200 Hz | |
| Max. SPL (1m, free space) | 117 dB | |
| Power Output (RMS) | 400W | |
| Impedance | 4 Ohms | |
| Transducer LF | 10"subwoofer, 2.5"voice coil | |
| Amplifier | Class-D amplifier | |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes:Speech, DJ, Live | / |
| Protection | Short circuit overheating, over-current | |

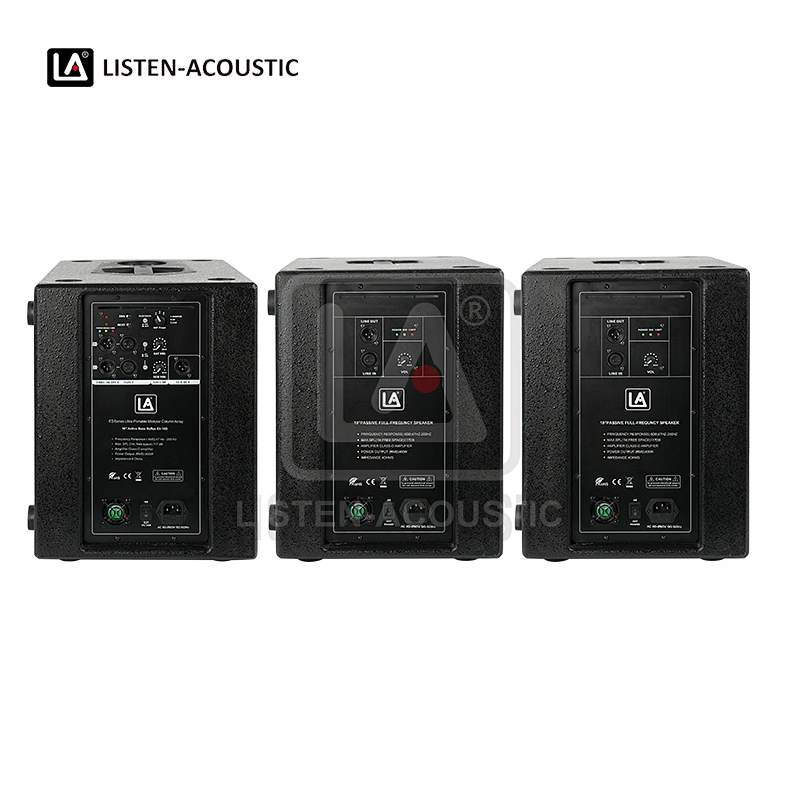

| Controls | Power On / Off switch, satellite level, subwoofer level, Line/Mic switch, BluetoothOn / Off switch, | Power On / Off switch, main level |
| Indicators | Power, signal, limit, bluetooth, reset | Power, signal, limit |
| Audio Input / Output | Left / Right female and male XLR input , | 1 * XLR input, 1 * XLR output |
| Power Input / Output | 4-pins-quick-insert | Powercon |
| Power Supply | 110~250V 50/60HZ | 110~250V 50/60HZ |
| Enclosure | 15mm MDF with regular raindrop painting | |
| Grille | 1.0mm thickness metal grille without acoustic fabric | |
| Match Use | To E3-M and E3-MT satellites | / |
