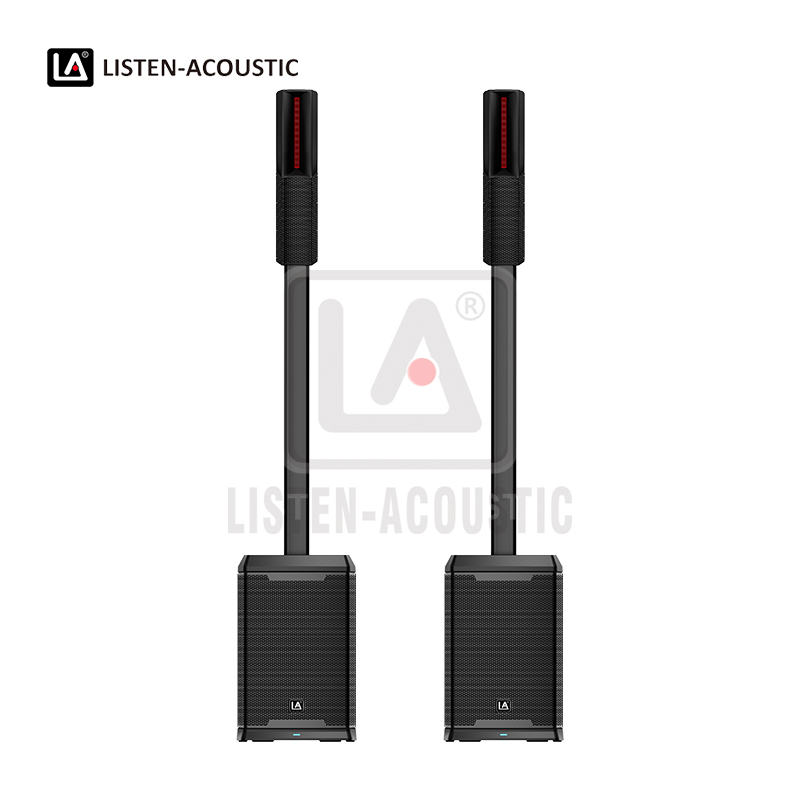

OPTIMUS-242 comes with a cooling fan for effective heat dissipation. It provides full-range intelligent high-speed protection for all electronic circuits, alongside PFC (Power Factor Correction) technology supporting universal 90V~265V global mains voltage. These integrated designs greatly reduce the risk of equipment damage during operation and deliver lasting long-term reliability.
Its input circuit adopts a brand-new low-distortion architecture paired with 24bit/96kHz DSP processing, delivering crisp, warm, full-bodied sound performance. The built-in amplifier utilize a universal switch-mode power supply, achieving high energy efficiency while keeping overall weight light.
| Model No. | OPTIMUS-242 | OPTIMUS-242 Passive |

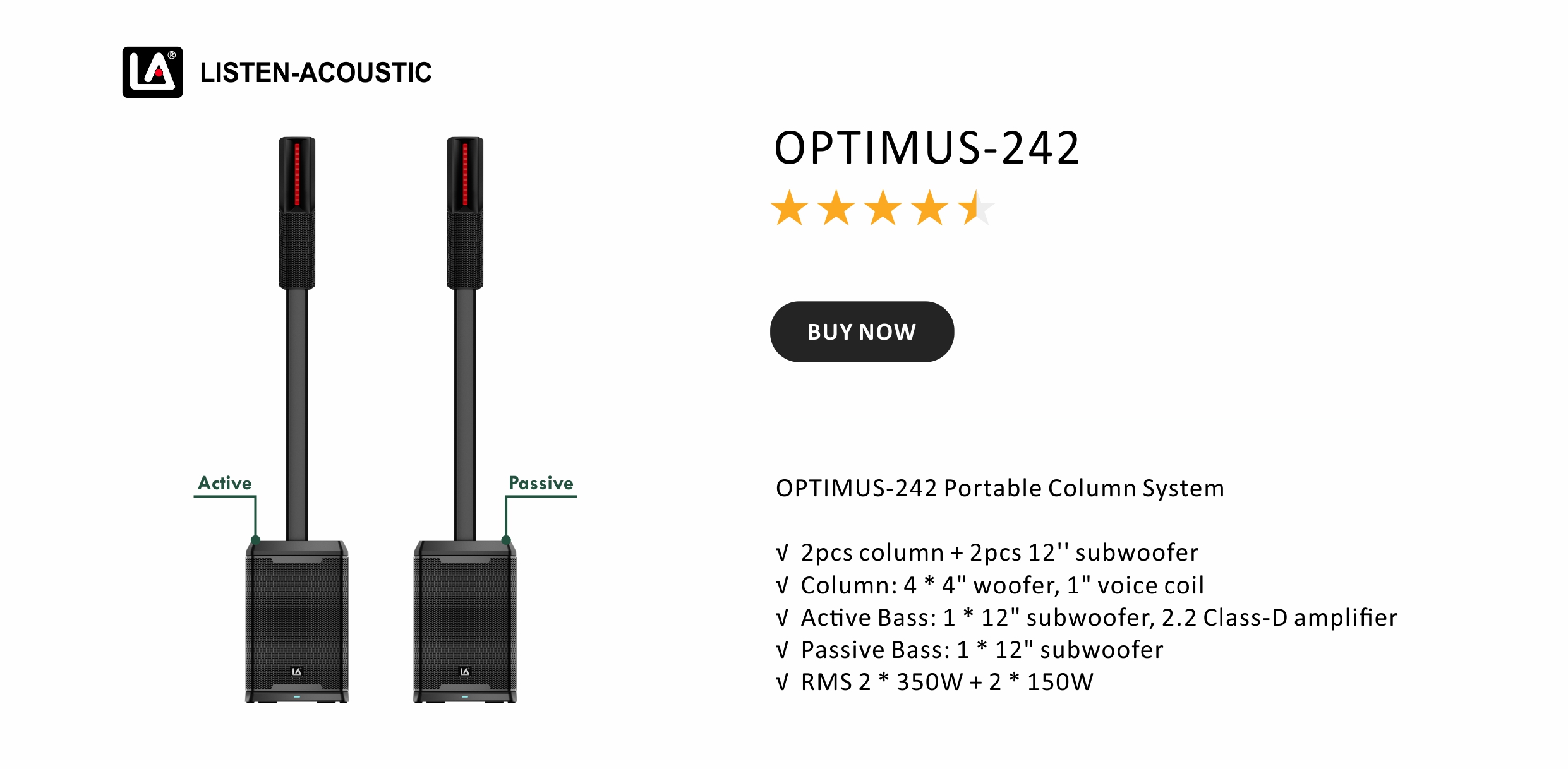

| Type | 2.2 - 3 ways column system (12"subwoofer + 2pcs column) | |
| Frequency Response (-6dB) | 45 Hz -22 kHz | |
| Max. SPL(1m, free space) | 130 dB | |
| Power Output (RMS) | 2 * 350W+ 2 * 150W | Passive |
| Impedance | 8 Ohms | |

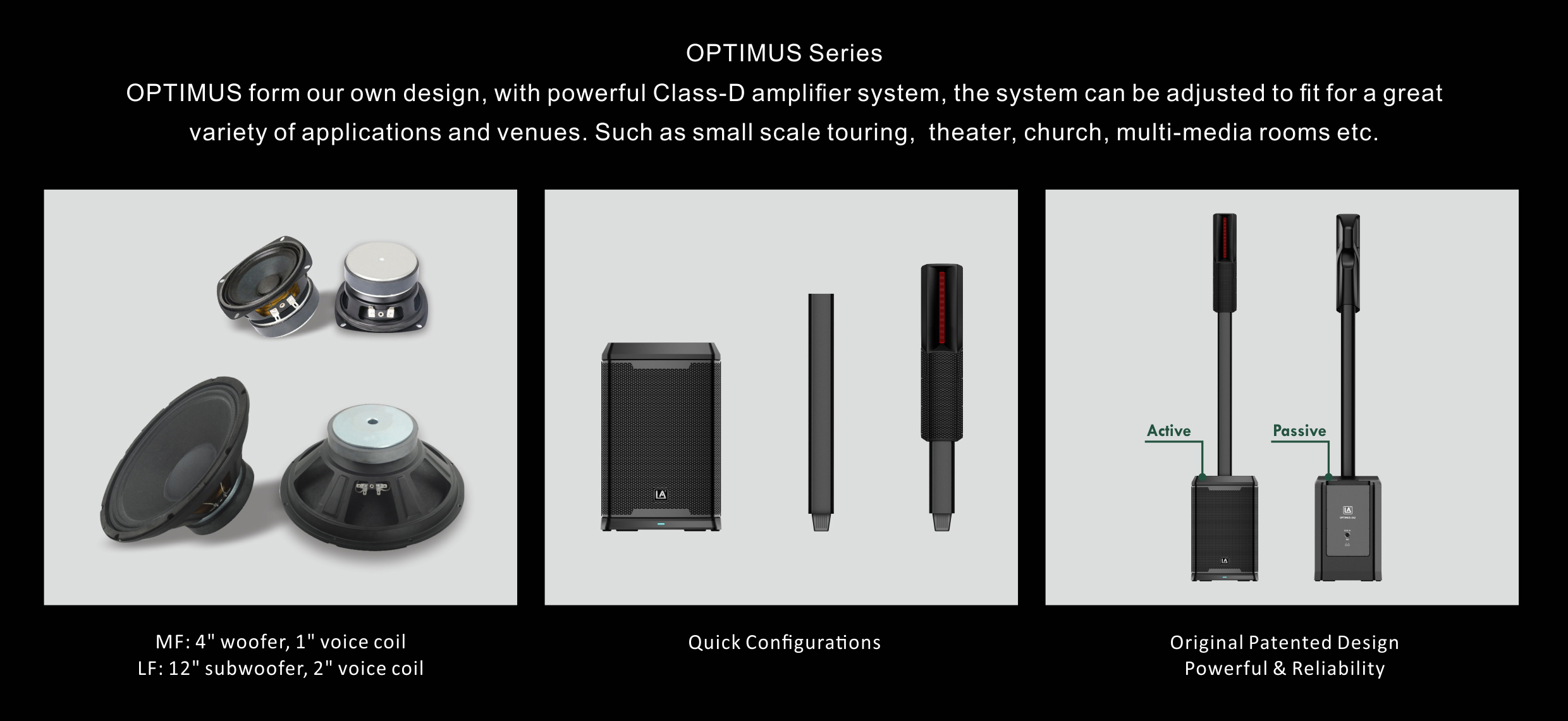

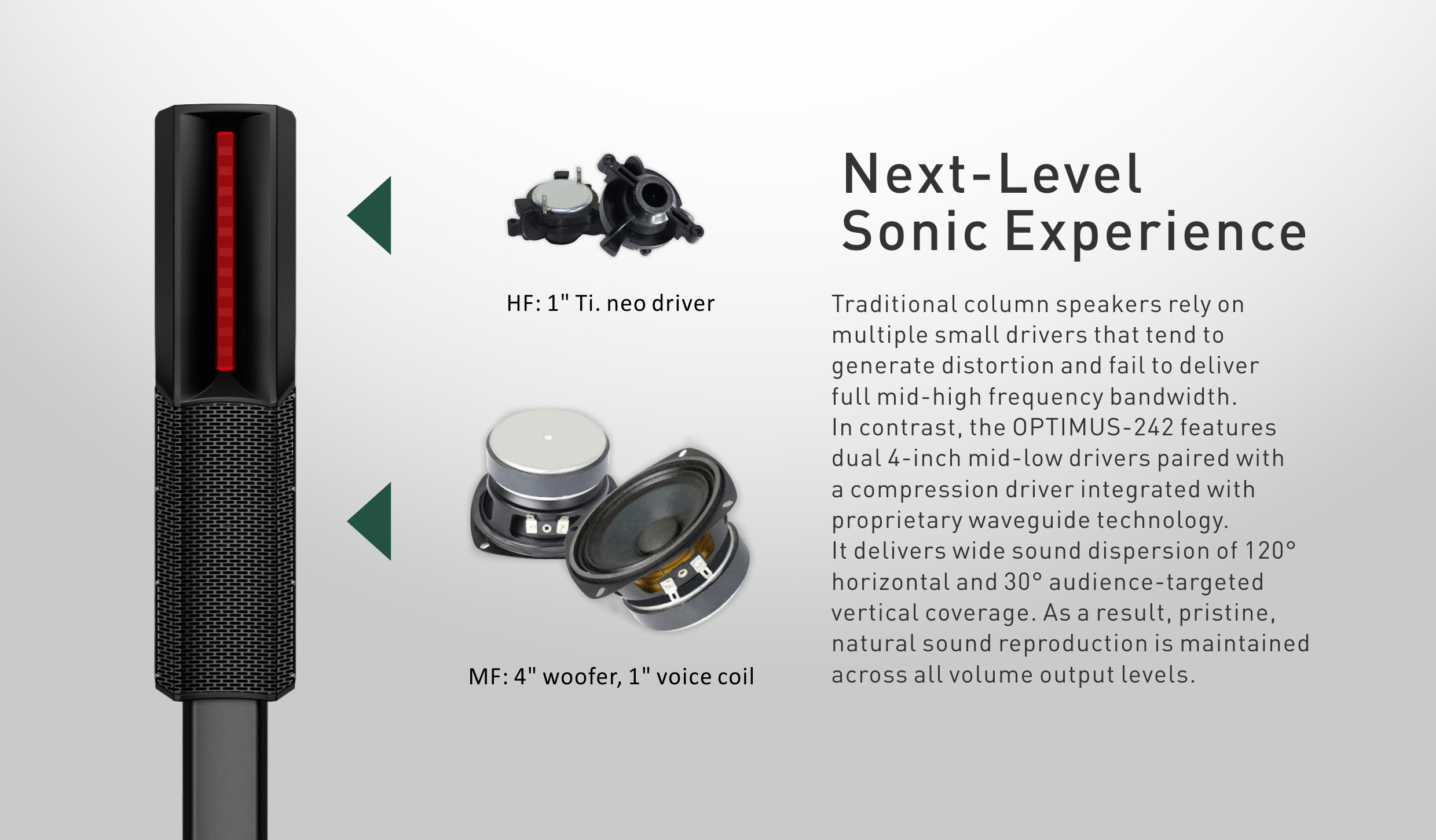

| Transducer HF | 2 * 1"Ti. neo driver | |
| Transducer MF | 2 *4"woofer | |
| Transducer LF | 2 * 12"subwoofer | |
| Amplifier | 2.1 Class-D Amplifier | Passive |

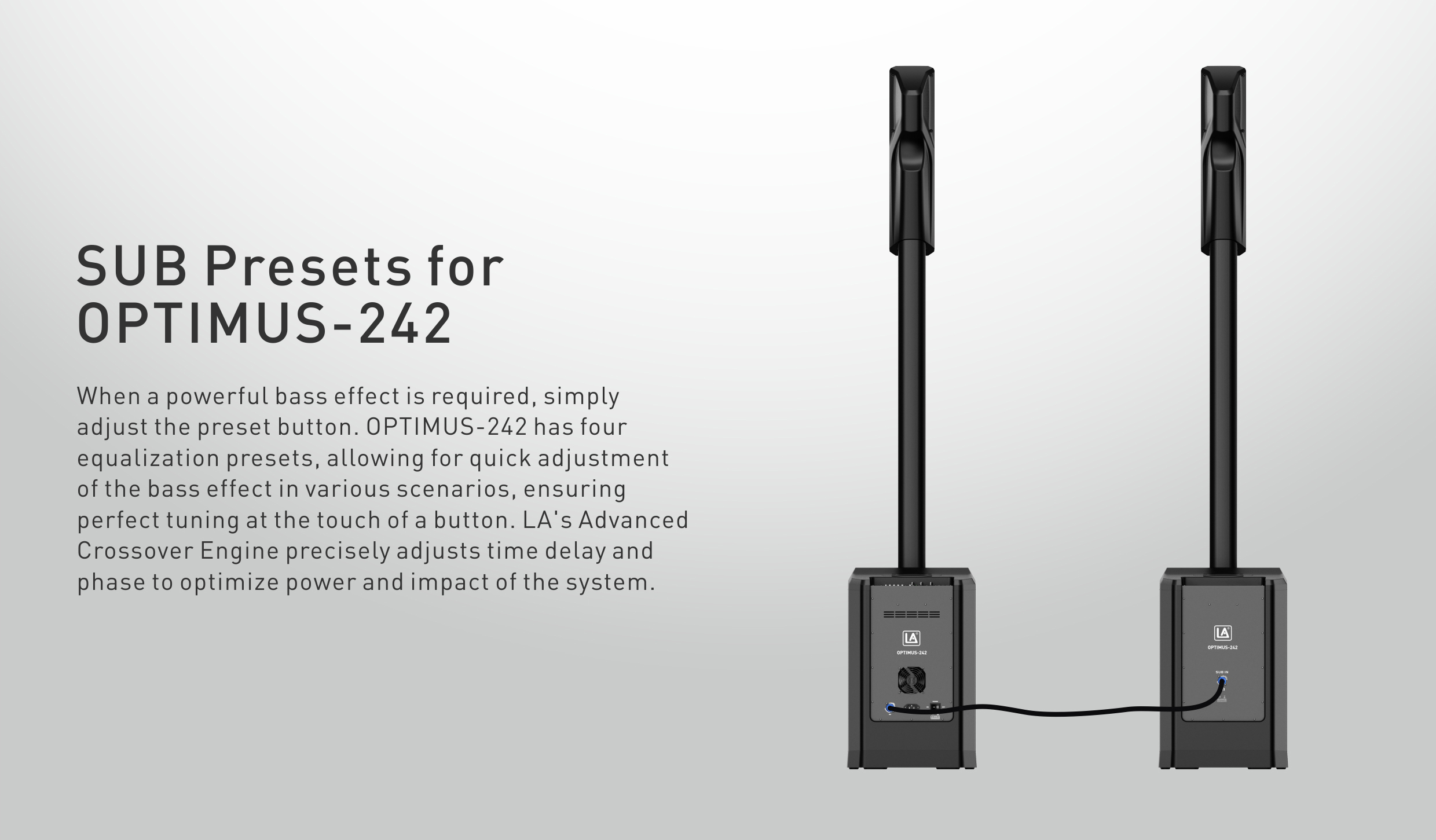

| DSP Module | LA DSP-100,96 kHz,24-bit DSP processor with preset modes: Flat, DJ, Music, Speech | Passive |
| Protection | Short circuit overheating, over-current | Passive |
| Function | MP3 player / BT 5.0 / ECHO | Passive |

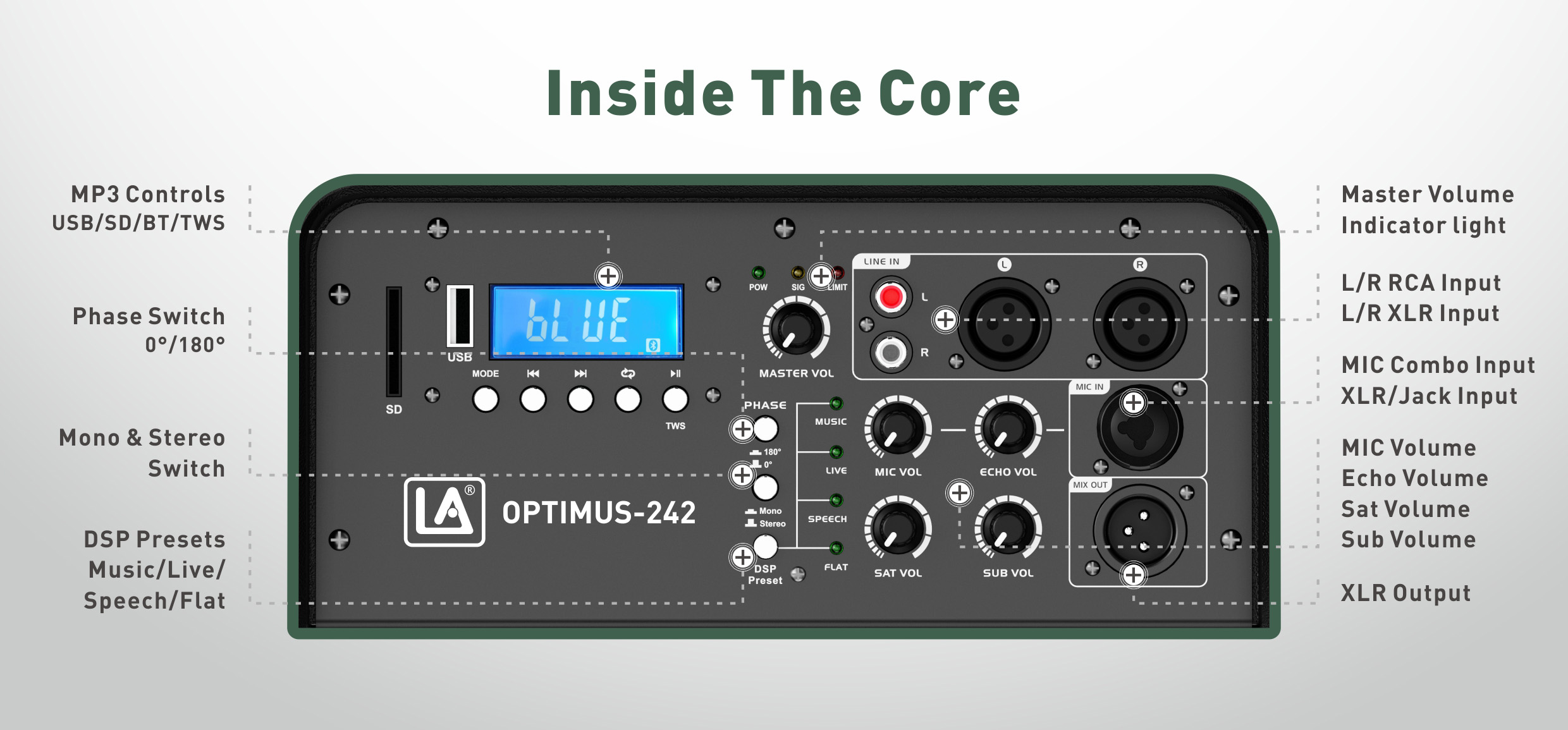

| Audio Input / Output | Left / Right XLR input, 1 * Combo XLR/Jack input,1*RCA input, 1*XLR output,1 * Speakon output | 1 * Speakon output |
| Enclosure | Plastic(Sat)+ Plastic(Sub) | |
| Power Supply | PFC 100-260V 60/50Hz | |
Send Message
Related Products
Model NO. EQ-1000

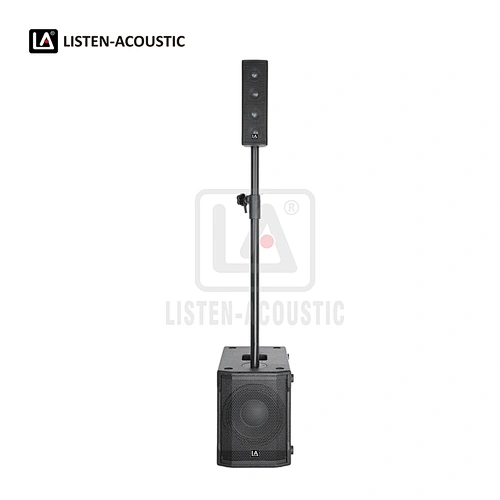

Model NO. E1

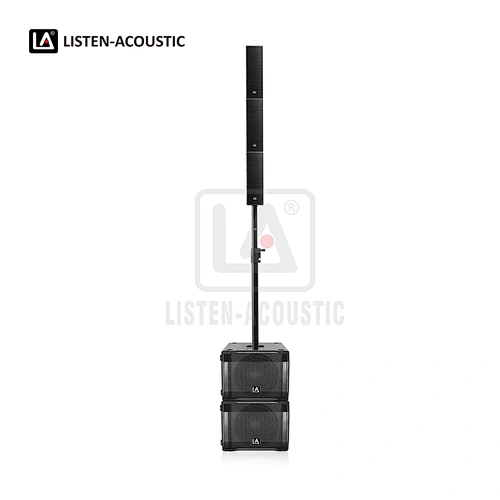

Model NO. E1-Plus

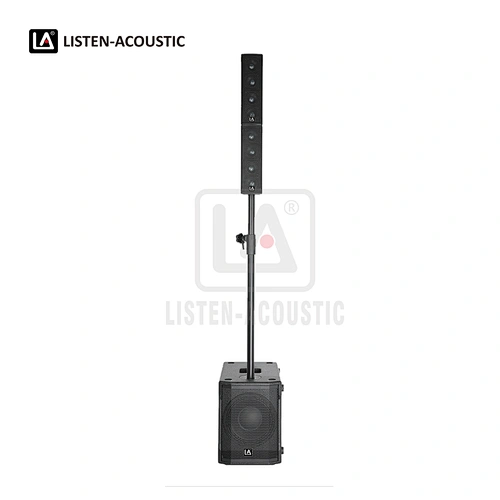

Model NO. E1-Twice

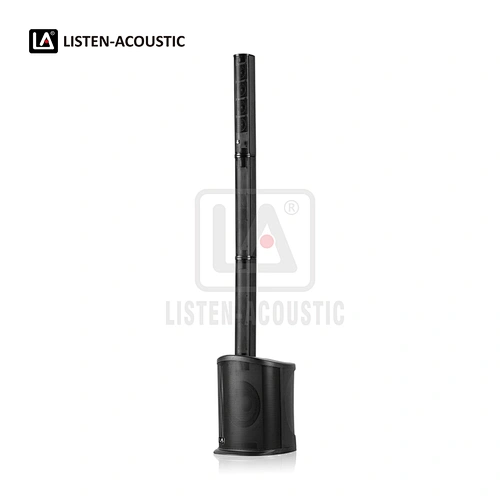

Model NO. E2
Model NO. E2-B

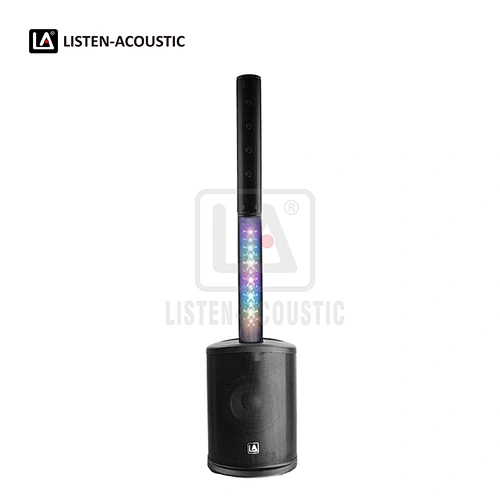

Model NO. E2-L
