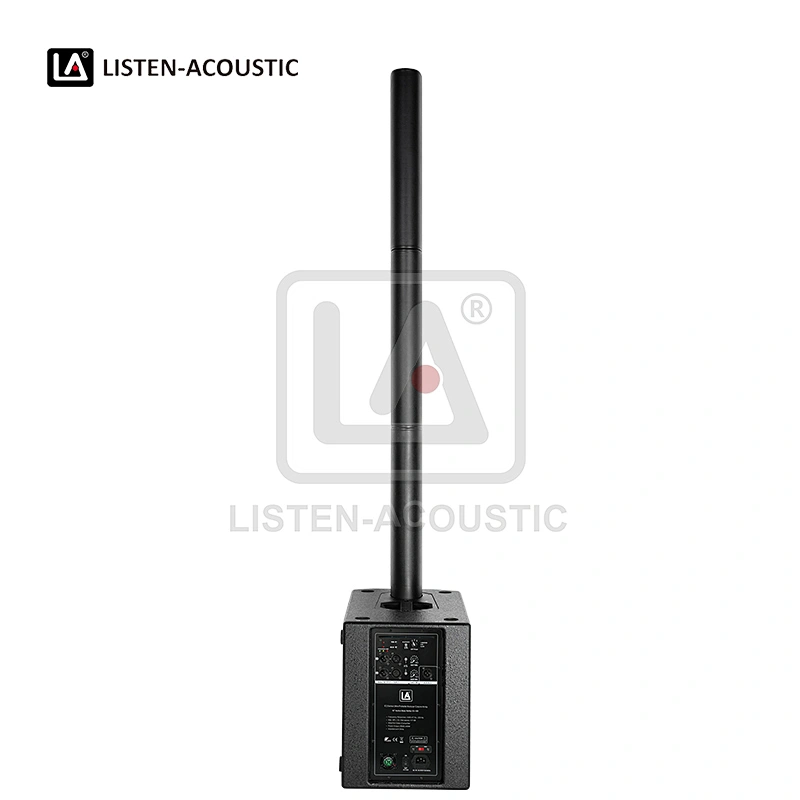

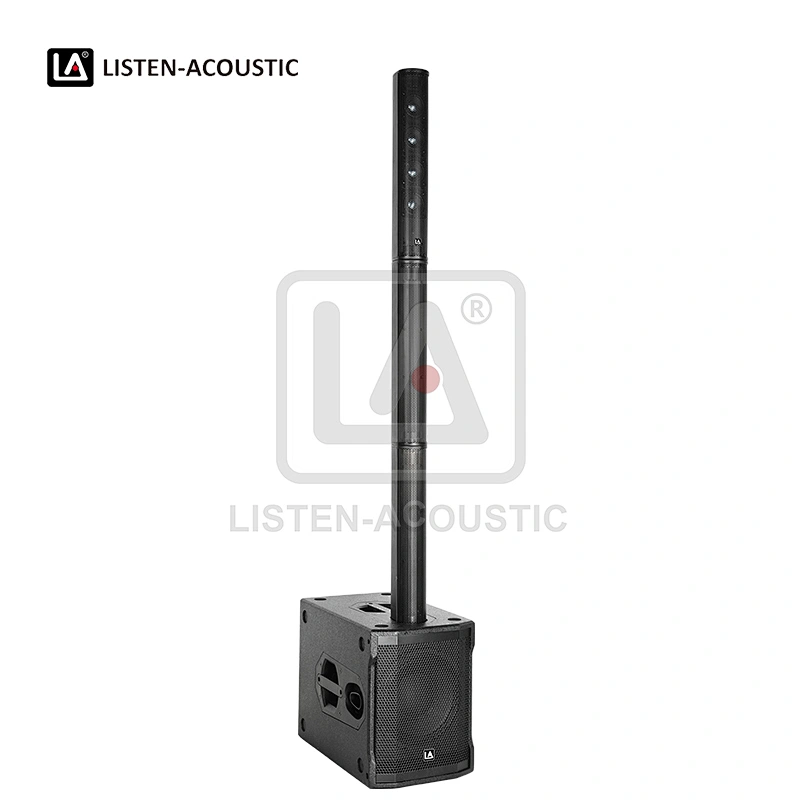

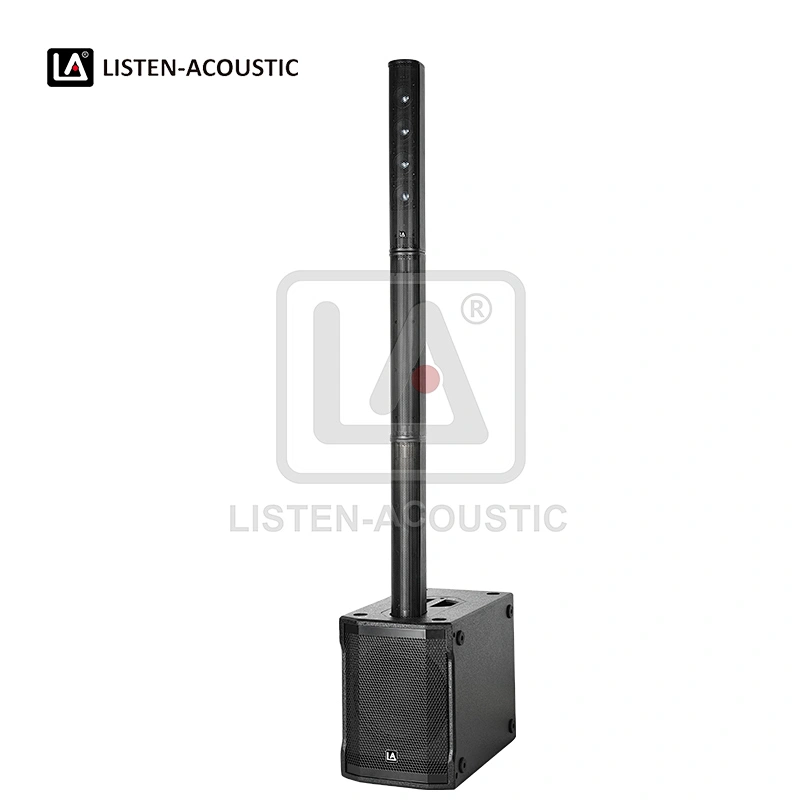

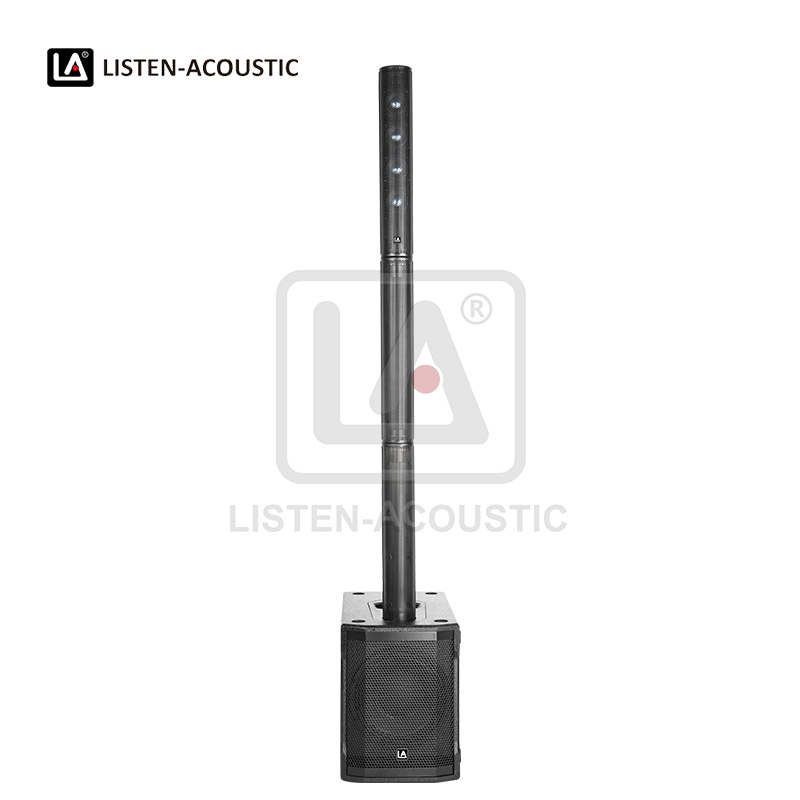

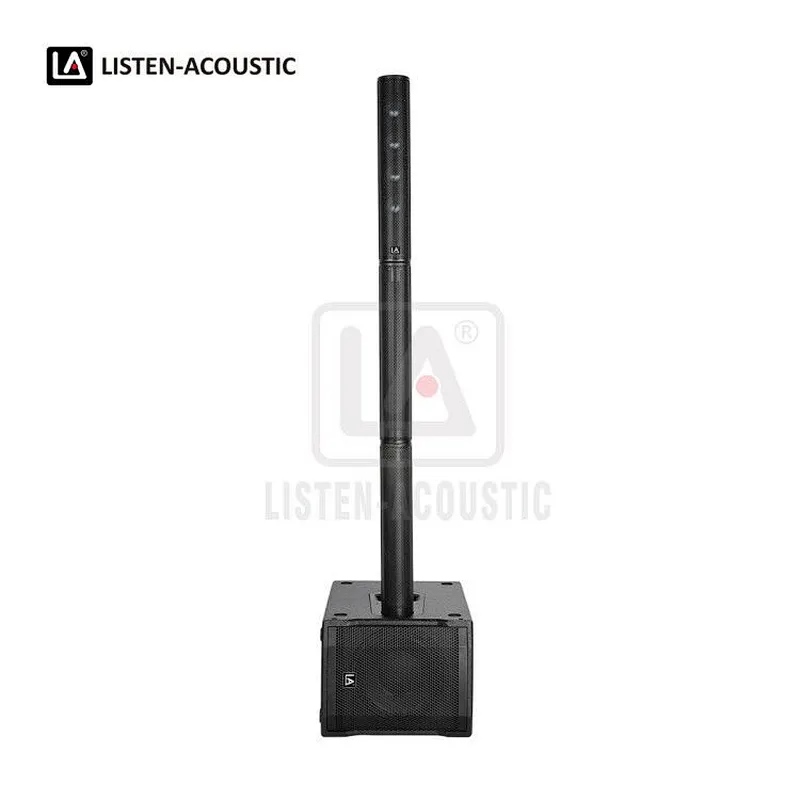

E3 Ultra-Portable Modular Column Array Powered Speakers

Column: 4 pcs 2.75'' Neo woofer with dispersion 120° * 20°+ Column: Class-D amp 50W+Bass: 10'' subwoofer, Class-D amp 400W with DSP preset modes

Quantity:

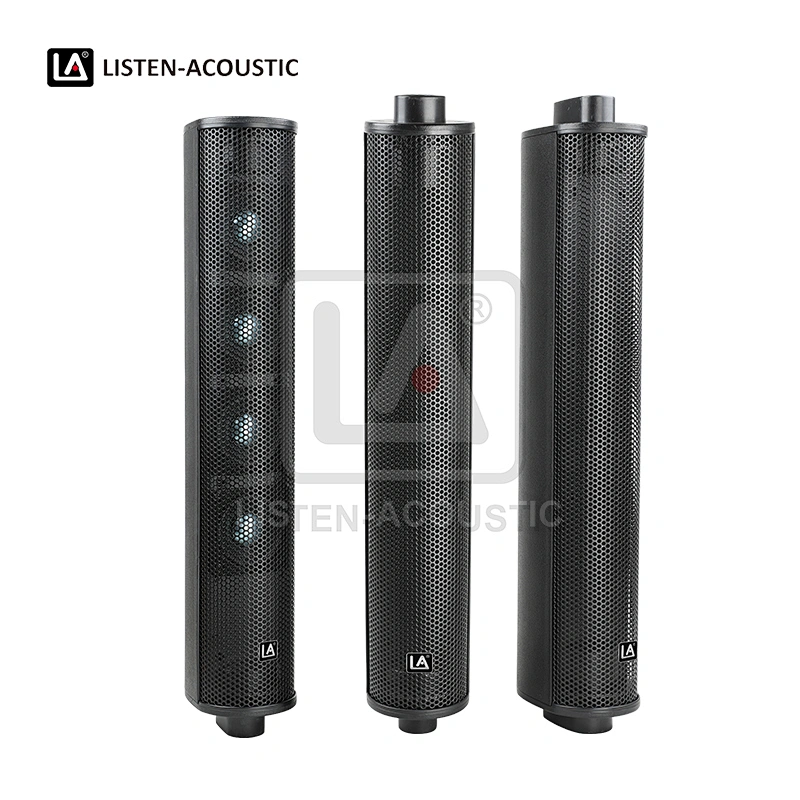

Model No.	E3-MT
Type	Active full range column speaker
Frequency Response (-6dB)	200 Hz - 21 kHz
Max. SPL (1m, free space)	109 dB
Power Output (RMS)	50W
Impedance	4 Ohms
Transducer MF	4 * 2.75", neodymium magnet, 1"voice coil
Amplifier	Class-D amplifier
Audio / Poer Input / Output	Bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core Signal +/- )
Enclosure	PP Plastic
Grille	1.0mm thickness metal grille without acoustic fabric
Dispersion (H * V)	120° * 20°

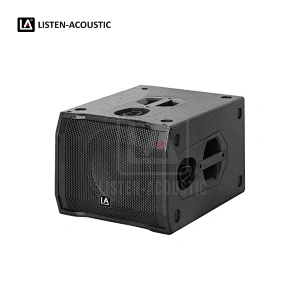

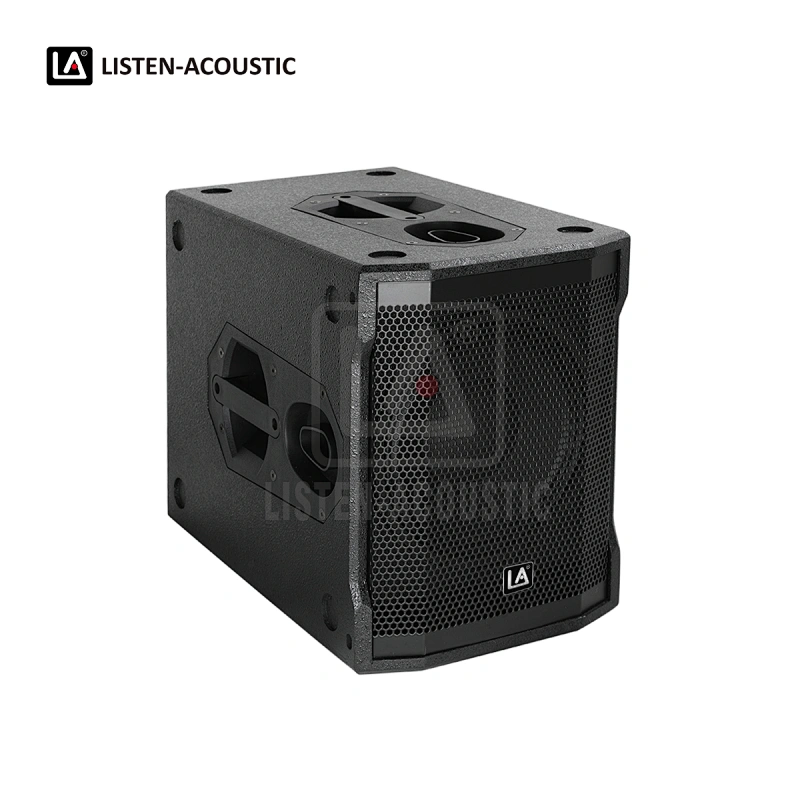

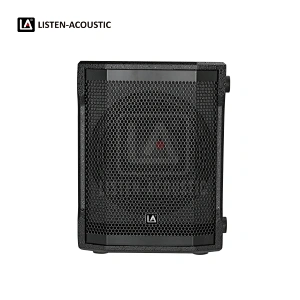

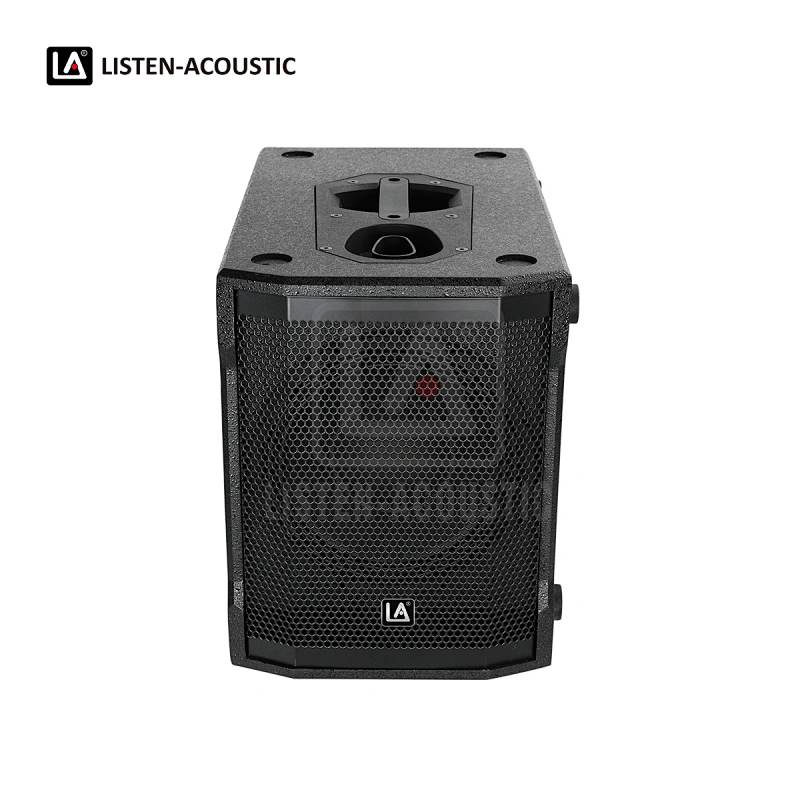

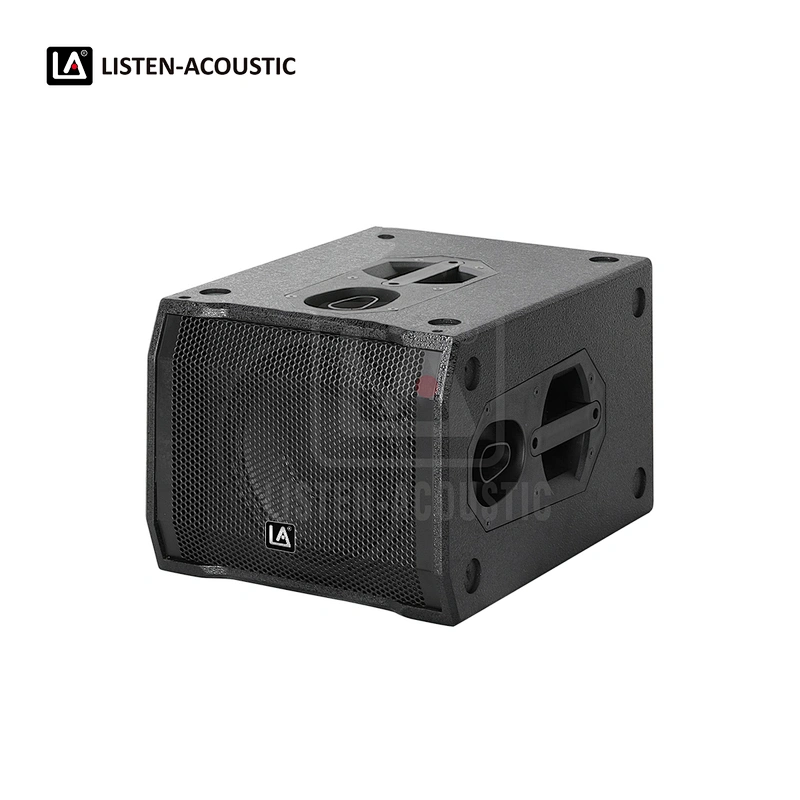

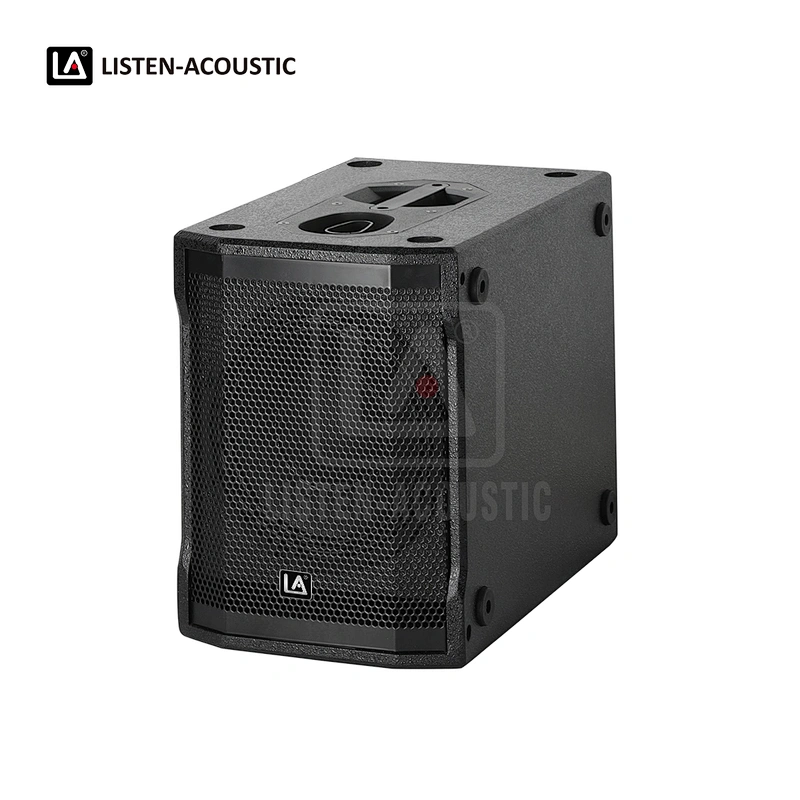

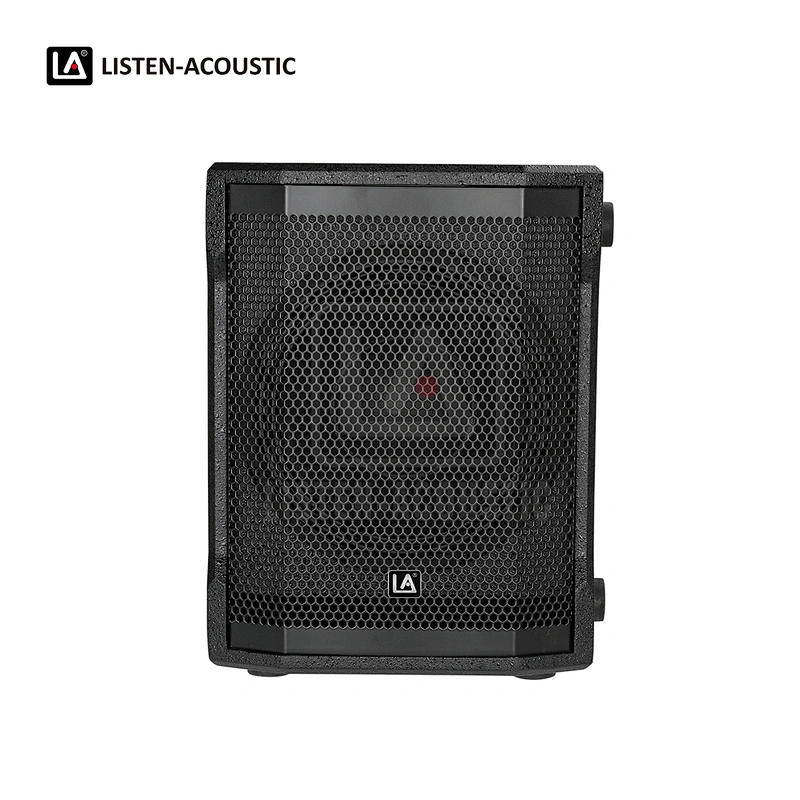

Model No.	E3-10D
Type	10'' active bass reflex
Frequency Response (-6dB)	47 Hz - 200 Hz
Max. SPL (1m, free space)	117 dB
Power Output (RMS)	400W
Impedance	4 Ohms
Transducer LF	10"subwoofer, 2.5"voice coil
Amplifier	Class-D amplifier
DSP Module	LA DSP-100, 96 kHz,24-bit DSP processor with preset modes:Speech, DJ, Live
Protection	Short circuit overheating, over-current

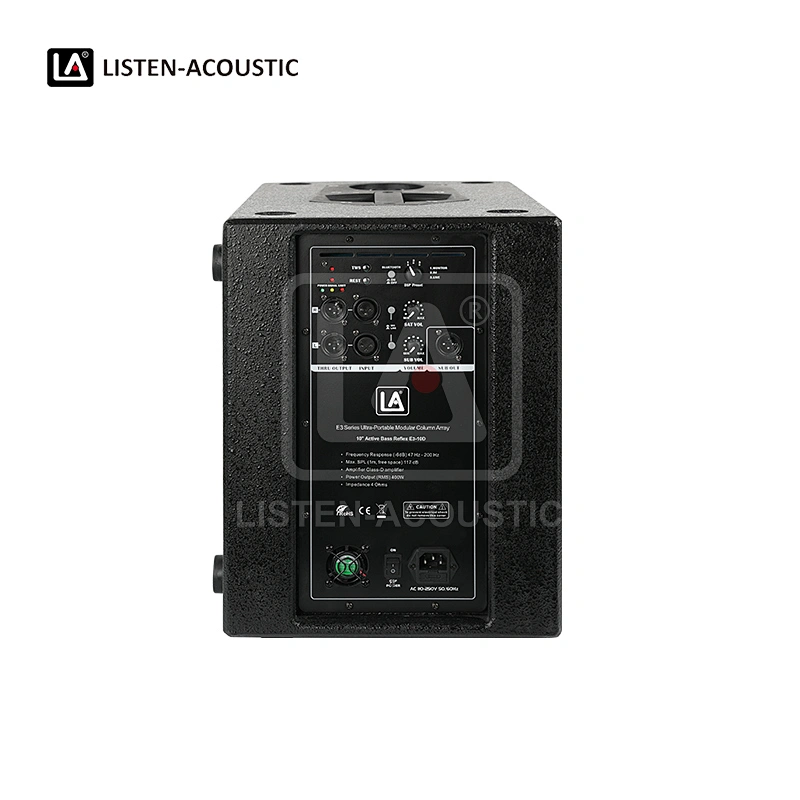

Controls	Power On / Off switch, satellite level, subwoofer level, Line/Mic switch, Bluetooth On / Off switch, TWS switch,
Indicators	Power, signal, limit, bluetooth, reset
Audio Input / Output	Left / Right female and male XLR input , 1 * XLR output , 1* 4-pins-quick-insert
Power Input / Output	4-pins-quick-insert
Power Supply	110~250V 50/60HZ
Enclosure	15mm MDF with regular raindrop painting
Grille	1.0mm thickness metal grille without acoustic fabric
Match Use	To E3-M and E3-MT satellites
