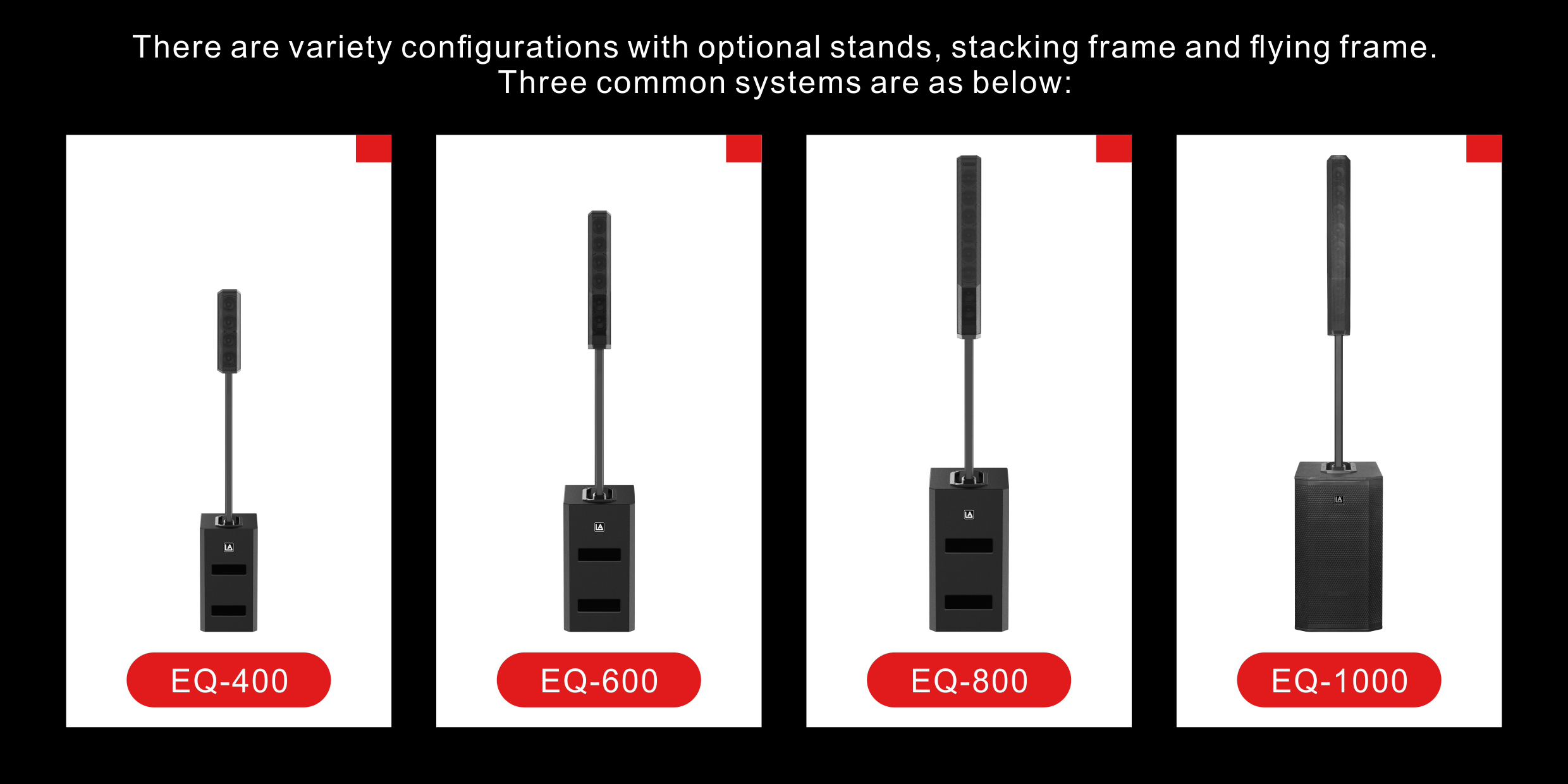

| Model No. | EQ-600 | EQ-800 | EQ-800H | EQ-1000 |
| Type | 1pc column + 1pc 12'' subwoofer | 1pc column + 1pc 12'' subwoofer | 1pc column + 1pc 12'' subwoofer | 1pc column + 1pc 15'' subwoofer |
| Frequency Response (-6dB) | 55 Hz - 20 kHz | 45 Hz - 20 kHz | 45 Hz - 22 kHz | 45 Hz - 20 kHz |
| Max. SPL (1m, free space) | 120 dB | 123 dB | 128 dB | 125 dB |
| Power Output (RMS) | 300W + 150W | 450W + 250W | 650W + 400W | 800W + 400W |
| Impedance | 4 Ohms | 4 Ohms | 4 Ohms | 4 Ohms |

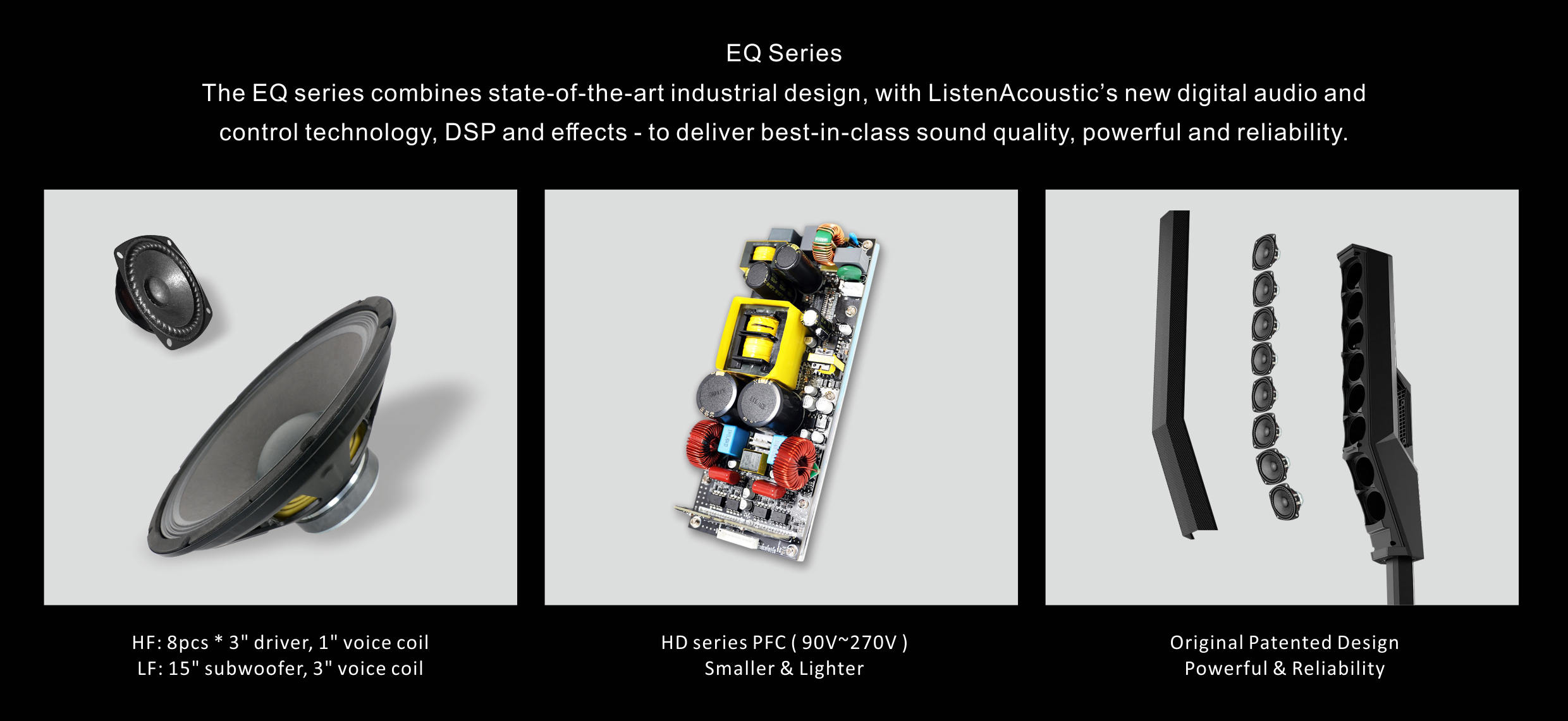

| Transducer HF | 6pcs * 3"driver | 8pcs * 3"driver | 8pcs * 3"neo driver | 8pcs * 3"neo driver |

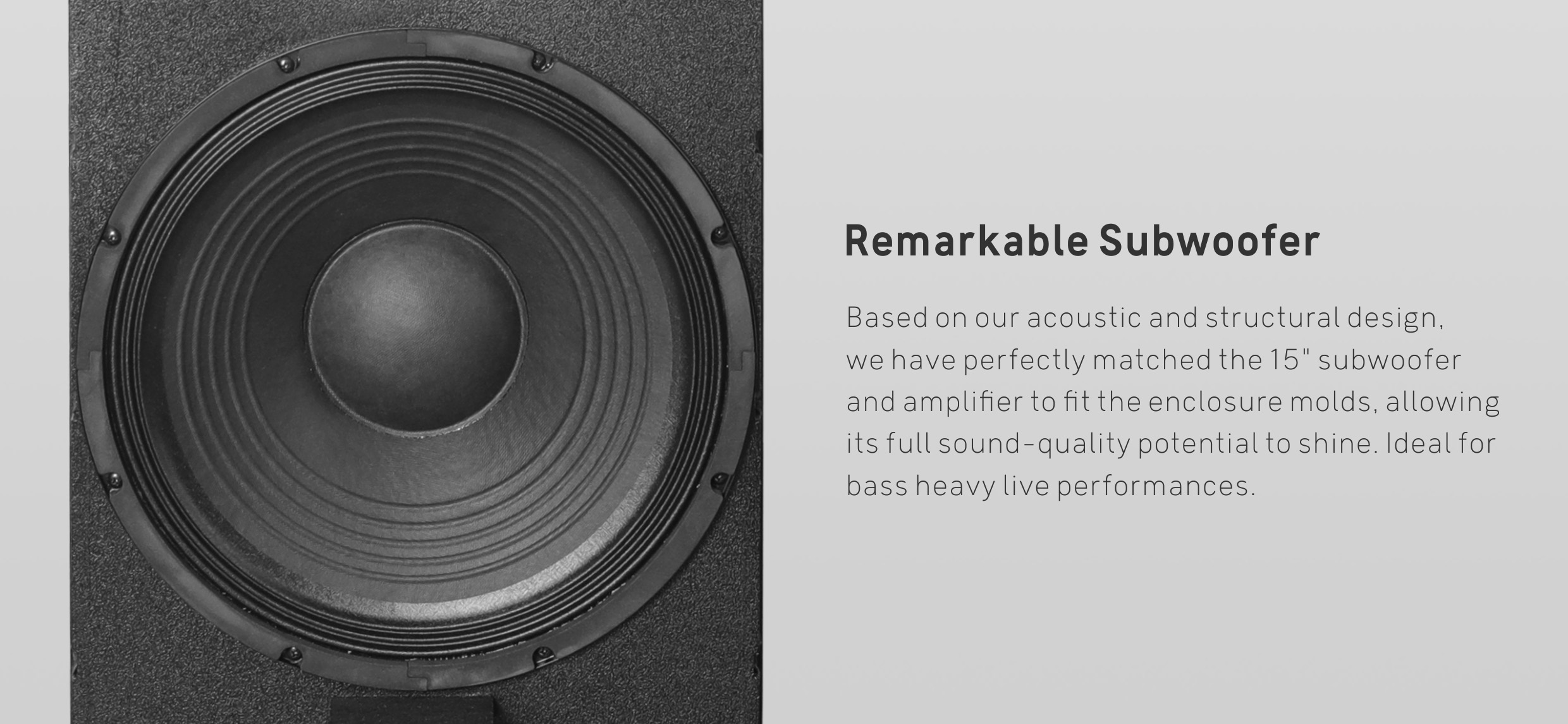

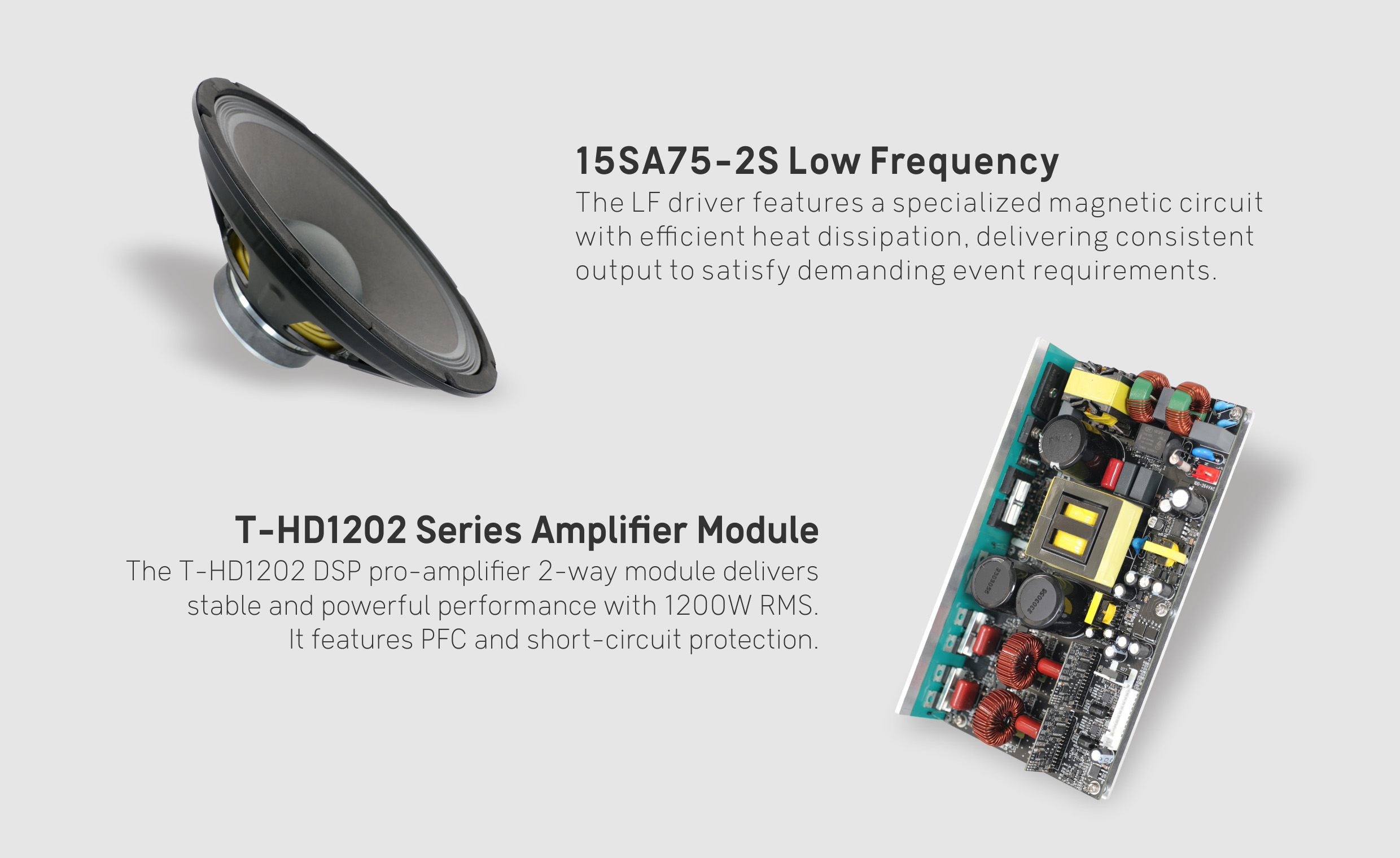

| Transducer LF | 12"subwoofer | 12"subwoofer (RD12S65) | 12"subwoofer (RD12S75) | 15"subwoofer |
| Amplifier | Class-D amplifier | Class-D amplifier | Class-D amplifier | Class-D amplifier |

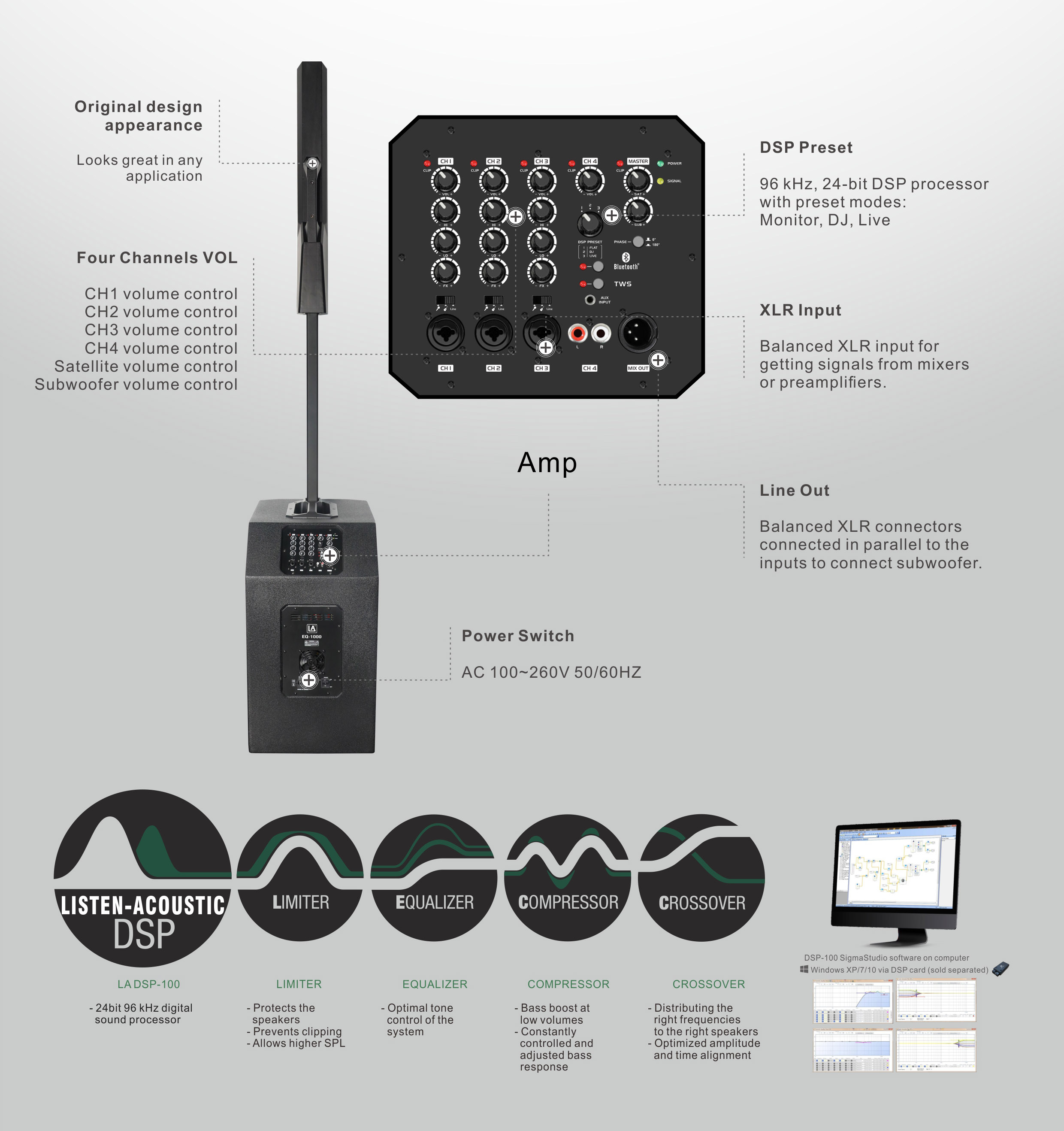

| DSP Module | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Flat, DJ, Live | |||
| Protection | Short circuit overheating, over-current | |||

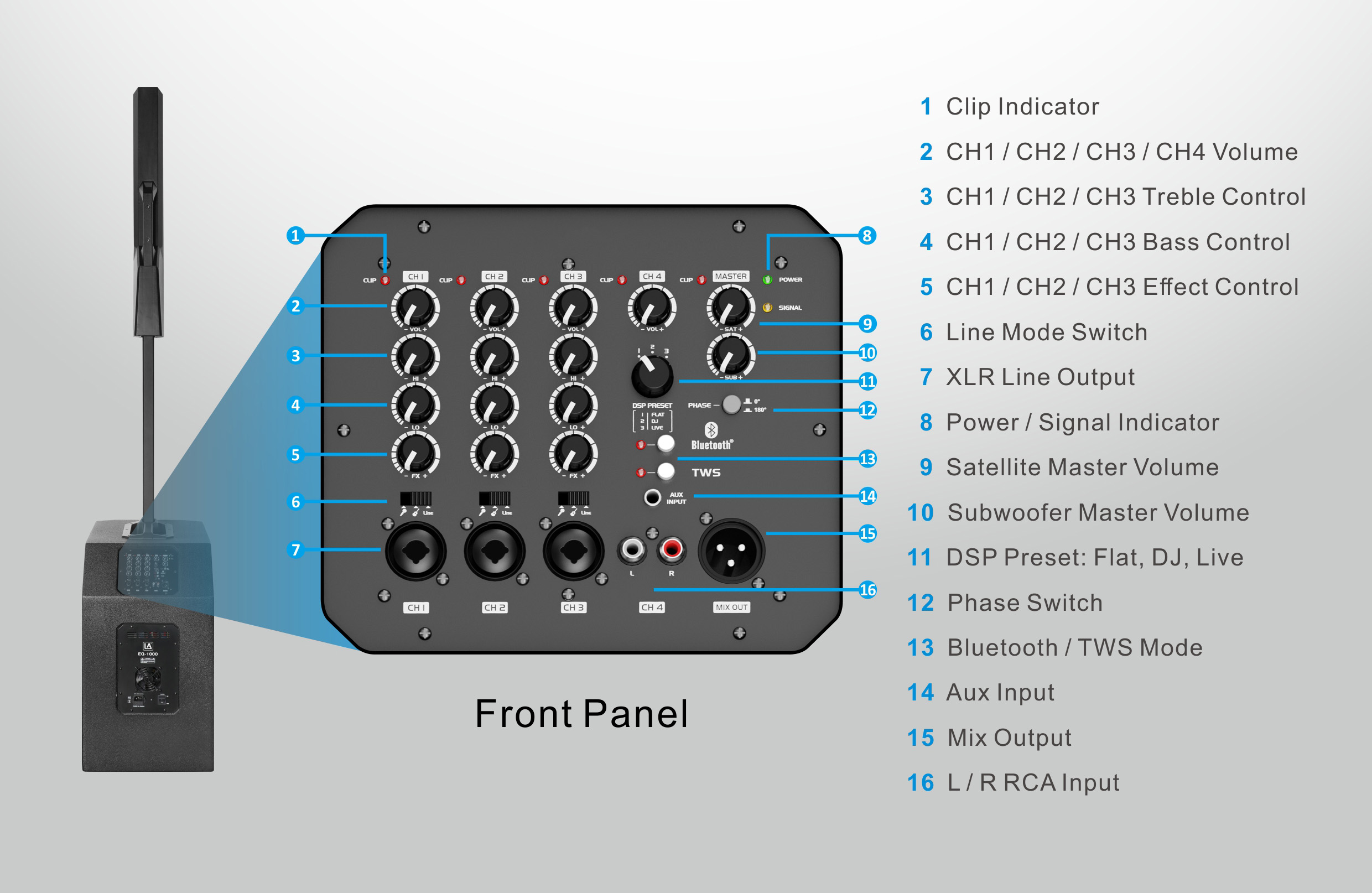

| Controls | Power On / Off switch, main level, DSP modes switch | |||
| Indicators | Power, signal | Power, signal | Power, signal | Power, signal |
| Audio Input / Output | 3 * Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output | 3 * Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output | 3 * Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output | 3 * Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output |
| Power Input / Output | Powercon | Powercon | Powercon | Powercon |
| Power Supply | 100~260V 60/50Hz | 100~260V 60/50Hz | 100~260V 60/50Hz | 100~260V 60/50Hz |
| Enclosure | Plastic (Sat) + 15mm MDF (Sub) | Plastic (Sat) + 15mm MDF (Sub) | Plastic (Sat) + 15mm MDF (Sub) | Plastic (Sat) + 15mm MDF (Sub) |
| Cabinet | MDF/Plywood with lacquer | MDF/Plywood with lacquer | Plywood with lacquer | Plywood with lacquer |
| Dispersion (H * V) | 120° * 40° | 120° * 40° | 120° * 40° | 120° * 40° |
