Model No. | E3-M/E3-MT | E3-10D | E3-10DM |

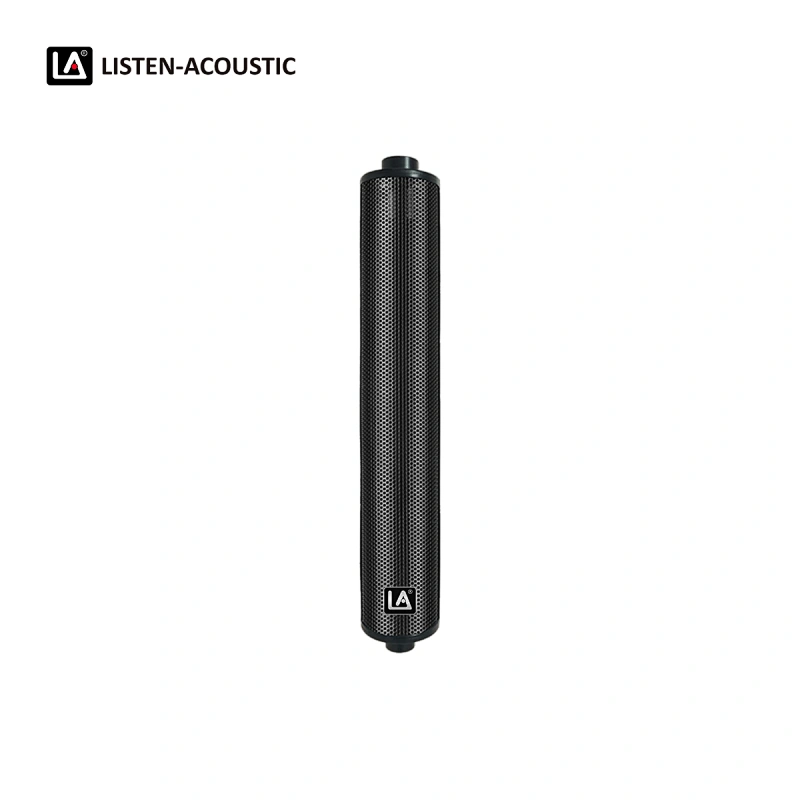

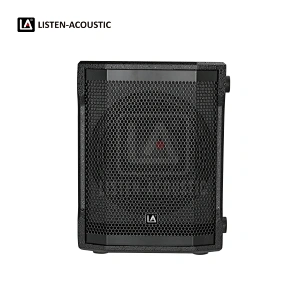

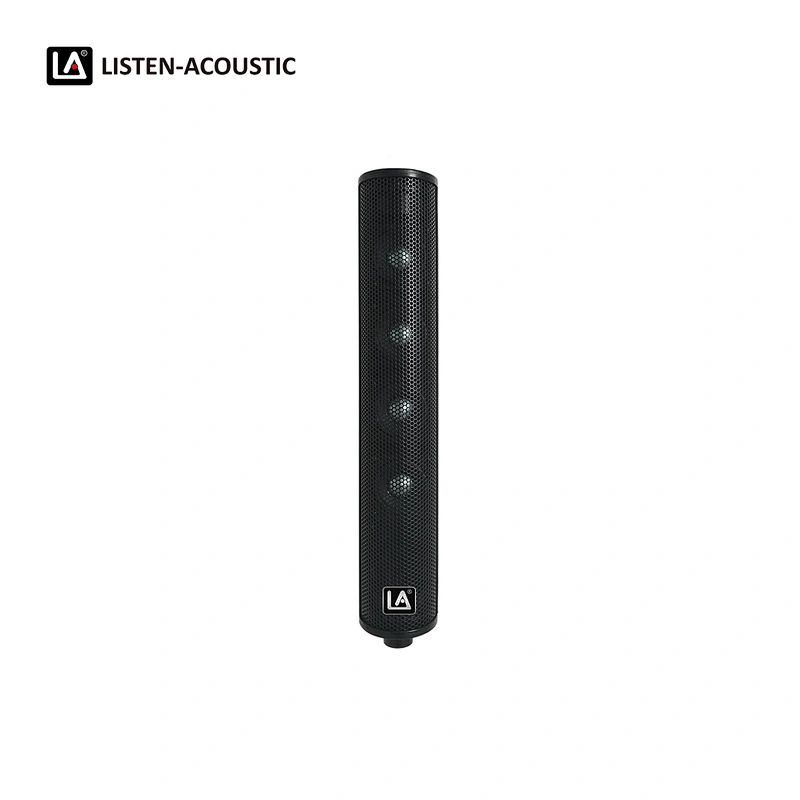

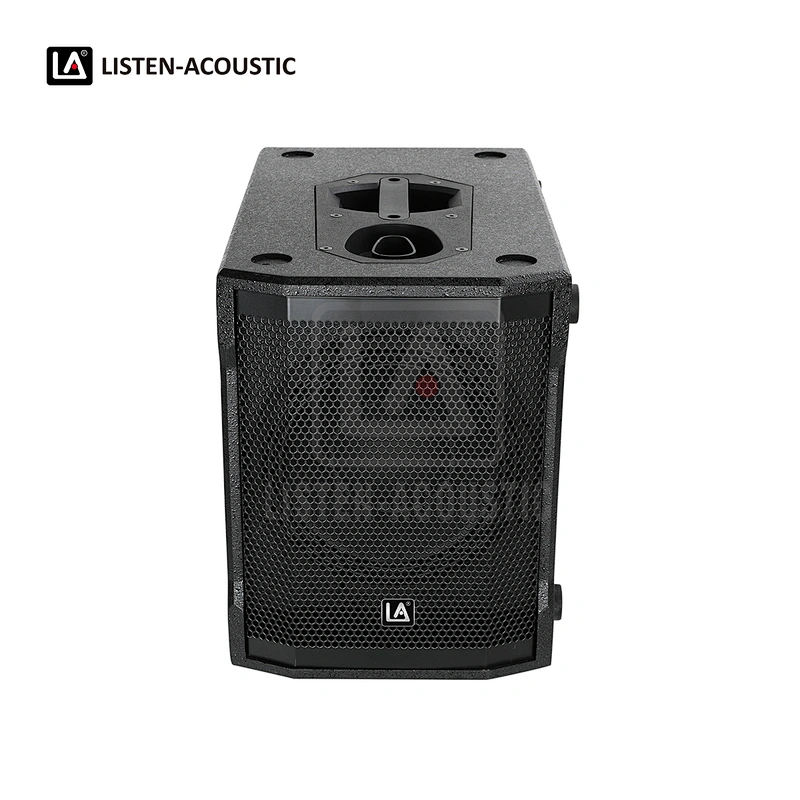

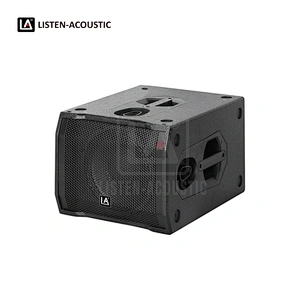

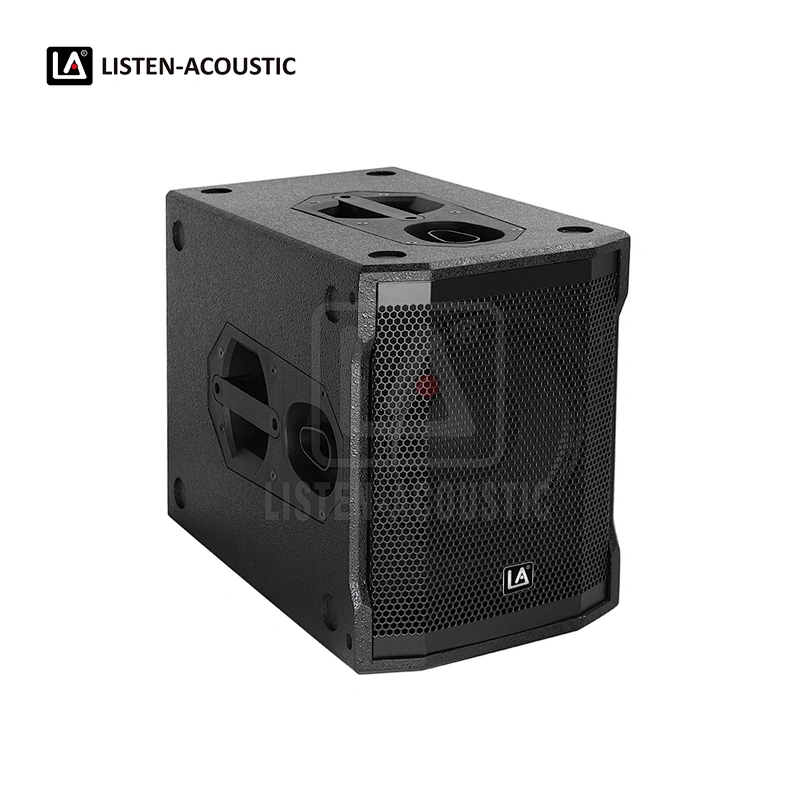

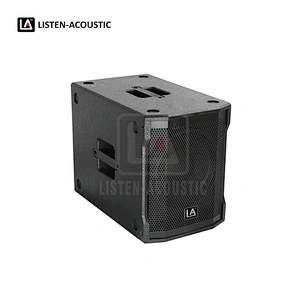

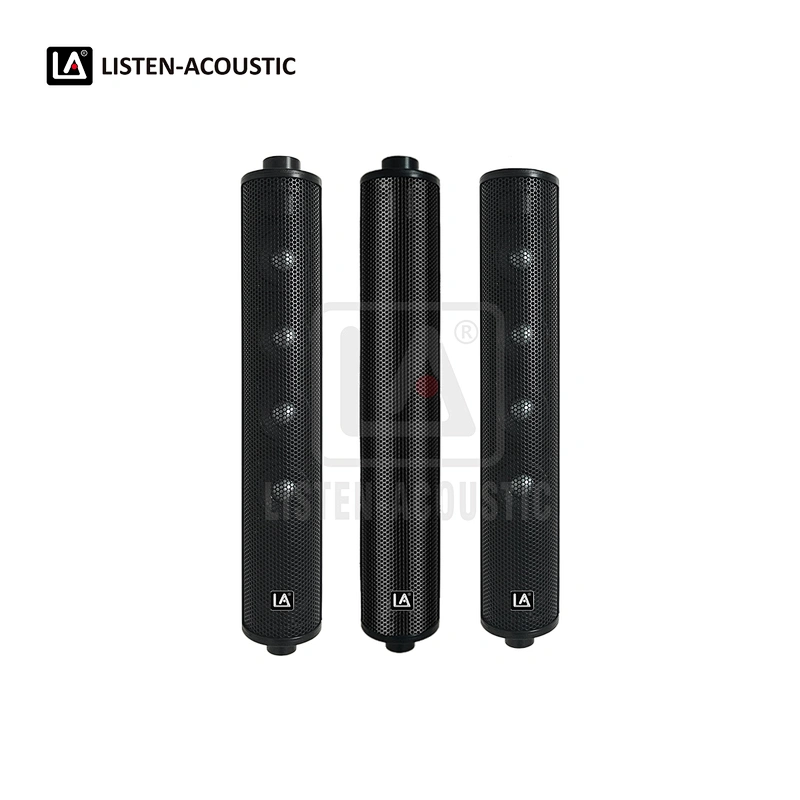

Type | Active full range column speaker | 10'' active bass reflex |
Frequency Response (-6dB) | 200 Hz - 21 kHz | 47 Hz - 200 Hz |
Max. SPL (1m, free space) | 109 dB | 117 dB |
Power Output (RMS) | 50W | 400W |
Impedance | 4 Ohms | 4 Ohms |
Transducer MF | 4 * 2.75", neodymium magnet, 1"voice coil | / |
Transducer LF | / | 10"subwoofer, 2.5"voice coil |
Amplifier | Class-D amplifier |
DSP Module | / | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes:Speech,DJ, Live | No DSP |
Protection | / | Short circuit overheating, over-current | Short circuit overheating, over-current |

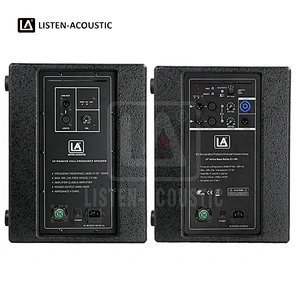

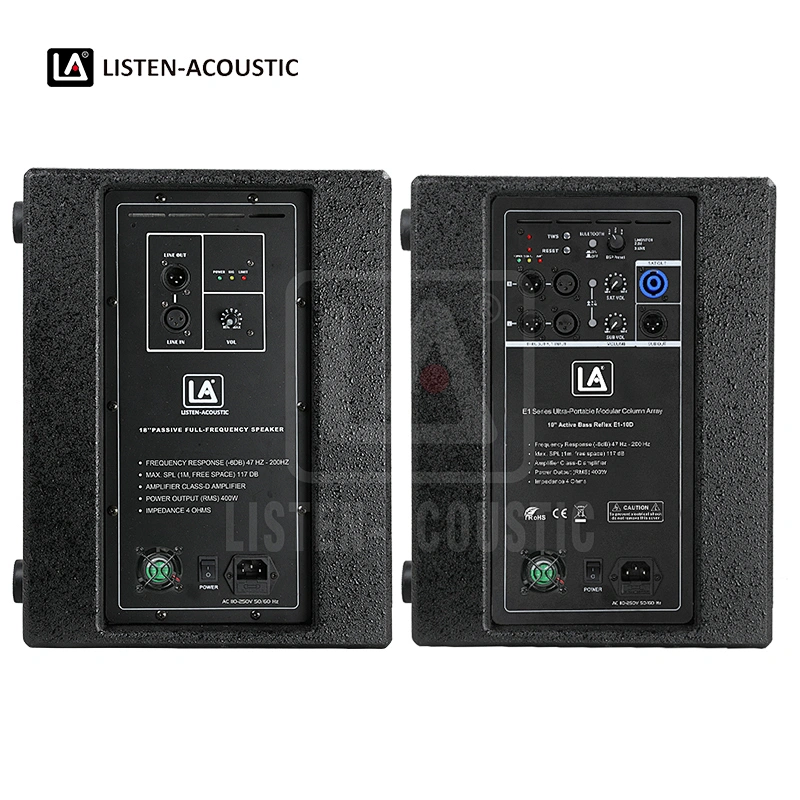

Controls | / | Power On / Off switch, satellite level, subwoofer level, Line/Mic switch, Bluetooth On / Off switch, TWS switch reset switch, DSP modes switch | Power On / Off switch,main level |
Indicators | / | Power, signal, limit, bluetooth, reset | Power, signal, limit |
Audio Input / Output | Top and bottom 4-pins-quick-insert with 4 core ( 2Core 24V / 2Core Signal +/- ) | Left / Right female and male XLR input 1 * XLR output 1* 4-pins-quick-insert | 1 * XLR input, 1 * XLR output |
Power Input / Output | 4-pins-quick-insert | Powercon |
Power Supply | / | 110~250V 50/60HZ |
Enclosure | PP Plastic | 15mm MDF with regular raindrop painting |
Grille | 1.0mm thickness metal grille without acoustic fabric | 1.0mm thickness metal grille without acoustic fabric |
