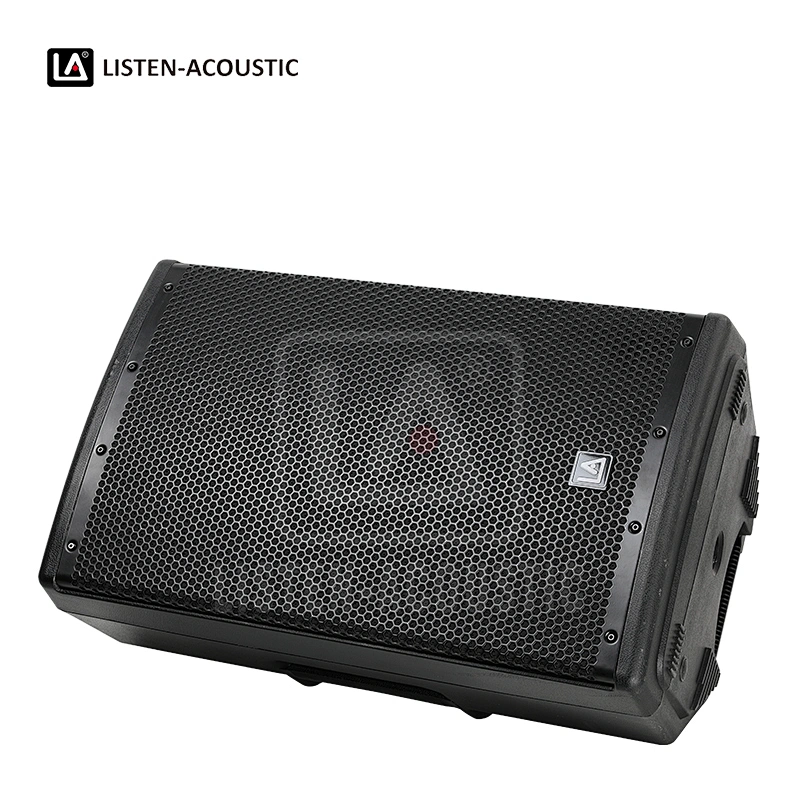

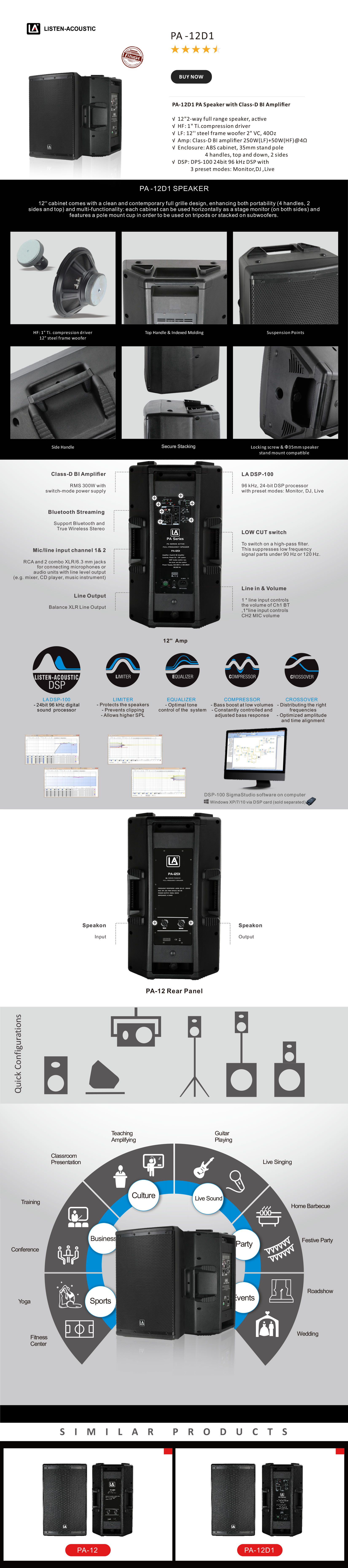

| Model No. | PA-12D1 |
| Type | 12'' 2-way full range speaker, active |
| Frequency Response (-6dB) | 55 Hz - 20 kHz |
| Max. SPL(1m, free space) | 125 dB |
| Impedance | 4Ohms |
| Transducer LF | 12"woofer,2"voice coil, 40oz |
| Transducer HF | 1"Ti.tweeter |
| Enclosure | ABS cabinet, 35mm stand pole 4 handles, top and down, 2 sides |
| Grille | Metal grille with acoustic fabric |
| Amplifier | Class-D BI amplifier |
| Power Output (RMS) | 250W (LF)+50W(HF) |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live |
| Protection | Short circuit overheating, over-current |
| Controls | Power On / Off switch, DSP mic/line switch |
| Indicators | Power, signal, limit, DSP modes |
| Audio Input / Output | 2 * Combo XLR/Jack input 1 * XLR input 1 * XLR output |
| Power Supply | 100~130V 50/60HZ 210~250V 50/60HZ |
