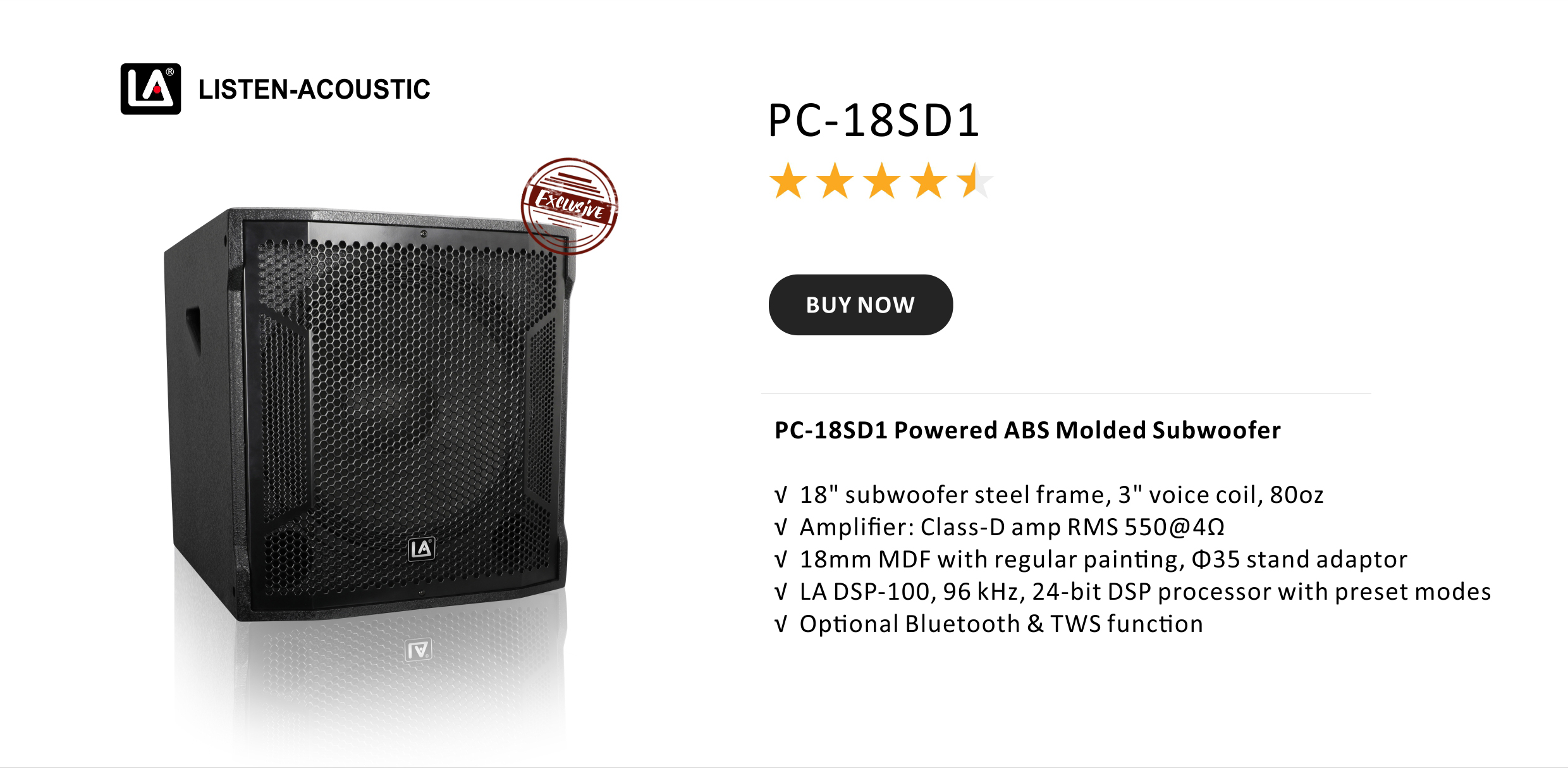

PC-18SD1 Powered Subwoofer with DSP Preset
| Model No. | PC-18SD1 |
| Type | 18'' bass reflex, active |
| Frequency Response (-6dB) | 45 Hz - 200 Hz |
| Max. SPL (1m, free space) | 121 dB |
| Impedance | 4 Ohms |

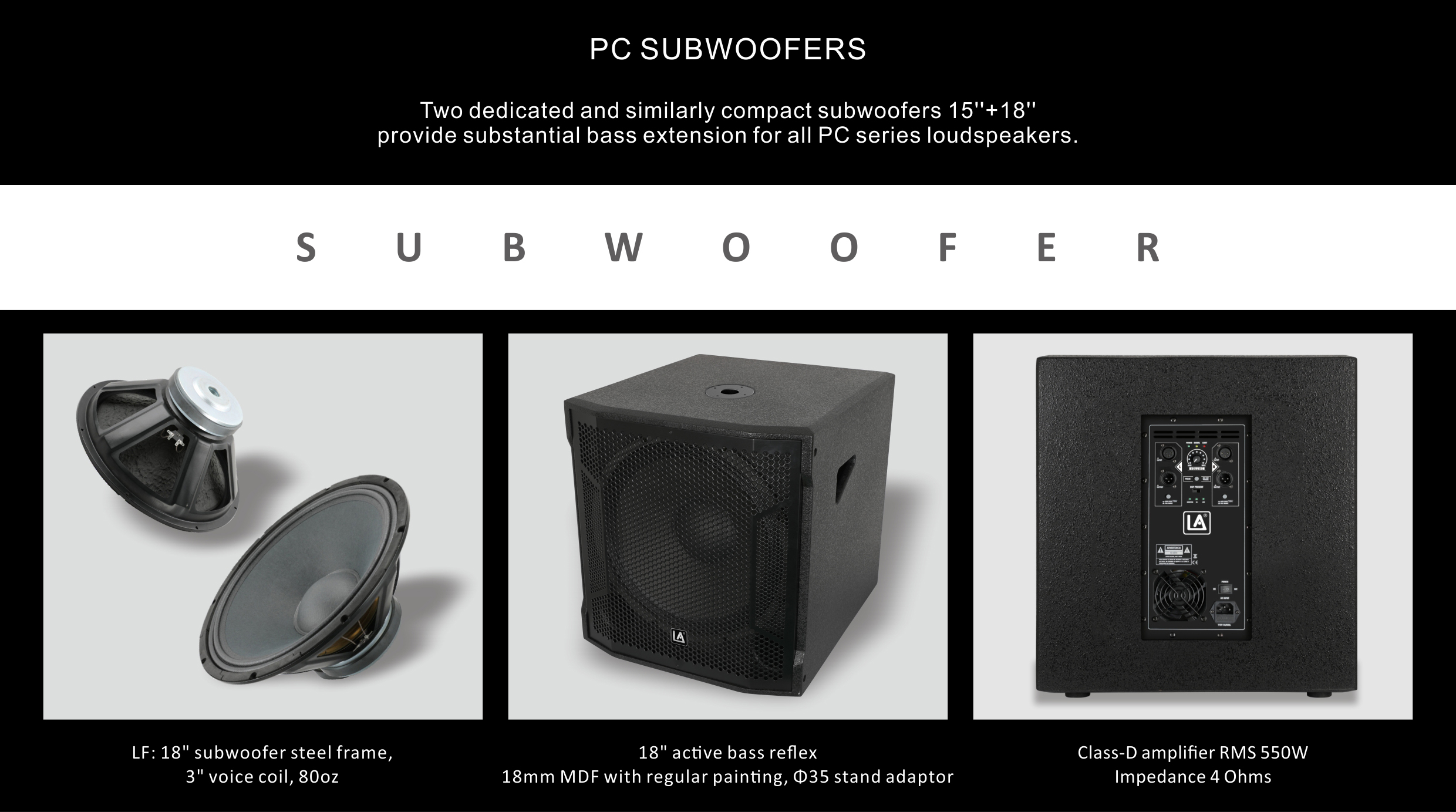

| Transducer LF | 18"subwoofer steel frame, 3"KSV voice coil, 80oz |
| Enclosure | 18mm MDF with regular painting, Φ35 stand adaptor |
| Grille | Metal Grille without acoustic fabric |
| Amplifier | Class-D amplifier |
| Power Output (RMS) | 550W |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live |
| Protection | Short circuit overheating, over-current |

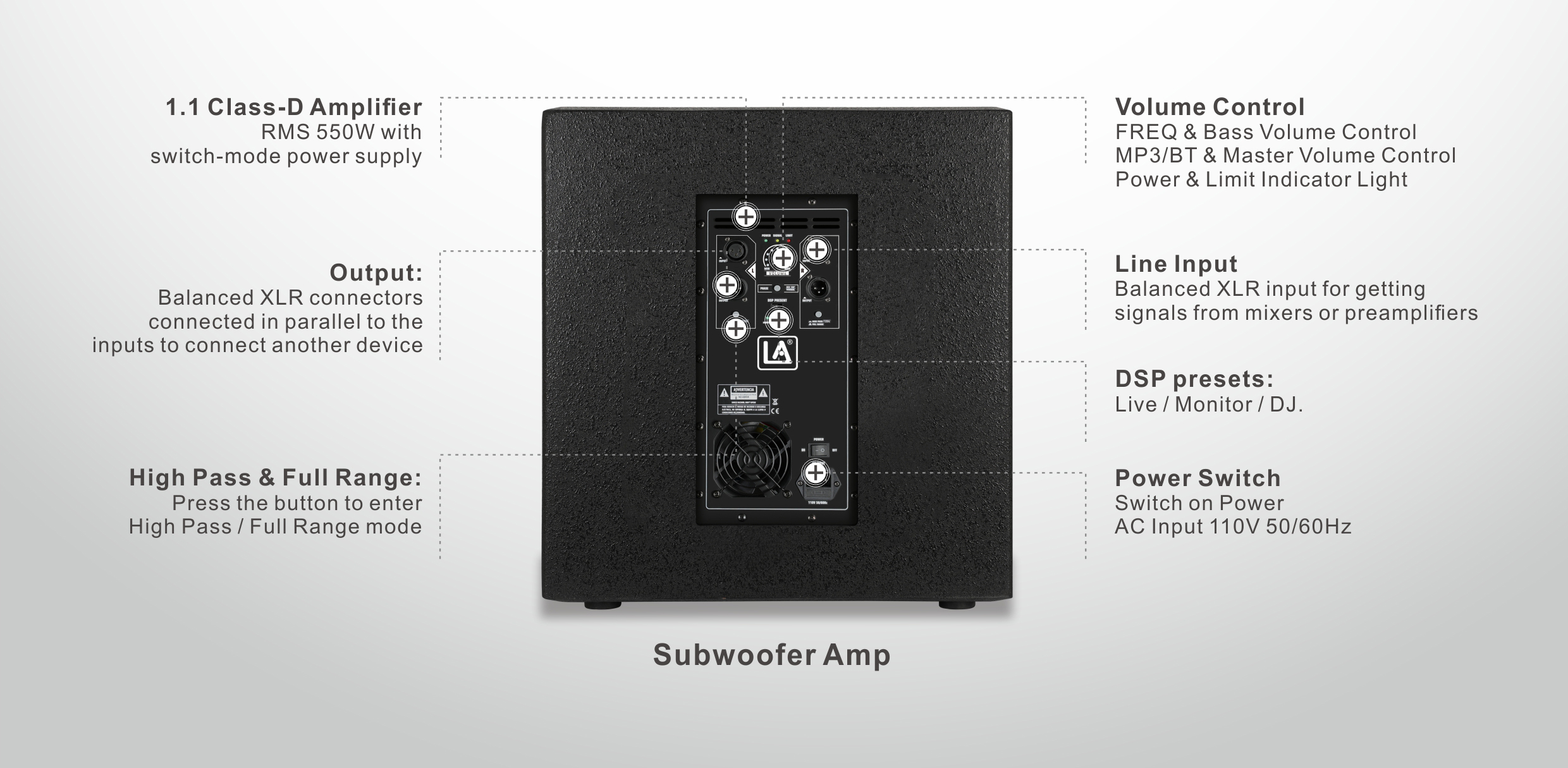

| Controls | Power On / Off switch, low pass frequency, subwoofer level, phase switch |
| Indicators | Power, signal, limit |
| Audio Input / Output | Left / Right XLR line input Left / Right XLR line output 1 * XLR output 1 * XLR output highpass 120Hz |
| Power Supply | 100~130V 50/60HZ or 210~250V 50/60HZ |
