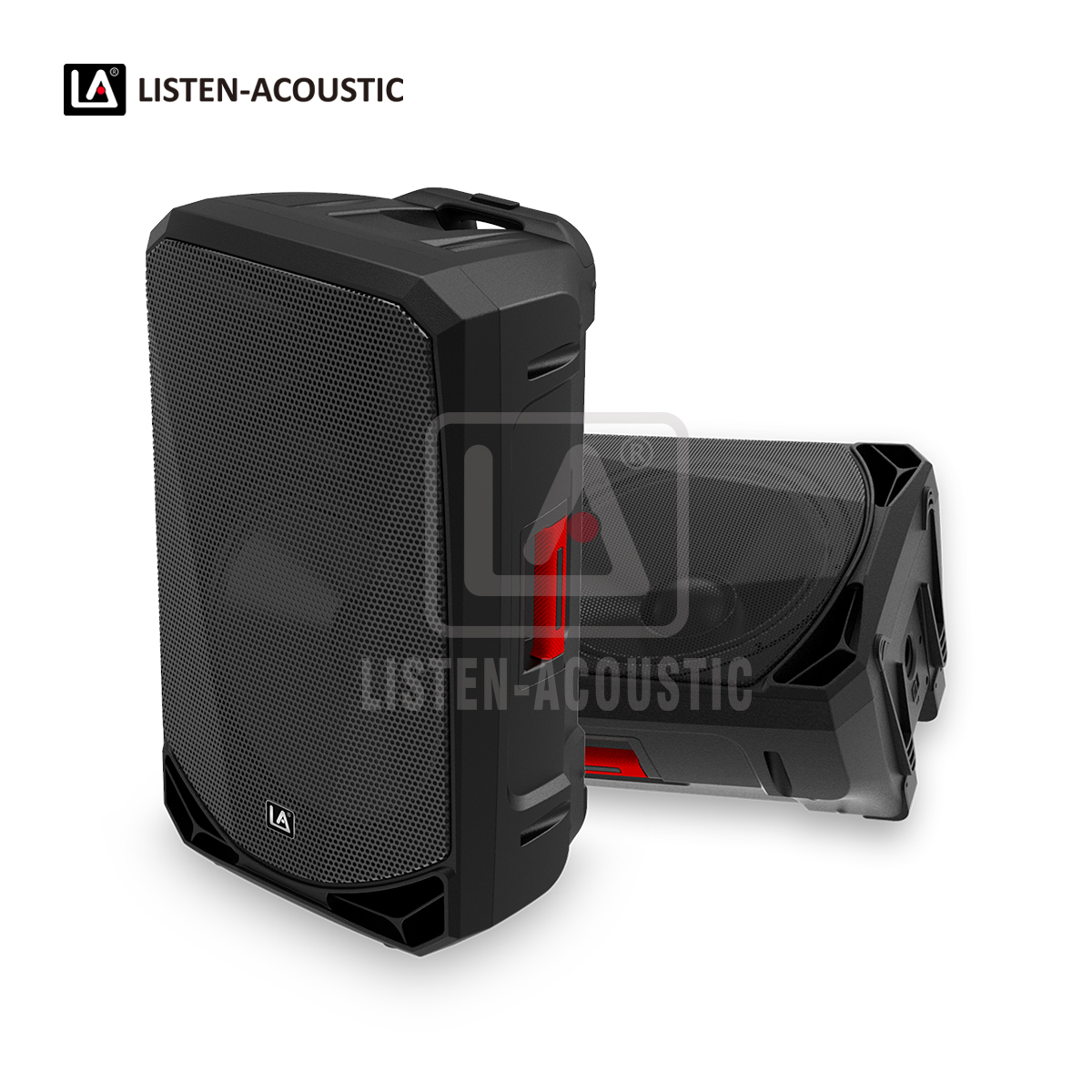

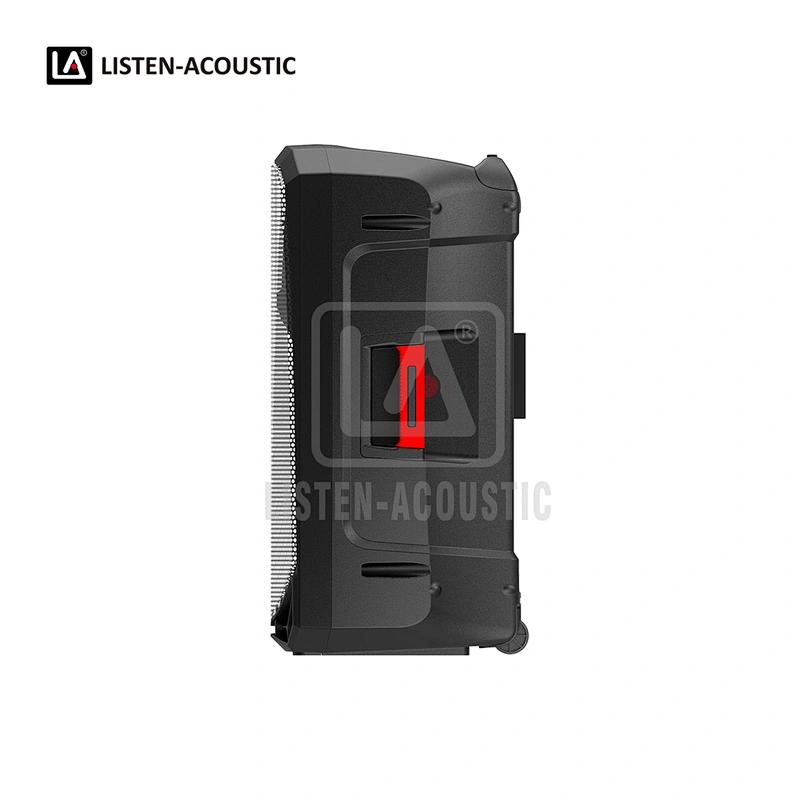

PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker
PM-15D1 2-Way Full Range Speaker

PM-15D1 2-Way Full Range Speaker

Model NO.
PM-15D1
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
15" woofer, 2.5" voice coil, 1.34" Ti. tweeter + Class-D BI amplifier 300W (LF)+50W(HF) 96 kHz, 24-bit DSP process or with preset modes: Monitor, DJ, Live Power, signal, limit, DSP modes, BT, TWS
Quantity:

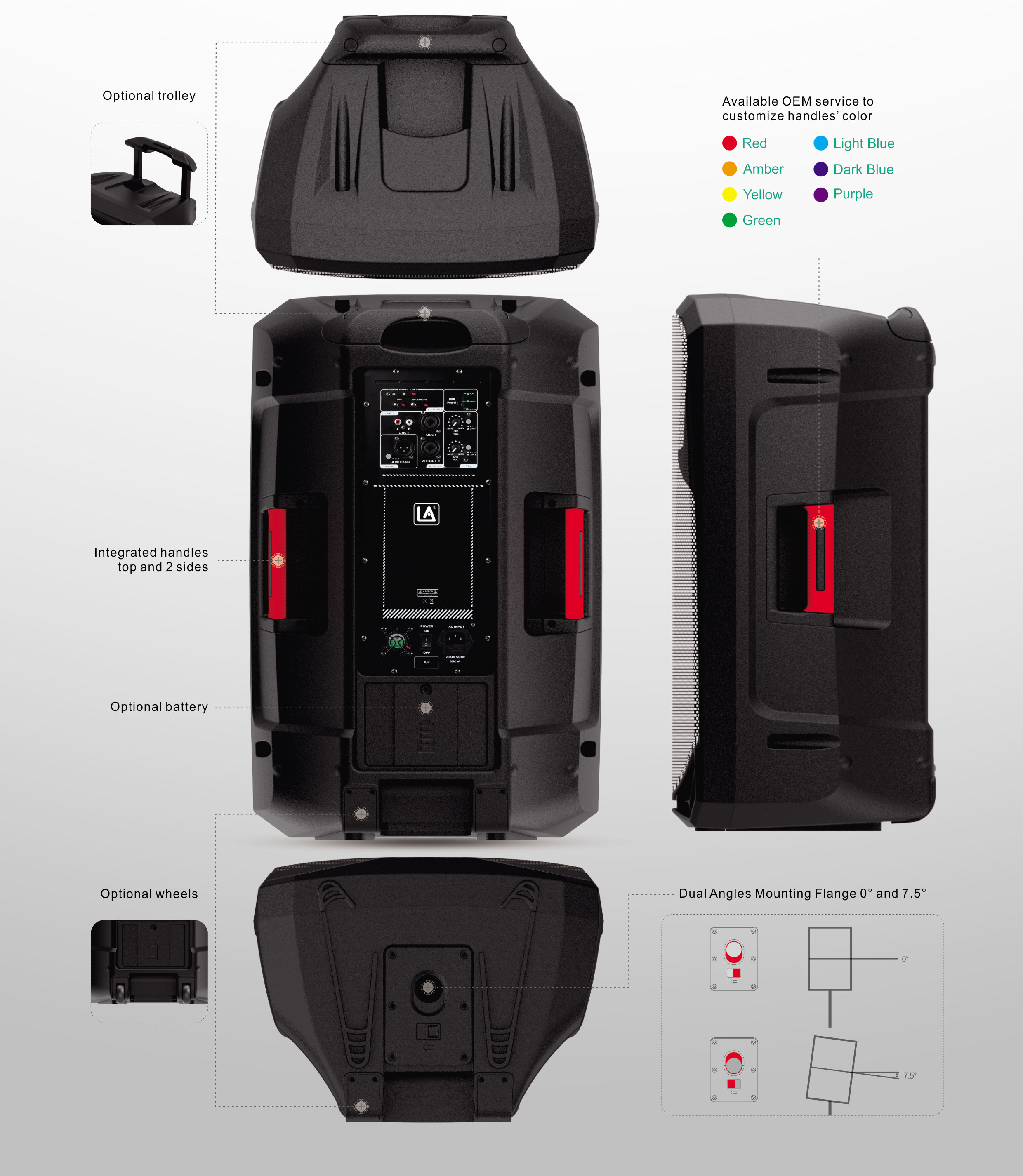

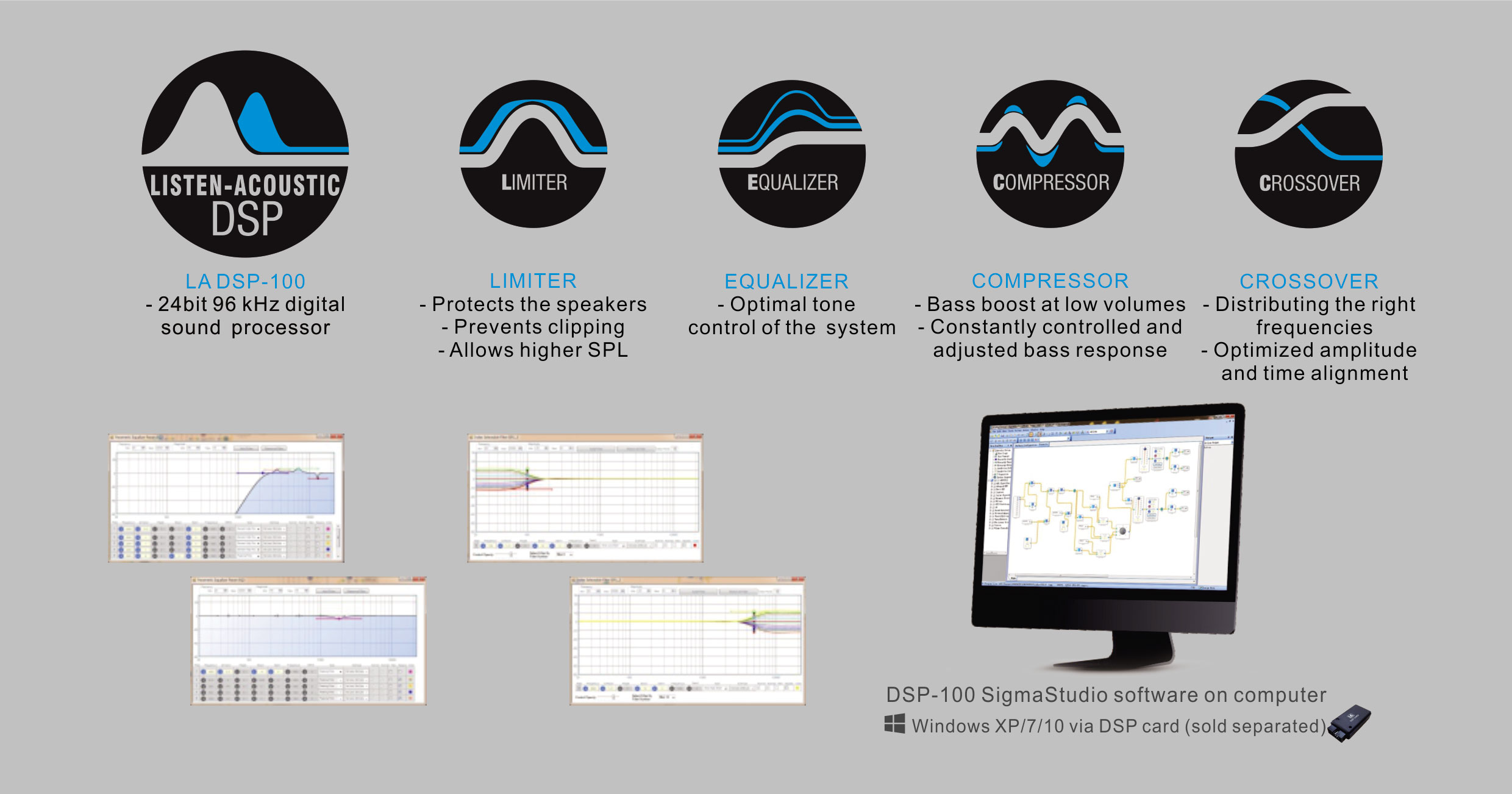

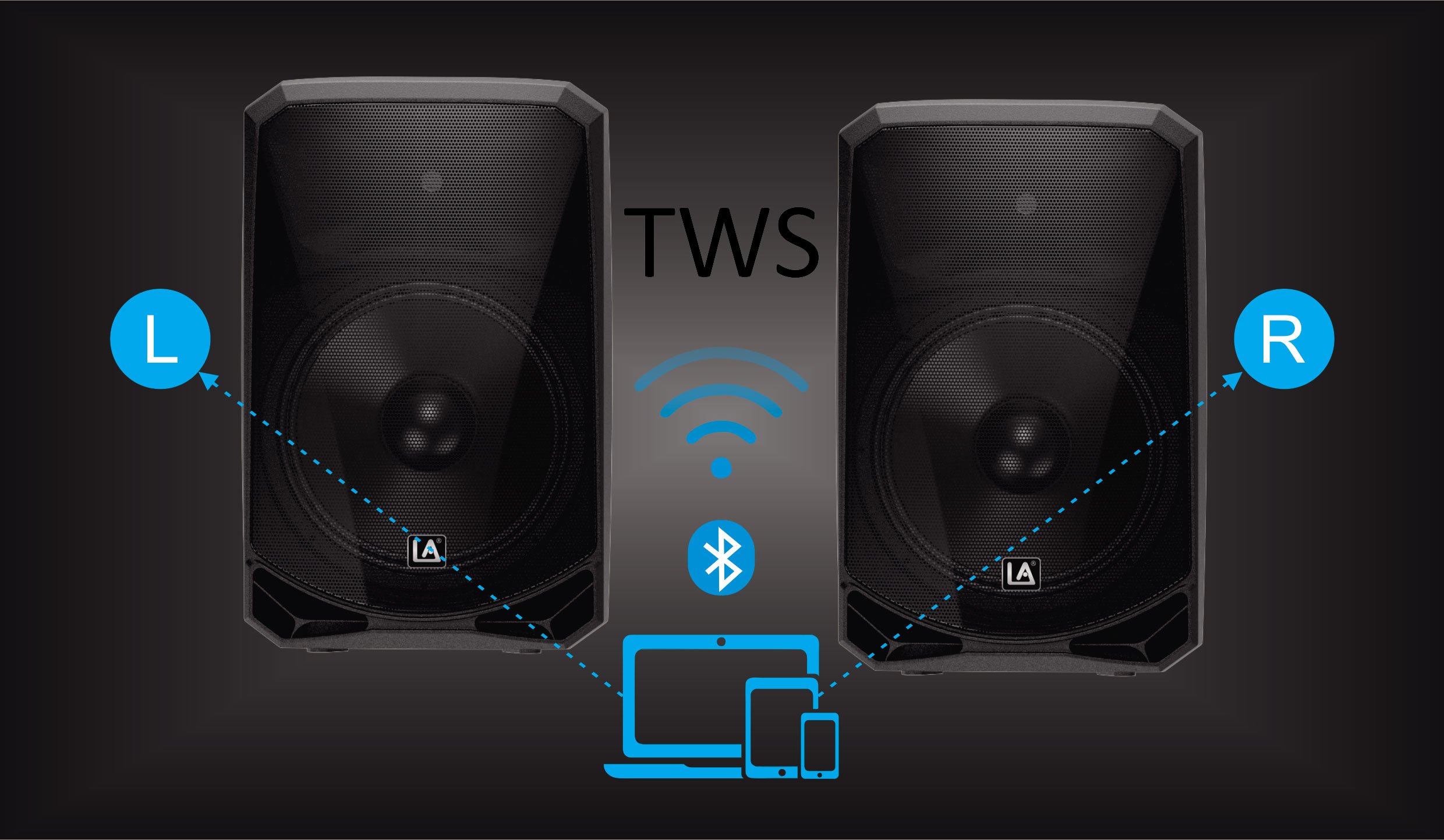

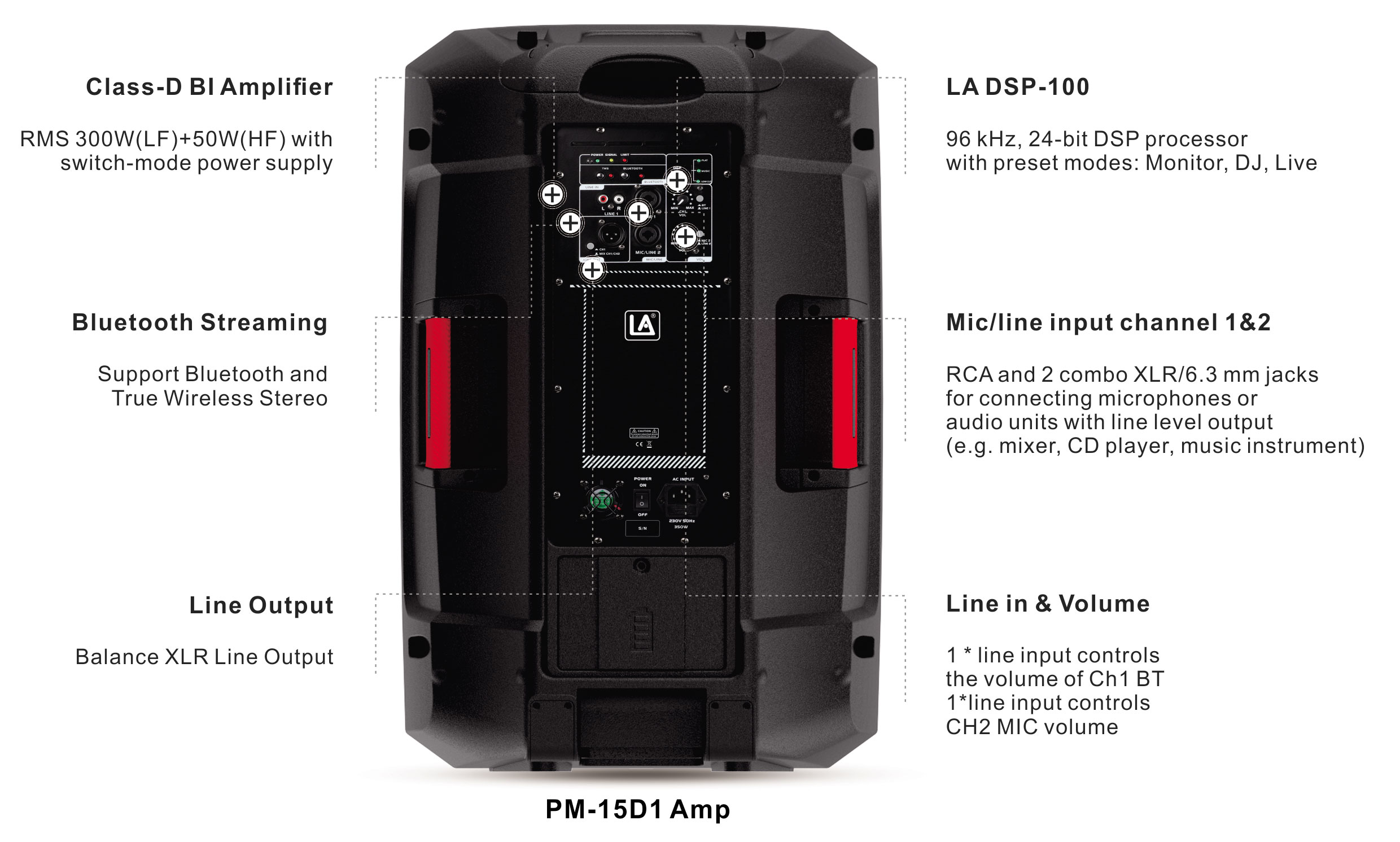

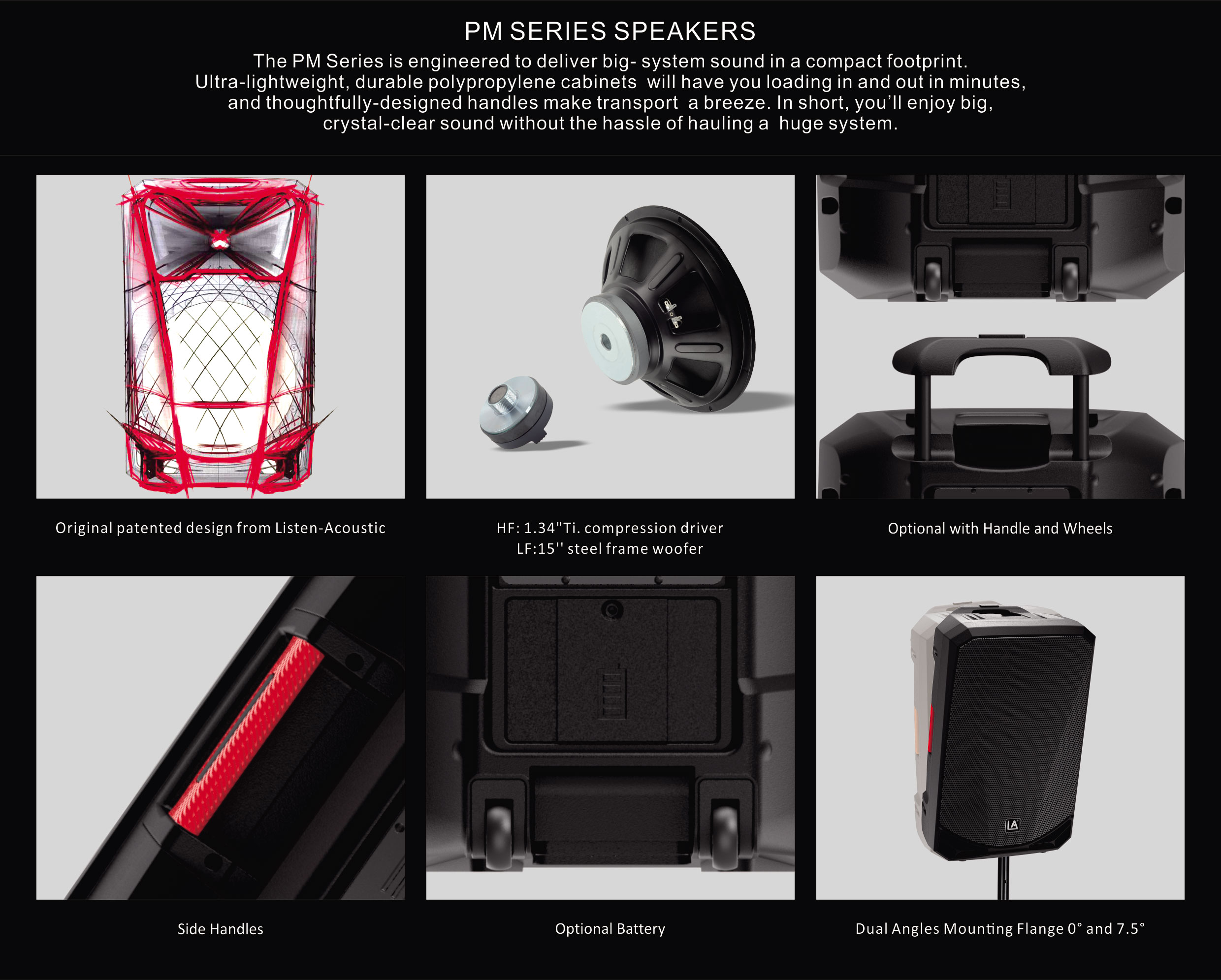

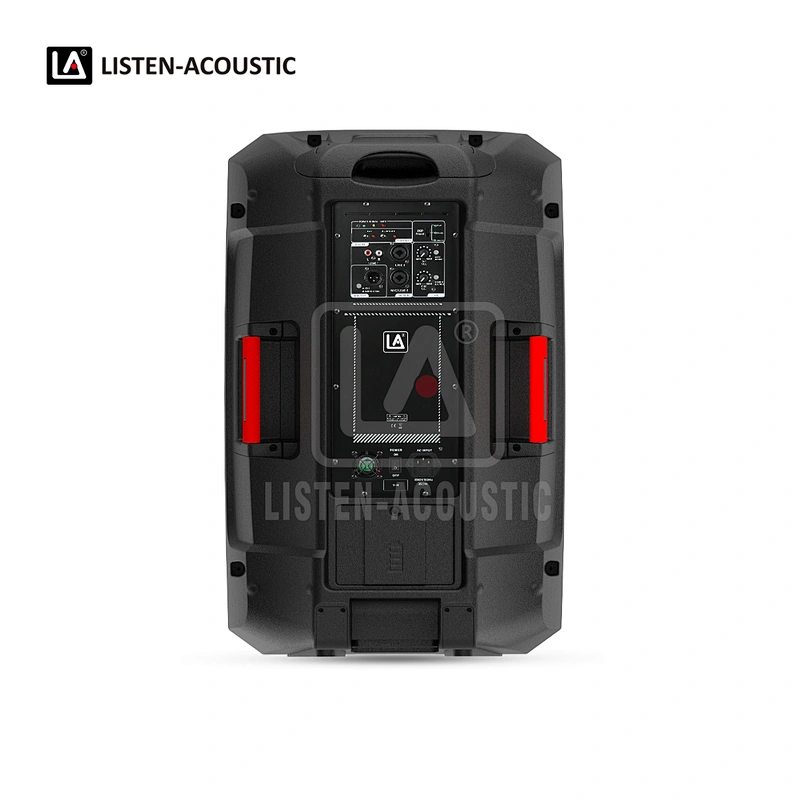

PM Series PM Powered Portable P.A. Loudspeakers √ 15PM SERIES SPEAKERS The PM Series is engineered to deliver big- system sound in a compact footprint. Ultra-lightweight, durable polypropylene cabinets will have you loading in and out in minutes, and thoughtfully-designed handles make transport a breeze. In short, you’ll enjoy big, crystal-clear sound without the hassle of hauling a huge system.Original patented design from Listen-Acoustic HF: 1.34Optional trolley Integrated handles top and 2 sides Optional battery Optional wheels Available OEM service to customize handles’ color Dual Angles Mounting Flange 0° and 7.5°Class-D BI Amplifier RMS 300W(LF)+50W(HF) with switch-mode power supply LA DSP-100 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live Bluetooth Streaming Support Bluetooth and True Wireless Stereo Mic/line input channel 1&2 RCA and 2 combo XLR/6.3 mm jacks for connecting microphones or audio units with line level output (e.g. mixer, CD player, music instrument) Line Output Balance XLR Line Output Line in & Volume 1 * line input controls the volume of Ch1 BT 1*line input controls CH2 MIC volume PM-15D1 AmpLA DSP-100 - 24bit 96 kHz digital sound processor LIMITER - Protects the speakers - Prevents clipping - Allows higher SPL EQUALIZER - Optimal tone control of the system COMPRESSOR - Bass boost at low volumes - Constantly controlled and adjusted bass response CROSSOVER - Distributing the right frequencies - Optimized amplitude and time alignment DSP-100 SigmaStudio software on computer Windows XP/7/10 via DSP card (sold separated)TWSQuick ConfigurationsLIVE SOUND PERFORMERS DISCO DJ SET PIANOBAR SPEECH CONFERENCE HIP HOP FAMILY PARTYTeaching Amplifying Classroom Presentation Training Conference Yoga Fitness Center Guitar Playing Live Singing Home Barbecue Festive Party Roadshow Wedding Culture Business Sports Live Sound Party EventsSIMILAR PRODUCTS PM-15D-120 PM-15A3 PM-15D1

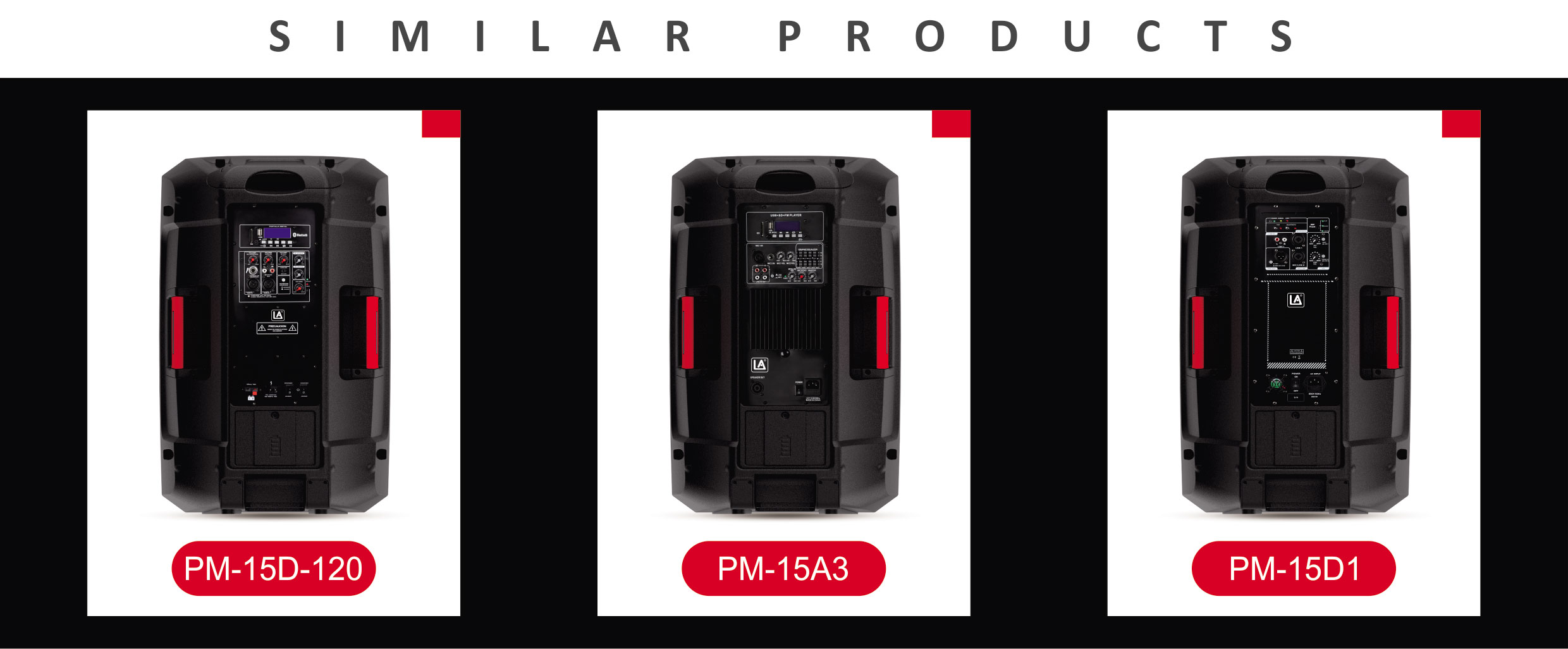

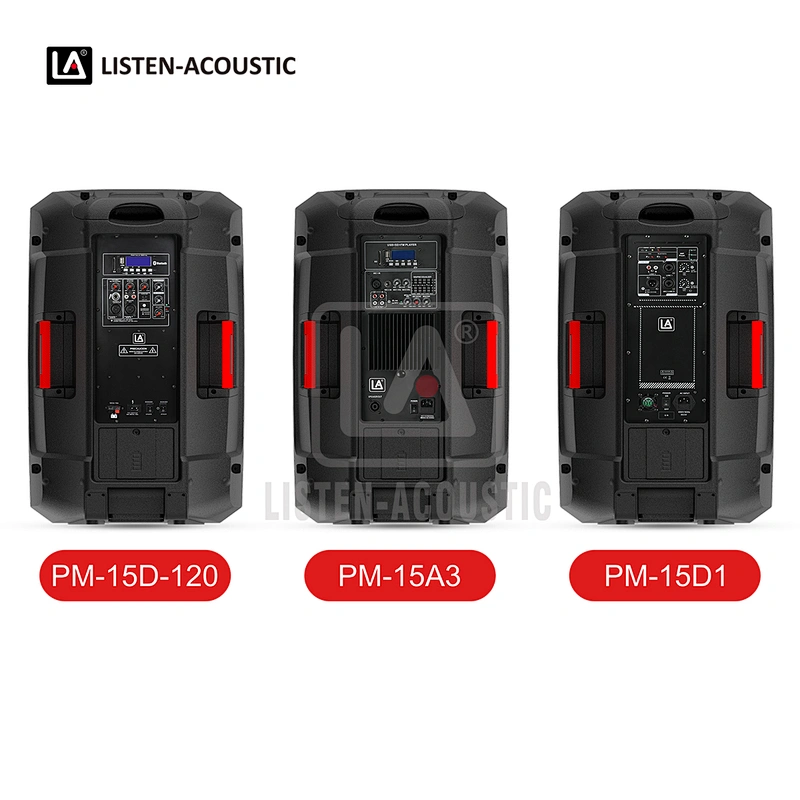

Model No.PM-15D-120PM-15A3PM-15D1
Type15'' 2-way full range speaker, active
Frequency Response (-6dB)55 Hz - 20 kHz50 Hz - 20 kHz50 Hz - 20 kHz
Max. SPL(1m, free space)129 dB129 dB129 dB
Impedance4Ohms4Ohms4Ohms
Transducer LF15"woofer,2.5"voice coil15"woofer,2.5"voice coil15"woofer,2.5"voice coil
Transducer HFPiezo tweeter1"Ti.tweeter1.34"Ti.tweeter
EnclosureH-PP cabinet,3 handles top and 2 sides,35mm stand pole
Mounting OptionsDual angles mounting flange with 0° and 7.5° tilt angle,floor monitor
GrilleMetal full grille without acoustic fabric
Optional accessoriesTrolley & wheels.tripod stand,wired mic,RGB lights
AmplifierClass-D BI amplifierClass-AB Mono amplifierClass-D BI amplifier
Power Output (RMS)80W (LF)+30W(HF)150W300W (LF)+50W(HF)
ControlsPower On / Off switch, MP3 player, mic level, AUX level, echo, bass, treble, master level, mic/line switch, TWS, light switchPower On / Off switch, MP3 player, two mic level, line/MP3 level, echo, master level, mic/line switch, 5-band EQ, TWSPower On / Off switch, mic level, line level, mic/line switch, Bluetooth, TWS, DSP preset modes selector
IndicatorsPower, LED, MP3 player, BT, TWSPower, MP3 player, BT, TWSPower, signal, limit, DSP modes, BT, TWS
Audio Input / Output1 * XLR Mic input, 1 * Jack Mic input, 1 * RCA line input ,1 * XLR line output, 1 * AUX input, MP3 player with USB+SD+FM+Bluetooth input1 * XLR Mic input, 1 * Jack Mic input, 1 * RCA line input ,1 * RCA line output, MP3 player with USB+SD+FM+Bluetooth input, 1 * Speaker output2 * Combo XLR/Jack inputs, 1 * RCA line input ,1 * XLR line output
Power SupplyDC input 110~220V 50/60HzAC input 90~120V, or 200~230V 50/60HzAC input 90~120V, or 200~230V 50/60Hz
