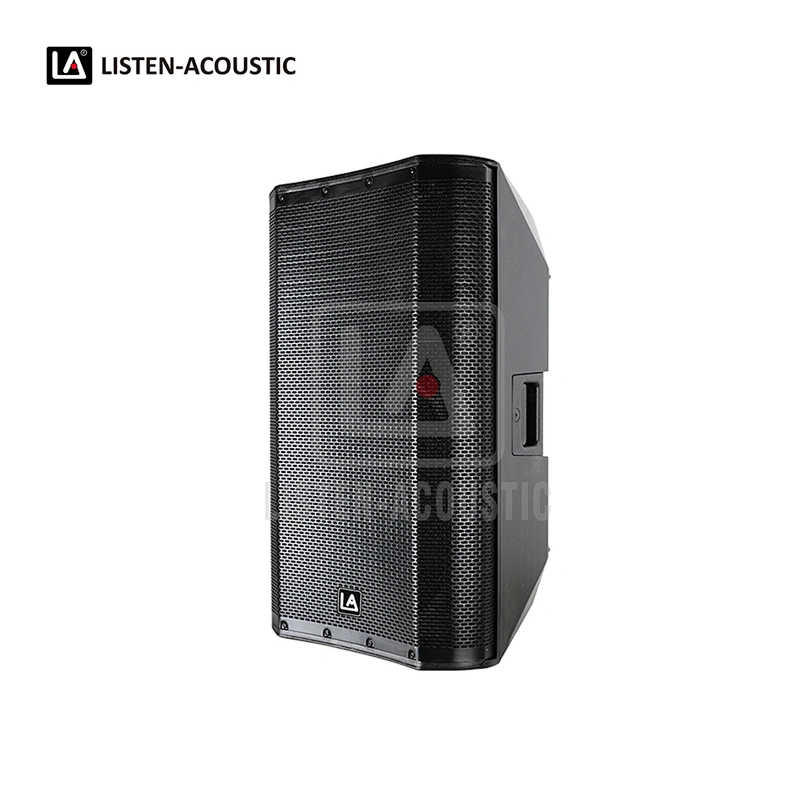

PY-10D1 portable pa system PA Speakers
| Model No. | PY-10D1 |
| Type | 10'' 2-way full range speaker, active |
| Frequency Response (-6dB) | 60 Hz - 18 kHz |
| Max. SPL (1m, free space) | 110 dB |
| Impedance | 4Ohms |

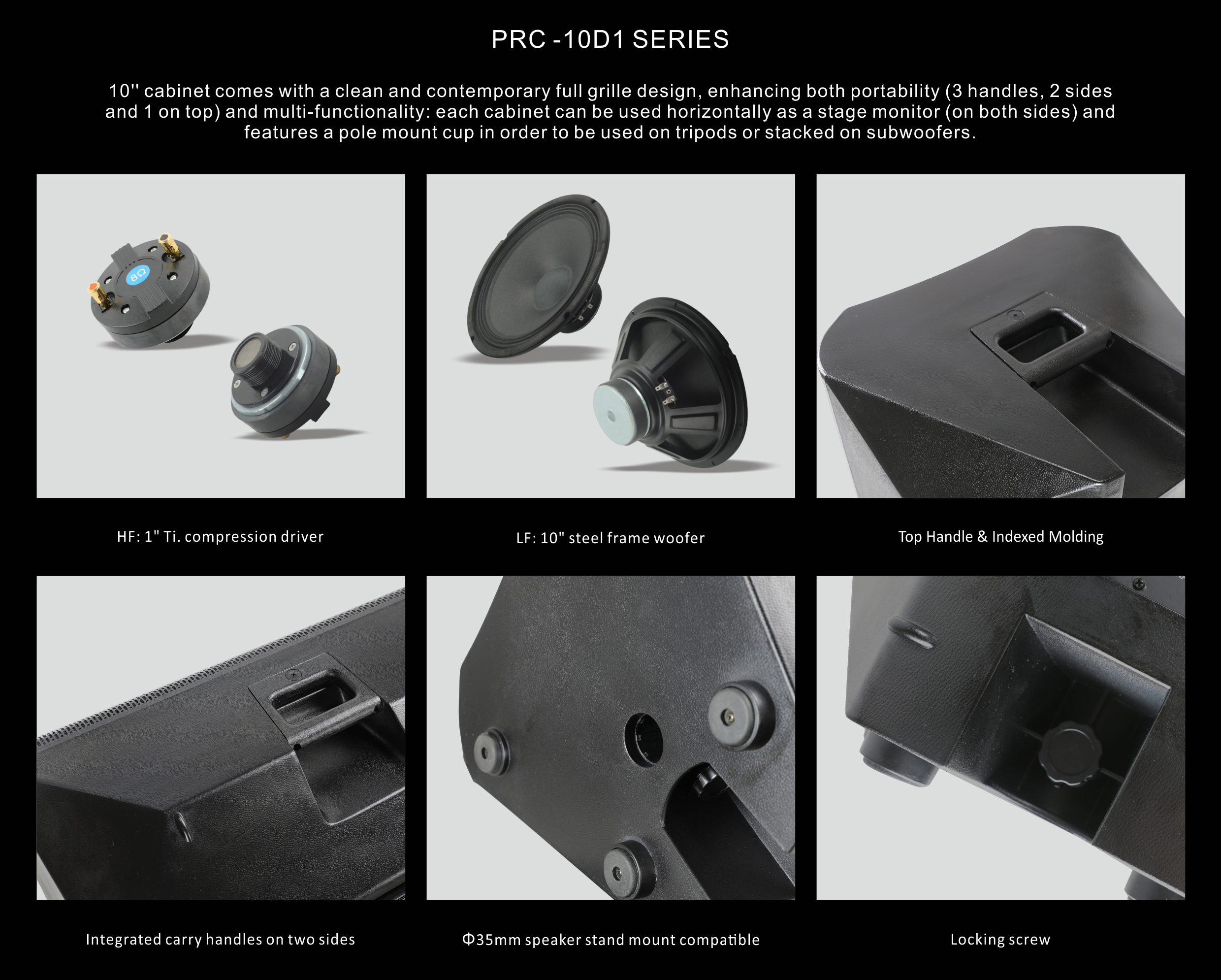

| Transducer LF | 10"woofer, 1.5"voice coil, 30oz |
| Transducer HF | 1"Ti. tweeter |

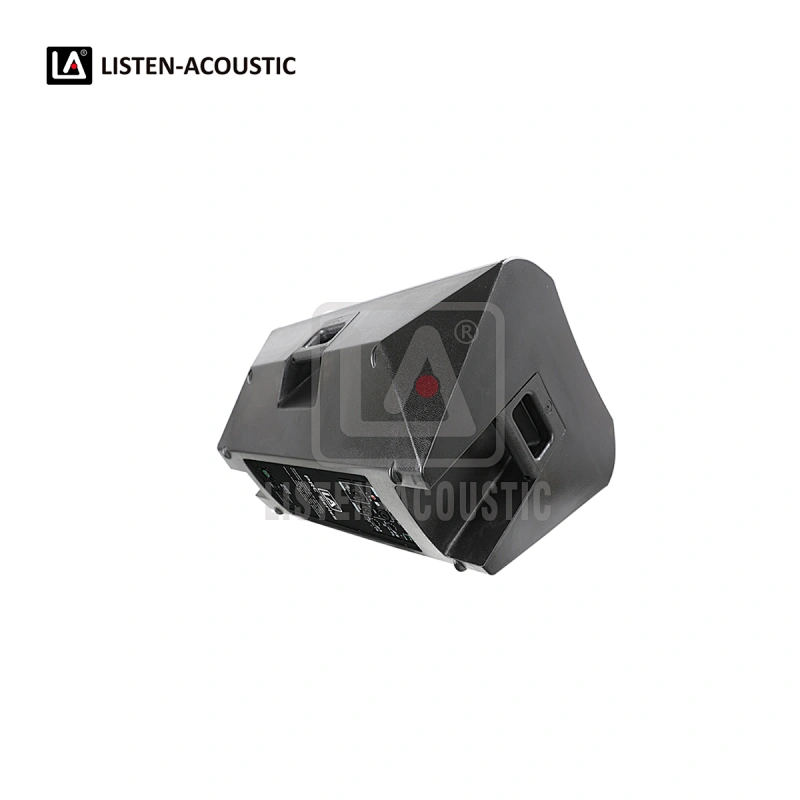

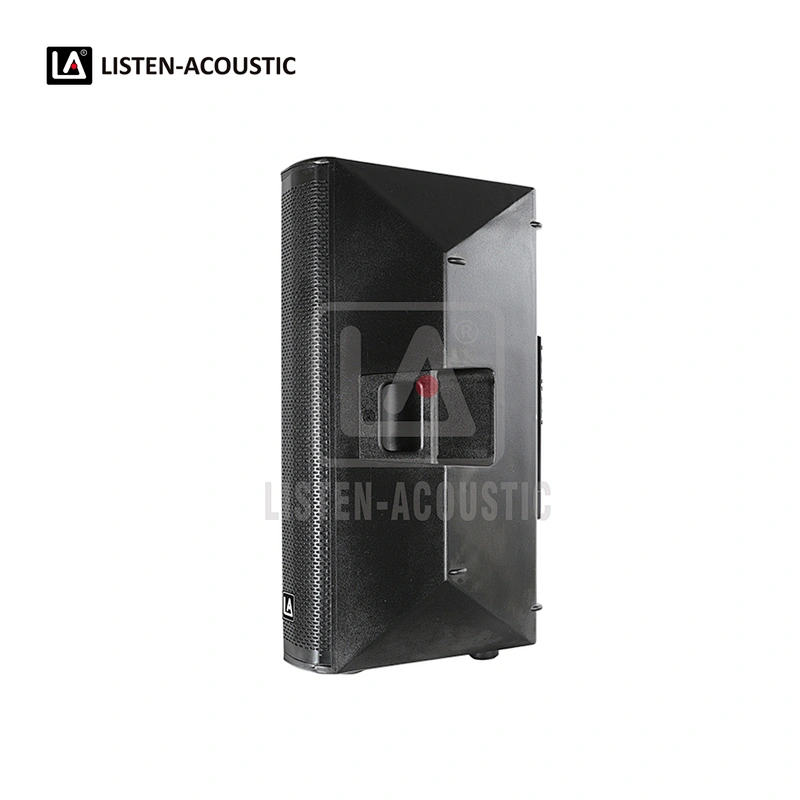

| Enclosure | ABS cabinet, 35mm stand pole, 3 handles, top and 2 sides |
| Grille | Metal grille with acoustic fabric |

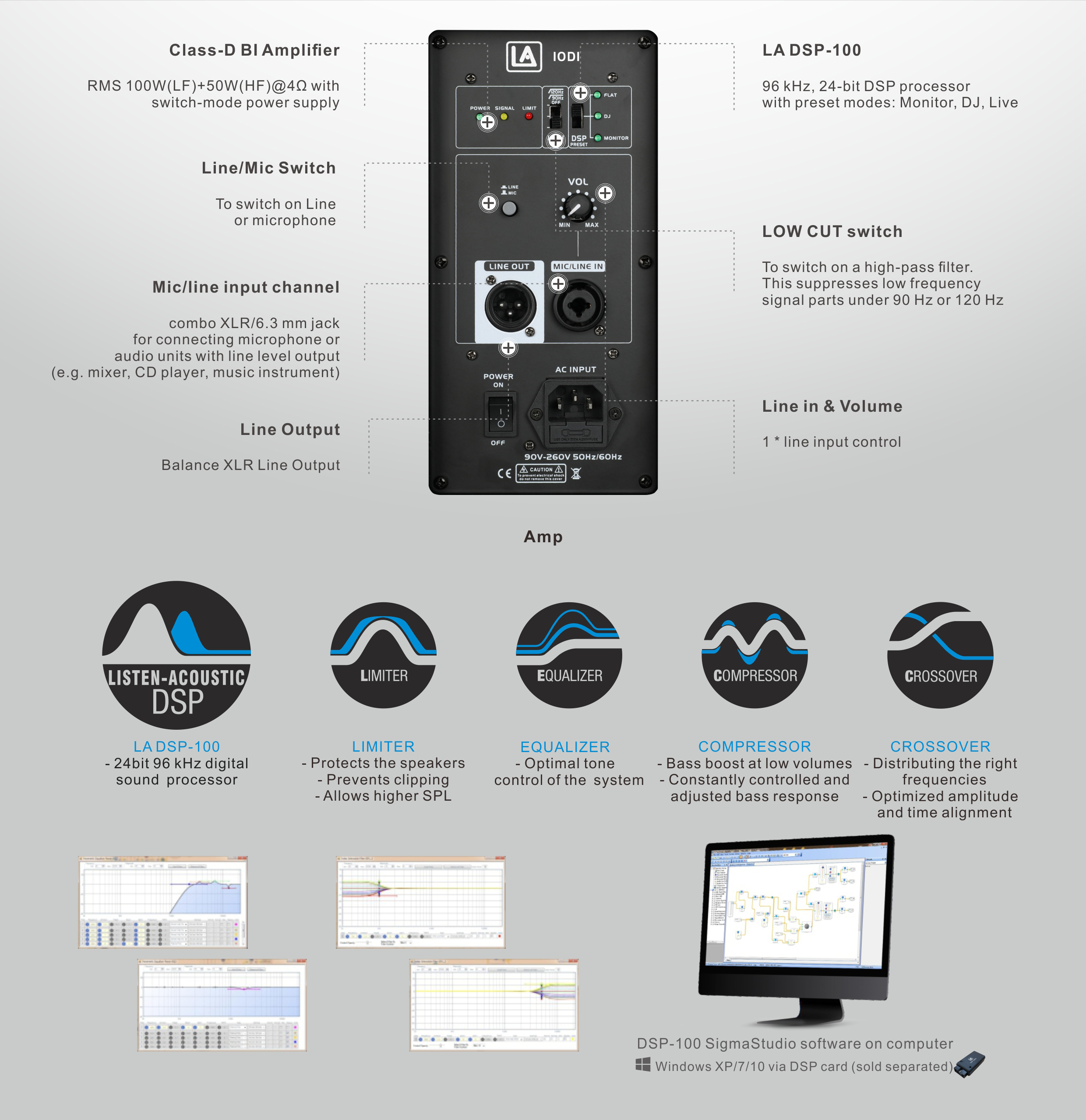

| Amplifier | Class-D BI amplifier |
| Power Output (RMS) | 100W(LF)+50W(HF) |
| DSP Module | LA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live |
| Protection | Short circuit overheating, over-current |

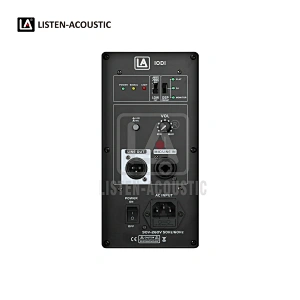

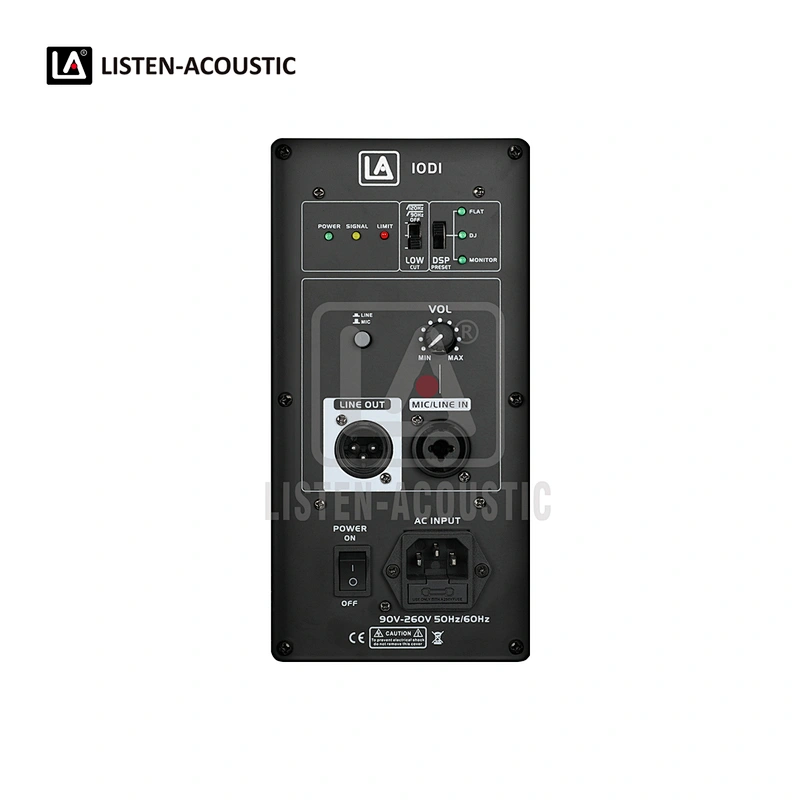

| Controls | Power On / Off switch, DSP modes switch, low cut switch, line level, mic/line switch |
| Indicators | Power, signal, limit, DSP modes, BT |
| Audio Input / Output | 1 * Combo XLR/Jack input 1 * XLR output |
| Power Supply | 90V~260V 50/60Hz |
| Package Measure | 36*33.5*54.5 cm |
| Gross Weight | 7/8 kgs |
