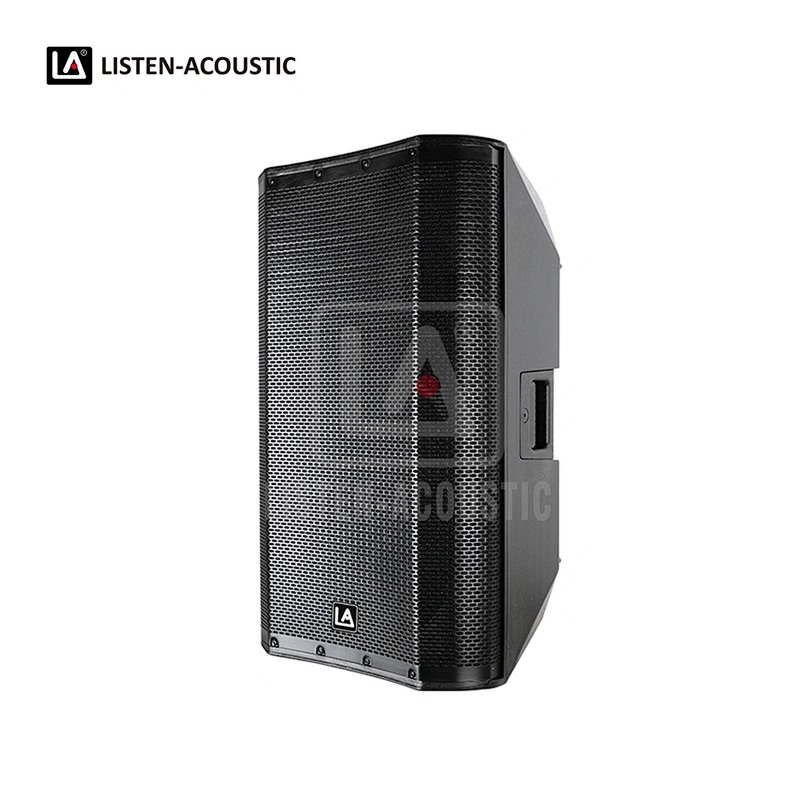

PY-12A portable speaker PA Systems





Model No. | PY-12A |
Type | 12'' 2-way full range speaker, active |
Frequency Response (-6dB) | 55 Hz - 20 kHz |
Max. SPL (1m, free space) | 125 dB |
Impedance | 4Ohms |

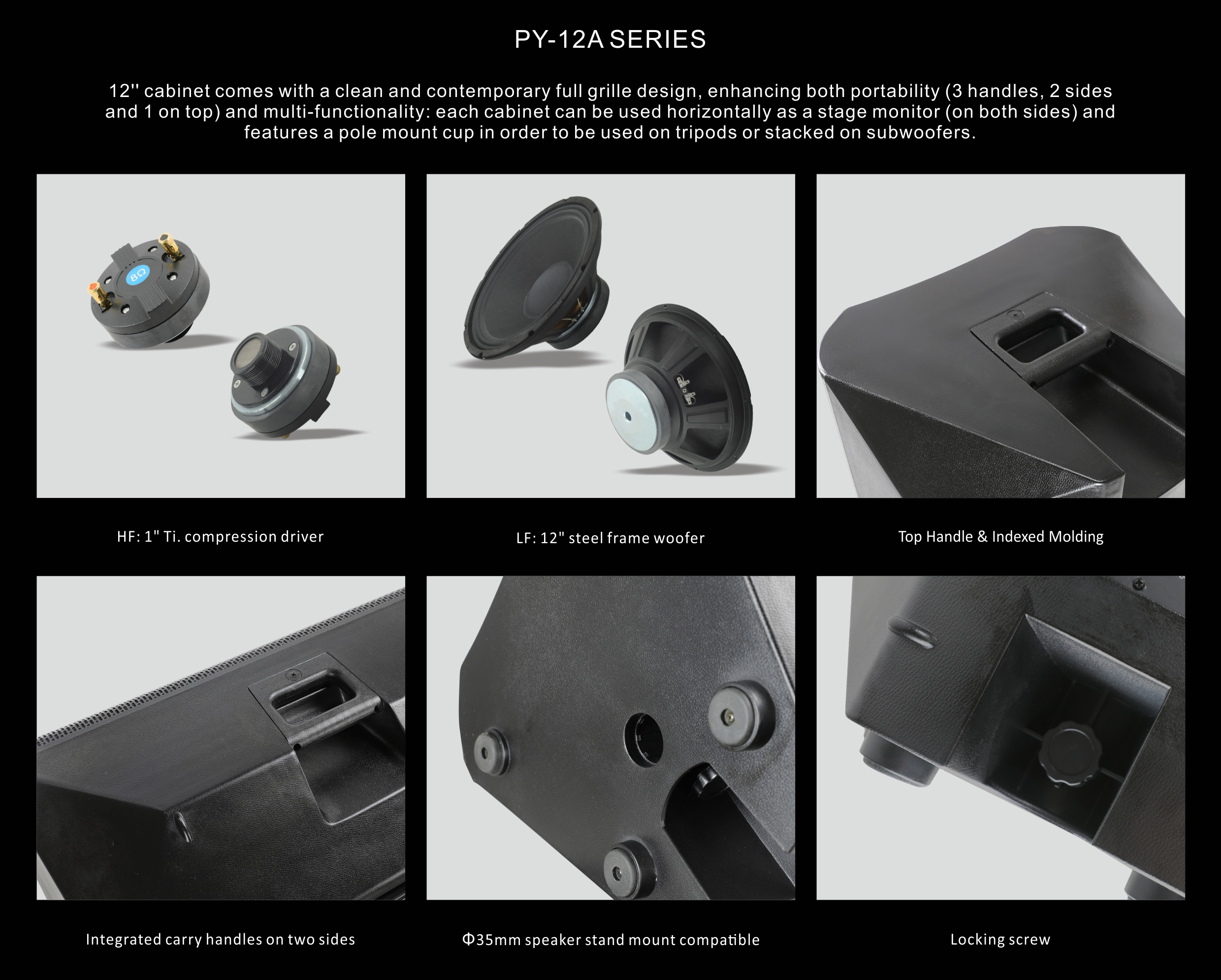

Transducer LF | 12"woofer, 2"voice coil, 40oz |
Transducer HF | 1"Ti. tweeter |

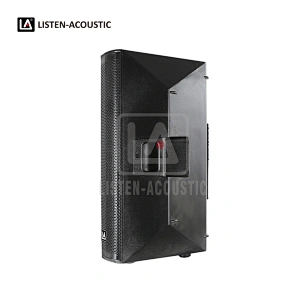

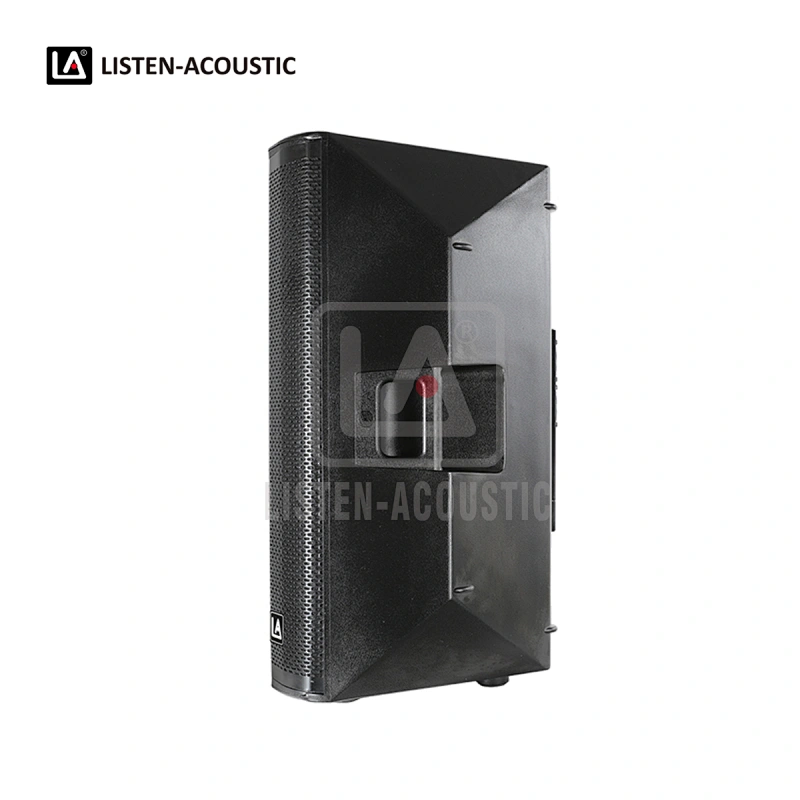

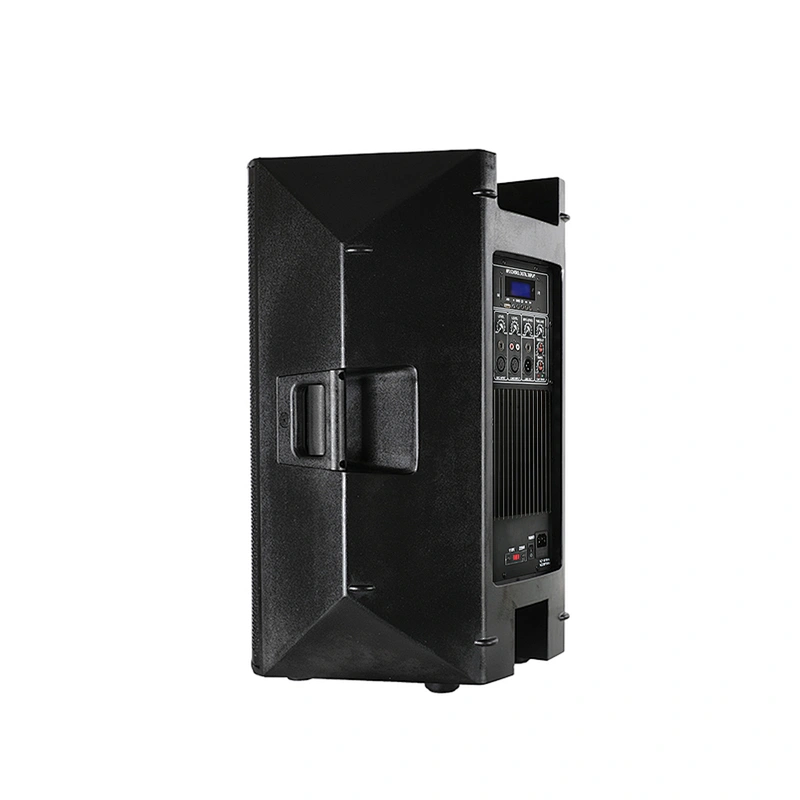

Enclosure | ABS cabinet, 35mm stand pole, 3 handles, top and 2 sides |
Grille | Metal grille with acoustic fabric |

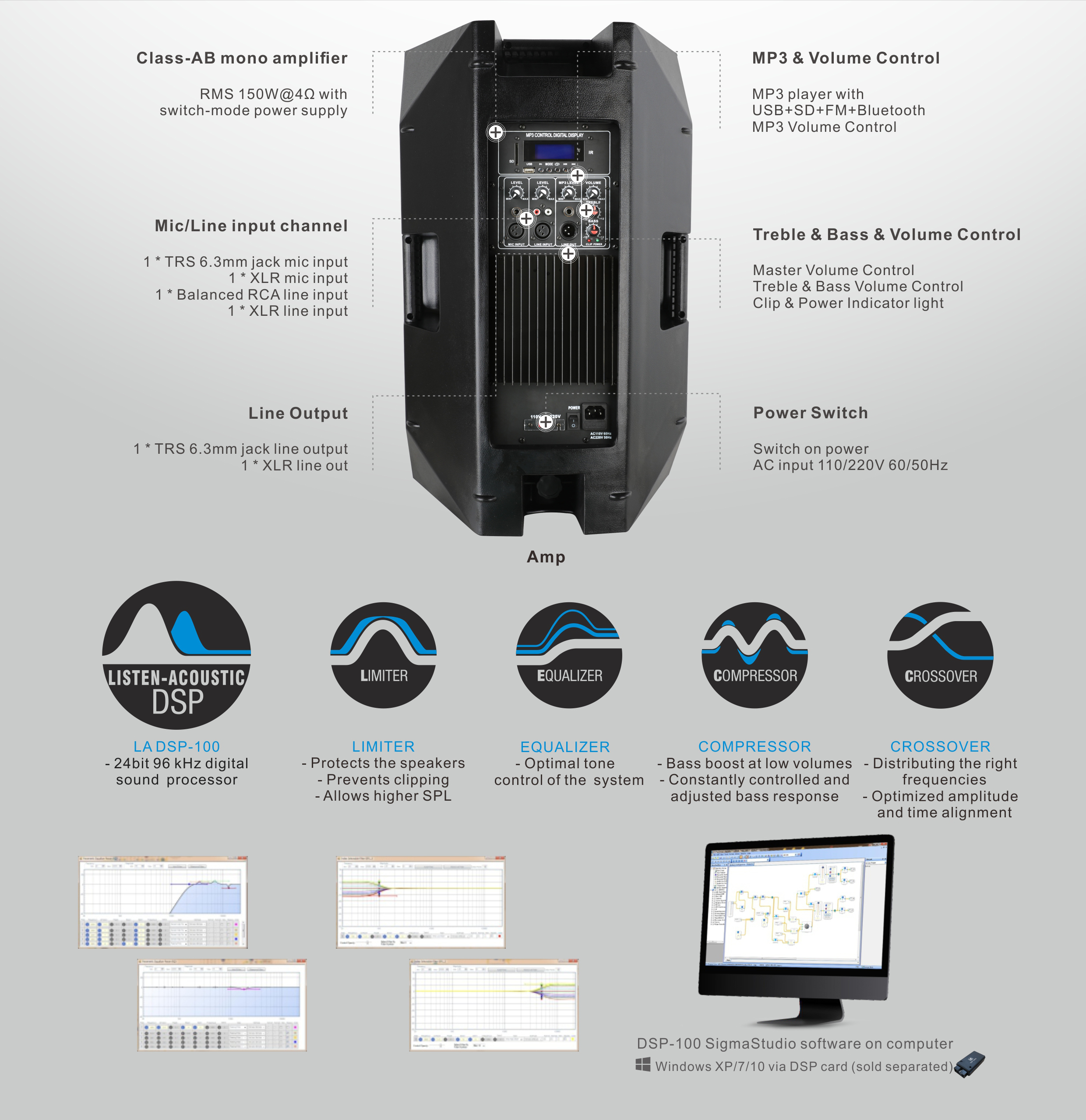

Amplifier | Class-AB mono amplifier |
Power Output (RMS) | 150W |
DSP Module | / |
Protection | / |

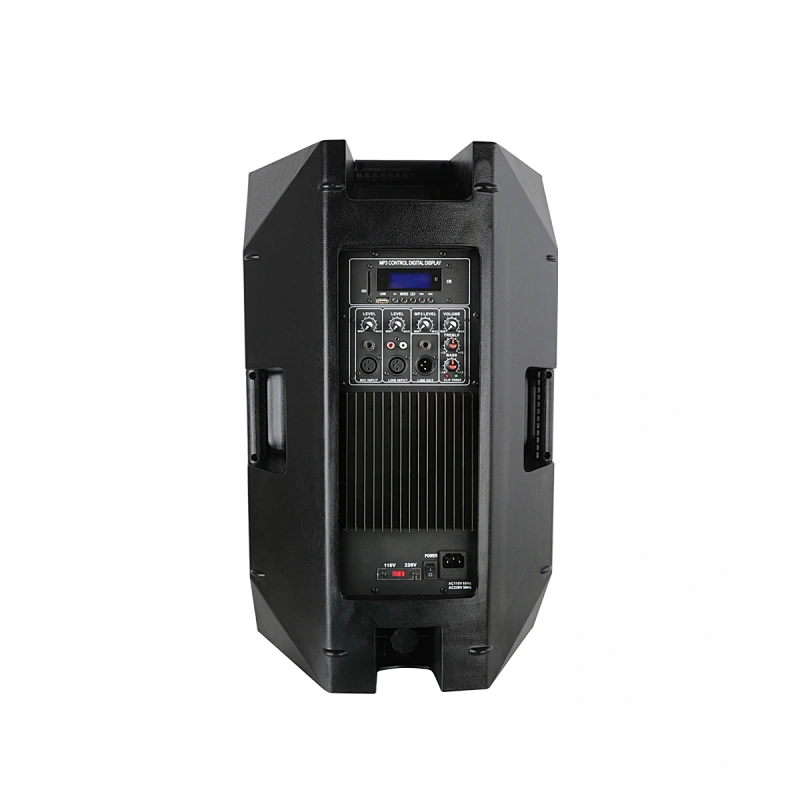

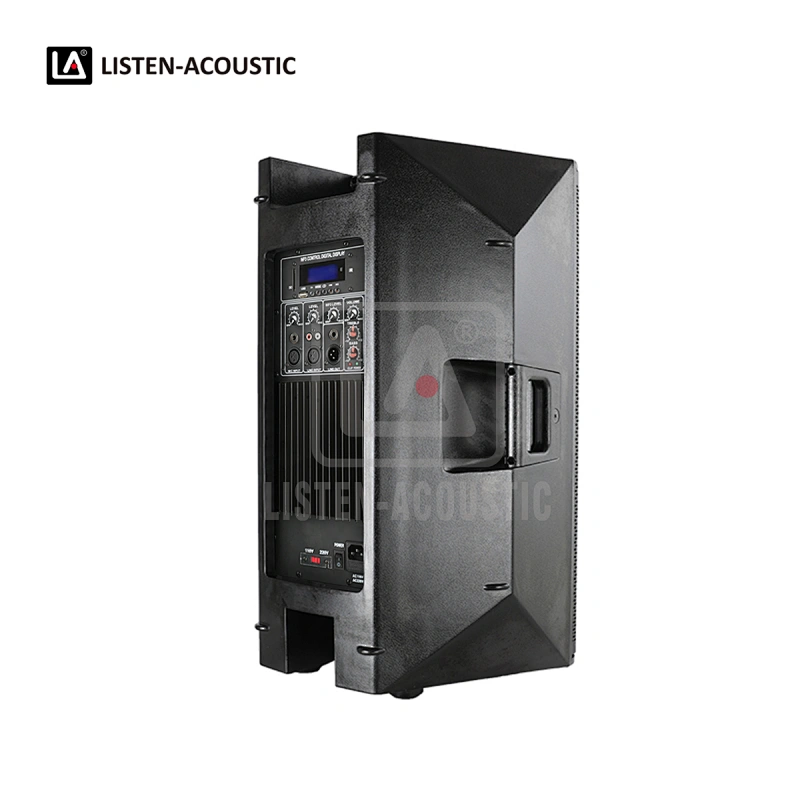

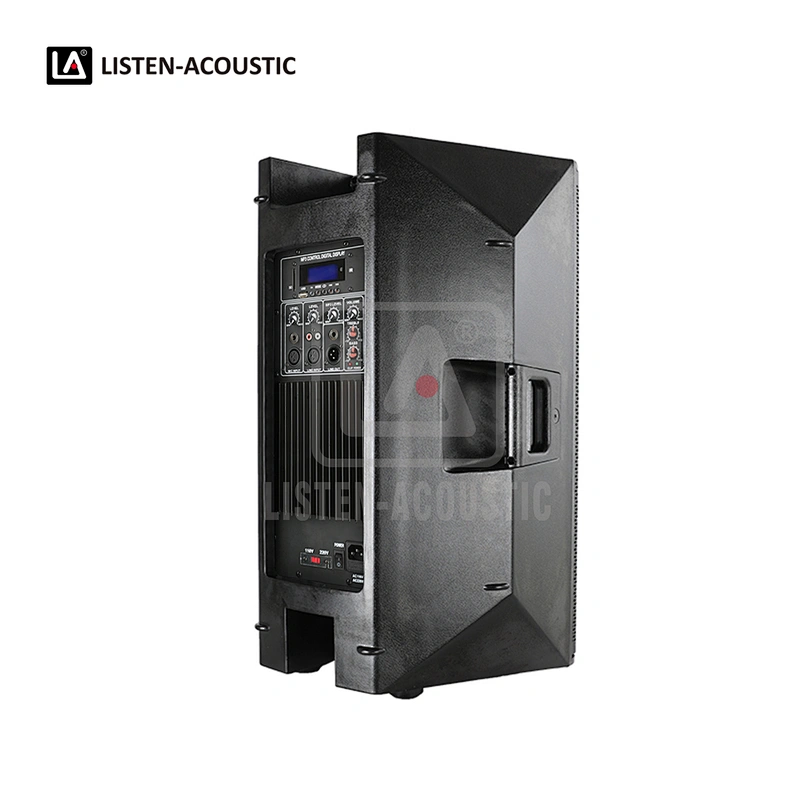

Controls | Power On / Off switch, MP3 player, mic level, line level, MP3 level, bass, treble,master level, voltage switch |
Indicators | Power, clip, signal, limit, MP3 player, BT |
Audio Input / Output | 1 * TRS 6.3mm mic input, 1 * XLR mic input, 1 * RCA line input, 1 * XLR line input, 1 * TRS 6.3mm line output, 1*XLR line output, MP3 player with USB+SD+FM+Bluetooth input |
Power Supply | AC input 110/220V 60/50Hz |
Package Measure | 42*37.5*64 cm |
Gross Weight | 16/17 kgs |
