Model NO.
PY-15D1
Delivery:
FOB
Minimum order quantity:
200 pieces
Supply Ability:
60,000 pieces / Month
Country of Origin:
Ningbo, China
Stock Time:
45 Days
15" woofer, 2.5" voice coil, 50oz + 1.35" Ti. tweeter + Class-D BI amplifier 300W(LF)+50W(HF) + DPS-100 24bit 96 kHz DSP with 3 preset modes: Monitor, DJ, Live
Quantity:

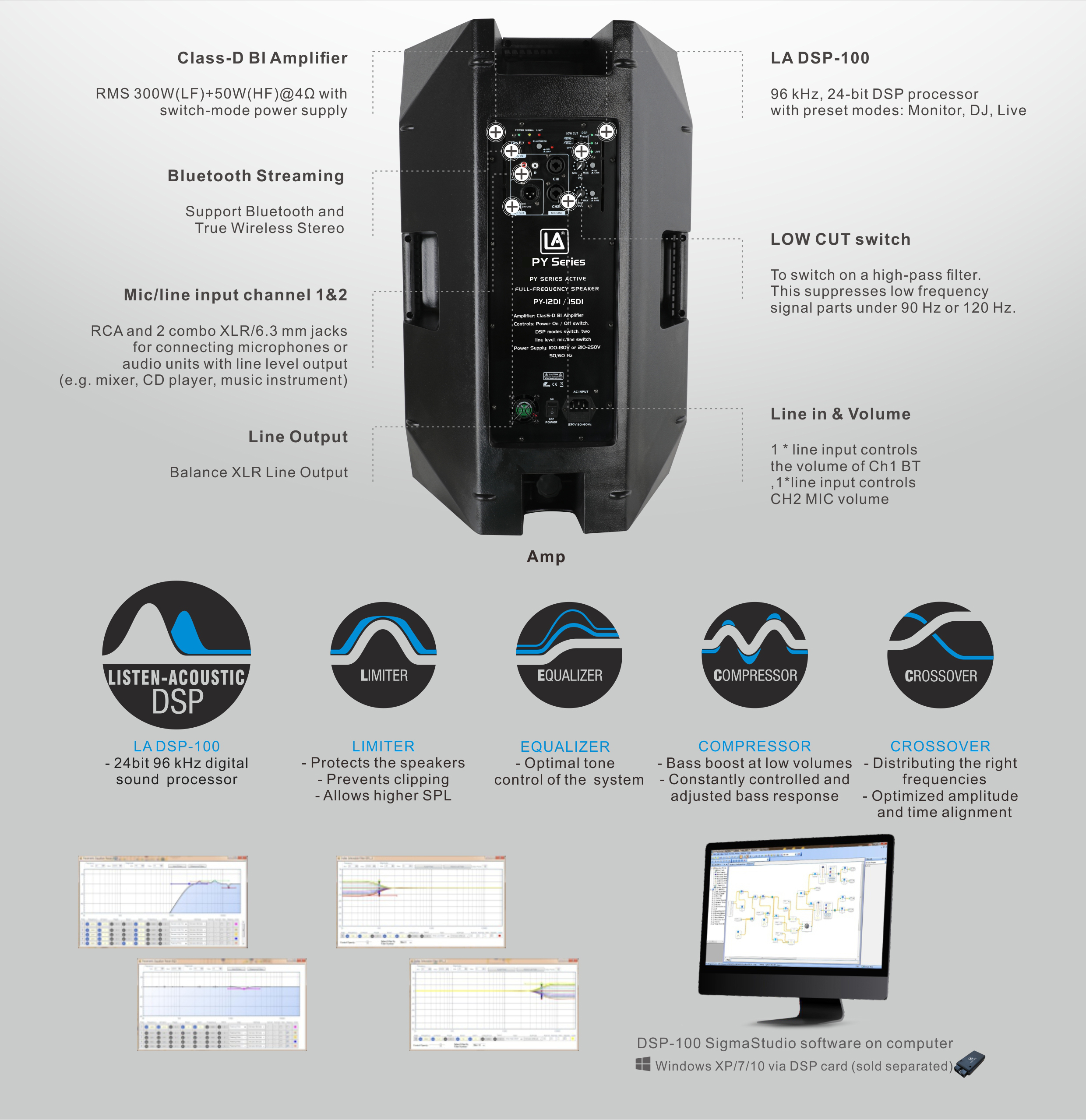

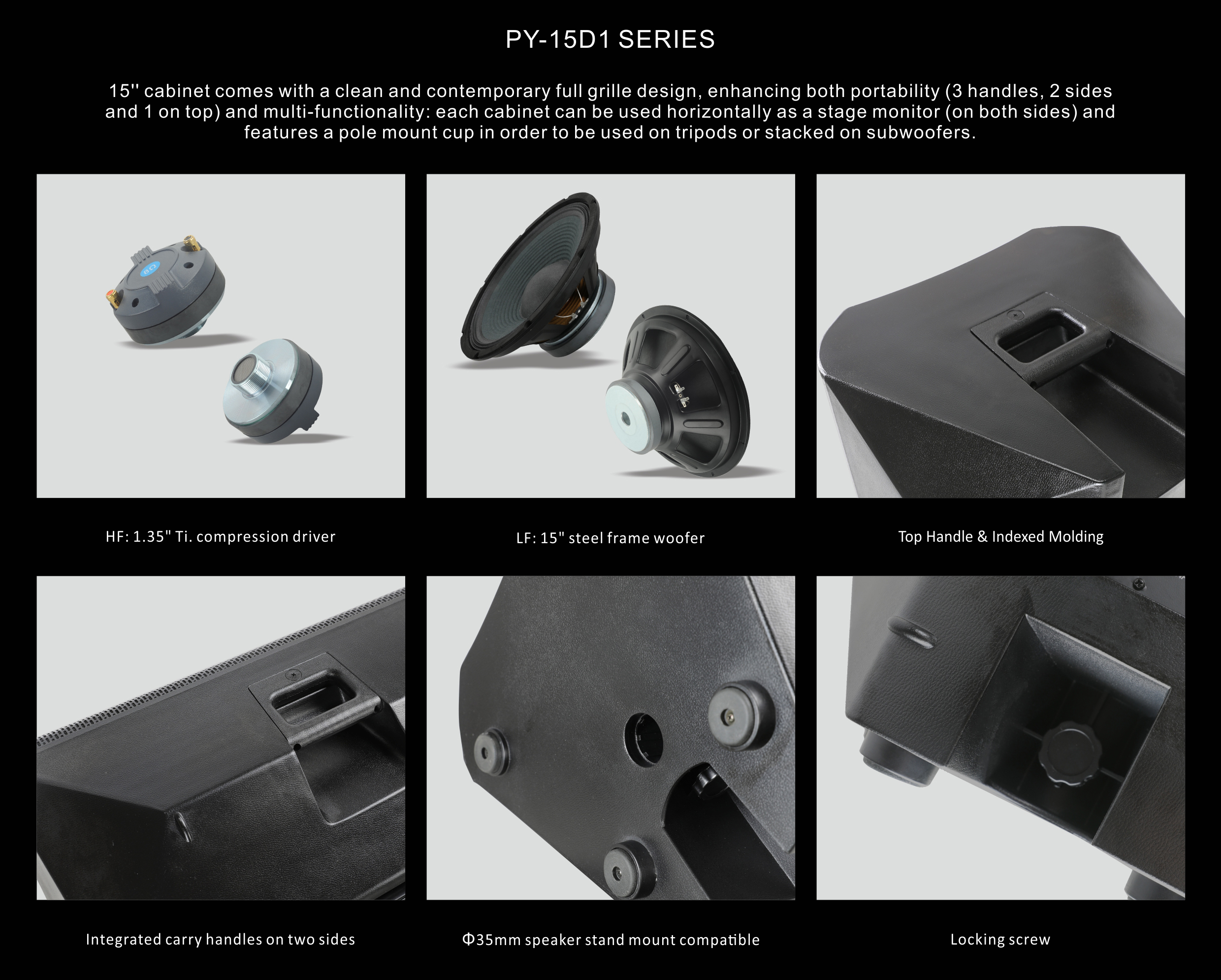

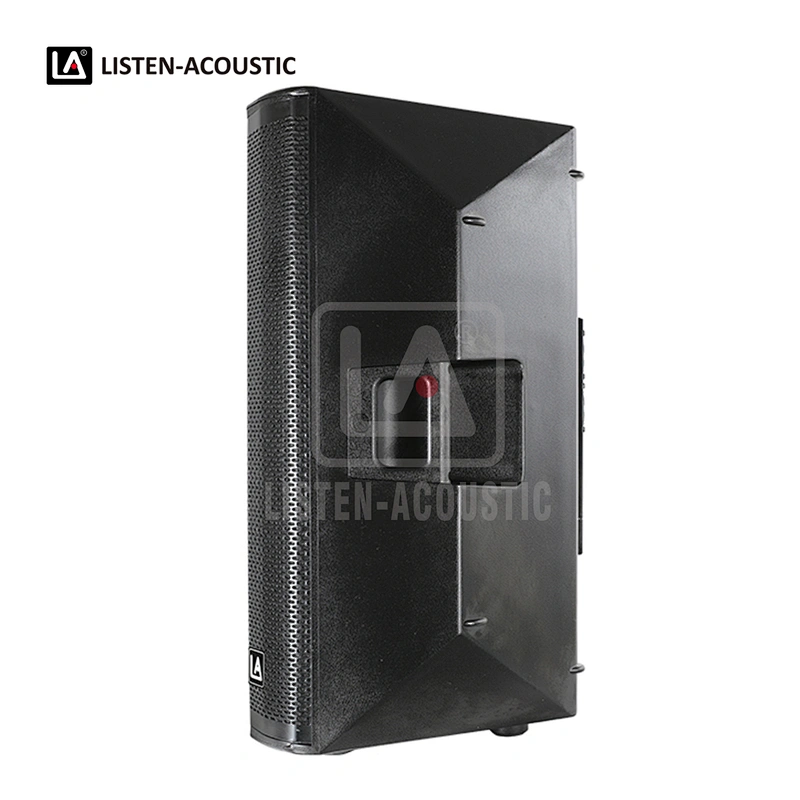

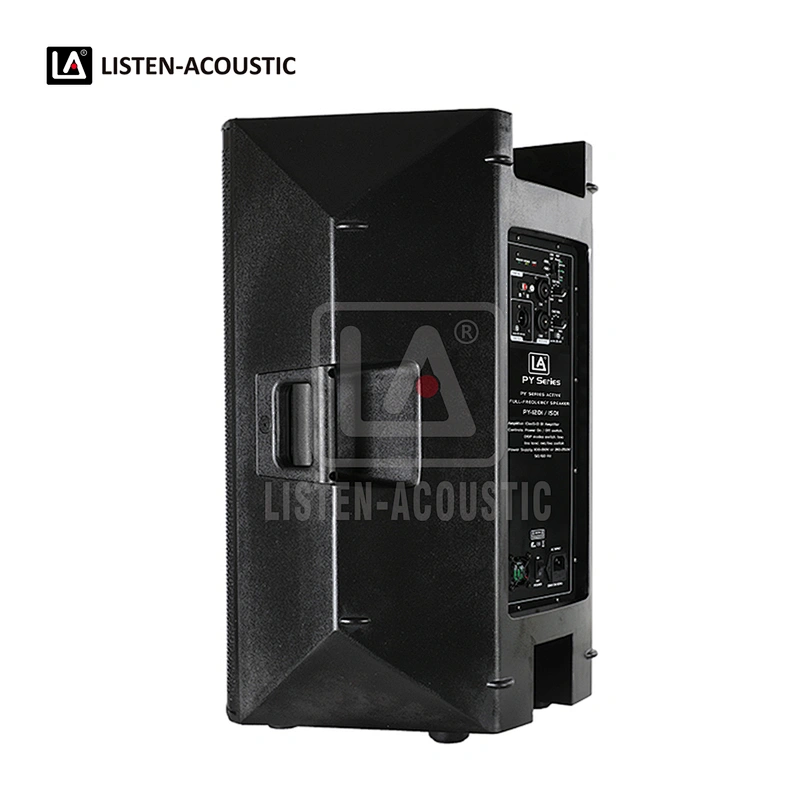

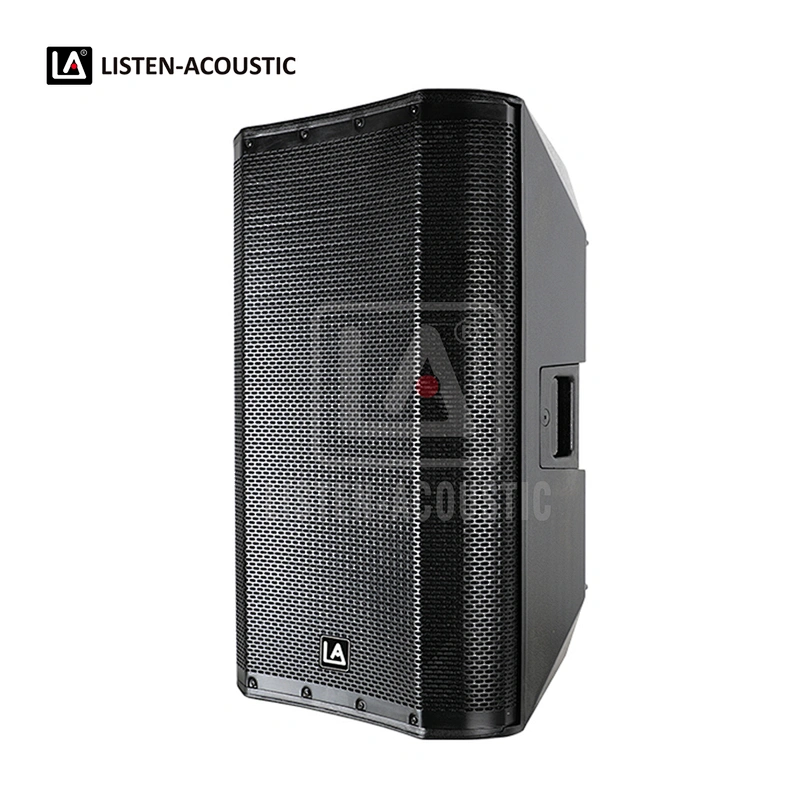

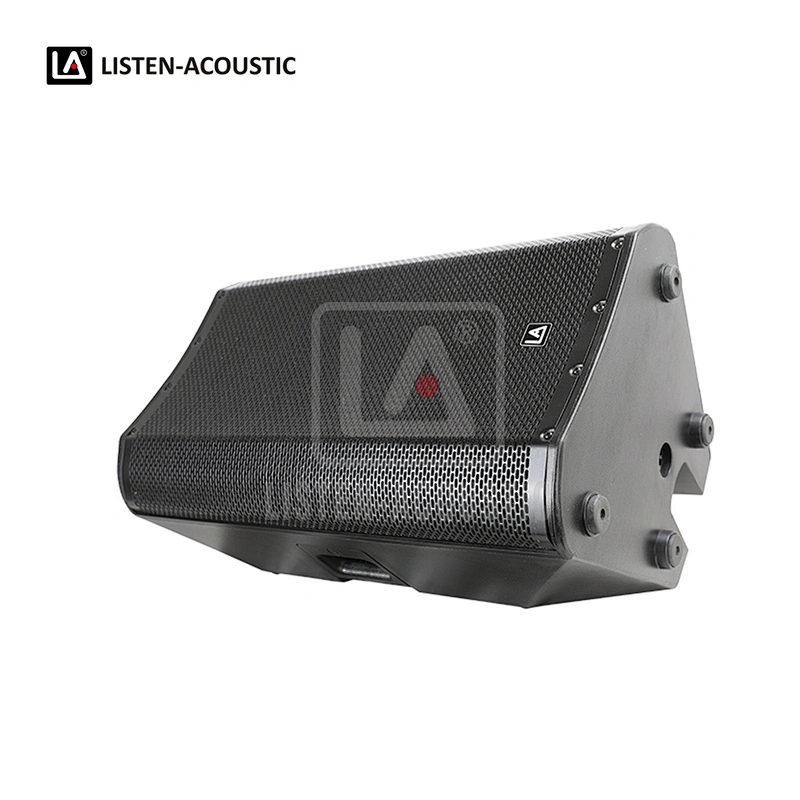

PY-15D1 PA Speaker with Class-D BI AmplifierPY-15D1 SERIES 15'' cabinet comes with a clean and contemporary full grille design, enhancing both portability (3 handles, 2 sides and 1 on top) and multi-functionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on subwoofers.Amp Class-D BI Amplifier Bluetooth Streaming Mic/line input channel 1&2 Line Output LA DSP-100 LOW CUT switch Line in & VolumeQuick Configurations LIVE SOUND PERFORMERS DISCO DJ SET MONITOR SPEECH CONFERENCE HIP HOP FAMILY PARTYSports Business Culture Live Sound Party Events

Model No.PY-15D1
Type15'' 2-way full range speaker, active
Frequency Response (-6dB)50 Hz - 20 kHz
Max. SPL (1m, free space)129 dB
Impedance4Ohms
Transducer LF15"woofer, 2.5"voice coil, 50oz
Transducer HF1.35"Ti. tweeter
EnclosureABS cabinet, 35mm stand pole, 3 handles, top and 2 sides
GrilleMetal grille with acoustic fabric
AmplifierClass-D BI amplifier
Power Output (RMS)300W (LF)+50W(HF)
DSP ModuleLA DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Monitor, DJ, Live
ProtectionShort circuit overheating, over-current

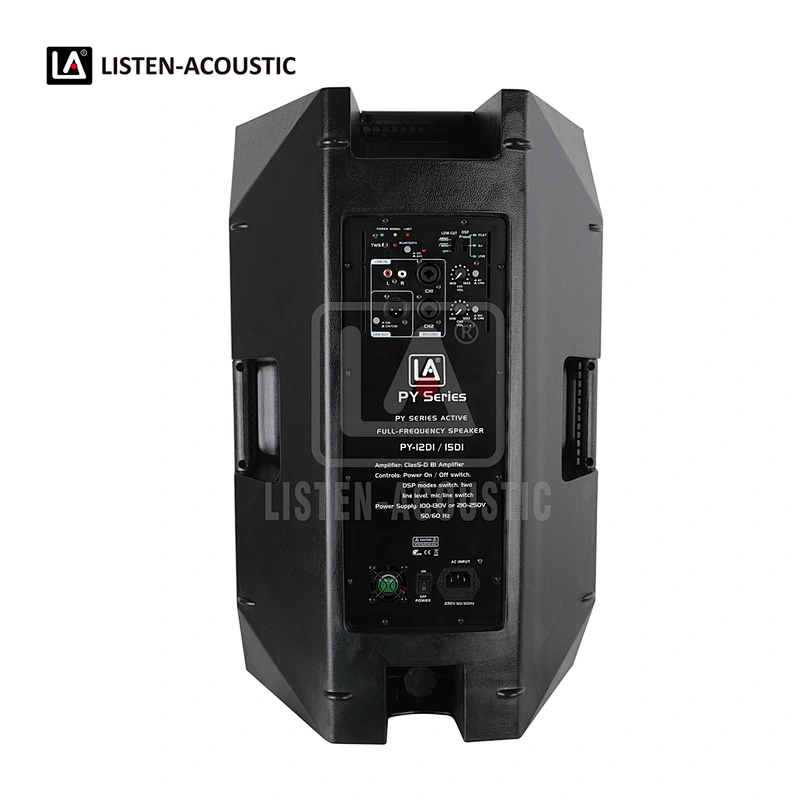

ControlsPower On / Off switch, DSP modes switch, low cut switch, line level, mic/line switch
IndicatorsPower, signal, limit, DSP modes, BT
Audio Input / Output2 * Combo XLR/Jack input
1 * RCA line input
1 * XLR output"
Power Supply100~130V 50/60Hz or  210~250V 50/60Hz
Package Measure50*44*74 cm
Gross Weight22/23 kgs
